MODBUS AND 4-20 mA TRANSMITTERS FOR SPED AND FLOW IN GAS OR LIQUIDS DMM-4000/..
The DMM-4000/.. Series are two loops configurable field transmitters for specific variables with inputs adapted to each variable (DMM-4000/... where the suffix shows the version), e.g. Chemical (pH, Conductivity, etc.), Electric (V, A, RMS, etc.), Humidity (HR, HA, Enthalpy, Dew point), Pressure, Level, Flow, Pulse Counter, Vibration, Weight, etc.
Allows with low cost to take signals placed on field and to transmit them toward control systems as PC or PLC in mA and Modbus saving A/D and D/A conversion tasks. In option, they can be to communicate by Radio 868 MHz (915 MHz in USA) or by Ethernet, cable or WiFi, by means adapter modules RMT, EMT or WMT-1000 Series.
|
|
¨ DC or AC powered.
¨ Pulse and analog output scaled per unit of measure.
¨ Optional Hi and Lo alarms.
¨ Flowmeter Linearization.
¨ Factory configured when purchased with a Hoffer
flowmeter.
¨ Several Enclosure options.
¨ CE Compliant.
¨ Windows® Configuration Software
|
|
| ... products without technical information |
| |

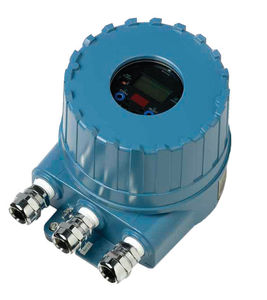

Foxboro Coriolis flow transmitters handle measurements that cause other Coriolis meters to fail. They overcome problems associated with entrained gases, empty tube conditions or flash-prone fluids and fully realize the promise of Coriolis measurement to achieve high accuracy, eliminate downtime, avoid workarounds and keep profits flowing.
Features:
- Highly accurate mass, density and temperature measurement
- Unprecedented, precise liquid/gas flow measurement without skips or stalls
- Fast startup — up to 10 times faster than conventional Coriolis meters
- Highly accurate batches, starting from empty tube
|
|
| ... products without technical information |
| |
|
|
|
|
The FlowHUB is ideal for condition monitoring, test stands and closed loop control applications both for fluid power and lubrication systems. The FlowHUB can measure and display flow and temperature readings as well as switch and transmit flow values. This enables a system designer to trigger alarms, shutoffs and transmit real-time values to a PLC using just one component, instead of up to six which might have been required conventionally. This represents a significant cost saving in terms of reduced complexity of wiring and far fewer components.
It is available in five flow ranges from 1 to 360 lpm (0.25 to 100 US gpm) and in two pressure ranges 210 and 420 bar (3,000 and 6,000 psi). The FlowHUB is available in three versions - ‘Switch’, ‘Transmitter’ and ‘Ultimate’, all three versions have built in temperature measurement and a large bright digital display.
The 'Switch' version provides two configurable switched outputs; the trigger flow rate, time delay, sense (above/below) and normal mode (normally closed / normally open) can all be freely configured. Each switch is independent and can switch up to 500 mA. The 'Transmitter' version provides a conditioned analogue output either 0 to 5 Volts or 4 to 20 mA - full scale is configurable to any maximum flow. The 'Ultimate' version has both the switches and transmitter and the highest pressure rating of 420 bar (6,000 psi) as well as an enhanced response time of 50 ms.
Other configurations are available on request.
|
|
The CAT3 is a DC or AC powered, microprocessor
controlled transmitter. It outputs a pulse scaled per unit of
flow, and analog signal proportional to flow rate. The
CAT3 can be configured with High and Low alarms.
|
|
Thermatel® Model TA2 Thermal Mass Flow Transmitter provides reliable mass measurement for air and gas flow applications. The powerful, yet easy to use, electronics are contained in a compact explosion proof enclosure. The TA2 offers excellent performance at exceptional value.
Probes can be provided with a variety of process connections, including threads, flanges, or installation through a compression fitting. The sensor will fit pipe sizes of 1 1/2" diameter or larger (2" minimum size with thread connection).
The sensor is protected to prevent damage due to “bottoming-out” if inserted too far into a pipe. When using an insertion probe with compression fitting, the user can adjust the position of the sensor in the pipe to obtain the optimum location. Typically, this will be with the bottom of the probe 1.0 inch (25 mm) lower than the center line of the pipe.
|
|
|
|
|
|
Measuring range : from 0/+10 Pa to -10 000/+10 000 Pa
Configurable intermediary and central zero ranges
Air velocity and airflow functions
Interchangeable measuring sensor (SPI technology)
Simultaneous display of 1 to 4 parameters
External transmitter unputs (KIMO class 200 and 300) and thermocouple K
2 output 4-20 mA or 0-10 V (4 wires), RS 232, 2 RCR relays 6A/230 Vac
2 visual (dual color LED) and audible (buzzer) alarms
Software, keypad or remote control configuration
MODBUS network RS 485 system (optional)
ABS or ALU IP 65 housing, with or without backlit gaphic display
Mounting with the 1/4 turn system with wall-mount plate
CP301 : -100/+100 Pa (resolution : 0.1 Pa)
CP302 : -500/+500 Pa
CP303 : -1000/+1000 mbar
CP304 : -10 000/+10 000 mbar
• Barbed fittings Ø 5,2 mm
• Unit of measurement : Pa, mmH2O, mbar, inWG, mmHG
• Power supply : 24 Vac /Vdc, 115 Vac or 230 Vac
• Outputs : 2 x 4-20 mA or 2 x 0-10 V
• Functions : pressure, air velocity, airflow with Pitot tubes, Debimo and other coefficients, integration of measure, self-calibration, measuring correction factor, temperature compensation : manual or automatic (thermocouple K input).
Join our distribution network all over the word....Contact us !
|
|
|
|
|
|
ComfortSense
Thermal comfort measurement according to EN 13182, ISO 7736 and ASHRAE standard 113
Dantec Dynamics’ ComfortSense system is designed for research and development of heating and air conditioning systems requiring multi-point measurements of air velocity and temperature. Draught measurements require omnidirectional sensors with a frequency response of at least 2 Hz, which is fulfilled by the present system.
ComfortSense elements
The ComfortSense system consists of a main frame with anemometer circuits for up to 16 probes. The omnidirectional probes measure both air velocity and temperature. Six frames can be connected so that up to 96 probes can be monitored simultaneously. The ComfortSense main frame has a built-in A/D converter with USB 2.0 interface.
Easy-to-use
It is easy for the user to setup a measurement sequence and make a measurement grid with selection of probes from a user library. The software delivers statistical results based on user-defined measurement cycles. The ruggedly designed probes and cables are perfectly suited for large test rooms.
|
|
The Activa Sensor Array provides fl ow,
temperature and pressure signals in a compact
unit that requires only one hydraulic line break.
Each sensor transmits an output signal that is
easily integrated with PCs, PLCs, recorders or
panel displays. Signals can also be transmitted to
Flo-tech’s F6700/F6750 Series digital displays.
|
|
Ashcroft® low differential pressure transmitters provide unmatched, full-scale terminal point accuracy, including non-linearity, hysteresis and non-repeatability.
Types include:
*Ashcroft® Xldp - Durable, flameproof NEMA 2 stainless steel construction
*Ashcroft® IXLdp - Industrial NEMA 4X metal construction, FM approved for hazardous locations
*Ashcroft® RXLdp – Reduced size mounts inside a standard 3 1/2 " electrical box
*Ashcroft® DXLdp - DIN rail mount reduces footprint area 4:1…SpoolCal[TM] feature allows on-line verification and calibration
[Ashcroft DXLdp shown]
|
|
| ... products without technical information |
| |
|
|
|
|
Measuring range : from 0/+10 Pa to -10 000/+10 000 Pa
Configurable intermediary and central zero ranges
Air velocity and airflow functions
Interchangeable measuring sensor (SPI technology)
Simultaneous display of 1 to 4 parameters
External transmitter unputs (KIMO class 200 and 300) and thermocouple K
2 output 4-20 mA or 0-10 V (4 wires), RS 232, 2 RCR relays 6A/230 Vac
2 visual (dual color LED) and audible (buzzer) alarms
Software, keypad or remote control configuration
MODBUS network RS 485 system (optional)
ABS or ALU IP 65 housing, with or without backlit gaphic display
Mounting with the 1/4 turn system with wall-mount plate
CP301 : -100/+100 Pa (resolution : 0.1 Pa)
CP302 : -500/+500 Pa
CP303 : -1000/+1000 mbar
CP304 : -10 000/+10 000 mbar
• Barbed fittings Ø 5,2 mm
• Unit of measurement : Pa, mmH2O, mbar, inWG, mmHG
• Power supply : 24 Vac /Vdc, 115 Vac or 230 Vac
• Outputs : 2 x 4-20 mA or 2 x 0-10 V
• Functions : pressure, air velocity, airflow with Pitot tubes, Debimo and other coefficients, integration of measure, self-calibration, measuring correction factor, temperature compensation : manual or automatic (thermocouple K input).
Join our distribution network all over the word....Contact us !
|
|
|
|
|
|
ComfortSense
Thermal comfort measurement according to EN 13182, ISO 7736 and ASHRAE standard 113
Dantec Dynamics’ ComfortSense system is designed for research and development of heating and air conditioning systems requiring multi-point measurements of air velocity and temperature. Draught measurements require omnidirectional sensors with a frequency response of at least 2 Hz, which is fulfilled by the present system.
ComfortSense elements
The ComfortSense system consists of a main frame with anemometer circuits for up to 16 probes. The omnidirectional probes measure both air velocity and temperature. Six frames can be connected so that up to 96 probes can be monitored simultaneously. The ComfortSense main frame has a built-in A/D converter with USB 2.0 interface.
Easy-to-use
It is easy for the user to setup a measurement sequence and make a measurement grid with selection of probes from a user library. The software delivers statistical results based on user-defined measurement cycles. The ruggedly designed probes and cables are perfectly suited for large test rooms.
|
|
The Activa Sensor Array provides fl ow,
temperature and pressure signals in a compact
unit that requires only one hydraulic line break.
Each sensor transmits an output signal that is
easily integrated with PCs, PLCs, recorders or
panel displays. Signals can also be transmitted to
Flo-tech’s F6700/F6750 Series digital displays.
|
|
| ... products without technical information |
| |
|
|
|
|
Measuring range : from 0/+10 Pa to -10 000/+10 000 Pa
Configurable intermediary and central zero ranges
Air velocity and airflow functions
Interchangeable measuring sensor (SPI technology)
Simultaneous display of 1 to 4 parameters
External transmitter unputs (KIMO class 200 and 300) and thermocouple K
2 output 4-20 mA or 0-10 V (4 wires), RS 232, 2 RCR relays 6A/230 Vac
2 visual (dual color LED) and audible (buzzer) alarms
Software, keypad or remote control configuration
MODBUS network RS 485 system (optional)
ABS or ALU IP 65 housing, with or without backlit gaphic display
Mounting with the 1/4 turn system with wall-mount plate
CP301 : -100/+100 Pa (resolution : 0.1 Pa)
CP302 : -500/+500 Pa
CP303 : -1000/+1000 mbar
CP304 : -10 000/+10 000 mbar
• Barbed fittings Ø 5,2 mm
• Unit of measurement : Pa, mmH2O, mbar, inWG, mmHG
• Power supply : 24 Vac /Vdc, 115 Vac or 230 Vac
• Outputs : 2 x 4-20 mA or 2 x 0-10 V
• Functions : pressure, air velocity, airflow with Pitot tubes, Debimo and other coefficients, integration of measure, self-calibration, measuring correction factor, temperature compensation : manual or automatic (thermocouple K input).
Join our distribution network all over the word....Contact us !
|
|
|
|
|
|
ComfortSense
Thermal comfort measurement according to EN 13182, ISO 7736 and ASHRAE standard 113
Dantec Dynamics’ ComfortSense system is designed for research and development of heating and air conditioning systems requiring multi-point measurements of air velocity and temperature. Draught measurements require omnidirectional sensors with a frequency response of at least 2 Hz, which is fulfilled by the present system.
ComfortSense elements
The ComfortSense system consists of a main frame with anemometer circuits for up to 16 probes. The omnidirectional probes measure both air velocity and temperature. Six frames can be connected so that up to 96 probes can be monitored simultaneously. The ComfortSense main frame has a built-in A/D converter with USB 2.0 interface.
Easy-to-use
It is easy for the user to setup a measurement sequence and make a measurement grid with selection of probes from a user library. The software delivers statistical results based on user-defined measurement cycles. The ruggedly designed probes and cables are perfectly suited for large test rooms.
|
|
The Activa Sensor Array provides fl ow,
temperature and pressure signals in a compact
unit that requires only one hydraulic line break.
Each sensor transmits an output signal that is
easily integrated with PCs, PLCs, recorders or
panel displays. Signals can also be transmitted to
Flo-tech’s F6700/F6750 Series digital displays.
|
|
|
|
|
|
Measuring range : from 0/+10 Pa to -10 000/+10 000 Pa
Configurable intermediary and central zero ranges
Air velocity and airflow functions
Interchangeable measuring sensor (SPI technology)
Simultaneous display of 1 to 4 parameters
External transmitter unputs (KIMO class 200 and 300) and thermocouple K
2 output 4-20 mA or 0-10 V (4 wires), RS 232, 2 RCR relays 6A/230 Vac
2 visual (dual color LED) and audible (buzzer) alarms
Software, keypad or remote control configuration
MODBUS network RS 485 system (optional)
ABS or ALU IP 65 housing, with or without backlit gaphic display
Mounting with the 1/4 turn system with wall-mount plate
CP301 : -100/+100 Pa (resolution : 0.1 Pa)
CP302 : -500/+500 Pa
CP303 : -1000/+1000 mbar
CP304 : -10 000/+10 000 mbar
• Barbed fittings Ø 5,2 mm
• Unit of measurement : Pa, mmH2O, mbar, inWG, mmHG
• Power supply : 24 Vac /Vdc, 115 Vac or 230 Vac
• Outputs : 2 x 4-20 mA or 2 x 0-10 V
• Functions : pressure, air velocity, airflow with Pitot tubes, Debimo and other coefficients, integration of measure, self-calibration, measuring correction factor, temperature compensation : manual or automatic (thermocouple K input).
Join our distribution network all over the word....Contact us !
|
|
|
|
|
|
ComfortSense
Thermal comfort measurement according to EN 13182, ISO 7736 and ASHRAE standard 113
Dantec Dynamics’ ComfortSense system is designed for research and development of heating and air conditioning systems requiring multi-point measurements of air velocity and temperature. Draught measurements require omnidirectional sensors with a frequency response of at least 2 Hz, which is fulfilled by the present system.
ComfortSense elements
The ComfortSense system consists of a main frame with anemometer circuits for up to 16 probes. The omnidirectional probes measure both air velocity and temperature. Six frames can be connected so that up to 96 probes can be monitored simultaneously. The ComfortSense main frame has a built-in A/D converter with USB 2.0 interface.
Easy-to-use
It is easy for the user to setup a measurement sequence and make a measurement grid with selection of probes from a user library. The software delivers statistical results based on user-defined measurement cycles. The ruggedly designed probes and cables are perfectly suited for large test rooms.
|
|
The Activa Sensor Array provides fl ow,
temperature and pressure signals in a compact
unit that requires only one hydraulic line break.
Each sensor transmits an output signal that is
easily integrated with PCs, PLCs, recorders or
panel displays. Signals can also be transmitted to
Flo-tech’s F6700/F6750 Series digital displays.
|
|
|
|
|
|
Measuring range : from 0/+10 Pa to -10 000/+10 000 Pa
Configurable intermediary and central zero ranges
Air velocity and airflow functions
Interchangeable measuring sensor (SPI technology)
Simultaneous display of 1 to 4 parameters
External transmitter unputs (KIMO class 200 and 300) and thermocouple K
2 output 4-20 mA or 0-10 V (4 wires), RS 232, 2 RCR relays 6A/230 Vac
2 visual (dual color LED) and audible (buzzer) alarms
Software, keypad or remote control configuration
MODBUS network RS 485 system (optional)
ABS or ALU IP 65 housing, with or without backlit gaphic display
Mounting with the 1/4 turn system with wall-mount plate
CP301 : -100/+100 Pa (resolution : 0.1 Pa)
CP302 : -500/+500 Pa
CP303 : -1000/+1000 mbar
CP304 : -10 000/+10 000 mbar
• Barbed fittings Ø 5,2 mm
• Unit of measurement : Pa, mmH2O, mbar, inWG, mmHG
• Power supply : 24 Vac /Vdc, 115 Vac or 230 Vac
• Outputs : 2 x 4-20 mA or 2 x 0-10 V
• Functions : pressure, air velocity, airflow with Pitot tubes, Debimo and other coefficients, integration of measure, self-calibration, measuring correction factor, temperature compensation : manual or automatic (thermocouple K input).
Join our distribution network all over the word....Contact us !
|
|
|
|
|
|
ComfortSense
Thermal comfort measurement according to EN 13182, ISO 7736 and ASHRAE standard 113
Dantec Dynamics’ ComfortSense system is designed for research and development of heating and air conditioning systems requiring multi-point measurements of air velocity and temperature. Draught measurements require omnidirectional sensors with a frequency response of at least 2 Hz, which is fulfilled by the present system.
ComfortSense elements
The ComfortSense system consists of a main frame with anemometer circuits for up to 16 probes. The omnidirectional probes measure both air velocity and temperature. Six frames can be connected so that up to 96 probes can be monitored simultaneously. The ComfortSense main frame has a built-in A/D converter with USB 2.0 interface.
Easy-to-use
It is easy for the user to setup a measurement sequence and make a measurement grid with selection of probes from a user library. The software delivers statistical results based on user-defined measurement cycles. The ruggedly designed probes and cables are perfectly suited for large test rooms.
|
|
The Activa Sensor Array provides fl ow,
temperature and pressure signals in a compact
unit that requires only one hydraulic line break.
Each sensor transmits an output signal that is
easily integrated with PCs, PLCs, recorders or
panel displays. Signals can also be transmitted to
Flo-tech’s F6700/F6750 Series digital displays.
|
|
|
|
