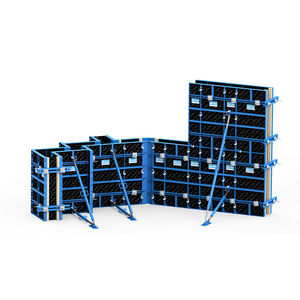

Wall formwork Logo alu
Light formwork for building sites without crane and supplement to Logo 1
* Fast connection of panels with wedge clamp
* Massive frame profile guarantee of stability and long-live
* Panel 90 x 270 cm = only 60 kg, only 2 ties at panel hight
* Max. concrete pressure 60 kN/m²
* Quick fixing of accessories thanks to multi functional cross sections
* Fully compatible with Logo steel frame
* Multi-purpose panel for corners, columns, stop-ends
Panel widths (cm): 90 / 75 / 60 / 55 / 50 / 45 / 40 / 30
Panel heights (cm): 270 / 135
Frame depth (cm): 12
Plywood: 15 mm thick, 11-ply Finnish birch plywood
Max. concrete pressure: 60 kN/m² according DIN 18218
|
|
Circular columns
Steel formwork for round and oval columns
* Absolute tight due to the special design of the vertical joint with overlap of the plywood
* Oval columns and semi-circular stop-ends with connecting panels to
* Modular formwork
* Working platform for security during concrete work
* High use rates, no cost for refuse collection
* No reduction of concrete speed for small diameters
Panel heights (cm): 300 / 275 / 150 / 125 / 75
Diameter (cm): 100 / 90 / 80 / 70 / 60 / 50 / 45 / 40 / 30
35 / 25
Plywood: 3 mm steel sheet
Max. concrete pressure: 85 kN/m² according DIN 18218 (Ø 100 cm)
335 kN/m² according DIN 18218 (Ø 25 cm)
|
|
|
|
|
|
Trapezoidal Girder Formwork TTR/TTS with plywood or with steel face (60 kN/m²-80 kN/m² according DIN 18218)
Adjustable circular formwork for sewage plants, tank constructions, adventure baths, towers, stairwells, garage entrances, walls for gardening and landscaping
* Continously adjustable from 2 m to 5 m and from 5 m to infinite
* Only 0.28 to 0.55 holes for ties per m²
* Immediately usable = perfect forming times
* Absolutely round and accurate dimensions
* System solutions for haunches and slope balance
* Compatible with all other PASCHAL systems
Trapezoidal Girder Formwork with plywood:
Panel widths (cm): Segments 125,5 / 110,5; 240 /230 (222);
60 / 57,5; 62,5 / 55,5
Panel heights (cm): 300 / 150 / 75 / 37,5
Frame depth (cm): 40 (straight condition)
Plywood: 18 mm; 21 mm
Max. concrete pressure: 60 kN/m² according DIN 18218
Tolerances of deflection: According DIN 18202, table 3, line 7
Trapezoidal Girder Formwork with steel face:
Panel widths (cm): Segments 240 / 230; 120 / 115; 60 / 57,5
Panel heights (cm): 300 / 150 / 75 / 37,5
Frame depth (cm): 40 (straight condition)
Plywood: Steel sheet
Max. concrete pressure: 80 kN/m² according DIN 18218
|
|

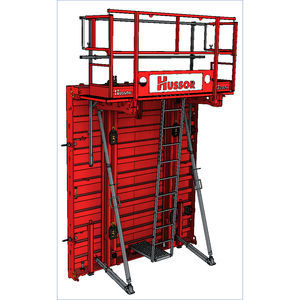

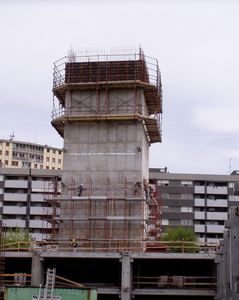

Climbing systems
System equipment to use formwork systems as climbing formwork and establish secure workplaces at high levels
* Applicable with all formwork systems
* Climbing brackets can be moved together with formwork as large units
* Climbing platform as foldable platform with little transport volume
Dimensions: Climbing bracket 200 cm rigid / slidable
KBK 180, width 300 cm, depth 180 cm
Max. Load: Max. live load 4,5 kN/m²
|
|

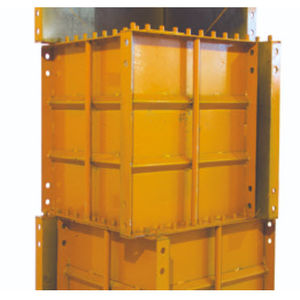

Adjustable columns formwork Grip for excellent forming times and high demands for exposed concrete
* For forming and dismantling only the tensioners on one side have to be opened resp. closed
* Moving with only one crane cycle (folding mechanism)
* Simple fastening of working platforms and adjustable props
* Little transport volume due to foldable wings
Panel heights (cm): 340 / 300 / 150 / 90
Adjustable range: 20-60 cm, in 5 cm steps
Plywood: 21 mm plastic covered birch plywood
Max. concrete pressure: 80 kN/m² according DIN 18218
|
|
|
|
|
|

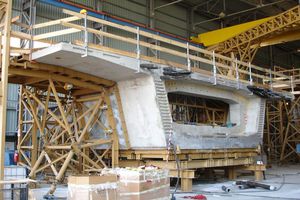

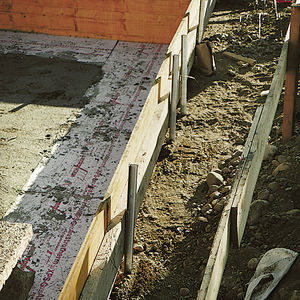

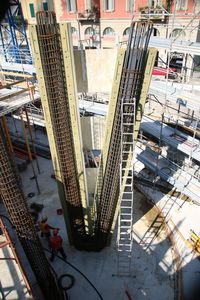

Wood and steel Custom formwork
With its Universal Formwork System Modular/GE and Trapezoidal Girder System, with adjustable radii, PASCHAL has pushed the feasibility limits for system formwork out even further. But even so, there are still certain shapes and surfaces which cannot be produced with any system formwork. For example, whereas smaller fittings and inlays for system formworks or supplementary formwork can be used usually without any problems. To create or add special concrete surfaces on the job site, this is rarely the case and usually not the most economical solution where larger custom formwork is concerned.
Wood and steel Custom formwork
Larger custom formwork of wood or steel needs meticulous preparation. Usually it is planned with modern CAD systems and created with corresponding workload in carpentry businesses or metal fitters, and erected for test purposes as required.
PASCHAL designs and produces custom formwork in the factory and also assumes responsibality for transport. At the job site, the guaranteed precise fitting components are assembled and then ready for use.
|
|
Fairfaced concrete Formwork T.Form
Formwork for concrete surfaces with high aesthetic requirements
* Extremely few holes for ties (0,48 holes for ties per m²)
* Few accesoires
* Integrated locators for platform brackets and adjustable props
* Optimal exposed concrete quality by plywood screwed from the girder site
* Reduction of transport volume is possible by on site assembly
* Ideal alternative for wodden girder formwork
Panel widhts (cm): 240 / 180 / 120 / 115 / 110 / 105 / 100 / 95 / 90
Panel heights (cm): 350
Frame depth (cm): 24 with 36,7 without walers
Plywood: 27 mm birch plywood, scarf jointed
Max. concrete pressure: 90 kN/m² according DIN 18218
Tolerances of deflection: According DIN 18202, table 3, line 6
|
|
Large-size formwork Athlete
A strong formwork for extremely high concrete pressure (par ex. self compacting concrete!) Large size-system for industrial construction, civil engineering works, tank construction, housing and business buildings
* Extremely few holes for ties (0.57 holes for ties per m²)
* Fast connection of elements by athlete clamp
* High stability and outstanding alignment thanks to frame depth of 16 cm
* Quick fixing of accessories by multi functional cross sections
* Standing and lying use of all panels
* Multi-purpose panel for corners, columns, stop-ends
* Balanced range of panels for systematic forming without cutting pieces on site
Panel widths (cm): 250 / 125 / 70 / 65 / 60 / 55 / 50 / 45 / 30
Panel heights (cm): 280 / 250 / 140 / 70
Frame depth (cm): 16
Plywood: 18 mm thick, 13-ply birch plywood
Max. concrete pressure: 92 kN/m² according DIN 18218
Tolerances of deflection: According DIN 18202, table 3, line 7
|
|
Flexible slab formwork PASCHAL Deck for slabs in housing- and business constructions
* Less numbers of different parts
* Optimum use of material
* Suitable for all slab thicknesses
* Flexible adjustment by overlapping girders
* Low weight of the parts
* Optimal adjustment to every layout
* Free choice of plywood
Dimensions: Girder length 600 / 490 / 390 / 360 / 330 /
290 / 245 cm
Max. Load: Max. shear force 11 kN
Max. bending moment 5 kNm
|
|
Slab formwork ideally suited for construction sites without crane availability and where aluminium is not the material of choice
- Can be combined with Modular panels
- Beam solution with Modular panels workable
- Combination of different possible applications
Possible applications:
- Support of panels with props/shoring system
- Panels shall be placed on the beams
- Panels shall be placed between beams, if necessary with drop head
Technical data
Panel dimensions
60x125 cm, 45x125 cm, 30x125 cm
60x120 cm, 45x120 cm, 30x120 cm
60x90 cm, 60x85 cm, 60x60 cm, 60x55 cm
30x60 cm, 30x55 cm
Material
Steel frame, depth 7.5 cm
Plywood
12 mm thick, 9-ply birch plywood
Beams
Length 235 cm (with drop head 250 cm)
Length 165 cm (with drop head 180 cm)
Slab thickness
up to 30 cm
Max. single weight
~20 kg
|
|
Modular / GE
Universal Formwork
Housing- and business buildings, industrial contsruction, civil engineering works, tank construction
* Conception as manual- and large-size formwork system
* The principle of a building kit guarantees systematic forming also for complicated layouts
* Known as long-live system due to the massive flat steel frame
* Fully compatible with all other PASCHAL Systems
* Keybolt as universal connecting piece for panels and accessoires
* Large-size panels GE
Panel widths (cm):
Modular 100 / 75 / 60 / 50 / 45 / 43 / 40 / 37 /
35 / 33 / 30/ 25 / 24 / 20 / 15 / 12 / 10 / 6 / 5
GE 200/150
Panel heights (cm): Modular 150/125/75/62,5
GE 275/250/150/125
Frame depth (cm): Modular 7,5; GE 19,5 (7,5 + 12 Girder)
Plywood: 15 mm thick, 11-ply birch plywood
|
|
Wall formwork Logo.3
Large size-system for housing- and business buildings, industrial construction, civil engineering works, tank construction
* Low number of holes for ties
(0.62 holes for ties per m²)
* Fast connection of panels with wedge clamp
(weight only 1,6 kg)
* Profiled flat steel frame guarantees stability and long-live
* Fast fixation of accessories with multifunctional cross-sections
* Standing and lying usage of all panels
* Multi-purpose panel for corners, columns, stop ends
* Balanced range of panels
Panel widths (cm): 240 / 135 / 90 / 75 / 60 / 55 / 50 / 45 /
40 / 30 / 25 / 20
Panel heights (cm): 340 / 305 / 270 / 240 / 135 / 90 / 75
Frame depth (cm): 12
Plywood: 15 mm thick, 11-ply Finnish birch plywood
Max. concrete pressure: 70 kN/m² according DIN 18218
Tolerances of deflection: According DIN 18202, table 3, line 6
|
|
|
|
|
|
SVELT is the modular formwork system that allows for the realization of circular-base walls. The walls circumference can be regulated thanks adjustable rods. Once the radius has been set the modules will not deform, thus allowing for an additional level with the same curvature. In this way SVELT can also be used as a climbing formwork. Its versatility also allows for the realization of wall brackets with an “s” shape ovoid base as well as linear wall brackets. With its 6000 kg/m2 capacity, the new SVELT is a much more reliable tool to toughness and stability the two rods and the supporting steel omegas allow lifting and repositioning without neither a change in curvature or deformations. This allows it to be also used as a climbing formwork.
The counter-cast treated multilayer surface with phenolic film can have thicknesses that vary depending on the curvature that is to be applied to SVELT.
Once the casting is done, the system, being composed of modules with a maximum width of 240 cm, can be transported using any kind of truck.
|
|
|
The circular formwork H 20 is the practical choice for smooth, circular walls and radii of any size greater than 3.50 m – universally adaptable.
|
|
RONDA
Circular formwork
When it comes to shuttering curves, RONDA is the No. 1 choice. For RONDA displays a number of unbeatable features for exceptional precision and economy. The RONDA system is based on rugged, ready-to-use elements with an inbuilt spindle system that permits the realization of any desired radius (upward of 2.75 m) with millimeter precision. With two widths available for the inner and outer elements and three panel heights, the system can always be adapted perfectly to the building geometry in question.
|
|
|
The climbing formwork Xclimb 60 can be either crane-lifted or self-climbing and is designed for highly cost-effective, universal use in the wall-construction and façade sector. Integrated safety as offered by the shield function, for example, complements the enormous versatility of this system.
|
|
TITAN Column Forms
Titan SF100 column clamp system
Säulenformen TITANColumn clamps are assembled with 4 no. bolted corners and 4 no. hinged for ease of striking on a typical 3.0m high
column.
‘L' sheped column shutters are then crane handled and refixed by only 4 no. tie bars.
The individual column arms of 1.0m and 1.37m can be used in isolation as formwork soldiers on stop-end and foundation shutters.
* Large supporting length. i.e. for 5.4m column height only 4 column clamps required.
* Labour costs reduced for each transfer & re-fixing.
* Designated for maximum concrete pressures.
* Universal clamp for all column dimensions.
* No sanding of edges required.
* Available as a complete column formwork system incl. clamps, plumbing props, concreteing chutes, working platforms and lifting hooks.
* Formwork can be stripped diagonally and transferred in two halves
|
|
|
The ideal choice when large numbers of columns with varying cross-sections have to be formed on schedule and economically.
|
|
|
|
|
|
TITAN Megashore - The world's leading falsework system
Alu-Schalungsgerüst TITAN
Fast and versatile
Lightweight, yet exceptionally strong
The TITAN support system is recognised as the leading product
in its field by many professionals in
the construction and civil engineering industries.
Comprising two main components; legs and frames, together with a comprehensive range of accessories, the TITAN support system offers one
of the quickest, most effective and versatile means of providing rapid support and access solutions in an enormous variety of situations. The system can be used in both ‘flying table' and erect and dismantle applications and is ideal for multi-storey structures, water reservoirs and soffit situations where mobility and ease of handling are required.
With the majority of components being manufactured from high grade aluminium to patented designs, the TITAN support system possesses an exceptionally high strength to weight ratio which facilitates rapid erection, whilst its excellent corrosion resistance and robust build quality assure long term durability.
The TITAN support system is designed to reduce labour costs, increase site efficiency, improve safety and meet the demands of today's construction and civil engineering techniques.
Key benefits
|
|
Aligning struts
For the precise aligning and fixing of concrete components and formwork, we supply aligning struts in a variety of designs and sizes. Our smallest and extra-handy aligning strut made of steel can be extended from about 2 m to 3.3 m, while the largest has an extension range of 5.3 to 7.6 m. In addition, we now have the SUPER 10 in our product range, the aluminum strut with an extension range of about 7 m to 10.25 m – unique on the market and ideal for extra-big tasks. The SUPER 10 telescopes at both ends and is finely-adjusted with a screw thread
|
|
Built-in shock absorbers make these beams up to three times more durable ...
Benefit from the advantages of this robust beam:
* lower finishing costs
* ends are sealed to protect against moisture and ultraviolet light
* nailability
Positioning marks on the beam flanges for faster, safer setup ...
The marks on all standard lengths ensure
* rapidity, because the sizes are there to be seen
* safety, because the installation is easily checked
Names and logos discourage theft and encourage customer attention ...
Utilise the benefits of your own signage:
* your company's material is readily identifiable
* ideal means of discouraging potential thieves
* ready-made advertising
|
|
|
The innovative design of the Dokamatic table makes for even faster formwork handling whenever large floor slabs have to be cast. Standard functional components can be installed for straightforward, speedy and safe adaptation to changing requirements on the construction site.
|
|
H 20
Table form
Buildings with intricate ground plans and different storey heights, as frequently encountered in industrial, office and large residential buildings, are difficult to shutter. This is where our table forms are a recommendable solution with their high load-bearing ability.
|
|
GF 24
Large-area formwork
Big challenges call for top performance. With our H20 web girder and our R24 lattice girder, you’ve got the best equipment there is. These are the basis for made-to-measure formwork strategies in which you yourself can decide on the element sizes, tying points, type of lining and concrete pressures.
|
|
|
The climbing formwork MF 240 is the key to regular work cycles on all high structures. Of straightforward design, this system can be adapted to a very wide range of field requirements.
|
|
SCF
Self-climbing formwork
SCF is a formwork system that climbs step by step with the building with the aid of an inbuilt hydraulic device instead of a crane – smoothly, swiftly and without vibration. All the platforms stay horizontal, as the SCF hydraulics operates with a height tolerance of max. 1% of the cylinder stroke – even when up to 16 brackets are operated simultaneously.
|
|
|
|
|
|
Rapidly assembles and disassembles allowing for a considerable reduction in rotation time of jobsite casting.
SlabForm can be manually moved and is entirely in aluminium (the weight of each component is less than 16 kg). The system's modularity (150x75 cm base panel) allows you to create any geometric shape to share time.
SlabForm is suitable for any typology of manufactured product, such as: auto-silos, shopping malls, industrial plants, and in particular in the sector of residential construction. The reduced number of props (1 prop every 3.45 m2) allows the realization of reinforced surfaces that are perfectly useable and can also be utilized for the warehousing of construction materials.
What is more, the simplicity of the components allows the personnel to carry out the phases of assembly and disassembly in total safety.
The SlabProp props aluminum vary in heights from 2.0 to 5.20 m. They can bear up to 74.48 KNs, and when matched with the drop heads allow the recovery of all the layout's panels and beams, holding the slab until the maturation has occurred.
A simple hammer hit frees up and lowers the head's stirrup 6-7 cm allowing for the easy recovery of all the layout's panels and beams. With a second supply of props you can proceed to the subsequent casting phase.
|
|
|
|
|
|
TITAN HV Slab Forming System
The aluminium system slabform
Alu-Deckenschalung TITAN HV
Advantages
* drop-head system
* excellent economics
* simple handling
* safe working
The System
TITAN HV is the well proven slabforming system with aluminium beams, which solves each formwork job fast and economical - without labour and cost intensive adjustments and fillers. TITAN HV can be used without crane handling.
The idea
Unlike traditional beam systems the V shaped main beams and the H shaped secondary beams of the TITAN HV are on the same level. This is enabled by support grooves on the main, secondary and drop heads in which the neighboring
beams are positioned. This means that the inefficient and uneconomical overlap of beams, as with traditional beam systems, does not occur. The HV beams
automatically build up as a rigid interlocking grid, without the need for plywood as bracing. Flexibility in use is not sacrificed with the HV System. The grid of the beams is variable and by placing a main beam into another main beam the
direction of the secondary beams change. Complications like columns, wall corners, make-up pieces, curved walls etc. no longer create problems. The main and secondary beams can be placed in any position.
The drop head system allows stripping just 2 days after the pour. All main and secondaries come free, and can be used for the next section. Practice has shown that the TITAN HV System cuts the total forming operation down by at least 0.1 h/m² (productivity gains of 0.3 m² ( 3.3 sqft ) per man hour).
These labour savings can more than compensate for the cost of hiring
the system.
|
|
|
Dokaflex 1-2-4 is the fast, versatile floor formwork for floorplans of any shape, for beams, slab overhangs and semifinished floor elements – and the ready reckoner is ideal for calculating the quantities of materials, so there's no need for formwork planning. The free choice of formwork sheets leaves nothing to be desired when it comes to the finished structure of the fair-face concrete.
|
|

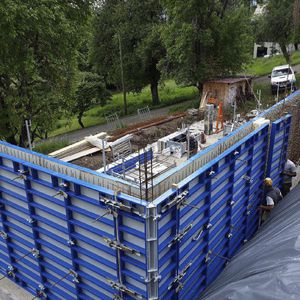

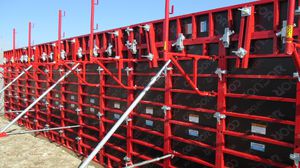

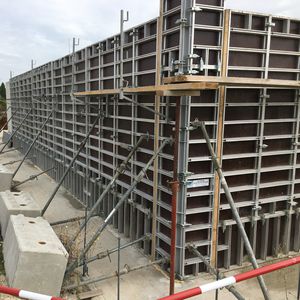

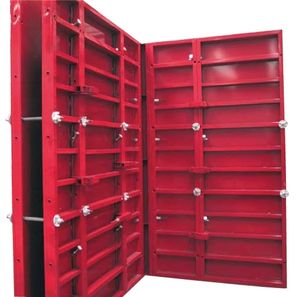

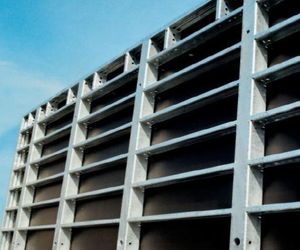

These are moulds of various dimensions and capacities that are used for the construction of concrete walls. The choice of models and sets allows you to cover every construction need and demand thus accelerating all jobsite operations.
The supporting structure is a steel frame which was painted via immersion, and the counter-cast surface area is in plywood treated with protective phenolic film.
|
|
|
|
