Rapid freezers for Plasma on contact KPFF 24B Model and KPFF 48B Model
KW in addition to the -40°C liquid bath freezer, proposes an alternative solution, satisfying however the technical advice and the normative in place, on the freezing time of the plasma bags.
The adapted principal of thermal exchange, in this case, does not use a cold bath at -40°C, but -75/- 80 °C surfaces, with which the bags are in direct contact.
The plasma bags, to be frozen, are immersed, vertically, in wells in which the walls are at least –75°C -80°C. The geometry of the wells is conical, to simplify extraction and formation of the solid bag, without any impediment for the increase in volume which happens when there is a passing in state from liquid to solid.
Internal case, made of 6 or 12 wells in inox AISI 304 steel (AISI 316 on request) with BA polished finishing, with rounded corners for easy cleaning; the external structure is in glazed inox AISI 304 steel sheet; the insulation is in polyurethane CFC and HCFC free, expanded in situ, with density of 40 Kg./mc. and with a minimum mean width of 140 mm., including the door; the door is mounted on the hinges with ABS cover, auto balanced. Triple gasket (absolute retention guarantee against air entry) in silicon rubber with welded joints, warmed up by the refrigerant and of unlimited duration.
|
|
Very-low-temperature freezers at −85°C (Premium Line)
The PL (Premium Line) series represents excellence in very-low-temperature freezers for laboratory use.
The difference both line is in the control system and some components that, in the PL and PLL versions, drive equipment reliability even higher, and thus the security of the products stored there, through exclusive and very innovative technical solutions.
KW, through a careful and complex research and development plan, has manufactured this completely new series of PREMIUM LINE ultra-freezers at -85°C, which constitute a super solution, or superior quality with respect to the already high standard of the HS series.
These KW ultra-freezers have renovated design and, in some aspects, functionality, such as the NEW ICE AGE KW CONTROL® and 4 KVA voltage regulator.
The PREMIUM LINE is available in four horizontal models and six vertical models.
|
|
|
|
|
|
New Brunswick Scientific's ultra-low temperature, -86 degree C, laboratory freezers are exceptionally energy efficient, quiet running and reliable, with over a 25-year track record of providing safe and dependable sample storage. Over a dozen upright and chest style lab freezers are offered in two product ranges and multiple sizes to accommodate your storage needs. Racking, boxes, back-up systems and accessories are also offered.
New Hydro-carbon based ULT freezers - New Brunswick is proud to offer the industry’s first hydrocarbon-based ULT freezers – the most energy-efficient models on the market – designed to deter global warming and meet the environmental requirements of today’s laboratory. Offered in 50 Hz models only, these freezers reduce energy consumption by another 5 - 10% over NBS's already energy-saving models; and further reduce CO2 gas load on the environment. They have been designed to meet the latest EC regulations and ACRID guidelines for the use of hydrocarbon refrigerants.
All NBS freezers are CE certified, meet WEEE Directives for disposal, and are 95 - 98% recyclable (by weight).
|
|
|
|
|
|
NuAire’s Glacier -86˚C Ultralow Temperature Freezers
NuAire’s -86˚C Ultralow Freezer line gives laboratory professionals a safe, reliable freezer that they can depend on. Each freezer creates unmatched economical storage, providing the best value found in an ultralow freezer.
Our freezers use CFC-free foamed in-place urethane, closed-cell for thermal protection and structural strength and CFC/HFC-free refrigerants that are non-flammable, and the insulation system is able to withstand extremely low temperatures. Accuracy and reliability are assured with the controls provided: Alarm System, High / Low Temperature Alarm (+5°C to +20°C adjustable); Remote Alarm Dry Contact; Continuous Self Diagnostics (sensors abnormality), Battery Check (battery replacement recommended); Microprocessor Controls; Automated CO2 Back-up System; Filter Check (filter replacement recommended); Compressor Time Delay Adjustment 2 – 15 minutes; Temperature Zero and Remote Alarm Delay Adjustments. All of these features are displayed on the Eye Level Control Panel.
NuAire’s Freezers utilize a technologically advanced compressor for low power consumption, uniform temperature stability and minimal gasket frost buildup is achieved with the Halo Bypass Coil Frame Heater. Two access ports, one on the back side for CO2 back-up and one on the bottom of the freezer for recording (17mm diameter).
NuAire freezers are RoHS compliant and CFC/HFC-free, easy to maintain and less costly with a quiet 47 dba operation.
|
|
Our 700 series Basic -86ºC Upright freezer offers reliability, with No-frills functionality.
Freezers feature a durable, powder coated galvannealed interior and three fixed shelves
Information center with programmable controls, temperature display, and an optional chart recorder or datalogger built into the freezer's base
Four interior compartment doors reduce cold air loss
|
|

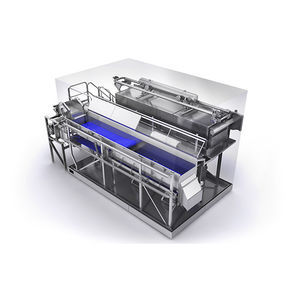

Arcticflow Easyclean Freezer
Overview
The Arcticflow Easyclean Tunnel Freezer is specially designed for freezing of small products, shrimps, fish fillets, hamburgers, fragile products, and products placed on trays.
The freezer arrives fully factory assembled at site and requires minimim amount of time for installation. The freezer is supplied with electrical hoist motors to lift the fully welded stainless steel insulated top cover for easy cleaning and maintenance. Furthermore, compared to other freezing systems, the freezer does not require a concrete foundation or any other foundation.
The freezer is based on the energy saving high speed horizontal airflow called Arcticflow, which together with the ultra low temperature ensure a quick and homogenous freezing within a minimum of time. Thus ensuring a good quality finished product with an equalized temperature of min. -18° C.
The machine is equipped with programs for energy savings purposes.
|
|
The superb conductivity of the steel belt,
combined with excellent mechanical
properties even below -200°C (-320°F),
its joint-free surface and the ability to
slide products smoothly and cleanly from
the end of the belt, all contribute to
make it pre-eminent in food processing
applications.
Sandvik contact freezing systems draw
|
|
