The NORDAC SK 500E by NORD - an inverter of (almost) unlimited possibilities!
The SK 500E frequency inverter in book size allows for intelligent configurations to be implemented at a very favourable price.With its high functionality and numerous options the scope of possible uses is virtually unlimited.
Even the basic type has got a multiplicity of features sufficient for the majority of requirements:
four sets of parameters switchable online
sensorless vectorial current control ensuring torques of up to 400%
automatic motor parameter identification
5 control inputs to be parameterized for various digital and analogue control functions
2 digital outputs, 1 analogue output
integrated braking chopper and control of an electromagnetic motor brake
PID controller and process controller
RS 232 & RS 485 interface
32 fixed frequencies (binary-coded)
motor potentiometer function
limit switch control
flying start
Wherever drive control is of the intricate kind the SK 520E with its extra features and options will cope: encoder interface (TTL)
CANopen interface
2 additional digital inputs
2 additional digital outputs
integrated safety features as per EN 654-1 cat. 3. Stop categories 0 and 1 to be available soon
|
|
|
The NORDAC trio SK 300E is a combination of geared motor and highly functional frequency inverter which enables process-oriented, decentralized system configurations to be implemented very conveniently. Designed to ensure maximum ease of handling and operation the inverter is user-friendly in every respect. The inverter is provided with what can be described as an "electronic type plate" which the motor will read and permanently store with the effect that the inverter data are not lost to the motor even if the inverter is removed. As the inverter can be upgraded with a number of modules within the scope of a well thought-out concept, appropriate control components are available to establish the optimal configuration for any process to be controlled.
|
|
After many years of experience with motor-mounted frequency inverters, with the release of the SK 200E NORD has now introduced a new series of devices which enable a wide range of decentralised drive technology solutions. These robust, reliable and economic systems are suitable for extensive plant, e.g. conveyors, and were specially optimised for price-sensitive market segments. Similar to the SK 500E Panel Mount family, an application-oriented performance level is available which offers the same high quality functionality. Expected features of decentralised components such as robust design, integration of plug connectors, rapid replacement and decentralised modules for communication and I/O signals ensure reliable integration of distributed drive units at the field level.
Scope of supply - SK 200E:
1~ 115 V 0.25 – 0.75 kW
1~ 230 V 0.25 – 1.1 kW
3~ 230 V 0.25 – 4.0 kW
3~ 480 V 0.55 – 7.5 kW
|
|
compact design
easy commissioning and programming
flat built-under mains filters available
IGBT power stage
detachable operating unit
rotating field frequency up to 650 Hz
integrated PID controller
integrated PLC
optionally with RS 232/485 interface
integrated braking chopper
integrated mains filter (class A)
integrated setpoint potentiometer
6 multi-functional inputs
2 multi-functional outputs
for mounting onto DIN rail (up to 4 kW)
degree of protection: IP20
|
|
Compact design/ fully digital control
PTC-input
Simple copying of parameters (optional unit)
Automatic self-optimization
Detachable operating unit
Dynamic torque vector control, control range 1:1200
High breakaway torque with extensive control functions and - options
Max. Rotating field frequency CT:400 Hz, VT:120 Hz
Flying restart function in both directions
Integrated PID-controller
DC brake
Integr. Braking chopper up to FUS 750/3G11S
Degree of protection IP 40
Integrated RS 485
|
|
|
A full series of flexible solution drives that are versatile and extremely easy to use, featuring control for high performance and unbeatable advantages in their scalability and compact size.
|
|
|
A full series of flexible solution drives that are versatile and extremely easy to use, featuring control for high performance and unbeatable advantages in their scalability and compact size.
|
|

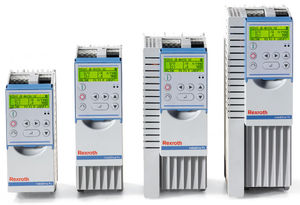

IndraMotion MLD
the solution of automatism integrated into the variator for the mono and multiaxis applications. Compact and modular structure for decentralized architecture based on the platform IndraDrive hardware
|
|
Demag Dedrive Pro frequency inverters:
Our Dedrive Pro frequency inverters are high-performance components ranging from 1.5 to 560 kW for 380 to 690 V systems. They are the solution for a variety of requirements and firmly established their position in the industry. We have developed sophisticated extended functions for special requirements in your company - for example special crane functions.
|
|
High-Frequency Inverters - e@syDrive®
Low-voltage inverters with pulse-amplitude modulation (PAM) for controlling synchronous and asynchronous motor spindles and small drives.
e@syDrive® 4424
- up to 220 VA
e@syDrive® 4425
- up to 350 VA
- Parameters are configured with the aid of user-friendly computer software via an RS232 port.
e@syDrive® 4426
- up to 1,000 VA
- Parameters are configured with the aid of user-friendly computer software via an RS232 port.
e@syDrive® 4438
- up to 3,800 VA
- Parameters are configured with the aid of user-friendly computer software via an RS232 port.
|
|
The Vacon NXS is a compact AC drive in the power range of 0.37-560 kW and supply voltages of 208-690 V for heavy use in machines, buildings and all branches of industry.
The robust design incorporates effective protection against supply network disturbances. Trip-free operation is also guaranteed due to sophisticated motor control principles and motor/drive protection features, component selection and effective cooling.
|
|
Frequency inverters
The right solution for a wide variety of tasks
Frequency inverters are used for electronic speed control on machine drives. The needs of the market are wide and varied, and we can offer a homogeneous range of standard products for everything from simple speed control to complex applications with high requirements in respect of drive behaviour and functionality. Our drives are reliable in respect of operation, flexible in terms of application, easy to commission and meet high standards of quality. We can provide a solution to suit any requirement in the power range between 0.25 and 400 kW.
The new generation of Lenze frequency inverters is now here - with the L-force 8400 drives!
|
|
Variable speed transmission assembled on engine: TECHNOVAR.
the TECHNOVAR is a frequency converter which adapts on all the standardized standard engines. It is fixed on the top, side ventilator to be cooled. Simple to implement, it allows a variation speed to obtain a flow with constant pressure or a variable pressure with constant flow with a high degree of accuracy of adjustment. The parameter setting is easy and the visualization of the data is done locally on screen with liquid crystals. Very useful to optimize the operation of the centrifugal pumps with substantial energy saving on the installations of overpressure, treatment of water, heating, air-conditioning or of systems of filtration or opposite osmosis.
Range of power:
- On engine up to 22 kw.
- In mural version up to 45 kw.
Available in all the current tensions and frequencies.
|
|
For polyphase motor jusqu’ to 0,75 kw
Controlled by microprocessor, method PWM
Entry in single-phase current (or three-phase current according to version)
Exit three-phase current
Exit preset 0,5 - 50 Hz (320 maximum Hz. adjustable)
Inversion - braking dynamic
Posting 4 digits
Integrated potentiometer (or deportee)
The variable frequency converter series 8001 has
summer conceived to answer a multitude
d’ industrial applications.
Compact and quiet model, technology IGBT,
its use is extremely simple thanks to
l’ control unit integrated.
This converter is
|
|
With a range of powers, functions and characteristics unequalled, the variators and starters Allen-Bradley and Reliance are ready to meet all your requirements in automation. Since the small scalar variators until the integrated great systems, the whole of the products of variation speed turnover and c.c Allen Bradley and Reliance bring to your engines flexibility, the reliability and the precision of order necessary to the progression of your company.
|
|
Frequency inverters are used for electronic speed control on machine drives. The needs of the market are wide and varied, and we can offer a homogeneous range of standard products for everything from simple speed control to complex applications with high requirements in respect of drive behaviour and functionality. Our drives are reliable in respect of operation, flexible in terms of application, easy to commission and meet high standards of quality. We can provide a solution to suit any requirement in the power range between 0.25 and 400 kW.
|
|
Variable Speed drives (VSD)/ Inverters
A wide range of inverters, either single or 3 phases, with power from 0.37 to 450 KW, input voltages from 200 to 480 Vac, with variable and/or constant torque.
Specific software designed for pumping installations and funs. Automatic process controls with the possibility to control two motors independently with only one inverter.
|
|
|
A wide range of Sumitomo frequency inverters are available. From compact drives for OEM applications to complex governors with several modes and numerous programmable digital and analog in/outputs. Capacities from 0.37 kW to 55 kW are available in all standard voltages and frequencies. All our drives are manufactured according to the global standards (UL, CUL and CE) and ensure easy, reliable operation. Please contact us for complete specifications and project support.
|
|
The frequency inverter programs ECO-line, OPTI-line and PROFI-line consistently follow the same principle in the range of 0.2 to 90 kW as the Watt Drive modular drive systems.
These frequency inverters distinguish themselves through their excellent control features, compact size, ease of use and very good communication skills.
The differences in the three programs are mainly found in the control features and the related dynamics, starting torque and scope of application.
The L types are controlled by V/f characteristics and the V types are vector-controlled frequency inverters, while the P series is outstanding in its decentralized intelligence, for example for positioning.
With this program extension, Watt Drive is able to offer a complete range of modular drive control units and the most cost-effective drive solution for any requirement, from simple control and drive tasks to the control of top dynamic processes and positioning.
|
|
|
|
|
|
CFW 08
• Power rating: 0.25 to 20HP (0.18 to 15kW)
• Power supply: 200…240V and 380…480V
• V/Hz (scale) or sensorless vector control
• Sinusoidal PWM modulation – Space Vector Modulation
• EMC filters (built-in)
• Modbus RTU communication (built-in), CANopen, DeviceNet and Profibus-DP (optional)
• PID regulator
• DSP control
• Remote keypad (HMI)
CFW09
Power Rating: 1.5 to 1500 HP (1.1 to 1250 kw);
Power Supply: 200…240 V, 380…480 V and 500…600/690 V;
V/Hz (Scalar), sensorless vector or closed loop vector control;
Optimal braking;
32 Bits RISC microprocessor;
Regenerative converter (optional);
EMC filters (optional);
Fieldbus communication: PROFIBUS-DP (optional), Device Net (optional),
Device Net Drive Profile (optional), METASYS N2 Johnson Controls
(optional) and MODBUS RTU (built-in);
IP 20 enclosure up to 500 HP (315 Kw);
PLC and positioning control functions board;
Optimal flux function - a unique solution providing rated torque at low
speeds without forced ventilation on motor oversizing.
CFW10
• Power rating: 0.25 to 3HP (0.18 to 2.2kW)
• Power supply: 110…127V and 200…240V
• Rated output voltage: 200…240V
• Single phase power supply
• Sinusoidal PWM modulation – Space Vector Modulation
• Latest generation IGBT modules and electronic circuits with SMD components
• DSP control
• Compact dimensions, simplified installation and operation
• Speed adjustment via potentiometer is available
|
|

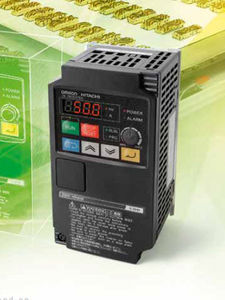

Hitachi inverters were developed under special consideration of network abilities and international standards, such as CE and UL.
Such innovative inverter components as the ISPM module, Advanced Sensorless Vector Control and state-of-the-art fieldbus technology make Hitachi inverters the first choice for all your drives and drive systems.
Further advantages: energy efficiency, user-friendly design and the availability of a world-wide service network.
|
|
Frequency inverter DF6
Application examples
* Speed control of three-phase motors up to 132 kW
* General pump and fan applications (square-law load characteristic)
* Through-put regulation in process engineering
Features
* V/f characteristic control
* 1.2 times starting torque for 60 s, every 600 s
* Integral braking transistor (at 15 kW)
* Can be parameterized
o 5 digital inputs
o 2 relay outputs (make, NO)
o 1 relay output (changeover contacts)
o 3 analog inputs
o 2 analog outputs
o 1 PWM output
* Thermistor input (PTC)
* Removable keypad with potentiometer
* PID control loop
* Automatic energy-saving mode
* RS485 and RS422 interfaces
* Fieldbus connection to PROFIBUS-DP (internally pluggable option)
* User-macro parameter memory
* Automatic voltage monitoring
* Function expansion by means of plug-in modules
* Global approval to Standards (CE, UL, c-UL, cTick)
|
|
Design Digital converter with d.c. link for general industrial applications
Main applications all DC motor applications
Special applications -
Performance range 0,3 - 250 kW
|
|
Variable Speed Drives
GE Consumer & Industrial introduces a complete new line of feature packed drives.
|
|
|
|
|
|
The KBDA Adjustable Frequency Drives are variable speed controls housed in a rugged NEMA-4X / IP-65 washdown and watertight die-cast aluminum enclosure. They are designed to operate 208 – 230 and 400/460 Volt 50 & 60 Hz 3-phase AC induction motors from subfractional thru 5 HP. The sine wave coded Pulse Width Modulated (PWM) output provides high motor efficiency and low noise. Adjustable Linear Acceleration and Deceleration make the drive suitable for soft-start applications.
Due to its user-friendly design, the KBDA is easy to install and operate. Setting the drive to specific applications is accomplished using the Multi-Function Keypad, which provides easy operation and programming of the drive. To facilitate programming, all similar functions are presented in common groups. For more advanced programming, PC based Drive-Link™ software is available.
The 4-Digit LED Display provides readout of drive operating parameters and programming functions and displays Output Frequency, Motor RPM, Output Current, Output Voltage, Bus Voltage, Function Codes and Values, Fault Codes, and Custom Units. In addition to operating the drive, the Multi-Function Keypad is used to change drive operating parameters, reprogram functions, and change the display output. The LEDs provide indication of the drive’s status and operating mode (Hz, PGM, LCL/REM, STOP, FWD, REV, OL, JOG/REM).
|
|
|
|
|
|
The KBMK Series Adjustable Frequency Drives are variable speed controls housed in a NEMA-1 / IP-40 enclosure. They are designed to operate 208 – 230 Volt 50 & 60 Hz 3-phase AC induction motors from 1/8 HP thru 1 HP. The sine wave coded Pulse Width Modulated (PWM) output provides high motor efficiency and low noise. Adjustable Linear Acceleration and Deceleration make the drive suitable for soft-start applications. Model KBMK-24DF contains a built-in AC line Class A RFI (EMI) filter which meets the CE Council Directive 89/336/EEC Industrial Requirement. Due to its user-friendly design, the KBMK is easy to install and operate. Setting the drive to specific applications is accomplished using the Multi-Function Keypad, which provides easy operation and programming of the drive. To facilitate programming, all similar functions are presented in common groups. For more advanced programming, PC based Drive-Link™ software is available.
The 4-Digit LED Display provides readout of drive operating parameters andprogramming functions and displays Output Frequency, Motor RPM, Output Current, Output Voltage, Bus Voltage, Function Codes and Values, Fault Codes, and Custom Units. In addition to operating the drive, the Multi-Function Keypad is used to change drive operating parameters, reprogram functions, and change the display output. The LEDs provide indication of the drive’s status and operating mode (Hz, PGM, LCL/REM, STOP, FWD, REV, OL, JOG/REM).
|
|
The KBAC-24D Adjustable Frequency Drive is a variable speed control in a NEMA-4X /IP-65 washdown and watertight enclosure. It is designed to operate 208-230 Volt 3-phase AC induction motors through 3.6 Amps RMS. The sine wave coded Pulse Width Modulated (PWM) output operates at a frequency of 16kHz which provides high motor torque, high efficiency and low noise.
Due to its user friendly design,the KBAC-24D is easy to install and operate. Tailoring to specific applications is accomplished via selectable jumpers and trimpot adjustments, which eliminate the computer-like programming required on other drives. However, for most applications no adjustments are necessary.
|
|
Frequency Inverter KEB COMBIVERT F5
KEB COMBIVERT F5 provides different levels of power ranges that can be precisely tailored for the application. Identical operation, handling and tools optimize the installation, start-up and service. The drive generation KEB COMBIVERT F5 offers the following features:
Standard inverters for open-loop applications with rated power of 0.37 … 15 kW
Universal line with extended software and I/O functionality up to 90 kW.
Open-loop and closed-loop line of inverters for applications currently up to 900 kW.
The software version A.S.C.L. (Asynchron Sensorless Closed-Loop) is top-of-the-line technology to operate asynchronous motors to achieve excellent speed and torque accuracy open-loop.
|
|
Frequency inverter CDA3000
from 0.75 kW to 132 kW
Performance of base module (hardware):
* Good EMC characteristics based on fully plated housing
* Built-in mains filter (to 7.5 kW)
* Built-in braking chopper
* Various cooling concepts: Wall mounting, Cold Plate e. g. for water cooling and IP54 push-through mounting
* Motor temperature monitoring (with PTC-, KTY- and Klixon evaluation)
* Expandable via plug-in modules:
o Field bus interface (CANLust, CANopen, PROFIBUS)
o Terminal expansion (digital 8 inputs/4 outputs)
|
|
|
Frequency inverter drives are a key component of Mitsubishi Electric's factory automation systems. More than 20 years on and with over ten million units sold worldwide, Mitsubishi Electric is still continually contributing innovations to variable-speed drive technology. The latest 64-bit RISC processors, advanced software models and the latest power electronics make today's variable-speed drive solutions from Mitsubishi Electric both powerful and easy to use. Mitsubishi Electric delivers innovative, open, flexible and reliable drive solutions geared to the special needs of individual markets and customers.
|
|
