Fuse-holder terminal blocks, polyamide insulating body, UL94V-0 flame behaviour..
To be mounted onto TH35 - 7.5; TH35 ? 15; G32 type rail, according to IEC 60715.
Version with mounted diode available.
|
|
Ferraz Shawmut offers the most extensive line of fuses worldwide. This line is matched by our line of fusegear. Amp-Trap® UL-CSA fuses line is supported by UltraSafeTM holders line and a complete range of power distribution blocks. For IEC low voltage fuses Modulostar® is a complete and innovative line of holders and disconnectors for ferrule-type fuses, Lindner encompasses numerous solutions of bases, holders, switch-disconnectors for DIN standard fuses, holders also for BS88 standard Blue Dot fuses.
Protistor® fuses for power electronics can be mounted in Modulostar® holders and disconnectors when they are of ferrule-type and in IP20 bases when they are of square-body type.
|
|
• Ratings to 16A, 250V ac
• For: 5 x 20mm & 6.3mm fuses
• Finger and tool release versions
• PC2 protection category
• Proud and low profile bezels
• Screw and snap to panel fixing
• Wide choice of terminals
• RoHS compliant
|
|

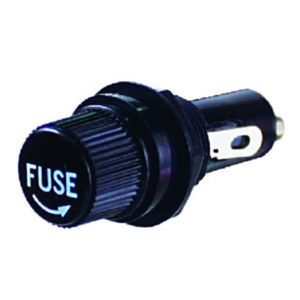

Bulgin’s extensive range of fuseholders are designed to give the degree of protection demanded in today’s sophisticated electronic equipment. Carrying world-wide safety approvals from UL, VDE, CSA, SEMKO and IMQ, all types are manufactured from high grade flame retardant nylon and polyester materials.
Designed primarily for 5 x 20mm and 6.3 x 32mm size fuses with protection against shock to categories PC1, PC2 and PC3. There's a choice of styles for in-line, PCB mounting and panel mounting (screw or snap fit) with terminal options for solder, 2.8mm, 4.8mm or 6.3mm tabs or PC spills.
Dust and waterproof designs provide a front of panel seal to IP68 in both 5 x 20mm and 6.3 x 32mm size fuses.
Fuse carrier styles include captive drawer, screw cap - with screw driver release, bayonet cap - with screw driver release and screw cap - with finger release.
|
|
_ Fuse holders
_ Type: for PCB or Panel Mounting
_ Fuse: 5x20mm , 6,3x32mm and 10,3x38mm
_ Rating: up to 16A-250Vac or 30A-600Vac
_ closing/cap: push-on fuse, screw cap or bayonet cap
_ fixing: soldering, screw, snap in or with hexagonal nut
|
|
Category PC1:
No integral protection against electric shock. If required, Designers / Manufacturers must provide additional protection against electric shock on equipment.
Category PC2:
With integral protection against electric shock. Fuseholders shall have live parts inaccessible to IEC 529 Standard Test Finger, when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.
Category PC3:
With integral protection against electric shock. Fuseholders shall have live parts inaccessable to IEC 529 1 mm dia. rigid test wire when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.
|
|
PORTAFUSIBILI FROM C.S AND PANEL
Type: for assembly from C.S or panel
Fuses: 5x20mm, 6,3x32mm and 10,3x38mm
Capacity: until to 16A-250Vac or 30A-600Vac
Graft/closing stopper: to pressure of the fuse, to screw or bayonet
Implantation: to knit, to screw, release or with hexagonal dice
|
|
Switch & Fusegears
SAFECLIP Fuse Holders provides economies in cost, size and installation time.
|
|
- No minimum order quantities
- Order fuses by the box, typically 100 fuses
- Same day shipment on in-stock products
|
|
