PNG 380
Market Segments
* High security
* Intrabuilding access control
The PNG 380 automatic gate accommodates:
* dissuasive access control in one or both directions
* high flow rates of people
* integration with all types of architectural decor
* standard height of glass leaves: 1000 mm
* passage width: 500-600mm
|
|
PMD 336
Market Segments
* Intrabuilding access control
* Airport access control
* Sports and Leisure
PMD336 bi-directional gate has been developed for applications where access control is needed for people with reduced mobility. Design can be combined with an installation of PNG381 or PNG391 automatic gates.
* Range of detection cells and software for increased security and users' safety
* Walkway width 850-900mm
* Easy integration of any kind of readers
* Height of glass leaves 1700mm for reinforced security
* Fail-safe device moves the glass leaf obstacle in open position in case of emergency
|
|
|
|
|
|
Automations for sliding gates
Attractive to look at and with cutting-edge technological features
The new automations Cross 7, Cross 8 and Cross 30, amplify the broad range of already-available DITEC products.
Cross 7 and Cross 8
Designed to operate sliding gates weighing up to 600 kg (Cross 7) and 800 kg (Cross 8), these automations are ideal for heavy-duty use and, consequently, are especially suited for the entrances of condominiums, industrial and commercial buildings, wherever heavy-duty use is called for. They incorporate major technical and construction features such as:
- Incorporated electronic panel integrated with on-board easy-access radio
- 24 V version (Cross 7EH)
- Courtesy light with fade effect
- Easy key release by opening centre door
- Sturdy and powerful motor (600 - 800 N, according to model)
- ABS modern-design casing
Cross 30
Sturdy and powerful, with a capacity of up to 3,000 kg
Cross 30, designed for very heavy-duty operation - ideal for industrial and public entrances.
Sturdy and powerful, with a thrust of 3000 N and a 400 V three-phase motor, it is very easy to install.
The entire electromechanical system is in fact fitted inside a sturdy steel enclosure, featuring a practical and large front door for easy component access. Other interesting features are the incorporated control panel, the magnetic mechanical stop and the easy key release.
|
|
|
|
|
|
FOG-16 Rising Fence Barrier
The electro-mechanical rising barrier with upper and lower rigid skirt, type FOG18, simultaneously controls the access of both vehicles and pedestrians to a controlled zone. The rigid skirt effectively prohibits access to all pedestrians who have not been duly authorized. As an option, an electro-magnetic arm tip support further reinforces the pedestrian control and eliminates any possibility of opening the barrier by hand, due to its magnetic disk which generates traction of around 200 kg holding force. The maximum length of the barrier arm is 16ft. (5m).
DESCRIPTION
Cabinet fabricated of 3mm thick welded and folded sheet steel with skeletal structure of thick-section welded steel profiles.
Removable upper cover, locked from the inside.
Side doors with security locks affording easy access to the internal mechanism.
Arm of extruded aluminum tubes, white enameled with red reflecting strips. The arm is composed of 3 tubes with decreasing diameters that fit into one another and a tip end plug.
Rigid skirt formed by a frame constructed of square steel profiles of 30 x 30 mm, in-filled with hot-galvanized steel wire lattice work. In the standard version, the unit is painted white, except for the wire lattice.
Stainless steel rods absorbing the tension of the wire lattice on its frame
Electro-mechanical unit, including :
120V motor,
permanently lubricated endless screw speed reducer,
driven by grooved pulleys and V- belt, making it possible to adapt the speed as a function of the length of the arm,
transmission of the movements by crankshaft/rod system allowing smooth progressive accelerations and decelerations, as well as mechanical locking of the arm in the end positions,
passage security assured by a safety torque limiter with friction adjustable by Ferodo disks, with integrated automatic wear compensation system,
limit switches activated by adjustable cams.
Balance of the arm/skirt unit ensured by integrated compression spring, eliminating any risk of personal injury, due to the limited number of moving parts directly accessible to the public.
Electric control logic type PLC on printed circuit for control by 3-button box with change-over contactors, heat protection, general connection block and test toggle switches. Including a 3-button box (open - stop - close).
Integrated ambient heater.
Emergency handle for manual operation in case of power failure, with safety switch cutting off the electrical power supply when the handle is in place in the barrier.
Standard arm tip support provided as basic equipment. The model in the illustration is the electro-magnetic arm tip support, available as an option.
Frame to be sealed, composed of a basement template with threaded rods and fixing brackets.
|
|
Wildeck mezzanine swing gates are available with a standard clear opening of 6' - 0", but widths up to 8' - 0" can be specified. Swing gates are typically side mounted; however, a deck-mounted option is available. Gates can be fabricated with 2-rail, 3-rail, or mesh systems to match mezzanine or existing rail systems.
Wildeck swing gates are bi-parting and latched via a slide lock and barrel bolt. Custom gates can be provided to meet special requirements. A spring loaded option is available to return doors to a closed position when not in use thereby increasing worker safety.
Swing Gate Benefits:
- Solid, balanced design allows easy gate opening and operation
- Integral kickplate keeps objects from falling over mezzanine edge
- Slide lock keeps the gate from opening when not in use
- Meets industry requirements
|
|

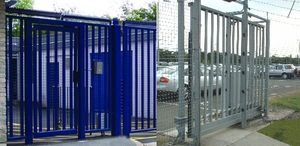

Pedestrian Gate
Anti-climb gates, available within 3.5m fence panel, or as a separate 1m gate.
Temporary Fencing : A range of Anti-Climb Temporary Fence Panels, to suit all budgets and security requirements.
|
|
The Kaba drive units for sliding doors
The compact sliding door drive units of the DBX range not only open single-winged and bi-parting sliding doors but are also suitable for automating bi-parting telescopic doors. The systematic locking mechanism guarantees utmost positioning precision in the closed state and assists the dynamic deceleration procedure in the closed en position. A wide range of available options make sure that the optimal solution can be found for any application.
|
|
Hörmann sliding doors are a sound economic choice, above all for aircraft hangars, industrial halls, vehicle depots, large-capacity garages, building yards and maintenance halls.
They are available single and double-leaf, single and double-skinned with thermal insulation, with or without windows and, if required, also with integral wicket door.
Hörmann sliding doors are technically advanced, exceptionally robust, impact-resistant and offer effective protection against corrosion. They hardly ever need repairing and are easy to maintain.
|
|
|
A sliding gate built by Gunnebo combines development, design and production. It belongs to the most technically advanced gates in the market. Gunnebo provides steel- aluminium- cantilevered and tracked gates as well as the telescopic and special gates which offer limitless opportunities.
|
|
Rising barrier Manual OF/Industry Tertiary
* Great robustness
* Balanced boom with bearings
* Up to 5 meters
* Wild range of options and accessories
|
|
All the “industrial” products developed by Gantois over a period of more than 100 years are well adapted to applications in architecture and decoration.
The diversity of our offer has created for us a unique profile, because we are capable of extending our skills beyond a simple family of products.
Our knowledge and experience, associated with a policy of constant alertness and innovation, are the principal tools of our success and your satisfaction.
|
|
|
The function of the door is done in semi or full automatic version. One can open by push-down-button, key-push-down-button, photo cells, induction loop, radar, remote control or magnetic control card systems. The door can be shut by actuating the above mentioned means or an automatic time relay. A combination is possible. In case of power failure the door can easily be moved by hand.
|
|
Kerberos/Charon HSB: Sensor barriers
The complete HSB range was designed for access control of staff and visitors in the reception area of companies and public organisations. The barrier is a sensor-monitored channel with automatic waist-high swing doors. After access authorisation has been confirmed, the swing doors quickly open in the desired direction making it easy to move through, even with bags or luggage. The doors close automatically as soon as the authorised person has passed through to prevent any unauthorised access.
An additional version with a wider opening provides access for people with reduced mobility.
|
|
The TF 6000 Short is a pedestrian access control system combining powerful technology and innovative design, to complement your architectural style.
The TF 6000 Short screens traffic flow while ensuring fluid throughput of authorized people. It provides secure access control to sites, and will physically block access in the event of fraud, via its computer-controlled power doors.
|
|
The unit is composed of 2 pedestals that form a lane, with two central doors.
Each lane is controlled by a PLC unité that pilots two DC reversible motors.
Depending on traffic flow needs, each lane can be readily programmed to operate either as an Entrance and/or an Exit.
|
|
The TF6000 Long is a pedestrian access control system combining powerful technology and innovative design, to complement your architectural style.
The TF6000 Long screens traffic flow while ensuring fluid throughout of authorized people. It provides secure access control to sites, and will physically block access in the event of fraud, via its computer-controlled power doors.
|
|
| ... products without technical information |
| |
The Kaba folding wing door drive unit DBXT-FF
The sinusoidal motional sequence of the set of levers used for transmitting the power from the drive units guarantees a fast opening and closing of the folding door and a smooth and precise stopping of the door wings in the end positions. The control module, which can be combined with a large number of available actuation and safety elements, allows customizing the functionality in an optimal fashion to meet the individual requirements.
|
|
|
Steel Rack Guards help keep items from falling and are an essential addition to your pallet rack system. Available in stock widths from 7 to 12 feet and heights from 3 to 5 feet. Panels are attached to pallet rack systems using spacer clips. Heavy duty 10 gauge 1-1/2" diamond wire mesh welded to a steel angle frame encloses the rack while still providing inventory visibility. Available in Hi Hyde Yellow finish.
|
|
