MIJNO PRECISION GEARING utilizes the highest performance, newest generation equipment for the production and control of your transmission components. Our expertise has earned the trust of robotic, medical, military, nuclear and aerospace industries. Our 120 machine-tools are used by more than 75 highly skilled workers that learn continuously the most innovative technologies. We are certified ISO 9001.
We manufacture (AGMA 8 to 14 / ISO 10 to 4) :
CYLINDRICAL GEARS
External toothing (straight or helical teeth)
- Cutting: module 0.4 to 10 (DP 63.5 to 2.54); Ø 10mm to 500 mm, ISO 8 to 7
- Grinding: mod. 0.4 to 8 (DP 63.5 to 3.175); Ø 10mm to 400 mm, ISO 6 to 4
Internal toothing
- Cutting: mod. 0.4 to 8; Ø 20 mm to 600 mm
BEVEL GEARS (straight toothing)
-Cutting: mod. 0.5 to 10; Ø20 mm to 500 mm

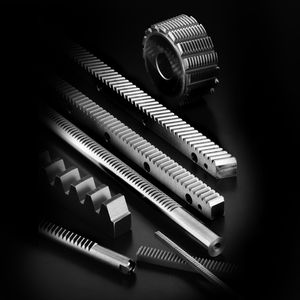

RACKS (straight or helical toothing)
- Cutting: mod. 0.5 to 18; L max. = 2100 mm; ISO 7
- Grinding: mod. 0.5 to 18; L max. = 2100 mm; ISO 5 to 6

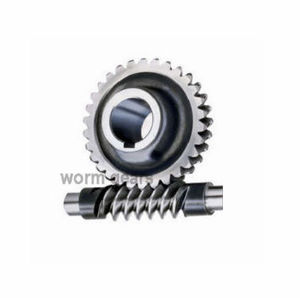

WORM GEARS
- Mod 0.4 to 8
SPLINED SHAFT (Norms DIN 5480/5482; ANSI B92)
- External : L max. = 2000 mm; Ø max = 100 mm; max. weight = 400 Kg
- Internal : L max. = 160 mm; Ø max = 100.
We manufacture our gears using the most appropriate steels. Our gears can be heat treated, carburized, gas carbo-nitrated or ion-nitrated (plasma).
Send us your drawings for quotation at mijno@mijno.com or by fax to 011-33-477-377-444 (in North America = 847-698-9040)
For more information visit www.mijno.com
|
|
Koaxdrive KD 32 Ø32 mm, 1.0 – 4.5 Nm
– the best of two technologies: combination of worm and planetary gearhead
– for noise-sensitive applications
– high reduction ratios in one stage
– fast input speeds
– special versions possible, e.g. with self-locking facility
– modular system with maxon motors
|
|
Cross & Morse offer a comprehensive range of standard stock gears which, coupled with the capability to supply on short lead times custom designed gears, provides the design engineer with a wide spectrum of solutions from which to select open gear drives.
Gear Products
Bevel and Mitre Gear
D.P. Module Bevel and Mitre Gears
Racks

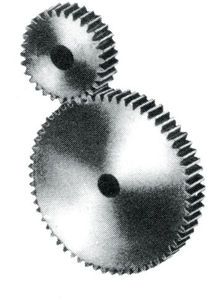

Spur Gears
|
|
Large Selection of Modules, Gear Ratios, Materials and Styles!!
KHK stock bevel gears are available in two types, spiral and straight tooth, in gear ratios of 1.5 to 5, and are offered in a large variety of modules, numbers of teeth, materials and styles.
|
|
QTC offers all types of Bevel Gears
Ground Spiral Bevel Gear
Stainless Steel Bevel Gear Metric Bevel Gear
Plastic Bevel Gears
Injection Molded Bevel Gears
|
|
|
We manufacture bevel gears klingenberg type HPG methods . max diameter 1200mm, max face width 180mm, normal modul from 6 to 23
|
|
Description:
Our standard, "toothing to customer requirements" no "catalog toothed gears".
Special features:
- Spur gears, straight and helical geared up to module 2,5
- Bevel gears, straight and special geared up to module 2
- Worm and worm wheels as gear pairs up to module 2,5
- Tooth belt pulleys in different profiles
Application areas of our toothing parts:
- Medical technology
- Automotive engineering
- Railed vehicles
- Buses
- Drive units in clean rooms (chip production/solar cells)
- Sun protection
- Sport + leisure
- Modelbuilding
- Rehabilitation, health care
- Food industry
|
|
|
By using our vast experience and the latest technology, we are able to produce high precision products from the most popular spur gear to the helical gear, which is advantageous in increasing the contact ratio.
|
|
QTC offers all types of Helical Gears. Detailed below are Ground Axial Helical Gears and Hobbed Normal Helical Gears.
Ground Helical Gears
Precision grade JIS Grade N6 (JIS B 1702-1:1998); JIS Grade 2 (JIS B 1702:1976)
Heat treatment Normalized, teeth surfaces induction hardened
Reference section of gear Rotating plane
Core hardness HB225260
Gear teeth Standard full depth
Surface hardness HRC5055
Transverse pressure 20
Surface treatment Black oxide except ground surfaces
Helix angle 2130'
Surface finish Ground
Material SCM440 (Alloy steel)
Datum reference surface for gear grinding Bore
Helical Gears
Precision grade JIS Grade N8 (JIS B 1702-1:1998) ; JIS Grade 4 (JIS B 1702:1976)
Heat treatment -
Reference section
of gear Normal plane
Core hardness HB165194
Gear teeth Standard full depth
Surface hardness HB165194
Normal pressure angle 20
Surface treatment Black oxide
Helix angle 15
Surface finish Cut
Material S45C (Carbon steel)
Datum reference surface for gear cutting Bore
|
|
|
A reduction gear ratio of 12:1 is possible with a pair of gears. What used to take several steps to reduce speed can now be done with a pair of gears. We have made these gears compact and have brought the total cost down.
|
|
To meet your requirements, KHK stock gears are made in a variety of types, materials, configurations, modules and numbers of teeth. We also offer products that allow secondary operations to be performed on the bores, shafts, outside diameters, keyways and set screws.
Products available :
|
|
Plastic Spur Gear
Precision grade :
JIS Grade N9 (JIS B 1702-1:1998)
JIS Grade 5 (JIS B 1702:1976)
Core hardness HRR115120
Gear teeth Standard full depth
Surface hardness -
Pressure angle 20
Surface treatment -
Material MC901 Nylon
Surface finish Hobbed
Heat treatment -
Datum reference surface for gear cutting Bore
|
|
With Our Large Selection,
You Can Find Suitable Gears for Almost Any Application!!
To meet your requirements, KHK stock gears are made in a variety of types, materials, configurations, modules and numbers of teeth. We also offer products that allow secondary operations to be performed on the bores, shafts, outside diameters, keyways and set screws.
|
|

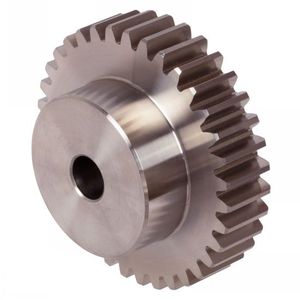

Spur Gears
QTC offers all types of Spur Gears
Ground Spur Gear
Metric Spur Gear
Hubless Spur Gears
Fairloc Spur Gears
Plastic Spur Gears
Steel Spur Gear
Injection Molded Spur Gears.
|
|

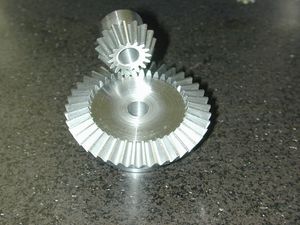

Bevel gears
* Bevel gears, milled, straight spur toothed up to module 1,4; Ø 100 mm
* Bevel gears, planed, straight spur toothed up to module 2; Ø 120 mm
|
|
Straight Bevel Gears
As their name suggests, Straight Bevel Gears have a straight tooth geometry, which if extended, would pass through the point of intersection of their axes.
Arrow’s size range and capabilities for Straight Bevel Gears are provided in the table below.
Maximum Pitch Diameter – 28”
Diametral Pitch – 2.5 – 48
Face Width – 6.0
Unground Tooth – AGMA Q9
|
|
|
The main groups of cold forged parts are starter motor and alternator parts, parts for different switches, safety parts for steering applications, car seat parts, different gears, and parts for flywheel magnetos and other motorbike parts.
|
|
Custom Gears
KHK has the long history of providing reliable gear products. Our cutting edge manufacturing system permits us to produce Custom Gears that meet the most strict quality standards. Our experience of manufacturing Stock Gears, and our facilities of producing Stock Gears, enable us to produce quality Custom Gears at very reasonable prices.
|
|
|

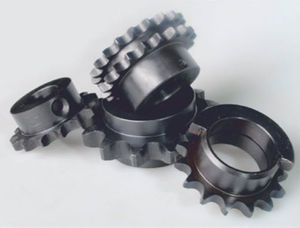

Production of standard and customized gears, modulos 0,5 to modulos14, bevel gears, sprockets and platewheels for rollere chains.
|
|
Gears with standardized holes, keyways and taps for easy, efficient implementation.
J Series (Semi-Standardized Products)
- J Series products, with standardized sizes of holes, keyways and taps.
- To meet customers variable needs, we now offer 2500 different configulrations of 3 common items all with standardized sizes.
- By utilizing advanced production methods, we can offer quality, easy-to-use gears.
- Since J Series Products are processed on our JIT Production Line, this creates short lead-times for shipping (from the factory): within 5 working days after receipt of order by Catalog No.
- Orders range from 1 to 20 units*
*For quantities of 21 or more pieces, we need to quote price and lead time.
|
|
Hardened and Ground Gears and Gearshafts
- Typical sizes from 1" to 12" O.D.
- Tolerance to AGMA Class 12

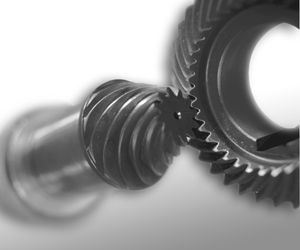

Precision Carburized Straight and Spiral Bevel Gears
- Straight bevel gears in sizes from 1" to 8" P.D.
- Straight bevel gear tolerance to AGMA Class 12
- Spiral bevel gears in diameters up to 16"
- Spiral bevel geear tolerance to AGMA Class 13
|
|
|
Twin-shot capabilities can be applied to established shaft technology, to integrate features into designs. The addition of tyres, gears, rollers or brackets for example, can ensure the optimum functionality of complex components at a low cost.
|
|
We produce:
To your drawings, sketches or patterns. From the individual item to the serial manufacturing.
On request, we would like to perform the respective calculations.
Gearing technology
External gear cutting :
- Spur or helical
- Milled or ground
Bevel gear cutting :
- Spiral-cut
- Milled, lapped or ground
Internal gear cutting :
- Spur or helical
|
|
WM Berg manufactures several styles of gears. Each gear has and serves its own particular application.
Some of the styles include: spur, internal spur, helical, miter/bevel, anti-backlash, worm and worm wheel, racks and gearing assemblies.
Our gears are available in several different pitches, hub designs, and materials.
|
|
Type : Material : Hardness : Surface Treatment RoHS CAD Data
GEABM05 MC Nylon - - Compliant
GEABM08 MC Nylon - - Compliant
GEABM10 MC Nylon - - Compliant
GEABM15 MC Nylon - - Compliant
GEABM20 MC Nylon - - Compliant
GEABP05 Polyacetal - - Compliant
GEABP08 Polyacetal - - Compliant
GEABP10 Polyacetal - - Compliant
GEABP15 Polyacetal - - Compliant
GEABP20 Polyacetal - - Compliant
GEABMS10 MC Nylon - - Compliant
GEABMS15 MC Nylon - - Compliant
GEABMS20 MC Nylon - - Compliant
|
|
A Helical Gear has a cylindrical pitch surface with teeth having a helical orientation.
Maximum Pitch Diameter – 20”
Diametral Pitch – 3.0 – 48
Face Width – 13.0
Unground Tooth – AGMA Q9
Ground Tooth – AGMA Q13
|
|
New Products added including Fine Pitch Gears.
Our new product offering includes 570 configurations of tine pitch gears.
We now carry 0.5 and 0.8 module gears in popular sizes.
Order now, we are certain that they will live up to your expectations!
|
|
A Spur Gear has a cylindrical pitch surface with teeth that are parallel to the axis
Arrow’s size range and capabilities for Spur Gears are provided in the table below.
Maximum Pitch Diameter – 20”
Diametral Pitch – 3.0 – 48
Face Width – 13.0
Unground Tooth – AGMA Q9
Ground Tooth – AGMA Q13
|
|
Product Name: ZSC (L) 350~750 vertical cylinder gear reducer
No. products:5
The series reducer in the draw domestic and foreign products of the same type design, manufacturing experience based on the optimization of the formation and perfection of the products, widely used in metallurgy, machinery, petroleum, chemical, construction, textile, light industry and other industries.
|
|
|
|
