PHOENIX®II 275HC

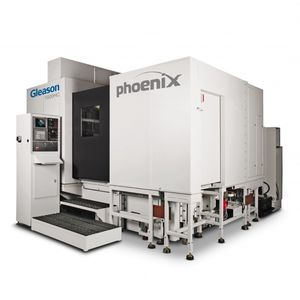

The PHOENIX®II 275HC bevel gear cutting machine is the next generation in cutting machines. The unprecedented monolithic column design is leading edge technology in chip flow, ergonomics, stiffness, cutting process, and maintainability. Pivoting the cutter spindle permits the shortest structural overhang of both the cutter and work for maximum stiffness and thermal stability. A simple chip collector is the only object below the cutter and work spindles. Chips never touch the machine structure.
|
|
VSC 400 DUO WF
This gear profiling center - its design is based on the VSC series - soft finish-machines the gear profile complete, employing turning, hobbing and deburring operations.
|
|
M651 - Worm milling machine
One and multiple start worms and double-lead worms left/right
Up to module 3.5 mm
5 CNC axes
Mobile CNC tailstock
Positioning device for skiving and finishing
Various workpiece feeds
Short reset times
|
|
M644 Duplex - Worm milling machine
One and and multiple start worms and double-lead worms right/left
Max. module in steel = 2.5 mm
6 or 8 CNC axes
Various loading systems
Short reset times
|
|
The complete Liebherr-Verzahntechnik gear cutting machines program contains:
Production machines for gear hobbing and shaping for the automobile industry.
Universal machines featuring up to 6,000 mm workpiece diameter.
Special machines for finishing by generation and profile grinding.
|
|
| ... products without technical information |
| |
Gear Shaving Cutters. Gleason manufactures
and resharpens precision shaving cutters to
support Gleason Hurth shaving machines and
any other gear shaving machines. The
Gleason shaving cutter design is optimized
for maximum tool life.
|
|
|
Dathan disc type cutters can be designed and produced for cutting any type of gear, internal or external, spur or helical. They can also be designed to cut splines, serrations, sprockets or other involute forms. The cutters are full form generated using the Dathan 'pass thro' method. These cutters may be manufactured with bore diameters from 10mm to 120mm or ½" up to 4", cutter diameters (pitch circle diameter) from .75"(19mm) to 10"(250mm) and can be manufactured to any world standard or to any specified requirement.
|
|
STRAIGHT BEVEL GENERATING TOOLS
These are produced for Gleason machines, 24", 18", 12", 11" ,6" and 3" both roughing and finishing and also for Heidenreich and Harbeck machines, 15KH, 25KH, 26KH, 60KH and 75KH. These are manufactured as standard in M2 HSS, though tools in 5% colbalt steel can be supplied to order.
|
|
SHANK TYPE CUTTERS
These are primarily designed for cutting internal gears, splines and serrations, both spur and helical. May also be designed for externals if required. These cutters are full form generated however small the pitch circle diameter (PCD) although strength of the cutter produced is the limiting factor. The strength and rigidity of shank type cutters is greatly improved by the Dathan ribbing method and is especially advised for those of small PCD.
HUB TYPE CUTTERS
Dathan hub type cutters are designed for cutting internal components where maximum rigidity is required. Hub type cutters are recommended for cutting long face widths or for coarse pitches.
In general terms, any tooth form, face width or number of teeth that is available on a shank cutter, can be manufactured with a hub type fitting. Note: these cutters screw directly onto the spindle of the machine therefore rely on the spindle being in a good true state.
|
|
Gear Milling Cutters
- Gear Roughing Cutters
- Circular-type Gear Profile Cutters with Form Indexable Inserts
- Roughing Cutters for Rotors with Indexable Inserts
- Rotor Profile Cutters with Inserted Blades
|
|
| ... products without technical information |
| |
|
|
