Hobbing Machine is a vertical hobber capable of producing gears and shafts with an outside diameter as large as 130mm. The Genesis Hobber was designed as a totally new product incorporating the most modern features and capabilities required to today's gear production.
|
|
The gear hobbing center 160 is equipped with 8-axis NC control and offers high main and tool spindle speeds, which - in conjunction with a fast loading device - ensure that even shafts and pinions with a minimum number of teeth can be machined at high cutting speeds and correspondingly short cycle times.
The type 200 combines cutting edge technology with the highest degree of universality and flexibility in both machining and automation. It machines an extensive range of diameters and modules of pinions, gears, worms and worm gears.
The fully automated Type 300 Gear Hobbing Center features 9 activated axes and can machine gears up to module 4 with great flexibility. Its combination of slant bed design and closed-loop framework construction offers the highest degree of stability for both dry and wet machining.
The design of the gear hobbing center is based on that of the VSC series. The VSC 400 WF soft finish-machines gears by turning, gear hobbing and deburring.
|
|
Drake GS:H (Gear System: Hobber) brings new levels of productivity to vertical hobbing of helical, spur, spline, worm ... straight, tapered or crown gears.
Drake's customized CNC programming cuts set-up time drastically, perfect for today's short-run environments.
|
|
Ideal design for gear applications for utility vehicles
Change-over friendly automatic clamping and loading equipment for the optimal handling of small and medium batch sizes
Fully enclosed machine work area
Backlash-free table drive with patented spur gear drive for high rpm
More than 500 sold machines at all reputable gear manufacturers
|
|

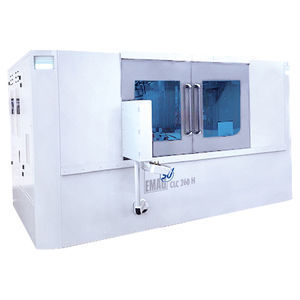

EMAG KOEPFER Gear Hobbing Machines
The machines combine cutting edge technology with the highest degree of flexibility in the machining of gears, pinions, worms and worm gears with up to 195 mm dia. / module 4.
The composite epoxy bed provides a static, dynamic and thermally stable base for the machine. Highly flexible, easily reset automation systems allow for even small component batches to be manufactured automatically.
|
|
Koepfer MZ120 - CNC gear hobbing and worm milling machine to produce spur gears, worm gears, bevel gears, worms and threads
Suitable for large and small quantities
Easy resetting from gear hobbing to worm milling
|
|
Koepfer MZ130 - CNC gear hobbing and worm milling machine to produce spur gears, worm gears, bevel gears, worms and threads
Suitable for large and small quantities
Easy resetting from gear hobbing to worm milling
|
|

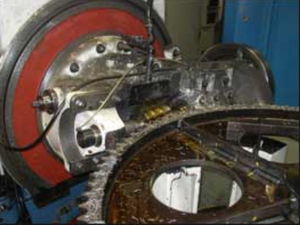

The gear shaping machine program covers a range of up to 4.500 mm workpiece diameter and supplements the modular setup of the same modular concepts for gear hobbing and gear shaping.
All gear shaping machines are suitable for external and internal gears. CCP-process for technologically optimized cutting
|
|
