LD 8900 Goniometric Radiometer
For Characterizing Laser Diodes, LEDs, VCSELs and Fiber Optics.
Photon's LD 8900 Goniometric Radiometer for characterizing the angular radiation intensity of light provides direct real-time far-field measurements with 24 dB dynamic range, angular sampling of 0.055° and a field-of-view of &plusmin;72° (144°). The LD 8900 is ideal for characterizing the light flux from many light-emitting sources, including VCSELs, laser diodes, optical fibers, optical wave-guides, and more. The LD 8900 provides full three-dimensional measures of the far-field pattern in minutes or less, with better resolution than a CCD camera.
The LD 8900 is available with either a silicon detector or an InGaAs detector, and has a standard entrance aperture of 2 mm, with an optional 10-mm entrance aperture for use with large sources such as LEDs and LD bars. The LD 8900 is a modular unit designed for R&D, manufacturing, and custom applications, such as testing LDs at the wafer level, measuring optical fiber attributes. The complete system includes:
The Scan Unit
The Motion Control Module
PC (monitor is user supplied) with the Goniometric Radiometer Model GS880 Scan Control and Data Acquisition Card installed
Goniometric Radiometer Acquisition and Analysis Software for user-specified MS Windows 98 or Windows NT 4.0
Power and Instrument Cables
An optional LD 8900 semi-custom source mount, specifically designed to meet your application needs, can be quoted upon request.
|
|
|
Radiant Imaging provides systems to precisely characterize the near-field output of light sources, as well as analysis software that utilizes the resultant data files. This software enables optical and illumination system designers to view and analyze Radiant Source Models™ in a variedois.htmty of ways, and generate ray sets for optical simulation.. Rays generated from Radiant Source Models™ are compatible with many other optical and illumination system design and analysis programs. A number of leading light source manufacturers now measure their products using our system and make the Radiant Source Models™ of representative samples available to designers.
|
|
|
Aerotech's ANT-20G goniometers represent a significant breakthrough in high-accuracy angular alignment of optical components. This unique design utilizes Aerotech's best-in-class direct-drive noncontact motor technology. When used with Aerotech's MXH multiplier, the ANT-20G series provides an industry-leading positioning speed of 150 degrees per second.
|
|
The GO 40 goniometer allows an adjustment of ± 20° around a defined optical axis by means of a precision worm gear drive and adjustable dovetail guides. The distance between the mounting surface and the rotation axis of 20 mm can be used for prisms or other optics. Unintended adjustment can be avoided by using a fixing screw. In order to integrate the SYS 65 system, the adapter plate ADP 65B or slide RT 65-35-R should be used.
For motorized versions (step or DC servo motor) see chapter Motorized Positioning Systems in the catalog.
- adjustable dovetail guides
- mountable on slide and adapter plate
- deformation-resistant aluminium alloy, black anodized
|
|
|

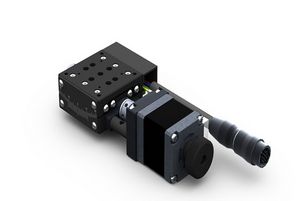

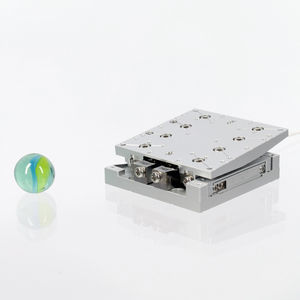

What is a goniometer? A goniometer stage (sometimes called a goniometer table) is a tilting stage that rotates about a virtual axis fixed in space above the stage surface. Zaber's LMG Series motorized goniometers are stepper motor driven positioning goniometers designed to interface with our T-CD series Stepper Motor Controller offering high resolution daisy-chainable operation. The LMG60 tilting goniometer stages pictured above are crossed roller bearing goniometers with a virtual axis of rotation 60mm above the goniometer stage surface respectively. The goniometer stage is 20mm high.
|
|
EasyDrop Standard for PC operation and EasyDrop USB for working with a notebook: with these two instruments in the new KRÜSS product range measuring contact angles and surface free energy is as quick and simple as rarely before. The duo offers everything required for both routine lab work and on-site measurements. Quality managers gain quick access to reliable results. Scientists use the sophisticated analytical tools for research at a high level. The chiefly manual components ensure that EasyDrop remains favorably priced despite its high performance level.
- Contact angles easy and fast
- Fast and precise dosing and sample positioning
- Budget-friendly thanks to manual operation
- Several drop shape analysis methods for big and small angles
- Surface energy by all established methods
- Surface tension with the pendant drop method
- Comfortable evaluation and data management
|
|
The concept of the DSA100 encompasses everything from fully manual to fully automated contact angle measurement. Due to its modular concept, virtually any level of automation can be achieved - even with post-sales additions.
Flexible sample size, flexible measuring technique - with its double modularity concept KRÜSS GmbH has revolutionized contact angle measuring technology. No matter what measuring problem you have to face - the DSA100 will grow to meet your requirements. A total of more than 30000 different combinations is available from the DSA100 building block system; any necessary or required degree of automation can be realized in next to no time.
|
|
Traditional angular contact ball bearing measuring devices still use manual or semi-manual machines: a low degree of precision is obtained and the process time is long. The Bussi contact angle measuring machine is extremely precise, reliable, fully automatic and fast. It combines electronics with top-level engineering and pneumatics. It features:
Data setting: a computer stores the bearing data it is necessary to measure and is input just once. Every time there is a type changeover, only the bearing code needs to be recalled, thereby avoiding error and time wasting. Storage capacity: 500 types of bearing.
Automatic measurement: it makes two checks simultaneously, the contact angle measure and that all the balls are present. Field of measurement: 0° to 89.9°
Precision and repeatability: precise to ± 0.2 ° with high measurement repeatability. This performance can depend on the level of precision achieved when the bearing is constructed.
Measurement speed: the process is extremely quick, between 14 and 17 sec, with a capacity of up to 257 pieces/hr. Maximum type changeover: < 4 min
Optional automation for lines
|
|
