- All product designed and produced by Topway ourselves.
- Graphic (full dots) LCD display.
- All kinds of resolution:
160 x 32, 202 x 32, 128 x 64, 192 x 64, 192 x 128, 240 x 64, 256 x 64,
240 x 128, 240 x 160, 320 x 160, 320x200, 320 x 240 dots
- LCD type: STN-Blue, Grey, YG, FSTN-Pos. Neg. as options.
- LED Backlight: White, YG, Green, as option.
- LCD Controller: T6963, RA8835, S1D13700 etc. as option.
- We have full product line with different module size, display model, 3v/5v power supply as options.
|
|
PFM - PLANT FLOOR MARQUEE SERIES
LARGE DISPLAYS WITH UNPRECEDENTED COMMUNICATION ABILITIES
* Tri-color Display Provides Instant Notice of Important Information
* Displays Information From Any G3 HMI, And SX/GT Models of the Data Station and Modular Controller
* Graphical Design Allows Bargraphs, Custom Symbols and Graphics
* Four Sizes for a Wide Range of Applications
* AC Powered (110 or 220 VAC, 50 / 60 Hz)
The PFM series facilitates the collection, calculation and communication of critical production and process information such as production targets, cadence, alarms, machine uptime and downtime measurement, and OEE (overall equipment effectiveness). Available in four models, the PFM series offers highly visible, multi-color conveyance of data to the entire plant floor and to the enterprise level. The smallest is suitable to provide data at the machine level, while the largest can be used to communicate information across an entire factory floor at distances of up to 600 feet (182 meters).
Far more than a simple large display, the PFM series features the unprecedented capability to communicate with over 170 different protocols, and to send and receive data from seven or more device types simultaneously.
These unique capabilities, which are provided through a required host device ( Red Lion G3, DSP, or MC), allow collection of data from various sources - with integrated calculation to optimize displayed information in the way it is most useful to your facility. Along with the advanced network communication and data collection, the PFM host enables remote monitoring and FTP transfer of data.
|
|
What is CSTN?
CSTN (Colour Super-Twist Nematic) is a Liquid Crystal based Display technology that produces full-colour paper-like image. Unlike TFT, CSTN is based on a passive matrix, which is less expensive to manufacture. Recent advances in technology and manufacturing process have made CSTN an economical alternative to active matrix displays.
The advantages of using CSTN:
Economical solution
- produces TFT comparable image quality at a low cost
Easy to customize solution
- resolution and display size can be tailored to suit
customer's specification
Easy upgrade from monochrome
- Limited software and hardware modification are
necessary to run CSTN display with 8051 microcontoller
Low power consumption
- from 0.7 mW; Lower heat output
|
|
LED Matrix Displays
With series SGX500 a universal type range of innovative graphic
boards is available to the user.
Visualization of process data and graphic information are typical applications.
Perfect design
Designed for harsh industrial applications, the boards have
proved themselves in factory automation as well as in proces-
sing and process engineering.
|
|

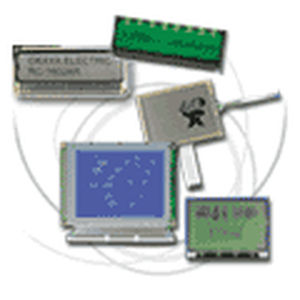

Densitron has the widest, most comprehensive choice of formats to fit your mechanical and optical requirements.
More than 25 different formats - 16x96 to 640x480 pixels - Standard backlight options of low-power electroluminescent, high-brightness EcoBrightTM non-powered backlight by special order, LED or CFL backlights, low profile edge light options for thinner displays.
Standard or wide-temperature (-20°C to 70°C) operation is available on most parts.
With more than 40,000 different combinations, and background colours of black, white, yellow, green and blue in our range, we have the display for your application. If we havent, we can always fully or semi custom them for you!
|
|
