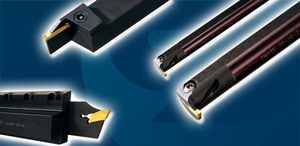

Stellram's® grooving and cut-off range consists of both internal and external tools. A variety of systems are available to handle many applications.
Stell-lok™ is designed to access hard-to-reach places you may not have been able to reach before. We offer solutions in both coated and uncoated grades and solutions are available in a complete line of inserts for external and internal work.
|
|
|
|
|
|
A user's guide is available with basic information to ensure the customer reaps the full benefits from the T-Clamp range.
The T-Clamp multifunctional system permits a host of operations:
# Parting and Grooving
# Exteral Turning and Grooving
# Internal Turning and Grooving
# Precision Grooving and Recessing
# Face Grooving and Face Turning
# Undercutting and Recessing
Inserts
# Accuracy with high repeatability
# Molded chipformer
# Top and bottom prisms hold insert firmly and accurately
-TDJ/C-unique, double-ended insert for grooving and parting
-TDT-unique, double-ended insert for side turning and grooving
-TDA-unique, double-ended insert for aluminum wheel machining
-TDXU-unique, one insert for external, internal and face turning & grooving, parting
Blades
# Simple, accurate and rapid indexing
# Uses standard tool blocks
# Top and bottom seated insert alignment
Integral Shank Tool
# Simple, accurate and rapid indexing
# Top and bottom seated insert alignment
# Stable support against side forces
# No additional spare parts required
# Standard shank dimensions
|
|

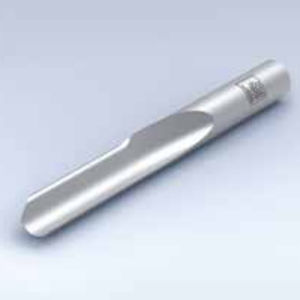

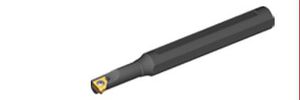

Mini Typ 108 -116
Tool system bolted on face side with low vibration carbide toolholders
- Boring out from bore diameter 7.8 mm
- Grooving from bore diameter 8 mm
Large selection of inserts for different applications, e.g. chamfer, full radius, thread, backboring
|
|
|
|
|
|

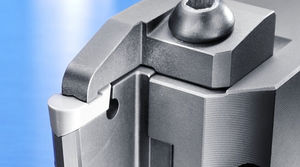

Sandvik Coromant’s new GC1125 grade lives up to the demands of the leading parting and grooving tooling system, CoroCut® 1-2 edge and is now the first choice to achieve improved performance in parting, grooving, turning and profiling operations in a wide geometry range.
The optimization of properties for this grade delivers a wider application area and the capacity to handle improved cutting data. GC1125 has a good all round ability and provides the means to improve performance in a wide geometry range across many parting, grooving, turning and profiling operations. It is the first choice for application in steel and stainless steels and excels when machining cast iron and HRSA materials.
These advantages result from a technological breakthrough in coating and substrate technology. The combination improves wear resistance and security, either when running at higher cutting speeds or for a longer time in cut. The coating is new, PVD with TiAIN layers, including properties designed for the GC1125’s wide application area. New, fine grained substrate optimised for steels and stainless steels has improved hardness and supports increases in cutting data.
GC1125 is a simpler option, enabling machine shops to do more with one grade. Its wide geometry range offers improved performance to a larger number of machining operations.
In parting, it is optimised for steels, stainless steels and HRSA materials, a first choice in CF and CR geometries. CF is the low feed choice, giving excellent chip control and surface finish, CR the strong geometry for parting off bars and interrupted cuts at high feeds.
|
|

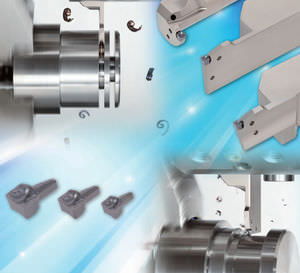

ISCAR-GRIP
Parting Inserts
DO-GRIP
First choice for parting. Double-ended inserts. Self clamped for deep grooving and large diameters. Screw clamped for small diameters.
SELF-GRIP
Single-ended insert for deep grooving and large diameters. Has a stopper for high radial accuracy.
CUT-GRIP
Single-ended insert. Self and screw clamped options. For tool users.
DO-GRIP for Swiss Automatics. The most economical, double-ended parting and grooving inserts in 1.0 - 3.0 mm (.039 - .118") widths that can be mounted on small shank 8, 10, and 12 mm (.315, .394, and .472") holders. The new design has a very short clamping head and with a slanted screw for convenient
indexing. These features are essential for operating on Swiss type automatic machines that have very limited space.
DO-GRIP is an optimal solution for grooving and parting of small shafts and tubes.
|
|
Ranger™ Face Grooving Tools
Maximize your productivity and lower your cost per cut with Ranger™
quality and variety.
RANGER™
2-1/4" O.D. To 16" O.D. (57mm O.D. TO 400mm O.D.)
Range With One Assembly
- ROUND SHANK TOOLHOLDER
- SQUARE RIGHT ANGLE SHANK HOLDER
- THE RANGER™ Adjustable Face Grooving
2-1/4” O.D. to 16” O.D. with One Assembly
|
|

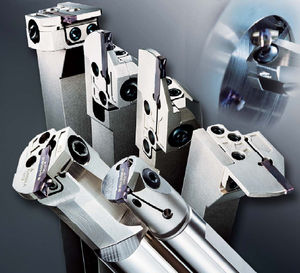

Grooving Systems
Whether the application requires shallow, deep, or multiple operations, Kennametal offers a grooving system that provides high productivity and flexibility.
A3 Deep Grooving
The best choice for high-productivity grooving flexibility.
A4 Groove and Turn
One tool for turning, facing, grooving, face-grooving, and cut-off.
Top Notch Grooving
Top notch grooving...the proven strategy for shallow grooving and threading. Flexible toolholders support both grooving and threading applications.
|
|
External - DIN 471 Retaining Ring Grooves for Shafts
Internal - DIN 472 Retaining Ring Grooves for Bores
Internal - DIN 472 Retaining Ring Grooves for Bores-Micro
External/Internal - DIN 7993 Snap Ring Grooves
External/Internal - DIN 7993 Snap Ring Grooves - Micro
External - DIN 76 Thread Undercuts
Internal - DIN 76 Thread Undercuts
Internal - DIN 3770 - Grooves - Micro
Internal - DIN 471 DIN 472 - Face Grooves - Micro
|
|

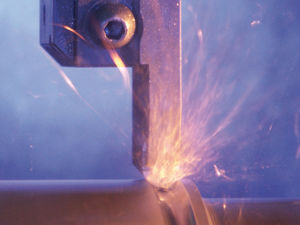

Sandvik Coromant is now extending its premium program of cutting tools for parting and grooving which will, no doubt, have great influence on machining productivity.
CoroCut 3 brings a third cutting edge to the shallow parting of tubes, bars and grooving operations. The extremely small parting widths in 2,0, 1,5 and 1,0 mm facilitates will reduce the raw material usage considerably.
The insert is held securely by a unique clamping solution ensuring accurate location and easy to use. This in combination with very tight indexing tolerances will produce workpieces with very close length tolerances.
Two dedicated insert geometries ensure peak performance and excellent surface finish in all workpiece materials. The very same holder can be used for all insert widths giving maximum versatility.
|
|
The New Force in High Production Parting and Grooving
High Production Parting and Grooving
Face Grooving
Grooving
Internal Grooving
Parting
Profiling
Turning
Undercutting
|
|
PCD-grooving tools
Sommerer GmbH, grooving tools and profile turning tools with extremely high precision for manufactoring pistons.
These tools are used mainly for the grooving of piston head rings. The tools for turning of the groove demand high standards of precision as the tollerance range is only +- 1 Mikron. In order to achieve an exact groove, the parallel plan of the tool must be exactly maintained, the parallism ...per hour is normal. For external grooving, groove turning, profiling and undercutting. Various PCD materials and CBN materials find application to the workpiece material.
|
|
| ... products without technical information |
| |
MTC™ Conversion Components
A support blade, a clamp and a stop mount to existing Square Shank and Right Angle O.D.
Grooving Toolholders to create a mounting area comparable to that of MTC™ Integral Shank Toolholders. Once the components are installed, any of the MTC™ Inserts can be used in the toolholder.
Get more out of your existing Deep Grooving System with
MTC™ Conversion Components.
• More speed and feed
• More chip control
• More tool life
• More Depth of Cut
|
|
|
|
