| The hydraulic shears OMAG mod. GHB are built from 3 to 8 meters of length with a cutting capacity from 6 to 30 millimetres. The cylinders are at double acting and they are made in steel and lapped; shafts are in steel and ground. The blade holder runs on a vertical table and it is directly controlled by the two standard cylinders and it is driven by a roller bearing system. The hold down pistons are independent therefore the tightening force adjusts itself automatically in relation to the sheet thickness to be cut. Both the blades, top and bottom, are with 4 cutting edge wires. The adjustment of cutting angle at hydraulic driving is carried out by acting on two levers placed outside the housings. The shears model GHB has in the standard equipment the numerical control CPC123 for one axes that reduces and simplifies the working process. |
|
We design and manufacture a full line of shearing equipment, including conventional and CNC-controlled guillotine shears and a CNC production cell with automatic sheet feed.
|
|

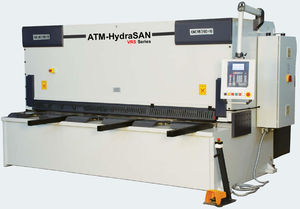

Cutting length from mm 2050 to mm 4050.
Cutting thickness from mm 4 to mm 20.
Gap mm 500.
Strokes per Minute from 7 to 30.
Manual blade gap adjustment connected to a handwheel,
motorized backgauge with fron readout by single axis
positioner , front support arms, lateral squaring arm,
light beam shearing gauge.
ON DEMAND: motorized NC blade gap adjustment, sheet
pneumatic support, sheet eject and pile-up systems,
sheet front feeders, NC 2 or 3 axis, hi-speed hydraulic system and other optionals for every cutting exigence. |
|

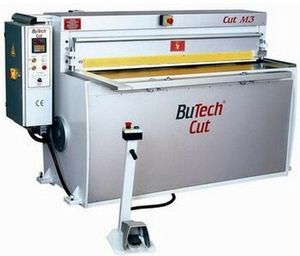

Cutting length from mm 1050 to mm 4050.
Cutting thickness from mm 2 to mm 14.
Gap from mm 100 to mm 500.
Strokes per Minute from 35 to 70.
Micrometric blade gap adjustment.
Manual backgauge or motorized backgauge with front
readout by single axis positioner.
Front support arms and lateral squaring arm.
ON DEMAND: manual blade gap adjustment connected to a handwheel or motorized NC adjsutment, pneumatic sheet support, sheet eject and pile-up systems, sheet front feeders, NC 2 axis and other optionals for every cutting exigence.
|
|
SC is a hydraulic guillotine shearing machine with a very robust monolithic structure. The range includes two models, with working lengths of between 1 and 6 m and cutting capacity from 4 to 16 mm. Both models are equipped, as standard, with a practical and reliable numeric control, which allows automatic working management.
The range guarantees minimised working times even though preserving high cutting quality, on any material and in any working condition. The quality of Schiavi SC shearing machines is guaranteed by first class mechanical, electrical and hydraulic components. SC shearing machines can optionally be equipped with accessories which increase their capacities. |
|

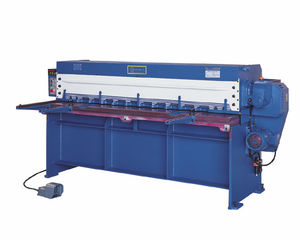

DIRECT-DRIVE GUILLOTINE SHEARS
CAPACITY RANGE
RGS 1560x3.5 mm
RGS 2060x4 mm
RGS 2560x4 mm
RGS 3150x3 mm
MAIN FEATURES
- All steel-plate welded construction
- Noise-free, direct drive system with brake motor
- Rigid cutting beam working inside roller bearings and bronze guides
- Precise blade adjustment from top beam
- Mechanical sheet clamping system
- Simple blade-gap system working on slides |
|
New technology for a new shearing philosophy
Standard Gasparini shears are supplied with a control panel including the Delem DAC310 electronic positioner, adjustable cutting length and rake angle. The blade gap is adjustable manually (motorized version available on request) for all machines with a shearing capacity up to 8mm; the motorized version becomes standard on bigger capacity shears (10 mm. and above). In our shears we have replaced the blade carrier arm with a robust blade carrier beam, which lies perfectly in axis with the cylinders. This solution ensures an excellent quality and precise cut guaranteeing a longer life for the cylinders. The back gauge is mounted directly on the machine structure thus eliminating stress and vibrations during shearing operations. Gasparini shears are manufactured according to C.E. standars.
The standard Gasparini shears come with a set of accessories that improve both productivity and the quality of processed products. They are essential for an increase of the machine flexibility i.e. to employ it in the most efficient way for different type of materials, thicknesses and dimensions thus making the maximum use of it.
|
|
| ... products without technical information |
| |

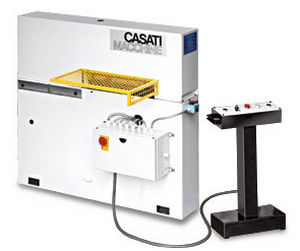

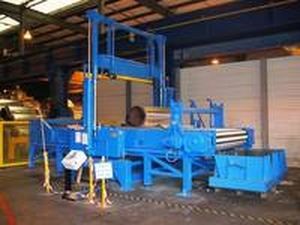

Veneer guillotine in combination with cross cutting equipment FPS 800 – fully hydraulic equipment.
Cutting-length:
2,600 mm
3,100 mm
3,600 mm |
|
