Crusher F10 and F10 FOR THE THIRD TIME "NR"
Mobile hammer mill allowing coarse crushing end large and very large flow
INDUSTRIAL materials of crushing, mixes, handling, storage, proportioning, sifting and bagging
|
|
... see all the products in the category
Crushers
|
|
|
|
|
The FRITSCH Soil Deagglomerator almost completely automates the deagglomeration of soil samples and simultaneous removal of stones and a high sample throughput.
Field of application
Preparation of soil samples for chemical and physical analysis, e.g. to determine the active ingredients relative to crop yield or identification of pollutants. Agglomerates are reduced to 2 mm grain size, e.g. as per the sewage
sludge code or DIN 19683.
Method of operation
Agglomerated soil samples are crushed by the combined forces of impact and friction. Rotating spiral nylon brushes in a cylindrical grinding chamber gently deagglomerates the sample, simultaneously conveying the sample along a 2 mm perforated plate within the chamber. The processed sample is collected in a container at the base of the mill, whilst larger components (stones, glass, wood, etc.) are retained and finally separated out at the end of the grinding chamber.
Advantages
- Gentle deagglomeration
- No crushing of stones
- Automatic removal of components > 2 mm
- Self-cleaning is effected by the rotating brushes which convey all material through the system
- Dust free operation through specially designed sealing
system
- Connection for dust extraction
- Accurate short-time timer for reproducible grinding conditions
- Continuous operation also possible
- Safety tested (CE mark)
- Speedy size reduction
- Easy to clean
- Overload protection
- 2 year guarantee
|
|
The Sturtevant Hammermills provide unexcelled general size reduction for virtually any dry friable material.
Benefits
* Material reduced by impact from swinging bar hammers
* Product size controlled by grates and screen sizes
* Materials reduced to granular powder at a high rate
* Heavy-duty cast iron construction
* Easy access for maintenance and screen change
|
|
Application
Intensive industrial use
Reduction ratio: up to 20:1
Working principle
The feed is succed into the mill, when a fast rotating rotor generates a fan effect. The product is smashed by swing hammers on to the lining, bolted on the upper cover. A screen controls the final corn size.
|
|
The CHM Hammer Mill is a robust impact mill that is predominantly used to grind relatively brittle or fibrous products.
The grinding rotor equipped with oscillating flat steel beaters grinds the product by means of pure impact effects.
The prominent characteristics of this machine are the robust housing construction and the rotor bearing mounted outside the housing.
We also offer a large selection of designs such as wear protected, gas tight or pressure shock resistant as well as numerous machine sizes!
|
|
|
|
|
|
The Alpine ZPS air classifying mill is a high-speed impact mill that offers grinding and classifying in one single machine. Rejection of coarse material occurs totally inside the mill by means of a positive material and air transport system. This feature combined with a horizontally oriented classifier offers the following distinct design advantages in bulk pharmaceutical milling:
- Two step processes combined in one machine
- Monoblock construction CNC machined from one piece of stainless steel
- Steep resultant particle size distributions
- Sharp classifier top cuts, instantly adjustable
- Easy clean CIP designs available
- Low grinding temperature for heat sensitive material
- Sterilize in Place (SIP) designs also available through the unique design retractable bearing assembly
Soft to medium hard products, such as pharmaceuticals , can be reduced to D97 as low as 10 microns with steep overall particle size distributions.
As indicated in this schematic, most of the process gas enters through the bottom section of the mill. Material is introduced to the tip of the rotating hammers through a port opening in the side of the mill. A serrated liner mounted on the periphery of the grinding chamber prevents particles from speeding directly to the hammers.
|
|
Mineral Processing
Limekiln
Germany
1x impact hammer mill PHM1012
rotor diameter 1000 mm
rotor width 1200 mm
input 6.3 mm
output 0.8 mm
limestone 60 t/h
|
|
|

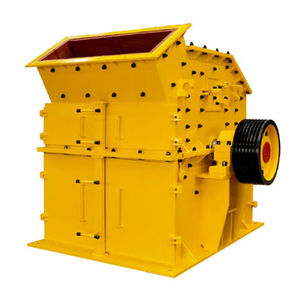

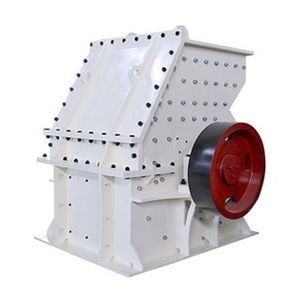

The Hammer Mill(Hammer Crusher) crushes by the collisions between high-speed hammer and material, which features in its simple structure, high reduction ration, high efficiency, ect.. The Hammer Mills were developed for the both dry and wet crushing of brittle, medium-hard materials for the mining, Plastic, coal, metallurgic, Mineral Stone, Chinese medicine, and Petroleum & Chemical industries.
|
|
|
|
|
|
Applications
Neue Herbold HM series hammer mills offer flexibility in their application range. Through the installation of material oriented rotor milling hammers tools various types of brittle plastics such as electronic scrap, wood scrap, and organic insulation material.
Design
Neue Herbold HM series hammer mills are designed and equipped highly wear resistant cutting instruments (hammers and hammer bars). The bearings of the rotor shaft are mounted within solid steel housings (not castings) which offer more reliable service and eliminate any chance for the housings to crack or break under heavy shock loads. As opposed to flanged mounted bearings, outboard mounting prevents dust/fines from fouling the bearing nor grease from contaminating the granulate. Outboard mounting provides for a quieter and cooler. The totally welded housing can also be equipped with replaceable wear plates when operating with high impact or abrasive material.
Advantages
- flexibility in their application range
- heavy duty design
- reduced space requirement due to compact design
- energy-saving size reduction
- extremely high through put rates
- easy cleaning due to clam shell opening characteristics
- reduced down time for hammer replacement
|
|
|
|
|
|
Feature
1. ICM has new concept hammers which generate powerful grinding effect and get better efficiency and fineness than other grinder.
2. ICM meets the wider specific needs for product size both in finer and coarser range.
3. Different hammers for different specific requirement.
4. The speed of integrated air classifying rotor can be changed for. Flexible control of product fineness and get stable quality products.
5. Easier Machine Maintenance and cleaning, and all driving parts are protected by totally enclosed common base for safety.
Application
Heat sensitive materials
* Food and spice, (such as tee, red pepper) which are easy to deteriorate, can also be ground by ICM without losing flavor.
Easy to soften-material
* The most suitable solution for the grinding of plastic which is easy to soften by heat. ICM can be operated with minimum heat increase during the grinding task.
Fibrous and tough material
* Stable operation can be achieved for the grinding of fibrous material as alginic acid, celluloseKetc.
|
|
F6 crusher
Mobile hammer mill allowing coarse crushing end
INDUSTRIAL materials of crushing, mixes, handling, storage, proportioning, sifting and bagging
|
|
