Functional, robust and dependable
Reliability, strong construction, smooth handling and exceptional manoeuvrability are hallmarks of the PTH 50 Series. The Crown hand pallet truck series offers lifting capacities of up to 2300kg, a high level of serviceability and many standard features.
The PTH family also includes models with scissor lift and weighing scale.
Our hand pallet trucks are Crown designed, engineered and manufactured to withstand the stresses of the most demanding applications and offer years of productive use with a lower cost of ownership.
|
|
MODEL: ECO I-25
Load Capacity: Kg 2500
Overall Length: mm 1508 / 1538 / 1608
Fork Length : mm 1120 / 1150 / 1220
Width over Fork: mm 520 / 685
Lowered Height: mm 85
Raised Height: mm 200
Wheel Type(s): Poly (std) / Nylon / Steel / Rubber
Weight: Kg 82
OPTIONS: Tandem Rollers
Automotive brake attachment
Low Profile Trucks
4-Way,
Corrosion Resistent trucks
Spark Resistent trucks

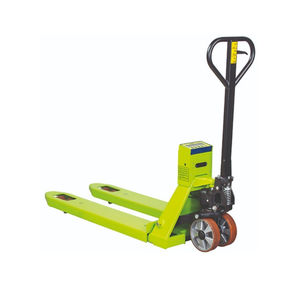

Weigh-Scale trucks ,
Straddle & Roll trucks,
Stainless Steel trucks
Galvanised trucks
Quick-Lift Version
KEY FEATURES:
Heavy duty reinforced frame
3-position control handle
Hand & foot lowering controls
Adjustable push rods
Exit / Entry helper rollers
Articulating Axle
|
|
MODEL: ESET10 (Self-Propelled / Manual Pump Operation)
Capacity: 1000 kg
Max. Fork Height: 205mm
Fork Length: 1100 / 1150 / 1220
Fork Width: 520 / 550 / 685
Battery: 24 Volt (4 Batteries)
Charger: 12V / 10A
Turning Radius: 1574 / 1624 / 1694mm
Travel Speed (with Load): 2.6 - 3.8 km/h
Net Weight: 143 - 156 kg
|
|
Type: PM20S
Special: Stainless steel
Capacity: 2000 kg
Forks: 1150 x 540 mm
Steering wheels: Nylon
Single/Tandem: Tandem
Fork wheels: Nylon
|
|
Type: PM20G
Special: Galvanized
capacity: 2000 kg
Forks: 1150 x 540 mm
Steering wheels: Nylon
Single/Tandem: Tandem
Fork wheels: Nylon
|
|
5,000 lb Capacity Hand Pallet Truck
Every-day-doers. Hand pallet trucks are especially handy for miscellaneous material handling requests. These manual walkies have a capacity of up to 5,500 lbs and are often used to move palletized loads over short distances (less than 100 feet). The hydraulic trucks are equipped with a reinforced, ergonomic handle, making it an easy task to move heavy loads.
|
|
|
|
|
|
Hand Pallet Trucks Quality, strength and reliability for a long, economical service life. BT hand trucks have set the industry standard for over 60 years, and remain the benchmark for the industry. Since developing the first lightweight hand pallet truck in 1947, BT has built over two and a half million of them.
The BT Lifter has been proven worldwide as the universal hand pallet truck, suitable for moving loads in all types of application. A highly automated production system maintains consistently high quality levels, and a powder paint finishing process ensures a superb, durable finish. A long life is assured through built-in serviceability. At least ten grease nipples are fitted to every truck to allow easy lubrication of moving parts.
The innovative Pro Lifter models offer the most significant technical innovations in hand pallet truck design. Ease-of-use reaches new levels with up to 67% less effort required to move the load in the manual version, which features BT Pro Start Technology; or totally effort-free travel with the electric Pro Lifter M model. The standard BT Lifter has a lift capacity of 2300 kilograms The BT Quick Lifter can lift loads under 1500 kilograms in just two strokes of the handle.
The BT Heavy Lifter, with its lift capacity of three tonnes, can handle the heaviest loads The BT Stainless Lifter is intended for corrosive environments and applications that demand a high standard of hygiene. Its structure is high-grade stainless steel – long lasting and easy to clean High Lifter models offer hand-truck versatility with the extra feature of a lift height of over 800 millimetres. The electric lift model is the ideal ergonomic workstation. BT hand pallet trucks;build to last under the heavy conditions in warehousing and logistics. Check our Life Time Garantee offer.
|
|
Electric and Manual Walkies
5.000lb Capacity Hand pallet Truck
Model Multiple
Type Hand Pallet Truck
Power voltage N/A
Capacity (lb) 5000
Top speed (mph) N/Q
|
|
3000 kg capacity
Reinforced frame
Fast lift supplied as standard
Unique operating element
Robust and durable
Short and manoeuvrable
The hand pallet trucks AM 30 is the ideal solution for all manual transport tasks over short distances. It is a universally suitable truck with its extraordinarily high capacity – for very heavy loads as well as for loads that exceed the usual dimensions.
Its advantages are detailed here:
- Comfortable and easy to handle operating element for both left-handed and right-handed operators. Manoeuvring with one hand on the tiller head is possible and both comfortable and safe.
- Fast lift (up to 120 kg) with supplied as standard for off the floor lifting and lowering of pallets in only three pump strokes.
- Excellent manoeuvrability even in most confined spaces through slim front length. Chromed bearing bushes on wheels and joints make for easy pulling or pushing. They are convincing with their remarkably quiet running and maintenance free operation.
|
|
For a durable, economical hand pallet truck, nobody beats Presto. Our HPT Trucks are loaded with features that most more expensive models can't claim.
Features:
- 5500 lb capacity
- Powder coated paint finish
- Solid steel formed forks and chassis with reinforced frame and gusset
- Highest quality pump with special lowering valves and an overload by-pass
- Steer wheels 7" x 2", load wheels 2 7/8" x 3 1/2"
- Nylon steer wheels and load wheels
- All pivot points come with sealed bearings
- 9 strokes to full raised height
- Fork tip roller system for smooth transition in and out of pallets
- Articulating steer axle
- Ergonomic cushioned handle with 3 function trigger for raise, lower and neutral operation
- Polyurethane wheels available
|
|
Over 75 years ago, Raymond invented the industry's first hydraulic hand truck. That same spirit of innovation can be seen today. Raymond hand pallet trucks are designed to meet the demands of a fast-paced material handling industry.
Simplicity; rugged construction, smooth handling and exceptional maneuverability are hallmarks of our hand pallet trucks.
The logical choice for use every day, throughout your operation
Raymond hand pallet trucks include low-profile configurations, for pallet clearances as low as 2.9”. A host of options and accessories enable you to customize your truck's capabilities to meet your specific needs.
Heavy-duty construction stands up to the toughest applications, year after year
Simple, easy-to-access design and fewer parts allow quick, easy servicing. Ergonomic features, including convenient fingertip controls, enhance operator comfort and productivity
A full 180-degree turning radius makes navigation easy, even in tight quarters
5,000 Capacity
|
|
|
Toyota hand pallet trucks are a common sight in factories, warehouses and retail environments everywhere. Because they’re ideal for transporting lighter loads over shorter distances, they’ll get goods off a production line and onto the truck as quickly, safely and comfortably as possible.
|
|
Toyota's Rugged Yet Lightweight Hand Pallet Truck, Designed to Meet and Exceed the Demands of your Toughest Workplace Environments.
- 5,000 lbs.
|
|
|
Pallet trucks are as diverse as the tasks they are required to fulfill, as compact as requirements dictate and as efficient and long-lasting as you could possibly desire. Moreover, they are ideally suitable for heavy loads of up to 5 tons. All of the pallet truck models are available in customized versions as well so that they can be perfectly tailored to your specific operating environment and amount of use.
|
|
MODEL: ECO I-25-SS
Capacity: 2000 kg
Overall Fork Width: 520 / 540 mm
Fork Length: 1150mm
Individual Fork Width: 165mm
Raised Height: 190mm
Lowered Height: 75mm
Steer Wheel: 180 dia. NYLON
Load Roller: 74mm dia. NYLON
Weight: 80 kg
FEATURES:
All Parts stainless Steel including hydraulic Pump, forks, frame, handle, push rods, Bearings, Pins, Bolts.
Fully sealed hydraulic coated pump
Three position handle-Lift-Neutral-Lower
Tandem Nylon Load Rollers & steer wheels
|
|
Robust and especially designed for the transport of various loads the Linde hand pallet truck performs its task as an all-round reliable helper in innumerable warehouses and production places.
|
|
Lifter GS 25S4 950x525
Main features
Nominal load capacity : 2500 kg
Frame material : Painted steel
Fork length : 950 mm
Fork width : 150 mm
Stowage passage : 1632 mm
Turning radius : 1167 mm
GS PRO Series
The GS Pro Series, is an excellent tool for lifting and carrying loads on pallets or size-standardised containers. Thanks to its light weight, smooth movement and manoeuvrability, all the GS Series models are an ideal working tool for use on smooth floors and other kinds of surfaces.
|
|
Hand pallet truck model HU Profi
Capacity 2500 - 3000 kg
For the professional transportation of palletised goods under demanding conditions.
Features
- Safety control handle with the functions: Lifting - driving - lowering.
- Lowering speed can be finely adjusted for sensitive lowering of the load.
- Low maintenance hydraulic with hard chromium plated piston and pressure relief valve.
- Wear resistant, long life steering wheels and load rollers.
|
|
Pallet truck and lifting tablein one. Using the HL, loads can be easily moved as per normal pallet truck and then raised to an ergonomically suitable working height. The pallet truck is available in three versions, hand-hydraulic, pneumatic- and hand-hydraulic and electro- and hand-hydraulic. The points which apply to all models are:
long legs increase the standing area so the stability above 400 mm
the lifting speed is double for loads under 250 kg
the electro and pneumatic models can both be operated manually
The electro model is delievered with battery and 15 Amp external charging unit.
The pneumatic-hydraulic model is a particulary well priced unit for the workplace equipped with a compressed air line.
|
|
MODEL: EMSL10
MANUAL PUSH - MANUAL LIFT SCISSOR LIFT
Capacity: Kg 1000
Raised Height: mm 800
Lowered Height: mm 85
Fork Length : mm 1150
Fork Width: mm 550 / 685
Ind. Fork Width: mm 160
Steer Wheels : mm 180 dia. Polyurethane
Load Rollers: mm 74mm dia. Polyurethane
3-Position Control Handle (Raise-Neutral-Lower)
Weight: kg 100 kg
|
|
| ... products without technical information |
| |
* HP Series :
- 3 years warranyty pump: a built in overload valve and totally sealed hydraulic pump.
- German seal kit offers long span life of pump for 3 years warranty .
- Heavy duty and reinforced forks for greatest strength and durability.
- 2 nylon entry and exit rollers prevent physical exertion of the operator and protect load rollers and pallet.
- Oiless bushings at key points offer you less operating force and longer span life of pallet truck.
* SP Series :
Durable Hydraulic pump
- With latest European Technology, SWELIFT self- contained unit provides premium-qualifty hydraulic ,seal kits are made in Germany.
Centeral Fingertip Controls
- Three-position control lever provides fingertip control of all hydraulic system functions with the handle in any position.
- Neutral position frees handle of hydraulic functions.
Fork Frame
- Rugged construction with heavy gauge steel and sturdy continuous welds throughout, SWELIFT fork frame can load 3000kg.
|
|
|
|
