Front Handle and Lock - Drawer Handles
GSF's front handle and lock mechanism is extensively used on fire truck drawers (straight slide out and slide and tilt). The double handle and push button locking mechanism is located at the centre of the drawer front in order to ensure the operator's gloved hands are kept well away from pinch risks.
The strong aluminium handle enables the operator to exert full control over the movement of what is likely to be a heavy drawer, both when opening and closing, and the locking mechanism can be installed so as to provide a slam-shut lock-in functionality for slide and tilt drawers, as well as a lock-in and lock-out function for conventional straight slide-out drawers when mounted under the drawer pan. The locking mechanism retracts the spring loaded locking bolts, which slot into the slam-shut lock blocks integrally fixed to GSF's award winning slide and tilt front bracket.
The unit is generally supplied without an aluminium drawer front, and at a standard width of 1,500mm. The user would then cut the locking bolts to their own desired width, although the system can be supplied with the locking bolts pre-cut by GSF to the user's specified length.
|
|
No. 4305
This Eberhard Pull Handle offers an attractive appearance plus a substantial grab area for your hand. Material: Zinc Die-Cast Finish: Polished Chrome Weight: .89 lbs.
Eberhard offers a wide range of other size grab handles made out of different materials with differnt finishes, please contact Eberhard for more information on grab handles.
|
|
SNAP-LINE products allow installation without screws or tools.
Advantages:
- Save up to 90% of your hardware installation time
- Withstands vibration
- Blind assembly
- Zero defect assembly design
|
|
- 1, 2 and 3 point cams
- Electronic option
- Cylinder or inserts
- Indoor and outdoor
- Zinc die-cast, polyamide or stainless steel
|
|
Material:
Oval aluminium EN AW-6060
Surface finish:
Black powder-coated, natural colour anodized
Note:
These KIPP Oval Bow Handles are extremely robust and can also be used in any situation where powerful operation is required.
|
|
Aluminium bow-type handles
Made of profiled aluminium, round bar aluminium or chilled casting in different anodizing versions or powder coated. With a big variety of standard-types for 19"-housings.
|
|
67 - CONCEALED PULLS
- Unique concealed design
- Handle is hidden within enclosure, rotates out for use
- Fully concealed mounting hardware
P1 - FLUSH PULL
- Flush mounted exterior, grip is recessed inside of cabinet
- Provide ample depth for a substantial grip
- Can be used for lifting or pulling
|
|
Bridge handles
Safety handles
Flush pull handles
Tubular handles
Pull handles
Fixed and revolving handles
Fold-away handles
|
|
Front panel handles, ledge handles and casing feet
For sliding doors, drawers, shelves, 19"-slots or as edge-protection. Casing feet made of plastic or diecasted zinc for high stress and securing against turning down by adjusting.
|
|
|
A broad choice in the range of the handles clamps EMILE MAURIN! Dimensions: distance between centres from 86 to 1000 mm Material: cast iron, aluminium, steel, stainless, technopolymère, polyurethane… Form: bent, tubular, off-set, ellipse, widened, punt… Various colours Discover models of handles clamps especially adapted to your constraints: A handle clamp technopolymère with antimicrobic protection which empèche the deposit of the bacteria, mushrooms and mould while ensuring the total cleansing of surfaces. A handle special clamp in technopolymère which makes the handle flexible. It is assembled on curved surfaces having a diameter ranging between 300 and 600 Misters. But also of the handles clamps resistant to high temperatures (200°C), with an oval tube, hollowed out side supports, etc… For all specific demands for handles clamps, consult us…!
|
|
Swing, sliding and lifting doors are operated with handles or grip systems.
The grips are either screwed directly into an inherently stable panel element or they are attached to the profile of the panel frame.
|
|
Material: stainless steel 1.4301 . Polished surface (sandblasted treatment on request).
Applications: pharmaceutical, chemical, food, wine and packaging industry.
|
|
|
|
|
|
with functions:
With mechanical, pneumatical, or electrical function. At the electrical version all connections of buttons, emergency stop and LED will be lead out of the handle, that the customer can use all functions individually.
Aluminium bow-type:
Made of profiled aluminium, round bar aluminium or chilled casting in different anodizing versions or powder coated. With a big variety of standard-types for 19"-housings.

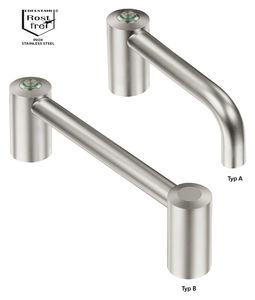

Stainless steel :
For all areas with high corrosive resp. chemical demands as medicine technology, wet areas, chemical installations and the food industry.
Machine and control housing:
Stable aluminium handles with high dimensions for machines and housings in different anodizing versions or powder coated.
Front panel , ledge and casing feet:
For sliding doors, drawers, shelves, 19"-slots or as edge-protection. Casing feet made of plastic or diecasted zinc for high stress and securing against turning down by adjusting.
Clean Line:
A selection of our standard handles in a version for sanitation areas as e.g. medical technology, food industry and hospital equipments.
single elements:
In modern industrial design. Ledge and shanks are made of similar or different materials as aluminium, steel, stainless steel or plastic.

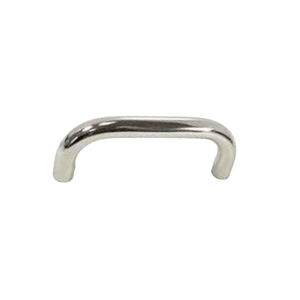

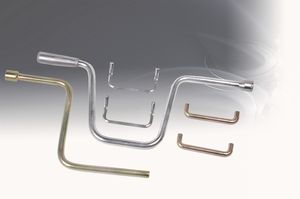

Bow-type of round steel rod:
Bent handles of steel with centrical threaded holes, high glossy chromed, matte chromed or powder coated.
Plastic bow-type:
With high carrying comfort, made of thermo-plastic (glass-ball reinforced polyamide PA6) or highly stressable, heat resistant duroplastic (bakelite).
...
|
|
B4 - LIGHTWEIGHT HANDLES
- Lightweight aluminum construction
- Rear-mounting design hides fastener hardware
- Available in multiple sizes to match grip and load requirements
B8 - GRAB HANDLES
- Available in two sizes to satisfy space and strength requirements
- All models provide fully concealed mounting hardware
- Corrosion-resistant materials
|
|
The special antimicrobial material EBP.SAN is made out of, stops any deposit of bacteria, mildew and fungi, offering a sanitized effect on the surface.
Tests carried out on material samples confirmed the stability of the antimicrobial action after several cleaning cycles at high temperatures with soap and solvents.
The great resistance to high temperatures of the antimicrobial additive allows this handle to reach sterilisation temperatures (130°C).
|
|
|
|
|
|
|

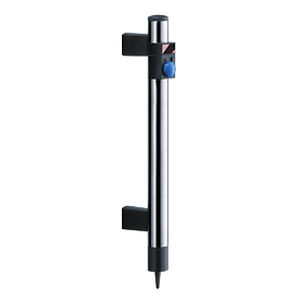

Tubular handles with switch Emile MAURIN the tubular handles with switch were designed for unlocking/releasing of the safety devices of the sliding doors and the rotary/revolving doors. - Optimized Ergonomics (with the switch directly with the door) - Assembly and installation simplified - Functions additional possible directly on the handle and connected to the door: switch of stop urgently OFF, push-buttons START or RESET, luminous indicators All the switches, push-buttons and indicators, normally installed on external panels or rising, here are directly integrated on the tube of the handle. While unbolting the device with the inch, the same hand can open the door. According to your applications, various versions are deliverable with a switch of stop urgently OFF or 2 push-buttons being able to be used for example, one for START and the other for RESET. The version with 1 only push-button implies that it is about an element of contact. The 2 indicators are integrated in the case circuit breaker and they can post various operating conditions, allowing, for example, with the operator to make function or control its machine directly since the door. The second push-button can be used as element of contact. The tubular handles are out of aluminium stripped black chechmate or anodized. The side supports in zamac are stripped black chechmate. A kit with the caps of red, green and blue color is provided for each button.
|
|
Functional Handle
with Emergency
Stop FG5
Material and
surface treatment:
Tube ø 30 x 1,5 mm of aluminium AlMgSi 0,5, black powder coated with fine structure. Tube holder and cap of polyamide PA6, black with fine structure.
Function element:
Emergency Stop.
FG5-20
2 NC contacts; UL approval.
FG5-21
1 NC contact and illumination by red LED; UL approval.
Protection class:
The protection class of the functional handles conforms to IP 65.
Connection:
Connecting cable 5 m readymade, lead out of the tube holder.
Special designs:
Other handle lengths on request.
|
|
Material:
Black duroplastic PF 31;
hubs in steel, nickel-plated or stainless steel 1.4305, natural finish;
grip revolving, steel parts nickel-plated or in stainless steel 1.4305, natural finish
Surface finish:
Deburred and high-polish finish
Note:
The Handwheel and grip will be delivered unassembled.
On request:
Other locating holes.
|
|
Aluminum Angular Solid Handwheel
Plastic Solid Handwheel with Revolving Handle
Aluminum Angular Spoked Handwheel
Plastic Solid Handwheels with Revolving Handle
Aluminum Finger Wheels
Plastic Solid Handwheels with Finger Grips Revolving Fold Away Handle
Aluminum Finger Wheels
Plastic Solid Handwheels with Finger Grips Revolving Fold Away Handle
Aluminum Finger Wheels
Plastic Three Spoked Handwheels
Cast Iron Angular Spoked Handwheels with Handles
Plastic Three Spoked Handwheels with Revolving Handle
Nylon, Angular Three Spoked Handwheels
...
|
|
MISUMI provides more than 1 Million mechanical components for the assembly automation. We delivery components europewide in averagely 6-8 days GUARANTEED delivery from the day of purchase, stock items available from 2 days delivery.
MISUMI 24/7 Web Ordering System (WOS) represents a full-fledged e-Commerce solution, which you can use, for the first time, independently from the catalogue in paper form, to configurate MISUMI products, submit quotations and place orders.
For more information about MISUMI, WOS or for ordering a catalogue please visit: www.misumi-europe.com
MISUMI - Precisely Meeting Your Demands
|
|
Insert foot
Group 047
# Made from PVC
# Colour: black
# Prevents sliding and reduces vibration
# Easy mounting through simple design
# Also available in assortment box (group 019)
Protective buffer
Group 048
# Made from PVC
# Colour: white, black
# Soft yet very strong flexible bumper
# Easy mounting through single screw or push rivet
# Check our extensive ranges of nylon or metal screws and nuts
|
|
|
Knobs, buttons and T-handles for throttle, choke, valve, shut down, vent control and more in a variety of applications from construction to aviation.
|
|
|
Indexable levers EMILE MAURIN the indexable levers are components usually used for tightening. The very broad range is composed of indexable tapped insert levers (steel or stainless) and of indexable threaded rod levers (steel or stainless). A great choice of material (for the body): zamac, technopolymère, steel and stainless also Discover: indexable stage levers with a sole assembled on a ball bearing right indexable levers (the handle is not tilted of 20°)
|
|
Machine and control housing handles
Stable aluminium handles with high dimensions for machines and housings in different anodizing versions or powder coated.
|
|
Examples:
Economy plus
Handle Series EC
Material:
Handles of polyamide PA6, glass
ball reinforced.
Designs:
Black, similar to RAL 9005, or orange, similar to RAL 2009, semi-matte with fine-grain structure for cylinder headsocket screws M8 DIN 912 or
countersunk head socket screwsM6 DIN 7991.
Slanting Polyamide Handle SP:
Material:
Handle of polyamide PA6, glass ball reinforced with threaded brass bushings.
Designs:
Black, similar to RAL 9005 or light grey, similar to RAL 7035, semi-matt with finegrain structure.
|
|
Size EX120 = 0.257 EURO
New style bridge handle 20-40% cheaper then your current parts.
Introducing new bridge handle with new ergonomic design, robust construction and guaranteed lowest price on the market. Our size EX120 is the best seller for the quality, design and price.
We are also capable to make any other part for much lower cost.
We are offering direct factory prices from our warehouse in Czech Republic.
We are looking for smart direct buyers and resellers worldwide.
Please, visit our web page www.elementrix.net to see the range of our products and feel free to ask for the quotation.
|
|
EPR/F-SH
Flush pull handle with flap
(assembly by means of screws)
|
|
New style revolving handle 20-40% cheaper then your current parts.
Introducing new revolving handles with new ergonomic design, robust construction and lowest price on the market. Our size EX68 are the best sellers for the quality, design and price.
We are also capable to make any other part for much lower cost.
We are offering direct factory prices from our warehouse in Czech Republic.
We are looking for smart direct buyers and resellers worldwide.
Please, visit our web page www.elementrix.net to see the range of our products and feel free to ask for the quotation.
|
|
|
|
