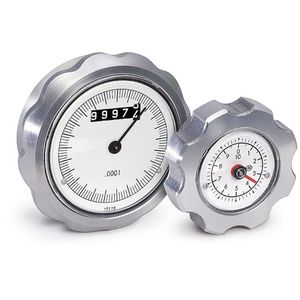

Position indicators and handwheels of SIKO for individual applications.
Handwheels with integrated position display afford to shift and display axial movements. For actually reading SIKO provides a spectrum of variable scales depending on particular transmissio.
|
|

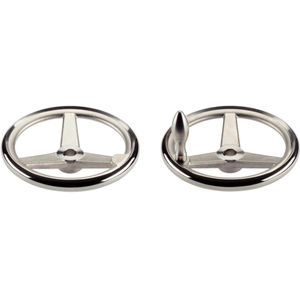

Material:
Black duroplastic PF 31;
hubs in steel, nickel-plated or stainless steel 1.4305, natural finish;
grip revolving, steel parts nickel-plated or in stainless steel 1.4305, natural finish
Surface finish:
Deburred and high-polish finish
Note:
The Handwheel and grip will be delivered unassembled.
On request:
Other locating holes.
|
|

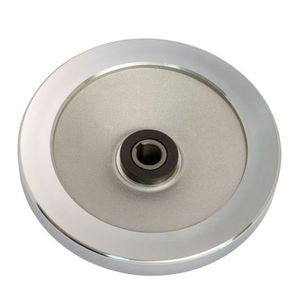

Aluminum Angular Solid Handwheel

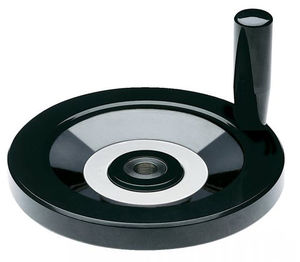

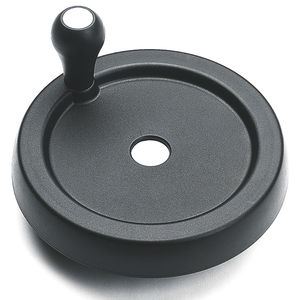

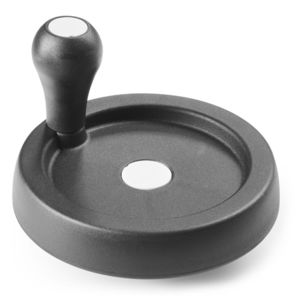

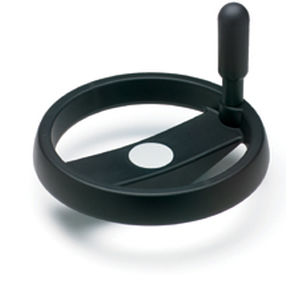

Plastic Solid Handwheel with Revolving Handle

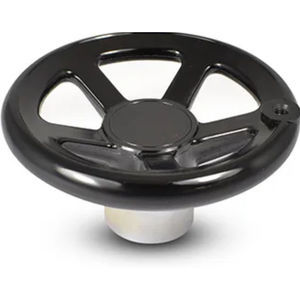

Aluminum Angular Spoked Handwheel

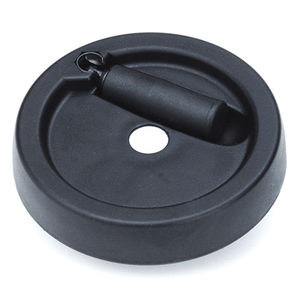

Plastic Solid Handwheels with Revolving Handle

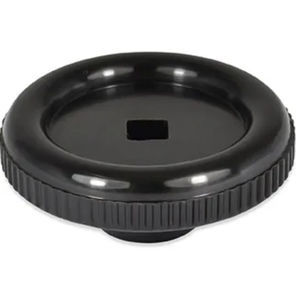

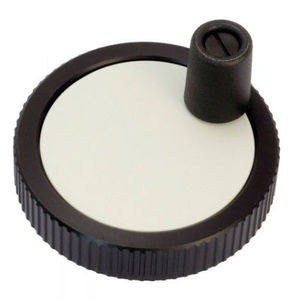

Aluminum Finger Wheels

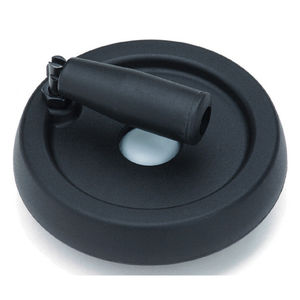

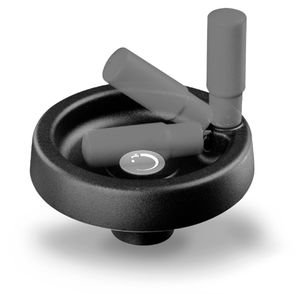

Plastic Solid Handwheels with Finger Grips Revolving Fold Away Handle
Aluminum Finger Wheels
Plastic Solid Handwheels with Finger Grips Revolving Fold Away Handle
Aluminum Finger Wheels
Plastic Three Spoked Handwheels

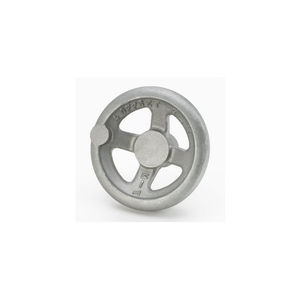

Cast Iron Angular Spoked Handwheels with Handles
Plastic Three Spoked Handwheels with Revolving Handle
Nylon, Angular Three Spoked Handwheels
...
|
|
MISUMI provides more than 1 Million mechanical components for the assembly automation. We delivery components europewide in averagely 6-8 days GUARANTEED delivery from the day of purchase, stock items available from 2 days delivery.
MISUMI 24/7 Web Ordering System (WOS) represents a full-fledged e-Commerce solution, which you can use, for the first time, independently from the catalogue in paper form, to configurate MISUMI products, submit quotations and place orders.
For more information about MISUMI, WOS or for ordering a catalogue please visit: www.misumi-europe.com
MISUMI - Precisely Meeting Your Demands
|
|
Insert foot
Group 047
# Made from PVC
# Colour: black
# Prevents sliding and reduces vibration
# Easy mounting through simple design
# Also available in assortment box (group 019)
Protective buffer
Group 048
# Made from PVC
# Colour: white, black
# Soft yet very strong flexible bumper
# Easy mounting through single screw or push rivet
# Check our extensive ranges of nylon or metal screws and nuts
|
|
|
Knobs, buttons and T-handles for throttle, choke, valve, shut down, vent control and more in a variety of applications from construction to aviation.
|
|
WDS has a comprehensive range of handwheels, handles and knobs. These come in a variety of sizes and styles plus many variations in materials from Stainless Steel and thermoplatics that are ideal for the Food Industry, plus Cast Iron and Bakelite for standard industry applications. There are also a range of indexing handles and hand knobs in a variety of RAL colours.
As with most WDS standard parts 3D models are available on-line in most popular formats.
|
|
Size EX160 = 2,37 EURO
New style hand wheel 20-40% cheaper then your current parts.
Introducing new hand wheel with new ergonomic design, robust construction and guaranteed lowest price on the market. Our size EX160 is the best seller for the quality, design and price.
We are also capable to make any other part for much lower cost.
We are offering direct factory prices from our warehouse in Czech Republic.
We are looking for smart direct buyers and resellers worldwide.
Please, visit our web page www.elementrix.net to see the range of our products and feel free to ask for the quotation.
|
|
ART. D161
TAPERED HANDWHEEL WITH SMOOTH OR THREADED HOLE
MATERIAL:
Reinforced polyamide.
Oils and greases resistant.
SURFACE:
Satin.
HANDWHEEL COLOUR:
Black (RAL 9011).
MAIN INSERT:
TD Version: Zinc plated steel blind
bored bush with H7 tolerance.
TM Version: Zinc plated steel blind
threaded bush.
For fixing systems, or execution of tabs
or square holes, please refer to the technical notes
attached to the catalogue.
SPECIAL REQUESTS:
• It is possible to supply the inserts with
d1 diameter by customer design, on request
and for quantities.
• It is possible to supply the inserts in different
materials, on request and for quantities.
• It is possible to supply the inserts with different
treatment-finishes, on request and for quantities.
|
|
ART. E215
CRANK HANDLE WITH THREADED INSERT
AND REVOLVING HANDLE
MATERIAL:
Reinforced polyamide.
Oils and greases resistant.
SURFACE:
Satin.
COLOUR:
Black (RAL 9011).
MAIN INSERT:
Brass blind threaded bush.
(*) Zinc plated steel blind threaded bush.
SIDE INSERT:
Brass right through threaded bush.
SIDE HANDLE:
Revolving handle Art. M144 (see chapter M on page 6).
SPECIAL REQUESTS:
• It is possible to supply the inserts in different
materials, on request and for quantities.
• It is possible to supply arm and handle with colours
as shown in the table at page 15, on request and for
quantities.
|
|
| ... products without technical information |
| |
The HW-100 handwheel is a handheld manual pulse generator with an emergency switch for manual jog operation of the machine or machine tool. It controls five axes, with incremental movements of 1, 10, 100 or 1000 encoder counts per click. It requires a VersioBus adapter board to connect directly and simply to the host PC.
The HW-100 handwheel is an optional but useful component: every general motion control and CNC application provided by Soft Servo Systems includes a Handwheel Mode (a control mode where you use the handwheel to operate one axis of the machine tool at a time).
Of course, our products being as versatile as they are, any handwheel will work in a system that includes a VersioBus adapter board. But we've found the HW-100 to be comfortable and easy to use.
|
|
Of small overall dimensions, they are installed very simply on the whole of the desks, by not requiring any place on the interior part.
They deliver 100 or 25 imp /tour, in the form of square signals TTL, 2 ways with their complementary.
Compatible with more the famous brands, they s’ will thus integrate very easily on your CN.
Very robust and of looked after manufacture, they are however at an unusual price for this type of product.
These cranks are available in stock.
|
|
