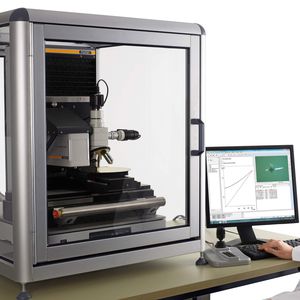

Microhardness tester FISCHERSCOPE HM2000 and PICODENTOR HM500
These instruments have been developed according to the latest research results ad are particularly well suited for the following areas of application:
Hard material coatings in general, ultra-thin DLC coatings, dirt-repellent coatings (e.g., sol-gel coatings), coatings for PC hard disks and CDs, very thin lacquer coatings, ion-implanted surfaces, nanocoatings for sensors, implants used in the field of medical technology, matrix effects in alloys, biological materials, ceramic materials.
The design of the micro-hardness instrument combined with the superior evaluation electronics and software allows for a very favorable price/performance ratio. The resolution for applying the test load is about 100 nanonewton and for measuring the indentation depth about 40 picometer.
The maximum test load of the HM500 instrument is 500 mN at a maximum indentation depth of 150 µm. The closed measuring chamber and the active anti-vibration table ensure very accurate measurements with an excellent repeatability precision.
|
|
The Equotip Piccolo is a revolutionary portable rebound hardness tester for precise measurements on most metals.
It integrates the display and a patented mechanism in one device where the impact body type D is launched and loaded for the next test in a single motion!
The Piccolo is designed and manufactured with the quality and precision that is expected from Proceq’s Equotip product family and will comply even with the roughest manufacturing environments.
The basic kit comes with the bundle of the Piccolo device and Piccolink PC software, permitting full communication between tester and PC via USB.
|
|
The Schmidt Roll Hardness Tester determines the hardness of large rolls of paper, film and foil. It provides fast, accurate, non-destructive hardness profiles of rolls to assure smooth and efficient printing. Rolls that are too hard, or too soft, rolls that are unevenly wound, or rolls with different moisture contents can cause difficulties during the printing process. The Schmidt Roll Hardness Tester is often used in conjunction with the Smith Roll Tightness Tester (TMI 40-54-00) to provide a complete profile of roll properties.
FEATURES
- Self-contained, Lightweight, Portable, Quick Readings
- A convenient carrying case provides safe, easy transport of these portable, lightweight units and accessories.
|
|
Shore Hardness Tester for determining the surface hardness of various materials according to Shore A, B, C, D, DO and O.
Shore hardness tester according DIN 53505, ISO 7619, ISO 868 and ASTM D 2240
- The spring loaded outer ring assures a constant measuring pressure and eliminates false readings due to difference between operators
- Flat bottom prevent tilting and improves the measuring accuracy
- Adjustable Min./Max. indicator marks to highlight the working range of the hardness tester
- Easy to use
- High repeatability
MADE IN GERMANY
|
|
Portable hardness tester IMPACT:
Hardness testing gauge designed for the universal use in the laboratory or in workshops with integrated impact device.
The gauge is easy to use in all positions, even upside down.
Hardness values in: Rockwell C (HRC), Rockwell B (HRB), Vickers (HV), Brinell (HB), Shore (HS), Leeb (HL)
TH170:
integrated with D impact device for normal hardness testing of all metallic materials
TH172:
integrated with C impact device for hardness testing on thin, light and face-hardened workpieces
TH174:
integrated with DL impact device for hardness testing of deep grooves and tooth surface
|
|
Hardness testing gauge designed for the universal use in the laboratory or in workshops for hardness testing of metals.
The gauge is easy to use in all positions, even upside down.
Various impact devices are available for different materials and geometries.
Hardness values in: HV, HB, HRC, HRB, HRA, HS
|
|
Feature:
●Integrated D impact device, with no cables
●Wide measuring range in HLD and direct display of converted hardness values in HB,HRB,HRC,HRA,HV,HS
●Test at any angle
●Software calibration and battery indicator
●Upper and lower limit and sound alarm
●Compact device ,Simple handing and low test expenditure
|
|
|
|
|
|
The King Brinell tester has been the world wide leader for over 60 years. King Brinell hardness testers are lightweight, easy to maneuver and require only one operator which make them ideal for use as portable or bench units.
The King Brinell is designed to make impressions that are used to measure the hardness of metal. The King® Brinell Hardness Tester is a precision instrument which serves a dual purpose. It can be used as a bench-type tester or taken to the job site in almost any location. This dual role enables most users to save a considerable amount of money with their investment with this highly versatile hardness tester. The King Brinell Tester is lightweight and it requires only one person to operate. It is 100 percent reliable with precision accuracy in the field regardless of what challenging environment you may be testing in.
The King Potable Brinell Tester is versatile enough to test virtually any size and shape metal specimen but most importantly this Brinell tester is easy-to-use. The operator simply places the specimen between the anvil and the test head, cranks the test head down onto the specimen, locking the tester in place, closes the pressure release valve, and pulls the hydraulic lever until desired load is reached. The tester applies up to a 3000 kg load on a 10 mm ball, making a lasting impression, which is available for re-reading at any time. A by-pass valve is automatically activated at the calibrated load, eliminating the chance of overloading.
|
|
|
|
|
|
DynaMIC
The DynaMIC operates according to the rebound hardness testing method (standardized according to ASTM A956) using a special signal processing technique that automatically compensates for changes in testing direction. Position the impact devices and read the hardness value - that is hardness testing in a matter of seconds. Different impact devices are available to ensure an optimum match to material and application. The DynaMIC DL Data Logger model can internally store hardness values along with statistical information.
Products Features:
Measurement of hardness independent of impact direction (without input of any correction values) due to patented signal processing
Standardized according to ASTM A956
Automatic conversion of hardness to HV, HB, HRC, HRB, HS, HL and N/mm2
Different impact devices dependant on application:
Dyna D for standard applications
Dyna G for heavy, solid parts
Dyna E for hardness range beyond 650HV
Data Logger version with internal data memory for measurement data and instrument settings
Applications:
Solid, coarse-grained components
Machine parts made of steel and cast aluminum alloys
Large series parts during production
Heavy forgings
|
|
●Horizontal protrudent nose design, testing on surfaces
difficult to reach
●Testing internal surface of ring parts whose diameter is
not less than 23mm (0.900〃)
●Testing external surface of round bars whose diameter is
not less than 3mm (0.120〃)
●Automatic test process
●High definition backlight LCD
●Simple and easy selectable operation menu
●RS-232/USB data output
|
|

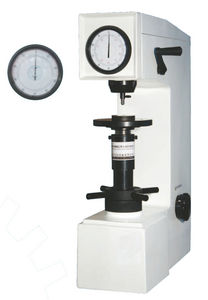

The Rockwell Zwick/ZHR hardness testers cover the following applications:
Classical Rockwell methods: Zwick/ZHR 4150 (preload: 10 kg; test load: 60; 100; 150 kg), scales A B C D E F G H K L M P R S V.
Super-Rockwell methods: Zwick/ZHR 4045 (preload: 3 kg; test load: 15, 30, 45 kg), scales N T W X Y.
Combinations of Rockwell and Super-Rockwell methods: Zwick/ZHR 8150 (preload: 3, 10 kg; test load: 15, 30, 45, 60, 100, 150 kg), scales A B C D E F G H K L M P R S V N T W X Y.
Furthermore the devices are available in different degrees of operator convenience.
|
|

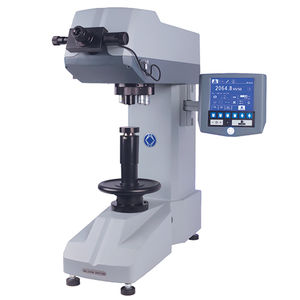

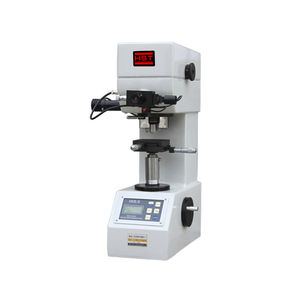

Motorized turret with analogue measurement microscope and easy-to-use integrated hardness calculate
- Motorized turret
- High quality microscope with analogue scale Fully automatic load control
- Easy-to-use operating system Two optical paths
- Built-in high speed thermal printer
- XY stage with minimum reading of 0.01mm
- CV-CCD Video measurement system optional
- Dual indentor (Vickers/Knoop) turret optional
2kg load optional
Typical applications :
- Steels, nonferrous metals, IC wafers, small
- precision components
- Thin plastic, metallic foils, plating, coating,
surface layers, laminated metals
- Effect of heat treatment, case depth analysis,
depth of carburised and flame hardened layers
|
|
|
|
|
|
Wolpert Wilson Instruments is the original manufacturer of a comprehensive range of hardness testers. We cover gobal Sales and Service by an extensive authorised agent network. Wolpert Wilson are part of Instron Corp USA and the larger Test & Measurement Group of companies of ITW USA.
Wolpert's universal Dia Testor Series 700 and 900 are world famous. Specific details of our USA made Wilson hardness testers Series 500, 2000 and 2100 Tukon are also available at the Wilson USA site
Original Shore durometers for plastics and rubber are also manufactured at our Norwood USA plant. For specific product information please click here
Wolpert and Wilson hardness products are predominately used to determine the hardness of metals, alloys, small precision parts, wire and plastics ranging from the softest bearing materials to the hardest steel. Our hardness testers are used extensively in heat treat analysis and by the automotive, aerospace, steel and transportation equipment industries. All our materials testing products conform to international standards under ISO and ASTM and are CE approved
|
|
The EQUOSTAT Portable Hardness Tester is a light weight, yet powerful portable hardness tester for all metallic materials.
Applications of the EQUOSTAT Portable Hardness Tester include scratch sensitive polished surfaces, hardness of the heat affected zone in weldments, sheet and coiled metals, and pieces as thin as 0.008".
The EQUOSTAT measures in a similar fashion to the Rockwell principle where penetration depth under a defined load force is measured before and after application of a larger force, i.e. the plastic deformation and, therefore, the hardness.
The EQUOSTAT then displays both the native HRZ and converted values for Rockwell, Vickers and Brinell on a large LCD display.
Mobile and accurate, the EQUOSTAT has a large measuring range - from soft to extremely hard and gives measurements in seconds.
Internal data storage of ~6,000 readings and RS-232C interface make the EQUOSTAT a powerful quality tool.
|
|
The Equotip Bambino hardness tester is a simple, economical and easy-to-use portable rebound tester for hardness measurements on most metals.
It combines a light and compact design and an innovative impact device type D to offer an unmatched price/performance ratio.
|
|
Technical Highlights:
– Shore Hardness A, C, D
– Accuracy: 1 % of max
– Mini Statistic Function
Power supply 4 x 1.5V AAA
Battery
Size: L 162 x B 65 x H 38
mm; Weight: 173 g
Typical applications,
to measure the
penetration of
Shore A: rubber, elastomers,
neoprene, silicone, vinyl,
soft plastics, felt, leather and
similar material.
Shore C/0: foam, sponge,
etc.
Shore D: plastics, formica,
epoxies, plexiglass, etc.
Control plate for calibration
included
Data Output to PC
• RS 232C Output included
• Option: Software and cable
to PC
ATC-01: € 80,–
Delivered in a
hard carrying case
Measurement mode:
• Max mode: Holds the maximum
value in the display
• Point mode: Shows one
instant value
• Average mode: Calculates
the average value out of 9
single measurements
Power Management
Auto-Power-Off function
Low-Battery indicator
Standards met by HD serie:
• DIN 53505
• ASTM D2240
• ISO 7619
• JIS K7215
|
|
|
|
|
|

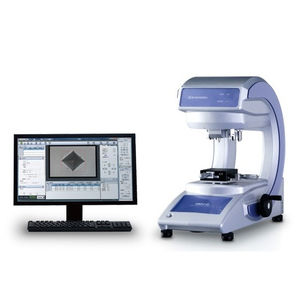

Zwick's hardness testers for optical measurement methods cover different load ranges and offer specifications in different stages of ease of use. Now the most suitable tester is available for each type of application.
Hardness Testing Machine ZHV20/Z2.5
A single solution: This hardness testing machine enables tests according to Vickers, Brinell or Knoop. It has been built by combining the hardness test device for optical methods with a zwicki test machine. The built-in load cell permits test loads between 2 and 200 N to be applied electromechanically. The CCD camera is placed on a microscope angled at 90°. Lenses and mounting unit(s) for the indentor(s) are integrated in the revolver head so that position change between setting and measuring the indentation takes place by rotating the revolver. The revolver head is equipped with four stations, i.e. two indentors and two objective lenses can also be combined.
A testXpert® master test program includes standard tests according to Vickers, Knoop, and Brinell. Add-ons are optionally available for automatic indentation measurement and focusing as well as for hardness sequence tests with manual or motorized compound tables.
|
|
|
|
|
|
ZHU2.5/Z2.5 : The most Universal Hardness Tester of the World
The ZHU2.5/Z2.5 is the most versatile all-round hardness tester the world has ever seen. It is based on a materials testing machine type "zwicki": Simply mount the hardness measurement head. The hardness measurement head is constructed so that it can be used with all Zwick materials testing machines, and for automation. Equipped with other tools or grips, this modular test system is also suitable for tensile, compression and flexure tests.
testXpert® is also utilized as the test software. A cost-optimized supplement has been developed solely for optical hardness test methods.
Integrated in the hardness measurement head are a digital travel measurement system, a load cell and an
interchangeable indentor with measurement transducer.
On the whole the hardness measurement head encompasses all hardness tests with indentation depth measurement, e.g. Universal Hardness HU macro range or Martens hardness HM, Rockwell hardness, ball indentation hardness H, Vickers depth measurement HVT, and Brinell depth measurement HBT.
|
|
On-Board memory holds 240-1000 groups of data
Automatic identification Impact Devices and test direction (Except G impact device)
Six Impact Devices are available for special applications
Integral thermal printer, print all test results and histogram
Li Battery , low voltage indication and sound alarm
Dataview for PC operation
Software data and upper / lower limits setting and sound alarm
Software to connect with PC
Large LCD with back-light, showing all functions and parameters
Direct display of hardness scales HRB, HRC,HV, HB, HS, HL
Conversion to tensile strength (U.T.S.)
For all metallic materials
Wide measuring range
Time and date setting; auto-clock
|
|
USB communication interface
Automatic identification of impact test direction
Memory of 270 average testing in 9 group files
Upper and lower limit setting
Automatically switch off
Backlight for convenient use in darkness
Battery capacity display
AAA1.5V battery
Integrated calibration function
TH170: integrated with D impact device for normal hardness testing
TH172: integrated with C impact device for hardness testing on thin, light and face-hardened workpieces
TH174: integrated with DL impact device for hardness testing of deep grooves and tooth surface
|
|
Application：
The Webster Hardness Tester is a portable, fast, accurate hardness gauge for testing Aluminum, Brass, Copper and Mild Steel. Webster Hardness Testers will quickly identify tempers and test a variety of shapes that other testers cannot check, such as extrusions, tubing and flat stock.
●Achieve world，s first digital measurement of aluminum alloy Webster hardness
●The use of micro photoelectric sensor ensure the measurement accuracy
●User-friendly LCD display, measured value clearly, with backlight
●Automatic latch the measured peak value
●Calculate the average value
●Pre-setting of upper and lower limit are available to facilitate the batch testing
●Built- in buzzer and LCD blinking function, providing abundant prompt information
●Large capacity memory, 5000 groups data can be stored
●Shut down automatically
●Be able to carry out data communication with PC
●Rechargeable Li battery
●Applying the carbide penetrator and worktable ,greatly enhance the durability
|
|

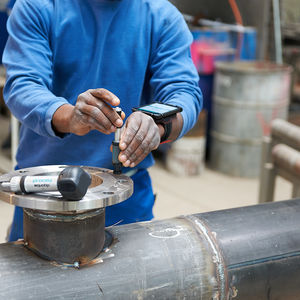

The Equotip 3 is a versatile portable hardness testing solution using the dynamic Leeb rebound technique that was invented by Proceq.
Proceq has combined today's technology with its over 35 years of Equotip know-how and customer feedback to create the Equotip 3 - a portable instrument that offers extended capabilities and unmatched ease of operation.
|
|
Mitutoyo Hardmatic Portable Hardness Tester
Easy to Operate - Impact Type Hardness Testing Unit
The Mitutoyo Hardmatic portable hardness tester is designed for accuracy, reproducibility and ease of operation. Lightweight and can be conveniently carried into the shop or out in the field. Simply press the detector against the sample surface, push the detector button and that is it!
Features
- Easy one handed operation
- Digital Display
- Compact body for areas of restricted space
- Slim detector allows measurements to be taken on complex curved surfaces such as welds, moulds etc, as well as conventional flat surfaces
- Conversion function for different hardness scales
- Go/No Go Judgment function provides instant classification
- SPC and RS 232C output
- Self calibrating
- Conforms to ASTM 956
- Supplied with NAMAS certified test piece
- Used in any direction
- Lightweight, portable and easy to carry
|
|
- Direct conversion of HL,HRA,HRB,HRC,HB,HV,HS; Conversion to tensile strength
- Matrix LCD,showing all functions
- Menu operation,easy to operate
- With high accuracy and wide measurement for all metallic material
- Seven different kinds of impact device are available, distinguish
- automatically, no need calibration
- On-board memory holds 48-350 groups of data
- Upper/lower limits setting and sound alarm
- Help key is available for all the information interfaces
- Software calibration
- Power charger and battery low indication
- Any test value can be printed directly
- Automatically switch off
- Easy to change rechargeable battery
- RS232 connector,many cennecting ways to satisfy different requirements
|
|
●Digital durometer for Shore A hardness testing
●Pocketsize model with integrated probe
●Standards: DIN 53505, ASTM D 2240, ISO 7619, JIS K7215
●RS232 data output
●Operating stand optional
●Bright & clear LCD display
●300 hours continuous use with standard batteries
●Automatically switch off
●Battery low indication and alarm
|
|
Handheld digital durometer for Shore A hardness testing
- Testing rubber, plastic, leather and all other soft materials
- Fast and easy to read
- Large digital display, digits 8mm high Portable
- Use by hand or mounted on a stand
- Available in Shore A
- Supplied with a reference block
- Data output for SPC
- Power on/off automatic Electronic module protection to IP65,
even with data output
- Can be used in conjunction with Shore bench stand
|
|
|
|
|
|

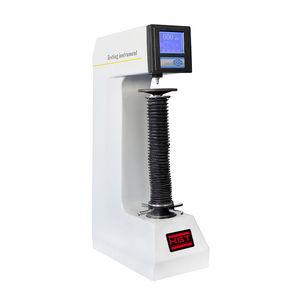

Eseway Premium Rockwell Hardness Testers
Measures all standard Rockwell hardness values
Simultaneous conversion to HV, HB and other HR scales
Rugged fine casted frame, allowing larger dimension work pieces
ASTM, ISO, JIS compliant
ESELOAD™ unique motorised load application system, auto selection of main loads depending on HR scale (656 & 657 only)
Superior depth measuring system through Heidenhain (Germany) transducer
ESETOUCH™ advanced LCD touch screen & operator panel with user friendly menu operation in multiple languages
High speed preload, loading and unloading procedure for ultra high efficiency
ESELIFT™ (657 and 677 only) motorised elevating screw simplifies and speeds up test operation
Automatic measurement procedure, load / dwell / unload (655 & 656 models)
ESEMATIC™ fully automatic positioning and measuring procedure (positioning, preload, load, dwell, unload (657 only))
Storage of 50 test programs and tester settings, allowing you to set up your tester in just seconds
Alpha numerical data entry
Continuous automatic “online’’ statistics, incl. average of readings etc.
Storage of 20,000 single hardness values
Go / No Go mode
Convex and concave measuring mode
Calibration date expired (reminder)
Service mode including electronic linearity calibration, tests counter, maintenance system
Prints statistics to built--in printer or external printer
Connects with PC or SPC network via built-in bi-directional USB2 connector
|
|
|
|
|
|
Tru-Blue II Digital Rockwell & Superficial Hardness Tester
The Tru-Blue II is a state-of the-art digital hardness tester that meets the strict requirements of the ASTM E 18 revisions. The Tru-Blue II provides users with pin point precision, superior accuracy, dependability and a closed loop system traceable to NIST.
Features
- Computer controlled testing with digital closed loop control of load cell force applications.
- Regular Scales: A, B, C, D, E, F, G, H, K, L, M, P, R, S, and V.
- Superficial Scales: 15N, 30N, 45N, 15T, 30T, 45T, 15W, 30W, 45W, 15X, 30X, 45X, 15Y, 30Y, and 45Y.
- Loads in kg.: 150, 100, 60, 45, 30, 15, 10 & 3.
- 5-preset load application dwell settings including a NIST recommended dwell time.
- Plastics dwell time setting per ASTM D-785.
- Statistical information: Average, Range, Standard Deviation, High, Low, and Number of Tests.
- Selectable auto-correction of hardness values for cylindrical parts.
- Built-in ASTM E-140 Conversion Charts and ASTM A-370 Tensile Strength Values.
- Parts Good/ No Good settings with audible and visual alert.
- Printable data entry via external 88-104 PS/2 keyboard.
- 9 pin RS-232 Interface Port.
- 25 pin Parallel Printer Port.
- Bi-directional load application via elevating unit or control panel.
- Machine uncertainty excluding test block and indenter variations less than 0.1 point corresponds to 3.3 % GR&R for a 3-point tolerance.
|
|
|
|
|
|
CARACTERISTICS
■ The load precision is controlled via closed loop load cells
- Universal machine for testing different hardness procedure.
■ Machine management through a built-in computer.
■ Selection of loads and automatic test scales from menus; full automatic test cycle.
- The structure is protected against dust and any atmospheric agent as well as against shocks.
- It can be installed also in casting and forging houses.
- Brinell and Vickers readings through camera and monitor integrated with high-definition and high-precision electronic measurement.
- Automatic focus with piece presser.
- Print out of the impression image and of the specimen surface; printed on the inspection report with statistic analysis.
- Large data and test storage with file management.
- Built according to the requirements for certification by calibration institutes.
- Perfect and effective measure even at the first test
- Load cell reading at 1000Hz
- Full automatic measurements Brinell and HV, without manual intervention
- Repetibiliry: 0, 1 HBW
|
|
|
|
|
|
This Universal Hardness Tester with its excellent price/performance ratio is used for both: classical hardness tests on metals and for the testing of plastics, in particular.
It works, for example, according to the Rockwell R, L, M, á(alpha) test methods and determines the ball indentation hardness. All conventional optical hardness test methods (Vickers, Brinell, Knoop) and the depth measurement method (Rockwell) can also be carried out in compliance with the standards within a load range from 1 to 250 kg.
The essential features bearing out the quality of the machine are its ease of operation, an outstandingly large test area, the measurement without parallax error (with the lines of measurement being integrated in the ground-glass screen optics), a fully automatic test sequence, and the use of a high-precision closed loop system. Another plus is the extraordinary depth of focus. With the RS232 connection to the test software testXpert®, all tests can be evaluated and documented. For example, data can be transferred to quality assurance systems for further processing.
Customized accessories for a large range of applications are available to the customer.
|
|
|
|
