The Han Hv E® / Han® HvES series is designed for industrial applications up to 830 V.
Terminations offered are either crimp or screw types for Han Hv E® versions, or cage-clamp terminals in the Han® HvES inserts.
All inserts have a PE contact and also 2 additional last mate first break relay contacts.
|
|
|
Fischer high voltage connectors are available in various body styles and sizes. To avoid unintentional disconnection, plugs can be engineered with an integral safety locking ring.
|
|

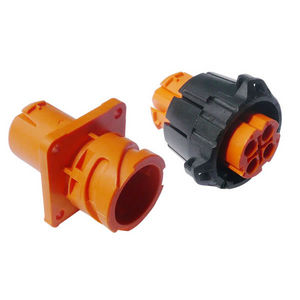

Series-MC represents our latest generation of multi-pin High Voltage Connectors. Substantially reduced in size and weight these HV-Connectors withstand operating voltages up to 10 kV DC / 13 A. They can be equipped with up to 5 contacts. Contacts can be crimped or soldered and are suitable for diverse cable diameters. Both sides of the connection can be configured as plug or socket while cable side is equipped with an EMC-gland bushing for sealing and screen-connection.
Type SB MC 520 has extended and heat resistant PTFE insulation sleeves and is the latest design of this series. The connection can handle an operating voltage of up to 20 kV DC / 13 A and is also suitable for applications with pulsed high voltage.
|
|
|
The single-pin High Voltage Connectors of Series-100 enable improved application-flexibility by providing different metric cable-glands. The cylindrical wedging results in a crucial improvement for screen connections. Series-100 is designed for operating voltages up to 100 kV DC and is available in 25 A or 50 A versions.
|
|
|
Series-VarioPro is based on an entirely variable assembly concept of fully compatible elements. All versions of this miniature High Voltage Connector share the same POM or PTFE insulation sleeve-design enabling combinations of up to 3 contacts per connection. Series-VarioPro resists operating voltages up to 11 kV DC / 13 A and provides excellent performance and flexibility at minimal space requirements, easy maintenance and a high safety standard.
|
|
|
The multi-pin High Voltage Connectors of Series-M are anchored in a firm screw-housing, designed for operating voltages up to 15 kV DC / 30 A and can be equipped with up to 9 coded contacts. Both sides of the connection can be configured as plug or socket while cable-sockets can be angled and equipped with an EMC-gland bushing. One or more leading contacts can be assigned to execute a starting sequence, an earth connection or confirm a safety loop.
|
|
|
The single-pin High Voltage Connectors of Series-S are designed for operating voltages up to 40 kV DC / 25 A. Some types contain mounting plates in order to facilitate installation and structuring. Furthermore the connection of a shield is possible.
|
|
New inserts 830V series CME/CMSE/CMCE
Features:
- number of poles: 3, 6, 10
- connection with screw terminals, with crimp terminals series CC (16A) or spring connection terminals
- electric features according to EN 61984 (2001-11)
rated current: 16A max
rating voltage: 830V with pollution degree 3
impulse withstand voltage: 8 kV
- auxiliary contacts: 16Amax 500V/6kV/3 (male contacts with anticipated opening).
- limit current curves and technical characteristics in the catalogue CN04
|
|
revos POWER
The high-voltage connector from Wieland Electric. The contact inserts and multipole adapters are designed for currents exceeding 16 A; they are also available in a contact mix with screw connection. The components are perfectly protected inside the revos BASIC housings. revos POWER is used in mechanical and system engineering for small drives, motors, pumps or frequency converters.
|
|
The HiPro HV-Module presents a major improvement to high voltage modular connection systems. Crimp contacts provide the possibility of connecting conductors with different wire gauges, increasing the modules applicability. The Module is designed to withsatnd voltages up to 18 kV DC and a 30 A current load and increases the variety of possibilities for custom-application industrial connectors.
Find more information on the datasheet and on www.ges-electronic.de
|
|
