DSR and DSR C Ring / Double Swivel Ring
Double articulation allows it to line up perfectly with the sling
Two ways of tightening: either by open-ended spanner, or by Allen key
From M8 to M30 as standard; for loads from 0.3 t to 6.3 t
From UNC 3/8" to UNC 1" as standard; for loads from 1,200 lbs to 10,000 lbs
Other variants of fitting bolts on request
|
|
Can be turned by 360°, adjusted to the direction of pull

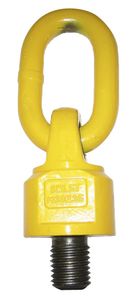

The RUD lifting ring >VLBG< can be turned by 360°, aligned to the direction of pull, the load ring can be tilted, guaranteeing full WLL in all load directions. Complete with a 100% crack detected hexagon insert socket screw for universal use of tools. The maximum lengths of the screws are adjusted in a way that a material thickness of abt. 8xM (with M8 to M30) or 5xM (with M36 to M48) can be mounted by using a hexagon nut (ISO 7084/7090).
|
|
TSR and TSR+C Ring / Triple Swivel Ring
Triple articulation allows it to line up perfectly with the sling
Allows the hook to move parallel to the supporting face of the ring being drawn at 90°
Two ways of tightening: either by open-ended spanner, or by Allen key
From M8 to M56 as standard; for loads from 0.3 t to 22 t
From UNC 3/8" to UNC 2" as standard; for loads from 1,200 lbs to 50,000 lbs
Other variants of fitting bolts on request
|
|
The lifting ring for turning operations
The heavy duty lifting rings >WBG-VWBG< have a ball-bearing swivel and are suitable for turning and tilting of loads.
Simple assembly, only one tapped hole is required. Available with different thread lengths.
|
|
The lifting ring for turning operations
The heavy duty lifting rings >WBG-VWBG< have a ball-bearing swivel and are suitable for turning and tilting of loads.
Simple assembly, only one tapped hole is required. Available with different thread lengths.
|
|
The DSH double swivel hook combines swivel lifting ring and hook in a single element. The DSH swivel hook's self-locking safety latch provides maximum security. The DSH security hook is universally compatible with all fastening systems: fabric slings, chains, ropes, eyes, ...
Double swivel hook DSH characteristics:
Lifting capacity in all directions
Double articulation allows it to line up perfectly with the sling
Fast and universal hooking with any kind of connection (without additional appliances)
High tensile steel (Class >8)
Safety factor 5
Two ways of tightening: either by open-ended spanner or by Allen key
WLL indication engraved
From M8 to M20 as standard; for loads from 0,3 To to 2,5 To
From UNC 3/8'' to UNC 3/4'' as standard; for loads from 1,200 LBS to 5,500 LBS
Each double swivel hook is tested and delivered with a certificate of conformity
Other variants of fitting bolts on request |
|

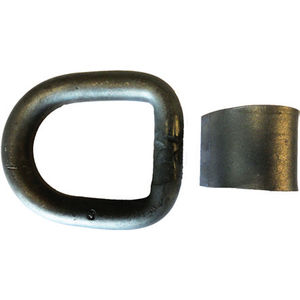

For the quick assembly, a welding block with patented distance nabs.
The load ring, ready for welding, VLBS / LBS is prepared for the direct welding at the transport goods. The welding block (made of easy weldable material 1.0577+N St. 52-3) has been provided with distance nabs as gap indication for the weld and stamped with the WLL identification number. The load bracket can be tilted by 180°, made of high-tensile material, 100% crack detected and thus overall loadable. By a protected spring, the suspension bracket can be maintained in every position; the parts are connected with each other in an unloosable way.
|
|
Force distribution by 2-point-attachment, required thinner welding seams.
The lifting eye weldable VRBS / RBS is prepared for the direct welding at the transport goods. The welding blocks (made of easy weldable material 1.0577+N (St. 52-3) have been provided with distance nabs as gap indication for the weld and stamped with the WLL identification number. The ring latch can be tilted by 180°, made of high-tensile material, 100% crack detected and thus overall loadable.
|
|
CSS Ring / Central Safety Shackle
Allows a closed mould to be raised that may weigh up to 32 tonnes
|
|
DSS and DSS+C Ring / Double Swivel Shackle
Double articulation allows it to line up perfectly with the sling
Tightening by Allen key
From M33 to M64 as standard; for loads from 6.3 t to 32.1 t
From UNC 1¼" to UNC 2" as standard; for loads from 14,000 lbs to 50,000 lbs
Other variants of fitting bolts on request
|
|

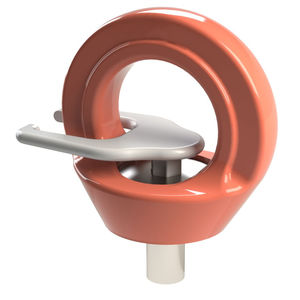

Eye bolt VRS in pink - can be adjusted to the direction of pull. Higher load capacities than DIN 580-Eyebolts.
Attention: Lateral loads with eye bolts acc. to DIN 580 are forbidden! With multiple-point-suspensions at 2- leg and 3 / 4-leg, the positioning of the eye bolt has to be in the direction of pull. This can only be realized with RUD STARPOINT eye bolts as they are adjustable to the direction of pull when fitted.
|
|
Double Swivel Lifting Point: DSP
Double articulation allows it to line up perfectly with the sling
Two ways of tightening: either by open-ended spanner or by Allen key
Possibility of passing a cable or rope and even of adapting a ring with a large eye for those that have hooks out of proportion to the lifting ring.
From M8 to M20 as standard; for loads from 0.3 t to 2,5 t
From UNC 3/8" to UNC 3/4" as standard; for loads from 1,200 lbs to 5,500 lbs
Other variants of fitting bolts on request
Double Swivel Lifting Point + Centring: DSP+C
Double articulation allows it to line up perfectly with the sling
Two ways of tightening: either by open-ended spanner or by Allen key
Possibility of passing a cable or rope and even of adapting a ring with a large eye for those that have hooks out of proportion to the lifting ring.
From M8 to M20 as standard; for loads from 0.3 t to 2,5 t
From UNC 3/8" to UNC 3/4" as standard; for loads from 1,200 lbs to 5,500 lbs
Other variants of fitting bolts on request
Equipped with the patented CENTRING system |
|
Our Forged Center Pull Hoist Ring integrates a solid center brace lift bail into our most popular style product. This design eliminates the possibility of spreading the lift ring in misapplications. Forged hoist rings are ideal for OEM and industrial use.
Full (over center) swivel and pivot action
Capacities up to 30,000 lbs.
Inch and metric
5:1 strength factor-alloy steel
Made in U.S.A. |
|

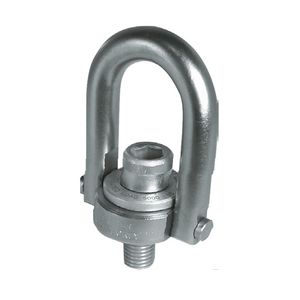

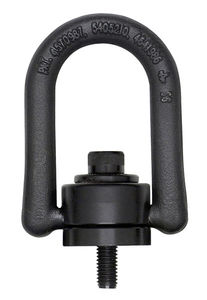

| The original safety-engineered hoist ring. Pivots 180 degrees and swivels 360 degrees simultaneously to allow lifting from any direction. Safety factor = 5:1. Black oxide finish is standard, with cadmium plating available as a special. Swivel Hoist Rings are also available in 300-series stainless steel, with a load rating equal to 50% of the steel version. |
|
SEB or SEB C Ring / Swivel Eye Bolt
Swivel eye bolt fitted with an automatic position recovery system for optimum orientation in the direction of the sling.
Tightening by Allen key
Permits the hook to move parallel to the supporting face of the ring being drawn at 90°
From M16 to M42 as standard; for loads from 1.6 t to 12.5 t
Other variants of fitting bolts on request
|
|
Center-Pull Style Hoist Rings
Popular sized hoist rings (1/2-13 through 1-8) are offered with two or more length bolts. Use the longer lengths with softer parent materials, the shorter lengths with hard materials such as steel.
Full Swivel and Pivot Action
Rated at 5:1 Strength Factor
Material: Alloy Steel
Finish: Black Oxide
Clevis, Bolt, Pins, Base, Washer and Bushing are magnetic particle inspected
Washer: Zinc plated with gold colored conversion coating
200% Proof Tested
Drawings available in FixtureProTM CD and downloadable from the web. |
|
CSS Ring / Central Safety Shackle
Allows a closed mould to be raised that may weigh up to 32 tonnes
|
|
SS.DSR/ Stainless Steel Double Swivel Ring
Stainless steel version of the DSR
Double articulation allows it to line up perfectly with the sling. From M8 to M20 as standard; for loads from 0.3 t to 1.6 t
Other variants of fitting bolts on request
|
|

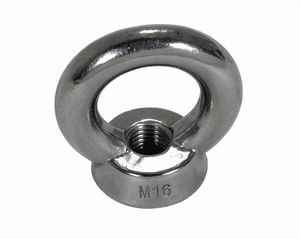

Eye nut VRM in pink - can be adjusted to the direction of pull. Higher load capacities than DIN 582-Eyenuts.
Attention: Lateral loads with eye nuts acc. to DIN 582 are forbidden! With multiple-point-suspensions at 2- leg and 3 / 4-leg, the positioning of the eye bolt has to the direction of pull.This can only be realized with RUD STARPOINT eye nuts as they are adjustable to the direction of pull when fitted.
|
|

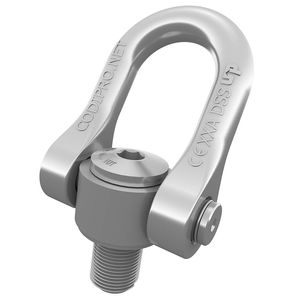

DSS and DSS+C Ring / Double Swivel Shackle
Double articulation allows it to line up perfectly with the sling
Tightening by Allen key
From M33 to M64 as standard; for loads from 6.3 t to 32.1 t
From UNC 1¼" to UNC 2" as standard; for loads from 14,000 lbs to 50,000 lbs
Other variants of fitting bolts on request
|
|

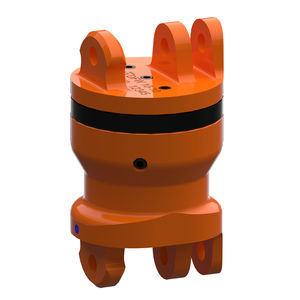

Double-ball bearing - for smooth lifting and turning operations
The first generation of lifting- and lashing points with an universal connection for every sling means (hook- and ring assembly, basket chains, round slings, loops, etc), all complete with double-ball bearing for smooth lifting and turning operations. The optimized design avoids damage to the sling means and the precious load during turning. Maximum WLL with smallest thread diameter. Version PP-S: The standard universal connection by eye hooks for master link assemblies, round slings, wire ropes, hook assemblies...
|
|
