Clamping force: 4500, 10000 N
... StayLock Block Clamps is widely recognized for its flexibility. These multi-purpose clamps are highly convenient because it can be used on many applications. These can be mounted vertically or horizontally ...
Clamping force: 1113 N - 26000 N
... machining on a horizontal or vertical machining center by the ID expansion clamp. The clamp has a larger diameter which is held to a close tolerance for precision locating in a machined ...
Clamping force: 3.4 kN - 58.8 kN
Clamp straps swivel-heel Material: Carbon steel 1.1191 Version: Black oxidised. Note: Recommended clamp supports: 02130 and 02150.
Clamp straps open U DIN 6315, steel or aluminium Material: Carbon steel or EN AW-7022. Version: Painted, aluminium bright. Note: When using spherical washers use the wide series 07420 Form G.
Clamping force: 3 kN - 58 kN
The 04010 series is designed from a tempered steel material. It provides a black oxide finish. The unit is compatible to use with thrust pins, and thrust bolts. In addition, the product range offers varying weight range of 0.060 kg, ...
Clamping force: 4 kN - 58 kN
Material:Carbon steel. Version:Tempered and black oxidised. Note:The flat gooseneck allows lower steps on the workpiece to be machined or clamped. When using spherical washers 07420 use Form G.
Series LSP50U Pneumatic pin clamp - horizontal shape, Ø 50 mm
Clamping force: 4003.4, 2891 N
The center piston rises to exert pressure against a clamp or workpiece by rotating the handle.By rotating the handle, the center piston rises to exert pressure against a clamp or work piece. Releasing ...
Clamping force: 498, 1397 N
... clamping force, the clamp will release.The clamping body and lever arm are made from SAE-1045 alloy steel. The internal cam is made from hardened SCM415 alloy steel. Black oxide finish. The handle is black plastic. The ...
Clamping force: 4000 N
... eccentric ensures precise, fast and powerful clamping (4000 N). With a height of less than 6 mm and a width of 20 mm, the plate clamps leave a maximum of space for tool clearance.
Clamping force: 10000 N
... Newton Comprising : 1 x 460 mm mounting bar 1 x bar-mounted driving clamp 1 x standard moving clamp / locator 1 x standard ƒOxed clamp Clamping screw and clamping key Clamp ...
Clamping force: 12000 N
... 1 clamping element 09-020 1 xed clamp / locator 09-080 Clamping screws and clamping key Clamping element Hardened steel body with clamping eccentric and moving spring-steel clamp which pushes ...

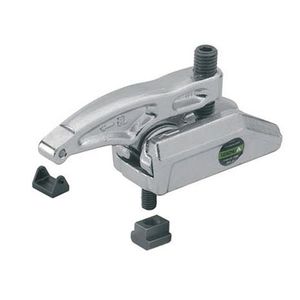

Clamping force: 40 kN - 60 kN
Clamping Pressure: M10 - M30 40 - 60 kN Clamping Range: Vertical 5 - 85 mm Horizontal 0 - 80 mm

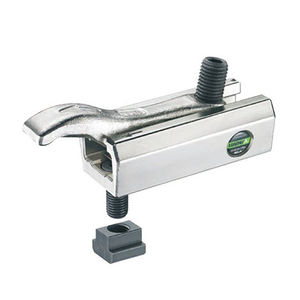

Clamping force: 20 kN - 50 kN
Clamping Pressure: M10 - M30 20 - 50 kN Clamping Range: Vertical 5 - 105 mm Horizontal 0 - 135 mm
Clamping force: 25 kN - 50 kN
Clamping Pressure: M10 - M30 25 - 50 kN Clamping Range: Vertical 3 - 100 mm Horizontal 0 - 160 mm
Clamping force: 20 kN - 35 kN
Clamping Pressure: M10 - M20 20 - 35 kN Clamping Range: Vertical 8 - 91 mm Horizontal 0 - 145 mm
Clamping force: 15 kN - 30 kN
Clamping Pressure: M10 - M20 15 - 30 kN Clamping Range: Vertical 8 - 167 mm Horizontal 0 - 145 mm
The PKG pneumatic clamps from Tunkers are designed with a toggle-joint mechanism for horizontal installation. It has an over-center lock, mono-block housing made out of high-strength aluminum material. ...
Series PLKD Pneumatic Retracting Pin Clamps feature a fully enclosed pin which completely retracts to allow greater ease of panel removal. Fingers may extend or retract independent of the main pin. Position sensing provides ...
Material: S45C(JIS) / CK45(DIN), Heat treated: HRC 32°~38° Surface finish: Black Oxide. Features: Open end permits quick & easy installation
... 32°~38° Surface finish: Black Oxide. Features: The cylindrical pin minimizes contact area and is useful for clamping in horizontal holes & round profiles.
These clamps with hold down action come with unique features and accessories. It has a 3/8inch base which is used to bolt down the clamp to the worktable. The swivel tip can make quick contact with ...
This clamp is designed with a wide opening that ensures the work-pieces are secured inside its serrations. It is designed with a button and a handle that helps to achieve the desired position. The handle could be tightened ...
Clamping force: 300 N
... piece clamps PMB-LS2 guarantees fast and accurate clamping of the work The patented horizontal and vertical movement of clamp fingers allow work piece loading from top or front ...
Clamping force: 1500 N - 5500 N
Clamp in zinc plated and passivated steel. Fastening, supplied complete with setscrews and nuts. This clamp is also available in stainless steel. Hand force Stud M This particular product range, the toggle ...
... unit is installed on the press bolster or ram. It grips the die on its lateral edge. As a standard, the clamping face is horizontal. The unit ensures that there is no possibility of jamming when the wedge is retracted, ...
- Can be adapted to fit all the work tables with groove - Quick tightening avoiding the invonvenience of the wedge of thicknesses - Keep the tool to a precise height - Always same tightening lever - Parallelism of the ...
