- Designed and manufactured using highest quality components.
- Different strapping heights easy to set by pressing a button while the machine is in the desired position. Ten different programs available with ten different strapping heights for each.
- Remote control available.
- Warning light system.
- Compression system in the arch compacts load and guides the strap to the correct position.
- Mechanical tension adjustable through a holding strap system to get the highest tension.
- Reisopack model 1900 head set in aluminium ensures long life of the machine.
- Approximate production 60 pallets per hour.
- Security system under the arch. If the machine contacts anything while moving down to the ready position, it immediately stops and returns to home.
|
|
STRAPPING MACHINE CMR CAM 34
AUTOMATIC HORIZONTAL STRAPPING MACHINE
FOR PALLETIZED LOAD
equipped with side sealing head
This machine can be installed on any existing packing line and it perfectly meets high production needs.
|
|
Designed and manufactured using highest quality components.
- Aluminium head set and tension roller treated ensures long life of the machine.
- Tension electronically adjustable through a magnetic clutch to get the strongest tension without any physical effort.
- Strapping height manually adjustable without effort. Allows strap from 17 cm. from the floor up to 2 m.
|
|
MOSCA- strapping machines are series-produced based on a modular principle. Sturdy design. Program- controlled integration in conveyor lines. Fully automatic horizontal strapping in various height- positions. Easy TEACH-IN programming. Designed as two -guide-pillar system, carried out as heavy duty steel costruction. Fully electrically driven. Strap despenser for slack accumulation and take-up of excess strap. Easy and fast reloading of coils. Particularly suitable machine for automatic strapping of pallet loaded goods of stacked boxes, trays and blocks. Friction- weld sealing.
Different Models, KOV 315 Basic Model:
- Laterally friction- weld sealing » Height moveable, horizontal arch
- Friction- weld sealing unit, moveable laterally to the package
- Operator panel with electrical and electronic controls
|
|
|
|
|
|
The MODEL 06 automatic strapping machine is suitable for the horizontal strapping of palletized products . The strapping level is adjustable and straps can be applied to one or more pack layers according to the degree of pack stability required. The machine can be free-standing or easily installed into automated pallet handling system . Use of polypropylene and polyester heat seal strap for automatic machines according to the type of head mounted;.
Easy and secure strap tensioning. The set value is controlled by a loading cell that checks the effective tensioning and can be easily regulated from the board by means of a potentiometer.
Constant tensioning, irrespective of dimensions and type of pack;
precise welding temperature controlled by means of a thermocouple and digital heatregulator; seal joint efficiency of 90%;
transversal shift of the strapping head during the strap tensioning so as to ensure equal tightness on the corners of the product and consequent greater stability; multiple sectors of new design which improves the sliding of the strap inside the channel thereby increasing its potential performance; perfect strap positioning on the horizontal surface assured by the strap guide unit; extreme maintenance ease. The eventual extraction of the strapping head of the machine is facilitated by the rapid attachment features and the rapid connection electrical fittings.
The machine is fitted with intrinsic safety devices in compliance with current legal requirements
|
|
|
|
|
|
AM800 Series - Automatic horizontal strapping system

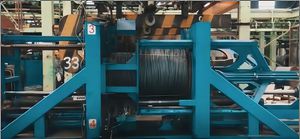

Fully-automatic horizontal steel strapping machine
FROMM Steel strapping machines are suitable for applications in the forest products-, metals-, building products- and general bailing- and unitizing industries.
Tension speed:120 mm/s
Strapping dimensions:9.5 - 32.0 x 0.50 - 1.00 mm
Strap tension:max. 18000N
Sealing method:Sealless joint
Average seal strength:up to 80%
Advantages
- Fully automatic machines reduce the total strapping time substantially compared to
manual operations
- Under normal circumstances labour work is completely eliminated
- The rugged fully automatic machines have been designed for continuous and shift
operations demanding a high working reliability
- A very wide variety of different fully automatic machines meeting the requirements
of all major industries including a broad range of options are available
- Customer friendly control system; keyboard and display show all information and
messages in the language required by the customer
- Every fully automatic machine is built for the specific requirements of the customer
- After sales service is guaranteed by our FROMM subsidiaries and distributors
|
|
|
The strapping machine mod.06RP è is ideal to strap horizontally all types of palletized products that need to be kept together during transport and handling. The new rack type lifting system, guarantees perfect positioning of the strapping arch on the horizontal plane and a considerable precision and reproducibility of strapping heights.
|
|
HORIZON
The HORIZON is the ideal solution for the application of horizontal strapping which would be a tough job manually. The strapping head is placed on the side of the machine, it is moved vertically down to the desired strapping height and then positions itself horizontally against the pallet.
The sealing head guarantees high seal efficiency for PP or PET strap.
Admitted strap size : 9 - 12 or 16 mm width.
OPTION :
Automatic roller conveyor.
|
|
|
|
|
|
MD-3000-HE
The MD-3000 HE is an operatorless strapping machine for horizontal pallet securement. It is ideal for securing corrugated outer wrapping to automotive assemblies of varying heights. The indexing head carriage gently butts up against the side of the pallet to form a high-strength heat seal joint and is torque motor driven to ensure optimum safety. A set of manually adjustable reflectors indicates the height of each strapping position. The MD-3000-HE uses 9, 11 and 13mm polypropylene or polyester strapping.
MD 3000 HE FEATURES
Optimum pack protection
Torque motor drive for both strapping head and chute ensures optimum approach speed for maximum pack protection
Easy to adjust
Up to 10 different strapping positions can be set in order to apply different strapping patterns to a product and variations of the set patterns can be additionally programmed.
Greater machine availability
Strap auto-load and auto-rewind facilities, plus quick-change strap dispenser system significantly reduces downtime when changing strap coils.
Adjustable strap tension
Offers tension levels from 100 to 2000N
|
|

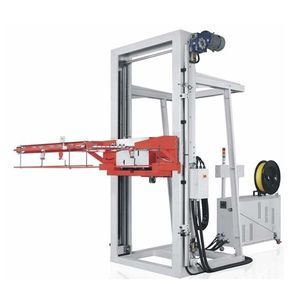

JN-85WHM Features:
New innovative design for horizontal strapping applications with chain driven vertical movement.
Photocell adjustable strapping height adjustment & package positioning.
Horizontal movable strapping head (100-200mm) can move approach the package and tightly strap.
Exhaust of strap detective function to notice by warning
lamp.
Incorrect strap feeding detective function to notice by
warning lamp.
The Arch Size is custom made to user requirements.
Can equipped with optional function such as head
temperature auto controlling device and special custom
strapping configuration.
P.E.T strapping system is available as an option.
Specifications
Arch Size 1250W x 1200H mm
Tension Strength Max. 70Kgs (Higher tensioning is optional request.)
Strap Width 9-19mm
Sealing Method Heat Sealing
Sealing Head Strok 1500mm
Power Supply 220/380/415V 50/60Hz 3Ph
Dimensions 1700W x 1080D x 2300H mm
Machine Weight 485Kgs
|
|
|
Strapping with high-performance automatic horizontal strapping machine to strap horizontal pallets and single layers. Sander as a system provider, sets value on excellent operational reliability and easy maintenance for its machines. The well thought-out concept for the Sander vario master 9490 underlines this goal. The high-performance automatic horizontal strapping machine to strap pallets and single layers can be integrated in automatic packing lines. Strapping unit, consisting of strapping head and strapping arch, moves in strapping position by toothed belt drive. Configuration of strap guides allowes a minimum strapping position of 60mm above top of conveyor, optional 38 mm, keeping complete horizontal stroke of 500mm for strapping head. Simple programming of up to 10 programs with maximum 10 strappings each via teach in.
|
|
