| Also available in motorized version, this reel features industry preferred design with a sturdy one piece all welded "A" frame base, low profile outlet riser and open drum slot for non-crimping, flat smooth hose wrap. |
|
Series 40 offers considerable strength in a lighter weight aluminum frame that is combined with stainless steel fasteners and powder coated flanges to offer the greatest amount of corrosion resistance and durability. It handles larger diameter hose and is nearly limitless with regaurds to fit and function. To view a listing of our standard models or request a qoute, please visit us on the web at www.reelcraft.com.
|
|
HR/UR/TW series: hosereel/umbilical/transponder
Hose reel, Umbilical or Transponder winches are mainly built for the purpose. Winches are built to order and can be executed with a self braking worm gear or planetary gear, depending on the load required. The drive can be either electric, hydraulic or pneumatic.
The Hose reels are mainly used to spool hoses for Fresh Water supply, MDO Fuel supply and Hydraulic Oil or to spool Electrical Power Supply Cables.
The Umbilical winches in general are used to spool a combination of hoses, signal cables, coax or even Fibre Optic cables. Most of them come with slip rings and/or rotating swivels.
Transponder winches used for powered transponders are mainly used with electrical signal cables and have in most cases an electrical slip ring mounted. Winches can be supplied complete with A frame if required.
EMCÉ has supplied systems for all applications including reels with SS swivels of 6" or slip rings for High Voltage.
Applications we have supplied for can be found on the following type of constructions; Offshore Heavy lift vessels, Offshore Semi Subs, Diving Support vessels, Research vessels, Cable and Pipe laying vessels and Offshore Pile Driving barges.
|
|
| Hannay Reels provides thousands of standard hose reel models and unmatched custom design and manufacturing capabilities for virtually limitless applications. The most prominent include air hose reels for pneumatic tools and machinery; water hose reels used for washdown, power washing, potable water, or in-plant fire protection; dual hose reels for oxygen/acetylene welding; and hydraulic hose reels for powering tools and machinery. |
|
| Hannay Reels provides manual, spring and power rewind cable reels for a variety of industrial applications, including rescue and haz-mat operations, grounds maintenance and repair, video inspection, portable lighting, and broadcast and entertainment industry applications. Hannay also manufactures reels to handle arc welding cable, static grounding cable and electrical cable for power tools, lights, machinery and generators. All Hannay reels can be mounted on walls, ceilings and worktables. |
|
The Tecreel range of self-retracting hose reels provides an efficient means of conveying hydraulic power from fixed to moving points on cranes, lorry mounted cranes, forklift trucks and other materials handling equipment. An integral coil spring ensures that the hoses remain constantly under tension
Maximum operating pressure 300 Bar (4350 Ibf/in)
Large ports provide efficient flow characteristics
Siamese 1/4in, 5/16in, 3/8in or 1/2in bore thermoplastic hoses
Cassette loaded coil spring for safety and easy removal
Left or right hand mounted, easily changeable on site
|
|
| Hannay Reels provides both hose and cable portable reels in a variety of sizes for many applications, including: broadcasting, industrial maintenance and on-site repair, construction, grounds and lawn maintenance, entertainment, fire and rescue, plus power tools and lights. |
|
| Factory-matched spring-rewind safety reel retracts up to 80% slower than standard spring rewind reels. |
|
| The ReelTek's unique hybrid design offers great strength and reliability at a lighter overall weight than conventional reels. It is designed to hold 1/4", 3/8", and 1/2" I.D. hose up to 50' in length. It is suitable for air/water, oil, and grease applications. Other features include: Composite glass-filled polymer spring case, lath pawl mounts on guide arm to eliminate "latch-out" at full extension, ribbed base and upright, multi-positional guide arm that adjusts to seven different positions, and field tested long-life swivel. For more information about the ReelTek Series or Reelcraft in general, please visit us on the web at www.reelcraft.com. |
|
Aero-Motive® hose reels are designed to provide top performance, long service life and ease of maintenance. Our hose reel line includes: Open Spring Driven, Hand Wind, Enclosed Spring Driven, Stainless Steel, and Specialty Reels.
Aero-Motive® Open Spring Driven Hose Reels are designed to withstand the toughest industrial challenges. Ideal for production lines, material handling equipment, service areas, maintenance applicaitons and service vehicles.
Aero-Motive® Enclosed Spring Driven Hose Reels feature an enclosed design to protect the hose in difficult environments.
Aero-Motive® Stainless Steel Hose Reel models make it easy to meet the hygienic standards of the food processing industry. Also ideal for use in harsh environments.
Aero-Motive® Specialty Hose Reels includes reels for static discharge, welding, and truck mount applications.
Hand Wind Hose Reels
Aero-Motive® Hand Wind Hose Reels are industrial strength reels that provide a convenient way to keep floors clear and hoses from getting kinked and tangled. |
|

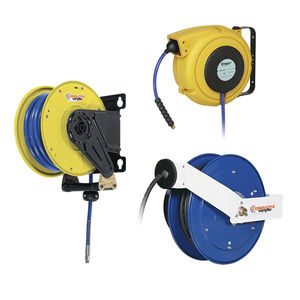

HOSE REELS FOR WATER - LOW PRESSURE
HOSE REELS FOR HOT WATER - HIGH PRESSURE
HOSE REELS FOR HOT WATER - EMPTY (NO HOSE)
- Fixed or mobile stations
- daily tasks and occasional chores
- indoors or outdoors
Hose protection
Epoxy coated steel case protects retracted hose
Strong steel spring automatically rewinds hose after catch is released
Easy operation
Mounting bracket: wall or ceiling, fixed or pivoting support Stop catch: automatically stops the hose at the desired length
Efficiency
Air inlet: nickel-plated brass coupling, 360° rotation
High quality hose: food-grade rjubber
Connection: hose connects to tool quickly with automatic coupling
Safety in use
Automatic hose storage after use protects the operator against any risk of accident |
|

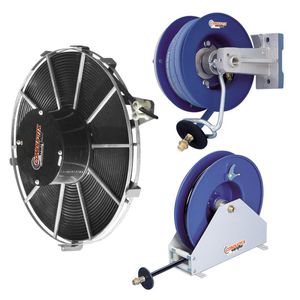

The Cavotec manufacturing plant in France is specialised in spring-driven hose and cable reels which are produced in a large range for a variety of applications.
They are used in service workshops, in garages and in industry in general.
They are supplied with standard hose or cables, these reels are made in painted steel, with drum mounted on two sealed ball bearings and rotating swivels in stainless steel and brass.
|
|
Servic 8000:
Manual reel on cart (with handle, 4 wheels directional & brake), to add the letter R to the code. |
|
Automatic recall by spring, any type of application.
Delivered with 1m of pipe outside in addition to the race. |
|
Use of impulse-firm thermoplastic hoses type SAE 100 R7/R8 and/or 1100K/2000-2ST
according to DIN 20,022. Double hoses of this type are homogeneous connected by the whole length.
With the model W 4 R/L a centre divider is attached for the separation of the pairs of hoses.
With double spring for problem-free employment.
Individually seal-system for each hydraulic circulation.
Double sealing ring system: The first ring consists of polyurethan for the improved admission of dynamic loads; The second ring, a quad-ring, takes up static load.
Enviroment temperature for application of the hose reels from -30 °C up to 80 °C.
The rotation direction of the roles W1 R/L, W2 R/L, W3 R/L, W4 R/L can be
turned around without disassembly of the hydraulic unit fast and simply.
A multiplicity of different tube lengths connected with different hose nominal sizes of 1/4"- 1" and pressures up to 700 bar.
|
|

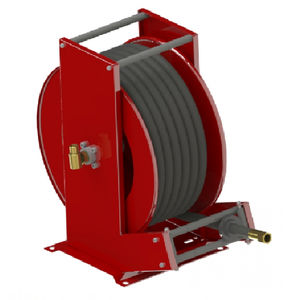

Reel with automatic recall by spring. Seal turning double high quality, guaranteed constant passage.
Structure epoxy covered steel. Hydraulic pipe special reel. |
|
| ... products without technical information |
| |
| Hannay Reels provides manual, spring and power rewind cable reels for a variety of industrial applications, including rescue and haz-mat operations, grounds maintenance and repair, video inspection, portable lighting, and broadcast and entertainment industry applications. Hannay also manufactures reels to handle arc welding cable, static grounding cable and electrical cable for power tools, lights, machinery and generators. All Hannay reels can be mounted on walls, ceilings and worktables. |
|
The Tecreel range of self-retracting hose reels provides an efficient means of conveying hydraulic power from fixed to moving points on cranes, lorry mounted cranes, forklift trucks and other materials handling equipment. An integral coil spring ensures that the hoses remain constantly under tension
Maximum operating pressure 300 Bar (4350 Ibf/in)
Large ports provide efficient flow characteristics
Siamese 1/4in, 5/16in, 3/8in or 1/2in bore thermoplastic hoses
Cassette loaded coil spring for safety and easy removal
Left or right hand mounted, easily changeable on site
|
|
Reel with automatic recall by spring. Seal turning double high quality, guaranteed constant passage.
Structure epoxy covered steel. Hydraulic pipe special reel. |
|
DSTI provides custom rotary joints for a number of offshore applications. available fetures include:
316 stainless steel construction, sealed bearing covers, 20,000 psi presssure capability, multiple fluid/air passages & integrated electrical slip rings. Please contact DSTI to learn more about past projects and dicsuss the details of your application. |
|
|
|
