DESCRIPTION:
Gas domestic hot air generator with leakproof operation and smoke outlet through an extractor.
Its operation is completely autonomous and its function is that one of heating the environment air of the premises that must be conditioned.
The basic equipment has the following elements:
- Leakproof combustion with forced draft.
- Combustion oven designed for obtaining a performance of about 90%.
- Three-speed fan (except for the GAS-40 model, which is one-speed).
- Air admission filters.
- Environment thermostat.
- Air impulsion grid on the upper part (GAS-08-12-15).
FUEL:
Natural gas / LPG
APPLICATIONS:
Any kind of premises with a volume between 190 m3 and 980 m3.
|
|
SYSTEMA introduces the new series of EOLO, suspended warm air heaters able to solve all heating problems, both for total and modular space heating. Compared with traditional heating systems needing a separate cabinet, the new EOLO heaters offer an innovative solution for heating while keeping running costs at a minimum.
This is possible thanks to the fact that EOLOs are completely self-sufficient working units, and that you don?t need to heat up a heat transferring fluid such as water for heating the space. In this way you don't have any needless heat losses.
|
|
Farming hot air generator completely autonomous with heating gas oil, natural gas or liquefied petroleum gases (butane gas, propane gas) operation.
These equipments function is that one of heating the environmental air by means of the thermal energy produced by the equipment.
The produced heat is driven to the premises that must be conditioned by means of a centrifugal fan.
The combustion products are extracted through a chimney in order to ensure that the driven hot air is exempt of smokes and bad smells.
The main features are the following ones:
-Heating gas oil, natural gas or liquefied petroleum gases operation.
-Closet made with galvanised sheet.
-Heat exchanger dimensioned in order to obtain performances superior to 90%, made with AISI-430 stainless steel.
-Combustion chamber made with AISI-304 stainless steel.
-Control panel made in a watertight box for avoiding the high humidity degree in greenhouses.
-Reinforced environmental thermostat with 5m hose and fast connector included in the equipment.
-Base equipment prepared with air impulsion grid of simple deflection.
-It can have circular hoppers or any other kind of impulsion pipes coupled on it. |
|

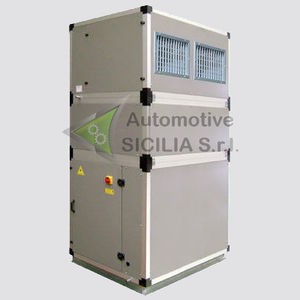

Full range of heating cabinets gas or oil fired.
Available in vertical or horizontal versions, inside or outside and able of ducted appications.
Air flow from 6000 to 60000 m3/h and power from 70 to 1120 KW.
High temperature resistant steel exchanger or stainless steel.
For various cases, the body can be double skin.
Filtration optional.
Applications : Industrial buildings heating and/or ventilation with sveral kind of applications for high level confort for users.
This equipment is in accordance with European directive related to gas fired equipment 90/396/CEE under n° 49AQ1369 and 1370 and electro-magnetic compatibility CEM 89/336/CEE and low voltage 73/23/CEE. |
|

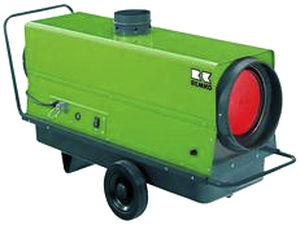

Craftsmen and construction workers value the many advantages of the practical heaters of the DZH series. Handy and problem-free to use, they are preferably suited for the de-icing or heating of construction materials, vehicles, equipment, water pipes, supply lines, and so on. These devices also provide for effective, immediate heat in closed, well-ventilated rooms
- Installed oil burner in a high-pressure system for EL heating oil or diesel
- Stainless steel combustion chamber
- Direct heater with 100% efficiency
- Integrated tank or Oil-reservoir fitting
- Easy to transport
- Fully automatic controls |
|
| The heaters are used successfully by farmers and gardeners. Whether in well-ventilated stalls, equipment sheds, or greenhouses, their mobility makes them practical and universal. The heaters are delivered ready for plug assembly. They are ready for operation after connection to the 230-volt a.c. mains and to propane gas cylinder(s). For energy savings, the devices can be delivered in automatic design (PGT) with a room thermostat that is ready for plug assembly. |
|
BABCOCK WANSON offers a complete range of solutions suitable for the heating of large spaces and smaller buildings :
- air unit heaters gas fired or for use with secondary heat transfer fluids ;
- warm air cabinet heaters gas-fired and light oil fired ;
- air handling units, make-up air replacement heaters and modular units with exchangers, mixing chambers and filter sections ;
- radiant tubes, door heaters, destratification fan units.
BABCOCK WANSON manufactures equipment to deal with a variety of drying applications :
- heaters with direct combustion (up to 12000 kW and 1200°C) ;
- heaters with indirect combustion (up to 3000 kW and 300°C). |
|
MODULE FOR INCREASING TEMPERATURE
MM-050-TEC / MM-090-TEC / MM-160-TEC
DESCRIPTION:
Heating module designed for increasing the temperature of the air canalised inside of it (thermal difference of 17ºC to 60ºC).
Its big versatility turns it into an equipment with great application in the premises heating area, as well as in that one of materials drying processes as for example: furniture, metal pieces, vegetables, etc.
Its main features are:
-Operation with heating gas oil, natural gas or liquefied petroleum gases.
-Combustion oven made for achieving a performance of 90%.
-Tubular structure painted with black priming.
-External panel thermally and acoustically insulated.
-It has three operating thermostats (fan start-up, burner stoppage and security thermostat).
-Fastening hooks for an easy transport.
The base equipment does not incorporate fan nor electric panel, but it can be supplied if you ask it so.
FUEL:
Heating gas oil / natural gas / LPG
APPLICATIONS:
Premises heating, products drying, etc.
|
|

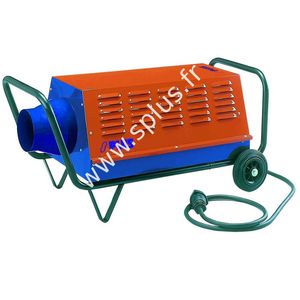

Fan heaters of simple and robust design for heating recirculated air in areas such as workshops, factory shopfloors, warehouses, refectories, sports halls, garages, shops, greenhouse ...
Vulcanic manufactures a very large range of fan heaters, such as portable fan heaters, fan heaters with castors, and high power fan heaters for wall mounting. |
|
Multi-directional heating
Noz is an innovative re-modelling of the traditional unit heater, developed to address the heating and air distribution needs of warehouses and industrial buildings.
Noz features six adjustable nozzles that can be individually positioned to provide optimum air distribution. When installed at high level the nozzles should be positioned near to the vertical to optimise downward penetration of the air, but when installed at lower levels the nozzles should be positioned nearer the horizontal to maximize coverage.
Using a technologically advanced 'mixed flow' fan air is discharged through the nozzles at high velocity, thus inducing movement of the surrounding air and resulting in improved mixing and temperature distribution.
And with comfort in mind Noz can be used to provide fresh air enabling circulation of ambient air in the summer. |
|
The range of helicoid aerotherm consists in 7 different models used either in heating or cooling mode.
These equipment are intended to large volume buildings, store house, garage, workshop...
Aircalo aerotherm enables rapid heating or cooling volumes at the same time, mixing the air sufficiently to prevent its stratification (it is possible to complete this mixing by using zephir air recyclers).
Depending upon the characteristics of the building to be equipped, the Aircalo aerotherm may be hung (vertical blowing) or wall mounted (horizontal blowing).
CAUTION :
In cooling operation, the vertical mounting (horizontal blowing) should only be used. In this case, a condensate vessel is supplied.
These Aircalo aerotherm are designed to satisfy quality criteria and standards in force. |
|
* Heating fans provide economic, safe and practical high quality heating solutions for Indoor sports Centers, Production Facilities, Warehouses, Supermarkets and any other large indoor facilities.
* The fan is dynamically balanced which enables quiet amd vibration free rotation. The fan is connected to a 220V / 380V motor.
* A perfect energy saving solution. Hot water or steam from your central heating system is directly connected to the heater. |
|
* Axial-flow Fans
* Heat Exchanger made with copper piping and aluminium fins.
* All models can be operated with hot water, boiling water or steam.
* Heating Capacity: 11-25 kW
* Air Flow: 1.750-2.400 m³
* Cooling Capacity: 2.3-5.1 kW |
|
Their flexibility and fast heating feature make it necessary to use the Armagnac in premises such as :
- Sales and/or storage areas
- Sports hall
- Agriculture and breeding premises
- Industrial and commercial buildings.
Over a pleasant presentation, electric aerothem Armagnac are fitted with all components and accessories allowing a quick installation, a safe and quiet operation.
- Armoured resistance
- Slow speed helicoid fan
- Power contactor
- Safety and control thermostats
- Fan timer
- On/off switch with light signal
- White RAL 9003 painted sheet steel frame, RAL 9010 lacquered deflectors protected with a removable plastic film.
Produced in 2 sizes, for power from 6 to 24 kW.
For powers from 15 kW to 24 kW only, the equipment is fitted with contactors allowing a two step operation if necessary. |
|
These equipment may be connected either with vertical or horizontal vent or through a chimney.
These aerotherms do meet the main requirements of the CE standards requirement related to gas-fired aerotherm.
CAUTION :
These equipment can only be used in sufficiently aerated premises, except where a tight connection is provided.
The proper operation of the aerotherm depends on a correct installation and start-up.
Aerotherm should not be installed in :
- Hazardous areas
- Premises containing vapours of chlorinated combination
- Areas with high contents of inflammable dusts
- Highly humid rooms. |
|
Héliotherme H 4000
Group motoventilator technology ROTOREX available in three-phase current 2 speeds and variable single-phase current 1 speed (reduction of tension).
Diffuser doubles deflection technology JET+ of series.
Batteries:
Water BP: 1,2 or 3 row (S) - Tube coppers
Water HP: 1 row (2 or 3 rows on request) - Tube steel
BP vapor or HP: 1 row - Tube cupronickel
Electric: armor-plated resistances STAINLESS inserted directly in the winged block for an optimum exchange Body galvanized steel prelacquered RAL 7035
Oil collecting tray of the condensates integrated of cooling use or reversible with bottom at a peak diamond and nautical connection.
Available in 5 sizes according to the hot or cold thermal power (from 4 to 155 kw) and the flow (of 1700 to 11000 m3/h) to provide |
|
REMKO VRS heaters correspond to the highest technical standards. Without a time-consuming installation as conventional hot water heating systems. The devices are suited not only as individual units, but also as centralised units for warmth channel connection. Extensive special accessories on the intake and outlet sides are available. The intake air is heated via a heat exchanger by an oil or gas burner and evenly distributed in the room using a low-noise radial fan.
In summer, the fan provides pleasant fresh air. The program selection with heat outputs between 33 and 495 kW always permits an appropriate device choice. |
|
