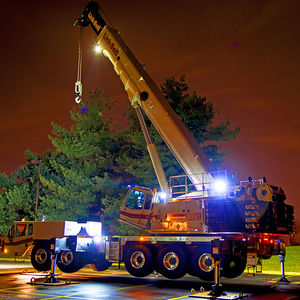

Link-Belt
HTC-8690
90-ton (81.6 mt)
Hydraulic Truck Crane
- 38’ – 140’
(11.6 m - 42.7 m)
5-section boom
- Optional 35’ – 58’
(10.7 m - 17.7 m)
two-piece offsettable fly
- Optional two 16' (4.9 m) extensions plus 58' (17.7 m) two-piece offsettable fly
- 237’ (72.2 m) maximum tip height
- Overall dimensions:
Height: 11’ 7” (3.53 m)
Width: 8’ 6” (2.59 m)
Length: 45’ 7” (13.89 m)
- 62.3 mph (99.4 km/hr) travel speed
- 19’ 3” (5.87 m) wheel base
- Front tires - 445/65R22.5;
Rear tires – 12R22.5
- Caterpillar C-13 12.5L 445 hp (331.8 kW) diesel engine
- ZF AS-Tronic automated 12-speed transmission
- 24’ (7.32 m) outrigger spread, 20’ 6” (6.25 m) outrigger base
- 16,880 lbs (7 656.6 kg) maximum winch line pull
- 480 fpm (146.3 m/min) maximum winch line speed
|
|
| ... products without technical information |
| |
Self-propelled industrial cranes are adaptable, flexible, quiet and sufficiently compact to pass through most factory corridors, but sturdy enough to be used in grueling sectors such as mining, quarrying, steel processing and aircraft assembly.
On these machines, Brevini Winches hydraulic winches offer high performance and compact dimensions. All winches have hydraulic motor-driven units with a fixed cylinder axial piston motor and a balancing valve unit for controlling the load when descending and a selector valve for opening the integrated motor brake. As a result, the rope can be easily and quickly wound clockwise or counterclockwise simply by rotating the load control valve. Installation is simplified by the exclusive design of the lateral supports in the square frame versions.
|
|
... see all the products in the category
Winches
|
|
Barksdale's High Pressure OEM Valve line provides exceptional directional control for fluids up to 3000 psi in the toughest industrial applications. Using Barksdale's Shear-Seal® technology the OEM Valve products offer dependable performance and long life even when the media being controlled is contaminated with debris that would ruin ordinary valves. Flexibility is built into the OEM line which features several standard options that can be adapted to meet the unique needs that OEM customers require in their products.
|
|
|
|
|
|
Block Loading Grabs – with Adjustable Height AKZ-H unigrip / AKZ-N unigrip / AKZ-S unigrip
This has the same design and characteristics like the AKZ-unigrip but comes with adjustable height for differing pack heights. This universal type of grab is suitable for the transport of building materials of all types and sizes. By the adjustable height and the large opening width it can be used for all building materials on pallets and without pallets.
A choice of various heights.
The vertical height adjustment bar is equiped with 4 drillings which are situated on different height levels, each shifted by 90°.
The different levels are for the following heights:
level 1 (turning 0°) 1.100 mm
level 2 (turning 90°) 1.280 mm
level 3 (turning 180°) 1.470 mm
level 4 (turning 270°) 1.650 mm
Height Adjustment with a choice of fixed or floating position.
Now even more simple handling of the height adjustment - just move one lever.
Higher pressure – finely adjustable, for example to grip material which is sensitive against pressure.
Low overall height of equipment.
Standard Specifications:
Hydraulically and smoothly operable and works in parallel.
Robust gear rack balance for the absolute synchronous running of the hydraulic cylinders.
Large low-maintenance polyamide sliding guides with 5-year guarantee.
Automatic pressure control. Carrying capacity of height-adjustable versions in retracted position will be increased as per positive working automatic pressure control up to the respective figure indicated in brackets.
Manually adjustable pressure-reducing valve.
Oil pressure gauge.
4 hanging eyes for cables or straps/belts.
Light-weight construction in high-tensile steel.
|
|
Actuators & Accessories
We provide a complete product line of actuators and accessories to meet all your valve automation requirements.
XOMOX Valves can be readily and inexpensively equipped with a variety of pneumatic, electrical or hydraulic actuators. We also supply a complete line of actuator devices and accessories (e.g. positioners, limit switches, solenoid valves, air filters, etc.) to complement your valving needs.
|
|
|
|
