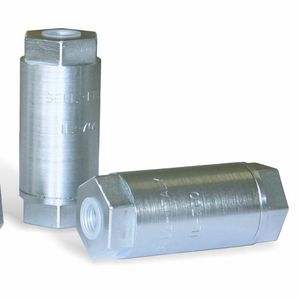

High Pressure Filters-Worldline 100 up to 21.1 gpm, up to 6525 psi, In-line mounting, HD 049/HD 069
Application
In the high pressure circuits of hydraulic systems.
Performance features
Protection
against wear: By means of filter elements that, in full-flow filtration,
meet even the highest demands regarding cleanliness
classes. Protection against malfunction: Through installation near to the control valves or other
expensive components. The specific determined flow rate
guarantees a closed by-pass valve even at < 930 SUS
(cold start condition).
Filter elements
Flow direction from outside to center. The star-shaped pleating of the filter
material results in:
- large filter surfaces
- low pressure drop
- high dirt-holding capacities
- long service life
|
|
|
|
|
|
Return Filters - lightline up to 18.5 gpm, Tank top mounting/In-line mounting, FR 043/FR 072
Application
In the return line circuits of hydraulic systems.
Performance features
Protection
against wear: By means of filter elements that, in full-flow filtration, meet even the highest demands regarding cleanliness classes.
Protection against
malfunction: By means of full-flow filtration in the system return,
the pumps are protected from dirt particles remaining in the system after assembly and repairs which are generated by wear or enter the system from outside.
Special features
Connection: Hose nipple
By-pass valve: The location close to the inlet port prevents dirt particles
retained by the filter element from entering into the clean
oil side. Removable bowl: In case of maintenance the filter bowl is removed
along with the filter element - so that dirt particles
are not flushed back into the tank. Oil separator: Prevents oil splashing through the breather on mobile
applications. Extension pipe: Easy and fast adaption to various lengths due to the
"do-it-yourself"-system.
Filter elements
Flow direction from outside to center. The star-shaped pleating of the filter
material results in:
- large filter surfaces
- low pressure drop
- high dirt-holding capacities
- long service life
|
|
Filters
Line-type: filter for petroleum base fluids featuring spin-on throw-away cartridge. Rated to 200 psi. Standard return line installation with bypass relief. Suction line models also available. Condition indicator optional. 10 or 25 micron elements.
|
|
HYDRAULIC FILTRATION
Olaer partner MAHLE for 20 years, has proposed a complete range of filters for hydraulic systems.
Low medium and high pressure, suction, switched double filters, partial flow filters, return, Spin on cartridges
A solution of filtration for:
- to increase the efficiency of the components
- to reduce the costs of maintenance
- to reduce the downtimes machine
- to preserve the environment
|
|
|
The pressure line filter is an essential part in most hydraulic systems. When the hydraulic components are sophisticated, with close tolerances and a regulation function (not simply that of control) the use of filters in the pressure lines is a must.
|
|
|
The return line filter is an essential part of any hydraulic system. In many instances it is the only "system protection" provided and therefore must be carefully chosen to ensure maximum system efficiency.
|
|

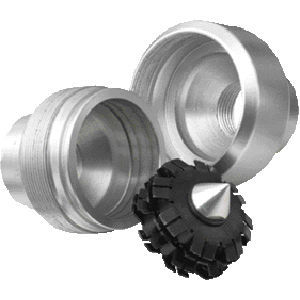

The patented Magnom filters are based on a simple idea: fluids are cleaned of ferrous particles by a magnet.
Removing ferrous particles (as small as 0.07um.) they remove the key cause of wear within a fluid system; especially in critical parts with tight tolerances, such as engines and pumps.
Microscopic ferrous particles damage industrial fluid systems and degrade finished products. Magnetic Filters are the solution to ferrous contamination of industrial fluids.
This technology reduces downtime needed for repairs, replacements or even servicing, increases in a massive way quality of final product.
These filters need simple maintainance, they can be easily removed and replaced, transparent Magnom units allow for quick visual inspection.
The revolutionary technical design of the Magnom leads directly to enhanced performance and substantial economic benefits.
|
|
High Pressure Mini Tee-Type 4100 Series Filter
The 4100 series is a compact , lightweight tee-type filter that provides reliable and economical protection for critical testing equipment, valves, gauges and instrumentation. Designed with high dirt holding capacity pleated elements.
Elements
- No media migration due to the use of 304 stainless steel microweave wire mesh.
- Stainless Steel microweave mesh 9 micron ratings from 10 to 300 micron.
- Stainless Steel Sintered .5, 1, 3 and 7 micron absolute.
- Random Metal Fiber (metal fiber felt) available in 3, 5, 10, 25, 40 & 75 micron.
- Microglass ratings 3, 5 and 10 micron absolute
|
|
PureForce Filters Made for Harsh Conditions
Baldwins PureForce filters are engineered to withstand extreme conditions created by medium-pressure hydraulic systems, with working pressure up to 500 psi and flow rates up to 50 gpm.
Highest Possible Structural Integrity
Baldwins PureForce hydraulic filters feature a die cast aluminum baseplate locked in place by a patent pending L-Lock hem eliminating leaks due to the integrity of the housing seal.
Superior Burst Pressure
Lab and field testing show that PureForce filters have the highest level of burst and fatigue characteristics with PureForce exceeding the leading competitors published burst pressure specifications by an average of 65%.
Greater Consistency
PureForce filters test at higher average levels on a more consistent basis providing the most reliable medium-pressure hydraulic spin-on. This greatly reduces the possibility of unexpected downtime due to a failed filter.
|
|
The OMT range of filters fits into return lines of hydraulic circuits (pressure up to 20 bar), suction lines and medium/high pressure lines (100/420bar).
Depending on the models, they can be equipped with accessories like differential clogging indicators (visual and electric), pressure gauges, pressure switches, by pass valves etc.
|
|
Return-line filters retain all the contamination created within the equipment and flushed out of the hydraulic circuit, thus preventing contamination entering the circuit via the tank and pump, with all its negative implications.
|
|
Return-line filters retain all the contamination created within the equipment and flushed out of the hydraulic circuit, thus preventing contamination entering the circuit via the tank and pump, with all its negative implications.
|
|
|
|
|
|
Return Line Filters RF
STAUFF return-line filters RF are designed as tank top filters. Their practical design allows easy element replacement and quick installation. A wide range of media is available for the RF element series.
* operating pressure up to 16 bar
* flows up to 500 l/min
* BSP, NPT, SAE o-ring ports or SAE flange (code 61)
* filter head made of aluminium, filter bowl made of glass fiber reinforced PA
* visual and visual-electrical indicators
Return Line Filters RFB
STAUFF RFB return line filters are designed as tank top filters. They are mounted directly on the tank top and if 100% ofthe system oil is filtered they provide the optimum removal of contaminant from the system. This provides the pump withclean oil thus reducing contaminant generated wear. Because of it%u2019s low weight and compact design the STAUFF filters RFB are optimally suitable in mobile hydraulic applications.
* operating pressure up to 16 bar
* flows up to 185 l/min
* BSP, NPT or SAE o-ring ports
* filter head made of aluminium, filter bowl made of glass fiber reinforced PA
* visual and visual-electrical indicators
|
|
The 3000 series filter is used after the pump and/or as a return line filter in moderate pressure lube oil systems. This series is also ideal in hydraulic systems with return line pressures exceeding 250 psi.
Elements
- Multiple length elements
- Microglass beta 75 in 2, 5, 10 and 20 micron
- Stainless woven wire 141 micron
- Cellulose 3 and 10 micron
Features
- Housing material: anodized aluminum
- Flow: 0-150 gpm (100 SSU oil)
- Pressure: 800 psi maximum operating
- Temperatures: -65° to 250°F
- Port sizes: ¾” to 2” NPT or SAE
- Bypass settings: 25 and 50 psi
- Element cleanliness indicators: visual & electrical
- Easy cartridge element installation
|
|

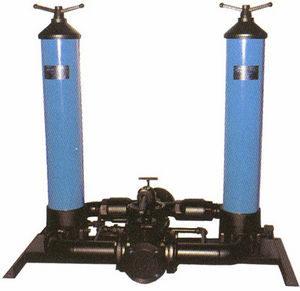

W322 duplex filters provide continuous, uninterrupted filtering of flows up to 50 gpm. The proprietary bowl check valves insure leak free maintenance during replacement element cycle. The high density aluminum material provides for a
compact and lightweight filter design. Five media grades are offered down to 5.1μ(c). WF elements core collapse options range from 150 to 3000 PSI.
The differential pressure indicator line is designed to work with the wide assortment of bypass valves. Thermal lockout and surge control are two key
features incorporated in many of the valves.
|
|
|
Our Medium Pressure series filters are designed for continuous working pressures up to 4500 psi and flows from 20 gpm to 150 gpm. Many of the filters within this pressure range conform to the AIAG automotive HF2, HF3 and HF4 specification.
|
|
WL15 in-tank filter meets the HF4 automotive standard. The E4051 service elements interchange with Schroeder K series and Zinga RE-409 series.
An optional weld ring provides an easy solution to insure a positive seal between housing and reservoir. The quick disconnect cover allows for easy and
efficient element change-outs. An optional secondary inlet port offers the use of a second return line. An optional weld ring provides an easy solution to
insure a positive seal between housing and reservoir. Five standard grades of media are offered down to 4.0μ(c).
Western Filter elements are compatible with petroleum oils, water glycol, oil/water, HWCF and synthetic fluids.
|
|
|
The WT, WL and WR Intank series is designed for return line applications. These filters operate with pressures up to 200 psi and fows to 320 gpm. The WL16 and WL18 series offers additional design flexibility with the optional anti-drain valve for side mounting the filter to the reservoir. Filtration flow on the WR series is from inside to outside of the filter element to capture contamination inside the element. The WR11 series is designed to meet flow requirements up to 40 gpm in a light weight compact design.
|
|
This versatile spin on series is an excellent choice for use in high corrosion environments. The gray iron head construction can be ordered with gauge or DP
indicator ports. The popular E0211 series spin-on elements interchange with our W015 and W022 filter heads. The double length canister is available in
water absorbing media.
Western Filter’s spin-ons fit many competitor heads and are shipped with both a narrow and rectangular gasket. Western Filter elements are compatible with
petroleum oils, water glycol, oil-water, HWCF and synthetic fluids.
|
|
Type ABZFD...-DIN
Pressure filters acc. to DIN 24550 for installation in pressure lines:
- Filter elements based on inorganic fiber
- Adsorption of finest particles over a wide pressure differential range
- High contamination retention capacity due to large specific adsorption surface
- High bursting strength of filter elements (e.g. in the case of cold starts)
- Filter ratings 10 µm and 3 µm absolute
- Mechanical visual and electrical clogging indicators
Type ABZFR...-DIN
Return flow filter acc. to DIN 24550 for direct tank installation:
- Filter elements based on inorganic fiber
- Excellent separation characteristics (-values) over a wide pressure differential range
- High contamination retention capacity due to large specific adsorption surface
- High bursting strength of filter elements (e.g. in the case of cold starts)
- Filter ratings 10 µm and 3 µm absolute
- Mechanical visual and electrical clogging indicators
|
|
|
|
|
|
The need for an economical, medium pressure range filter with excellent fatigue pressure ratings has been met. Parker's CN Series filters are the common factor for a long list of applications requiring economical filtration. Prior to the availability of the CN Series filter, many applications were restricted by limitations of a spin-on can, or forced into the higher cost range of high pressure filters.
The CN Series fills this gap, and now with the newly increased fatigue rating from 550 to 800 psi, the applications are expanded. The CN Series has recently been improved to accept Ecoglass III coreless elements.
Ecoglass III represents the merging of high performance filtration technology with environmentally conscious engineering. The Ecoglass III line of replacement elements feature 100% non-metallic construction. The design reduces solid waste and minimizes disposal costs for industry. The non-metallic construction means lightweight elements (60% less weight) for easier servicing.
The Ecoglass III elements utilize the same proprietary media design as our Microglass III line of replacement elements. With Ecoglass III, a reusable core is installed into the filter housing and remains in service throughout the life of the assembly.
|
|
|
ServoSaver filters offer point-of-use filtration for some of the most sensitive hydraulic valves that there are, servo/proportional valves. Complete protection is provided by non-bypass filters equipped with high collapse strength elements installed directly at the valve. The ServoSaver is designed specifically for this use and is not an adaption of an in-line filter intended for bypass filtration.
|
|
|
|
|
|
Series SR
Filter Aspiration-Return now available with elements LEIF®
Technical description:
Conceived for the mobile equipment with loop closed for the hydrostatic transmission and an open hydraulic system
Oil return of the open system and aspired oil of the closed loop thus filtered by only one unit
Food under positive pressure of the oil of return filtered coming from the system open to/the pump (S) of cramming of the hydrostatic transmission
Patented elements ecological LEIF® (Low Environmental Filter Impact) from now on assembled out of standard
Offer to the originators systems an optimal protection.
Advantages:
Avoid the cavitation of the pumps and extension the lifespan of the components
Improve the reliability of the system thanks to a quality of guaranteed filtration
Ecological and patented elements LEIF® reduce the costs of reject of more than 50% on average.
Applications:
- Mobile Equipment
- Handling (lifting trucks etc)
- Vehicles of maintenance (sweepers)
- Agricultural Materials TP and vehicles.
|
|
|
|
|
|
MPD series filters are an outstanding choice for today's demanding hydraulic control and circulating oil systems. The MPD's innovative modular design, rugged ductile iron construction and coreless element technology, combined with many other features, provide solutions across a broad range of industrial applications.
The Modular design provides user flexibility for simplex or duplex applications. Incorporating side chambers as simplex filters along with duplex installations provide common elements across the circuit design.
Construction features like full ported transfer valve with neutral center flow capability offer tremendous benefit in cold start conditions. Standard features like pressure sensing taps, vents, drains and internal pressure equalization make this product incomparable in industry.
IL8 series filters are excellent choices for your demanding applications whether you require simplex, duplex or quadplex assemblies.
Wherever high flow or high capacity filters are required, the IL8 series can be applied with confidence. Filter housings have a simple yet critical job... securely contain the filter element with positive internal sealing.
The IL8 series filter housings are the result of careful engineering. High grade materials are used to provide strength at critical stress points.
The cover and base are annodized aluminum, the handle is nickel plated ductile iron and the bowl is rugged carbon steel. The result is a reliable high performance filter for an array of applications.
|
|
|
The filtering unit GL - 15 conforms to Machine Directive 98/37/CE end is designed filtering of hydraulic circuits with viscosity up to 400 cSt. The cartridge of the pressure filter has wide filtering surface and can be easily checked and replaced without fluid leakages
|
|
- Tank top mounting.
- Connection ports 3/4"+3/4", 3/4" 1" or 1 1/4" 2x1".
- Nominal flow rates up to 200 L/min.
- Max working pressure 1 MPa (10 bar).
- Standard filter media: FC, SA, FD, CC, CD.
|
|
|
We have named PUMP CARE the Suction Filters because thanks to their function of protection from coarse contamination (due to lack of initiai cleaning or to an accidental ingression) they take care of the pump, ensuring a safe and efficient operation.
|
|
|
BGTS return in-tank filters feature Parker's exclusive magnetic prefiltration core which collects ferromagnetic particles from fluid upstream of the filter element. This feature alone could save hundreds of dollars a year by protecting costly equipment from increased wear and malfunction by assuring that the fluid is as pure as possible when it leaves the filter. Even during bypass due to cold start up, contaminant is collected by the magnetic core, a feature of importance on any fluid power system.
|
|
Parker's Tanktopper Series features:
• Flows to 18 gpm
• 3 micron to 120 micron absolute
• Disposable or recleanable elements
• Visual and electrical indicators
• Microglass long life elements
• Inside-to-outside flow through the element
• Complete contamination removal during element service
• Optional magnetic prefiltration
• Optional dipstick
• Optional airbreather
• No tools required for servicing elements
|
|
Contaminated oil is drawn into the Parker Portable Purification System (PVS) by a vacuum of 25 In/Hg. The oil passes through the in-line low watt density heater where the oil is heated to an optimum temperature of 150° F (66°C).
The oil then enters the distillation column where it is exposed to the vacuum through the use of special dispersal elements. This increases the exposed surface area of the oil and converts the water to vapor form, which is then drawn through the condenser by the vacuum pump.
The water-free oil falls to the bottom of the column and is removed by a heavy duty lube oil pump. This pump forces the dry oil through a final particulate removal filter. Clean oil passes out of the unit, back to the reservoir — and into the system.
|
|
|
|
