ECO-Jack XR-Series - with integrated pull back system and for external pumps up to 50 tons load capacity
Unlike the ECO-Jack S-Series an external pump is required to operate
the ECO-Jack XR- and SX-Series. The The ECO-Jack XR-Series is
equipped with an integrated pull back system, and is operated with
700 bar technology. This easens and speeds up the lifting process, particularly when using more than one jack simultaneously,
or when used in confined work areas.
Due to its compact design (without a pump) its weight could be
reduced up to 30% and is therefore very easy to handle even in
the most extreme circumstances.
It is possible for one person to operate and control several ECO-Jack
XR-Series simultaneously when used in conjunction with a mechanical
or electrical external pump.
Made in Germany
|
|
ECO-Jack® G-Series - low height lifting claw - for all fork lift trucks
This compact built ECO-Jack® G-Series with its integrated hydraulic pump elimenates the need for additional hoses or pumps. Its low profile lifting toe is also perfect on all types of fork lift, electric hand trucks and stackers with low ground clearance.
|
|
• Low handle effort
• Automatic bypass port to prevent over-extension
• Wiper seal for extended life
• Chrome plating on both plungers
• Safety relief valve to prevent overload
• Fully serviceable
• Cast pump linkage
• Cast beam
• Handle included on all mod
|
|
for heavy loads up to 30 tons!
GKS-hydr. jacks for professional applications - worldwide approved and robust design.
- Prominent features like high-quality material, safty valve ('overload protection'), wast-wax cast safety toe, quick release connector for external pump and stable swivel feet incl. solid rubber tires.
- Our hydraulic jacks approved from a German technical inspection authority and bear German test mark ‚CE'/'GS' and American ‚ANSI/ASME'.
- Every single jacks passes through a sequences of tests before it is delivered and it is supplied with a test report and label indicating the date for its next GKS-inspection.
|
|
All purpose self contained jacks that are ideal for use in general industrial applications. Used extensively in maintenance, construction and material handling applications.
|
|

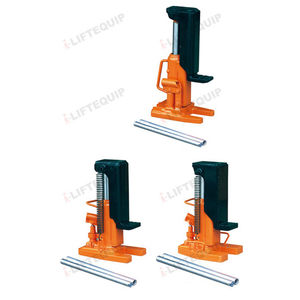

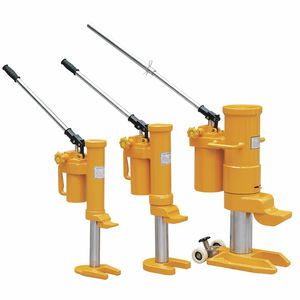

Toe Jacks
• With lifting points on the toe and on the top, these extremely rugged jacks are ideal for machine lifting, rigging, lift truck service and much more.
• Choose from 5.5-ton, 11-ton, and now, an amazing 27.5- ton lifting capacity.
• All jacks operate both vertically and horizontally.
• Base, toe and pumping assembly swivel independently, allowing the jack to work in confined areas.
|
|

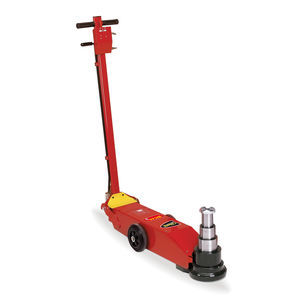

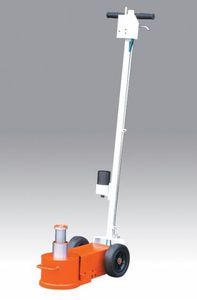

An exclusive design, which utilises 25 compact and functional models, is the response to the continuous evolution in transport vehicles.
Extensions are built with high quality steel, with chromium coating on the external sliding parts, while the pneumatic parts are treated with an anti-corrosion process.
The hydraulic circuit built with holes inside the cylinder structure guarantees a perfect seal against accidental oil leaks. The rod scrapers prevent dust or other foreign matter from penetrating. The built-in safety valves avoid accidental overloads and prevent the load tram dropping during a pneumatic pressure loss.
Drive and pneumatic vacuum descent with double control on the handle.
The special design of the frame makes it easy to position the jack while the total tilting of the handle on the frame greatly reduces the packing dimensions thus offering savings in terms of transport and storage.
|
|
for heavy loads up to 5 tonnes!
Special development for maintenance and repair work using forklift trucks or other industrial vehicles with large ground clearance and for textile
machinery or similar equipment:
- stable design
- outstanding stability
- rust free materials for the hydraulic components
The device has a stable base plate with integrated feet, which ensure that it has ideal stability. The 120 mm long toe is equipped with a gearing in its forward section, which serves to counteract any slipping of the load.
It can be set to three different height positions, so that it can also be used with fork-lift trucks with large ground clearance.
|
|

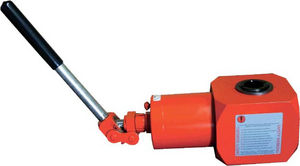

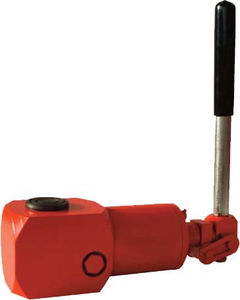

Compact and built with top-quality materials, Olmec hydraulic jacks for fork-lift trucks are small, lightweight units with impressive lifting force. The extensions supplied as standard outfit and the additional bracket allow a variety of lifting positions (directly on the piston or with side bracket) for full exploitation of the cylinder stroke.
Available in two versions, one with integral hand-pump and one for use with an air-hydraulic or hand pump and connection line (not supplied), they are the ideal tool for servicing vehicles/machinery with low ground clearance.
Once the required height is reached, the hydraulic unit can be disconnected (for other uses if needed), since the cylinder will hold its position. The load is lowered by hand by means of a valve which also allows control of the descent speed.
The jack features a convenient handle for easier transport and manoeuvring.
|
|

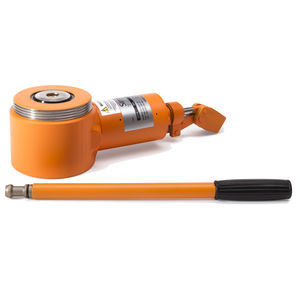

The Lowest Power Lifter!
• Extremely low height for use in confined areas
• Safety lock nut for mechanical load holding
• Single-acting, load return
• Optional special synthetic coating for improved corrosion
resistance and lower friction for smoother operation to
withstand side load forces up to 3% of rated cylinder
capacity without scoring
• Overflow port functions as a stroke limiter
• CR-400 coupler and dust cap included on all models
|
|
Low profile CYLINDERS RLS SERIES
• Cylinder body, piston and gland nut “Power Tech” treated for corrosion and abrasion resistance.
• Standard domed piston rod (5-30 ton) or swivel cap (50-150 ton) minimize effects of off-center loading.
• Unique heavy duty spring provides fast piston return.
• A 9796 3/8" NPTF female half coupler is standard with each cylinder (the RLS50 has a 3/8" coupler which is not angled). Oil ports are 3/8" NPTF (except the RLS50).
• Couplers on all cylinders, except RLS50, are angled upward for extra clearance.
|
|
To Secure Loads Mechanically!
• Single-acting, load return
• Safety Lock Nut for mechanical load holding
• Special synthetic coating for improved corrosion
resistance and lower friction for smoother operation
• Withstands sideload forces up to 5% of rated cylinder
capacity without scoring
• Overflow port functions as a stroke limiter
• Interchangeable, hardened grooved saddles are standard
• Plunger wiper reduces contamination, extending
cylinder life
|
|
H - Bottle jacks
NIKE's range of bottle jacks is made up of a wide selection of standard models, including extended (H80-300) and extra low variants (HxxxL- models) and special jacks for a variety of different applications.
All NIKE bottle jacks have a safety valve that prevents overloading. Bottle jacks are easy to service, and all wear components are easily replaceable.
H-series
• Low manual pumping force facilitates use in uncomfortable positions.
• Release valve permits safe, easy and precise control over rate of lowering.
• Filter in oil reservoir protects against contamination.
82HD / 86HD jacks
• Two-stage operation in order to reach the lifting point fast.
• Can be equipped with pressure gauge.
|
|
Thanks to its compact size, low weight and robust strenght, the HYDROGRIF jack is the natural answer anywhere where there are no fixed jacking means available : building sites, garages, factories...
Toe swivelling 360 degrees around axis of the body.
Pressure limiter preventing any overload.
Discharge screw guaranteeing controlled and flexible lowering of load.
Load taken up flush with the floor.
Very high stability.
Aluminium handle.
Bleeding.
Plate with roller (for 20T jacks only).
Removable lever (option)
These jacks also exist with separate pump. Features and dimensions are the same than these of one-piece jacks.
|
|
|
the jah range of lightweigh aluminium jacks offers a wide of capacities and lift height options. Available as either plain ram lifting jacks, with or without "failsafe" mechanical lock ring, or optional low height claw lifting design. All models are constructed predominantly of leightweight aluminium alloy with all critical functioning parts manufactured from high quality steel. Used extensively in maintenance, construction, hjeavy plant an machinery applications, these high quality jacks are the proven industry standard.
|
|
Advantages in detail
- Reduced friction by use of slide shoes, mobile in their seats. In every situation a bigger surface for force distribution is guaranteed, less friction, power loss and wear than with conventional jacks.
- Reduced maintenance costs by easy to change slide shoes and exchangeable pumpunit.
Extremely light weight with high performance through the use of high-quality material and innovative design changes.
- Continual adjustment to the load by swivelling safety toe. Secure stableness in every situation even in lifted position.
|
|
MM2000 - Hydraulic transmission jack
• Jig for securing load quickly and easily. Can easily be removed if required.
• Fast and versatile, lifting plate can be adjusted forwards/backwards and side-wards for precise positioning during fitting and removal.
• Capable of handling most types of gearboxes.
|
|

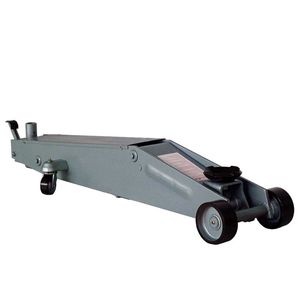

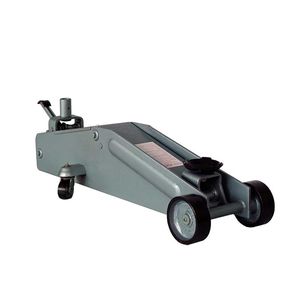

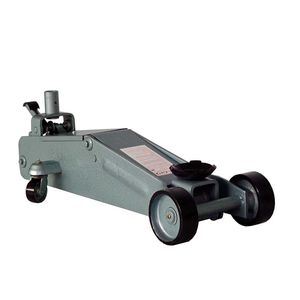

GH - Low profile trolley jacks
Reliability. All NIKE trolley jacks feature modern design and are designed to incorporate large safety margins. A safety valve on all models protects against overloading.
Service. Easily replaceable components make NIKE trolley jacks simple to service. We have a large network of dealers and service agents around the world.
GH - models
• High-lift design for good accessibility.
• Protector, top saddle protection for safer lifting.
• Polyamid wheels - for quieter positioning.
GHP2 - can be operated manually or using compressed air (0,8 - 1,4 MPa)
|
|
Hydraulic portable jacks: from 3 to 50 tons.
Dismountable, locatable, jacks AV are usable with the horizontal pump in bottom.
Telescopic hydraulic portable jacks: 10-12 tons.
Dismountable, locatable, jacks AV are usable with the horizontal pump in bottom.
Model 12 tons especially conceived for the buses and bus.
|
|
