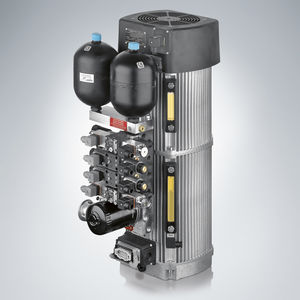

Because of the unique integrated fan configuration, the "ready for connection" hydraulic power packs are ideal for continuous operation. Annother version for temperature sensitive applications features an auxiliary blower, thereby gaining improved cooling (approx. 25%). This type is available for single circuit operation (radial piston or gear pump), dual circuit operation (radial piston and/or gear pump) or triple circuit operation (radial piston pump only). Both single and dual circuit pumps are also available as a horizontal version (type HKL).
Complete hydraulic control systems can be created by directly mounting various combinations of connection blocks and valve banks to the hydraulic power pack. These hydraulic power packs are used for machine tools (lathes and milling machines), jigs or general machine applications, making a commonly used external radiator superfluous.
|
|
Power units for clamping technology
Modular systems for a variety of clamping functions...
These assemblies are used primarily in the area of tool and work-piece clamping or wherever a compact construction is required in combination with dense valve technology.
Compact construction volume and a high degree of protection allow direct installation into the clamping device.
Functional safety is reliably achieved by means of leakage-free poppet valves.
The integrated control logic reduces additional interfaces.
The absolutely compact, ready-for-installation hydraulic power units for use in industrial tensioning and clamping applications are distinguished by a maximum degree of reliability. Proven power units from the H0, H1, H3 and H4 series from HOERBIGER range are used. In relation to applications, there is a variety of customer-specific variation possibilities in combination with valves and standard modules from the HOERBIGER catalogue range. The following versions are therefore possible, for example:
- Basic version for attachment of valve modules and for storage charging function
- Reverse operation for H0 and H1 without additional valve control for double-acting cylinders
- Actuation of both single and double-action cylinders
- Clamping functions with support by storage tank, also as a modular system
- Lower oil outlets with high protection class
- Energy-saving double pump version with integrated load-sensing control
- Possibility of direct mounting on the consumer.
|
|
| The powerful 2-stage hydraulic pumps PO 4 are compact and light and can be transported easily. They reach a long operation time in intermittent duty meeting the highest quality and technology requirements. |
|
| Flows to 2.8 l/min Pressures to 240 bar Our compact 108 Series power units let you put the power where you need it. They're completely selfcontained with an AC or DC motor, gearpump, reservoir, internal valving, load hold checks and relief valves. The 108 Series models are designed for intermittent service and come in four standard pump sizes which produce flows of 0.16, 0.31, 0.40, and 0.53 cm3/rev. Locking check valves are available in all models. Performance will vary with the type of fluid used. Several hydraulic circuits are available. 108 Series units are available with single- or bidirectional rotation. Single units are commonly used to charge accumulators, power one-direction hydraulic motors and cylinders, provide pilot flow to servo valves, pressurize lube systems and supply multifunction circuits with external valving. Bi-directional, reversible units operate double-acting cylinders and two-way motors. |
|
Higher oil flow and bypass pressure, cooler running and requires 18% less current draw than comparable pumps
Flow: 700 in3/min at 100 psi; 60 in3/min at 10,000 psi
Powerful 1.7 hp universal electric motor provides high power-to-weight ratio and excellent low-voltage operating characteristics
High-strength, molded composite shroud with ergonomic, non-conductive handle for easy transport
Low-voltage pendant
LCD readout provides a number of diagnostic and readout capabilities never before offered on a portable electric pump
Designed to last and easy to service
Steel reservoirs: 1, 2, 2.5, 5 and 10 gallon usable oil
Optional: Back-lit LCD, Pressure transducer, heat exchanger and skidbar.
|
|

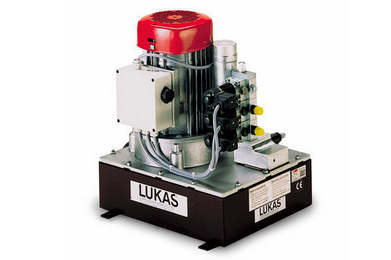

| Depending on the model LUKAS Motor Pumps Series 6 are suitable for lifting with up to - cylinders. Hydraulic pump and valve assembly are combined in this compact power and control unit. Lifting- and lowering speed of each cylinder can be regulated precisely. |
|
Simplex 10,000 psi / 700 bar pumps are engineered for all types of applications. These hydraulic pumps are best suited for small to large size tools or cylinders. Large selection to choose from.
|
|
Electric Pump HYDRAULIC PE17 SERIES
• For use with single-acting or double-acting cylinders at operating pressures to 10,000 psi.
• For intermittent duty; starts under full load.
• Equipped with 1⁄2 hp, 3,450 rpm, singlephase, thermal protected induction motor; 10 ft. remote control cord (PE172S has 25 ft. cord)
• Low amperage draw; small generators and low amperage circuits can be used as power source.
• Extremely quiet noise level (67-81 dBA). |
|
Compact Hydraulic Power Packs USMA 04
Compact hydraulic power packs for the use in lifting
platforms, elevating tables, ramps, presses, machine
tools, mobile applications and others
5 basic hydraulic circuits in the manifold
Possibility of building up an additional circuit in the
form of vertical or horizontal stacking assembly
Tank capacities from 0.4 up to 11.6 US gal
(from 1.5 to 44 L)
Low noise level |
|

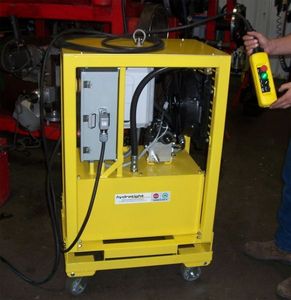

HYDRAULIC POWER UNITS FOR HYDRAULIC TORQUE WRENCHES
Hydraulic Power Units - Electrically as well as pneumatically driven, single to four ports for operating more than one tool simultaneouly, working pressure 700 bar, light weight and compact design. |
|
Power units for industrial brakes
The reliable solution for a broad power range ...
Thanks to their compact and robust design HOERBIGER power units offer the optimum solution for a broad power range. Maintenance-free operation with a high life cycle guarantees operational security even in extreme environments.
The use of normally open, leakage-free poppet valves ensures that brakes also close safely if there is a power failure.
In the area of brakes HOERBIGER hydraulic power units from the ranges H300, H400 and H650 are used from the standard range.
The brakes to be actuated are passive safety brakes. This means that the brakes are opened (vented) and kept open against a spring force. For the braking procedure the oil is discharged to the tank via poppet valves. In this way the brake can close by means of spring force. The use of normally open poppet valves ensures that brakes also close safely if there is a power failure. Passive safety valves are used in a variety of areas, e.g. as
- Stop brake and/or retaining brake on chassis,
- Wind energy plants, - Lifts, - Lifting gears, - Slewing gear, - Blowers,
- Turbines, - Saws, - Winding machines etc.
There are different variants depending on application, e.g. hand pump and/or emergency actuation on the poppet valves.
With these options the brake can also be ventilated even during a power failure. |
|
Optimum weight-performance ratio for electric and pneumatic operation
for demanding continuous use
Compact units with remote control via one-hand safety control unit at the
press of a button or with a one-hand permanent automatic control unit.
Convenient continuous operation is guaranteed with this high powered unit.
Efficient and economic tightening and loosening is guaranteed with high flow and
a high operating pressure, with the security of leak-proof hydraulic connections
and the convenience of remote control at the touch of a button.
Special features of LÖSOMAT hydraulic units
- high speed pumps with 2- and 3-stage technique
- oil cooler is standard for high performance units
- continuous pressure torque setting with fine adjustment
- overload safety valve
- oil drain plug
- ventilation ball valve can be closed for transport
- glycerine filled precision manometer (class 1.0), Ø 100 mm
- 400 V units with free choice of motor’s direction of rotation
- safe, electrical remote control with 24 V control voltage
- time controlled, automatic cut-off of the motor
- patented one-hand permanent automatic control
The latest innovations from LÖSOMAT: HRP-865/3AL, HRPU-862ML, HRPU-862AL
Innovative, patented permanently fully automatic without sensor, pressure or time control.
The quickest, simplest and most reliable fully automatic safety control unit on the market for
hydraulic torque wrenches.
The torque standstill signal visible in the remote control offers additional security if it is not
possible to actually see the unit in very loud assembly rooms.
HRPU is a two-stage high-speed unit with a mean pressure level of 0 to 450 bar at 6 l/min and
a respectable 2 l/min up to 800 bar, a novelty among hydraulic units for hydraulic torque wrenches.
Combined with the fully-automatic function, this performance offers an unbeatable bolting speed
during continous operation.
HRPU-862AL is perfect for short screwtightening and loosening times,
it is efficient, quiet, safe and reliable.
HRPU-862AL is a trend-setting investment which always pays off!
Standard accessories:
High pressure hoses with max. operating pressure 800 bar, bursting pressure 3200 bar, which
means 4-times the operating pressure, completed with leak-proof high pressure couplings up
to 1000 bar operating pressure (lockable as an option). Standard lengths: 4m, 6m, 10m.
|
|
HYDRAULIC SYSTEMS - design, production and installation.
Hydraulic systems manufactured by PONAR Wadowice S.A. are characterised by high quality and reliable operation. Our hydraulic systems come both in standard versions presented in the catalogue as well as versions designed upon individual orders, following coordination with the user of the technical parameters and operation conditions.
Hydraulic power units are designed to be used in hydraulic pumps within an open cycle. Depending on operation requirements, they may be produced with a typical or special equipment meeting the user's requirements.
In operation conditions of high operation intensity, power units may be provided with coolers and heaters, while the power unit pump, depending on the order, may be installed in, on, under or beside the tank.
Hydraulic systems we manufacture are widely used in machining tools, presses, metallurgical machinery, mining machines, woodworking industry equipment, construction materials, agriculture, handicraft, etc.
We also provide comprehensive services, from simple cabinets controlling hydraulic feeder pumps to complete control cabinets equipped with PLC controllers including visualisation and archiving of process data.
Upon customer's request we may, on a case-by-case basis, select the type of control and measurement equipment taking into account the existing system solutions. We also carry out modernisations of control systems including integration with the superordinated control systems. |
|
Serie 550 combines the features and benefits our customers and markets have requested in a durable and economical package.
The integral motor, pump and reservoir are complemented with a full line of Parker NG6 and cartridge valve options. When a linear or rotary actuator is added, a complete hydraulic system solution for your application is obtained.
Serie 165 power units put more power where required. When compared to the successful series 108 units, these new units are more powerful; they are completely selfcontained with a DC motor, gear pump, reservoir, internal valving, load hold checs and relief valves.
Series 165 power units are designed for intermittent duty and are avilable in three standard pump sizes with displacements of 0.52, 0.82 and 1.06 cm³/rev. The units are available for single or bi-directional applivations with a number of hydraulic circuit options similar to those of series 108. |
|
For Immediate Release:
Broadview, IL - SIMPLEX introduces the new G-Series High Force Hydraulic Power Pumps to the lineup. The G3 & G5 models were designed with the end user in mind; offering exceptional performance to weight ratios, enhanced power control technologies, precision tuned components for dependability and modular assemblies to manage operating costs.
The G-Series offers higher crossover pressure, which increases productivity at the job site, setting these pumps apart from comparable units. The advanced pump technology maximizes output flow resulting in reduced cycle time. Standard reservoirs include a sight gauge, drain plug and 1" oversized fill hole (1.5-10 gal.) Standard models are available to fit most applications and custom configurations are available from an extensive ordering matrix in our custom build chart.
### |
|
A historical Company within this hydraulic field, HYDR-APP is typical of one of the fundamental values of the Brevini Group: Production expansion. For this reason HYDR-APP focuses on lean production techniques and is today in the position to offer worldwide hydraulic OEM customers uninterrupted large volume production supply.
The HYDR-APP range, flexible and competitive on the market, is developed by 6 different lines of hydraulic mini powerpacks (MR, MW, MC, MK, VT, MH). In every line we can demonstrate the Art of Quality and know-how that characterise all HYDR-APP products.
HYDR-APP powerpacks are used in various fields: logistics, lifting and transportation (fork lift trucks and loading ramps); mobile (platforms and tailgates); garages equipments; industrial (paper press, bending machines and road blocking devices) etc.
|
|
Engineering, design and manufacturing of customised hydraulic systems for the industrial sector.
Hydraulic power units
Monifold blocks
Hydraulic power packs
Mini-unit
Customized hydraulic tests in our workshop |
|
Customized hydraulic power packs, and power packs with submerged motors
A creative manufacturer of Brevini Fluid Power Group, the main characteristic of OLEODINAMICA REGGIANA is to establish a closed partnership with his customers.
This co-operation begins as hydraulic project advising, up to the production and supply, from concept to completion.
Thanks to our customized production, the application field can be in mobile sector (hydraulic truck gates, preparations for industrial body shops etc.) or in industrial sector (presses, lifts for disabled, loading ramps etc.).
Our range of products is completed with, in-line valves, fittings and flexible hoses. All our products are strictly tested for efficiency and reliability.
|
|
Systems for automation of industrial armatures:
Fluid-engineering system elements with a high degree of integration.
Thanks to their compact construction, fluid-engineering systems for single and double-action armatures can be installed directly on the drive without pipe work and in any installed location, and they achieve high protection classes since the motor is encased.
Two-stage design possible for ideal adaptation to the torque pattern of, e.g., flaps, slide valves and valves:
- higher starting and closing moment
- shorter actuating times
- improved energy consumption
- up to 50% lower drive power
Assemblies also possible with variable delivery volume or two delivery stages.
(e.g. for the more accurate positioning of intermediate positions and closed-loop control functions)
Versions with:
- Emergency hand pump
- Hydraulic accumulator
High level of process security:
- No hydraulic clutches
No leaks:
- Surface-mounting construction without screwed joints, pipes and hoses
Small dimensions:
- Permit a compact structural shape
Lower installation expenditure due to integration in the drive system. |
|

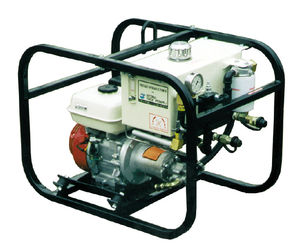

| Two-stage electric and petrol pumps for mobile industrial tools. Very lightweight (25 kg) high pressure (720 bar) pump. |
|
GT18 Power Units are small and compact featuring a single 5 or 8 gpm (20 or 30 lpm) tool circuit.
HPR Power Units are small and compact and feature either one 5 or 10 gpm (20 or 38 lpm) tool circuit or a twin 5 gpm (20 lpm) tool circuit combinable to a single 10 gpm (38 lpm) circuit.
The HV18 Hydraulic Converter is a portable hydraulic system that gets its power from the hydraulic system of a skidsteer loader, backhoe or any hydraulic source that can produce a minimum of 13 gpm (49 lpm) @ 2000-3000 psi (138-206 bar). The Converter then provides controlled and clean power to the tool with oil cooling. The HV18 Converter contains some of the hardware and design features of our "state-of-the-art" power units without the engine. |
|
Hydra-Tech power units are designed to give years of reliable service with minimal maintenance. All our power units include hydraulic oil coolers, return filters with spin-on cartridges, remote pressure control valve and triple filtration. Our mid-range sizes (25-100hp) include a towable highway trailer package that meets or exceeds state DOT requirements. Engines and hydraulic pumps are closely matched to optimize system performance, fuel efficiency and service life.
Our power units have been designed to run on a wide variety of standard hydraulic oils as well as the newest non-toxic, bio-degradable oils. |
|
Hydraulic electric pump - can be combined with our GKS-jacks!
Coupled by means of sealed quick release connectors, joined with hose couplings. Safe operation guaranteed by synchronous lifting and lowering at two or four positions using the pump. Reliable functionality, as the one-man operation separate pumps serve to ensure that individual jacks are not overloaded.
Coupled by means of sealed quick release connectors, joined with hose couplings.
Equipment: 2/2 directional control valve for single acting cylinder, pressure gauge remote control cable 3m, 2x2m hose with two couplings.
Optional: two-fold or four-fold distributor cabinet with shut-off valves, hose extentions and other accessories available on request.
|
|
Our compact 108 Series power units let you put the power where you need it. They're completely self- contained with an AC or DC motor, gear pump, reser-voir, internal valving, load hold checks and relief valves.
The 108 Series models are designed for intermittent service and come in four standard pump sizes which produce flows of .0098, .0187, .0246, and .0321 cubic inches per revolution. Locking check valves are available in all models. Performance will vary with the type of fluid used. Several hydraulic circuits are available.
108 Series units are available with single-or bidirectional rotation. Single units are commonly used to charge accumulators, power one-direction hydraulic motors and cylinders, provide pilot flow to servo valves, pressurize lube systems and supply multi-function circuits with external valving.
Bi-directional, reversible units operate double-acting cylinders and two-way motors.
|
|
L-shaped power units are ideal for demanding high-production industrial applications requiring high fluid volume and flow rate. The readily removable tank cover simplifies cleaning or replacing suction strainers. L-shape power units feature flooded suction inlets that eliminate the need for the pump to lift hydraulic fluid, thus reducing wear-and-tear.
JIC-Style
NFPA/JIC-style power units are especially well suited for heavier duty, continuous-use industrial applications requiring design flexibility and rugged construction.
Low Profile Series
Low profile power units are well suited for industrial applications requiring moderate fluid volume and flow rate. They are an excellent solution to applications in which space is at a premium, or where the power of a NFPA/JIC-Style unit is needed in a smaller, less expensive package.
Little Champ Series
Little Champ power units are designed for use in locations where space is limited and larger, noisier power units are not needed. They're ideal for applications requiring moderate fluid volume and flow rate, short hydraulic lines, and quick cycling.
Little Champ Kits
Little Champ power units can be built at your facility at your convenience. Continental will supply the complete set of components and hardware. Simply order the model code and you'll receive a complete kit to build your own power unit.
Custom Power Units
Exactly What You Need.
Chances are, you'll find a standard Continental Hydraulics power unit from our catalog that will meet the majority of your needs. But when it comes to extra large or special-purpose applications, you may need something that's never been built before; a customized solution tailored to your specific requirements. Examples |
|
Dynex builds a wide range of standard hydraulic power units. Specialized systems with custom fabrication can be designed to meet specific customer requirements.
These systems can operate with mineral-oil or low-lubricity fire-resistant and water-based fluids including water glycol, Skydrol, other phosphate ester fluids and various military fluids.
Standard Power Unit Specifications:
Reservoir sizes from 3 to 500 U.S. gallons (11 to 1893 L);
Flows from .22 to 200 gpm (0,83 to 757 L/min);
Maximum pressures from 3000 to 10 000 psi (210 to 700 bar);
Electric motors from .25 to 75 HP (0,2 to 56 kW);
Use customer-specified and distributor-supplied components;
Optional stainless steel construction for corrosion resistance.
Custom Hydraulic Systems:
Specialized hydraulic units range from simple pump/motor units to large 500 gallon (1893 L) systems. Prime movers are available to 700 HP (522 kW) operating at high pressures to 20 000 psi (1380 bar).
Custom systems provide high efficiency and long-life operation. They are designed for difficult conditions, including high pressure, contamination, dirty environments, special fluids and extreme temperature variations. |
|
Engineering, design and manufacturing of customised hydraulic systems for the industrial sector.
Hydraulic power units
Monifold blocks
Hydraulic power packs
Mini-unit
Customized hydraulic tests in our workshop |
|

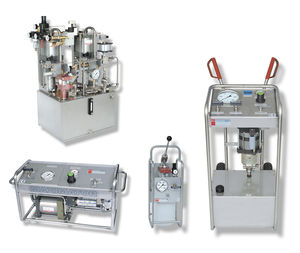

MAXIMATOR power packs for oil, water or aggressive media are complete hydraulic units ready for connection which are provided for generating operating pressures up to 5,500 bar.The hydraulic systems can be used for all kinds of testing and clamping or for other functions requiring a determined pressure.
The pressure will be generated by means of a pneumatically operated MAXIMATOR pump. The pump will be connected to the existing industrial compressed-air ductwork system. For generating the pressure, an electric connection will not be necessary.
MAXIMATOR power packs can be equipped with all MAXIMATOR pumps. Restrictions result only from determined structural dimensions as well as from the flow rates of the pumps being necessary for the respective function.
For the simple commissioning and unproblematic application, MAXIMATOR power packs will be equipped with all required components. Part of them is an air control unit with combined filter and water seperator, a pressure-regulating valve, a pressure control gauge as well as a manual shut-off valve for stopping off the drive air pressure.
For all applications within the range of the oil hydraulic, the pumps will be mounted in the oil tank in a compact and space saving manner. In case of operation with water or with aggressive media, the pump will be mounted on the tank. According to standard, there can be selected among tank capacities from 6.5 l to 70 l. Larger-sized tanks are available on demand. |
|
|
