The brake system onboard a vehicle is vital for the safety of the vehicle. It is therefore important that the design of the vehicle and the design of the brake system are co-ordinated to give the optimal safety and good performance and that complements other modern cab ergonomics to reduce operator fatigue and give good machine feel.
The valves may be used in open centre, closed centre and load sense hydraulic systems.
The high flow capability of the valve permit use with wet brakes, which typically require more flow for actuation.
Reduced mechanical drag and power loss by allowing the wet brake discs to be further apart when not applied.
A wide range of actuating forces can be specified, including stagemodulating springs for more progressive feel.
A floor-mounted pedal is available in a range of pre-set angles, with optional heel plates.
The valve may be mounted vertically or horizontally beneath the pedal.
|
|
A full line of cartridge valves composed by a poppet or spool cartridge and by a functional cover that retains the cartridge into properly machined blocks and provides hydraulic piloting.
- pressure control: relief, reducing, compensators
- flow control: with manual setting for fine regulation or with stroke limiter
- directional control: with solenoid valve and optional shuttle valve for pilot selection
- check function: normally open/closed with optional hydraulic pilot operated check valves
- on-off active safety cartridges, hydraulic power shut-off function with optional sensor/microswitch
|
|
Directional Control Valves Manually Operated RPR3-04
4/3 and 4/2 - way spool type directional control valves
Hand-lever operated
Actuating section can be rotated in four positions 90° apart
Installation dimensions acording to ISO 4401 CETOP-RP121H andNFPAT3.5.1 - D 02
|
|
|
|
|
|
These directional seated valves use spring loaded balls as valve elements and therefore do not show any leakage. They are manifold mounting and are available with various actuations which always act on an angled lever pushing the valve element in the desired switching position.
The basic versions are designed as 2/2- and 3/2-way directional valves. 3/3- , 4/3-way functions are possible, if two valves are housed in one valve body, whereas 4/2-way functions require an additional intermediate plate. The enforced versions G39, G49, G..-22 are intended for pulsating, permanent load with frequent switching operations in the high pressure range.
These valves may be directly installed in pipe systems, when equipped with subplates enabling pipe connection. Many optional functions can be incorporated in these sub-plates e.g. pressure limiting valve or restrictor check valve for widen the field of application for this valve type. Valve banks of these valves are also available featuring several valves
connected in parallel (see type VB).
|
|
Proportional Directional Control Valves PRM2-04
Compact design with integrated electronics
High reliability
Simple replacement of the solenoid-coilsincluding electronics without opening the hydraulic circuits
Continuous flow control in both directions
nstallation dimensions acording toI SO 4401 CETOP - RP 121H and NFPA T3.5.1 - D 02
Subplates see data sheet HU 0002
|
|
Moog's extensive experience in the application of cartridge valve technology enables us to offer a complete product line ranging from size 16 to 160. Sizes 16 to 100 are per DIN standard 24342.
In addition to our standard cartridge valves, Moog also offers a complete line of high flow, active, and servocartridge valves for specialized and higher performance fluid power systems.
Moog has application experience in Metal Forming and Presses Applications.
|
|
Brake actuators
More safety, performance & reliability
Brake pressure proportional effort
For single & dual circuit
Small, lightweight package
|
|
Product description
- Complete range of Screw-In Cartridge Valves (SICV) including:
- Directional Controls
- Pressure Controls
- Flow Controls
- Electro-Proportional
- Check Valves
- Load Controls
- Logic Elements
- Multi-Function Valves
- Eaton offering includes components alone, in aluminum or steel housing, or assembled in a Modular Circuit Design (MCD) tailored to customer specific needs
Benefits & Customer Values
- Complete product range that keeps expanding (Stainless Steel, 350 range, -12...)
- Valvelocity Preferred Product Program
- Custom MCD design capability
- Eaton Vickers' brand recognition
- STC direct porting on MCD
Specs
- Size - 8 until - 20
- Rated pressure, 2 ranges: 210 bar/3000psi and 350 bar/5000psi
- Rated flow up to 567 LPM/150 GPM (flow dividers - FDC3-20)
|
|
For your stationary hydraulic installation, KRACHT offers a complete programme of hydraulic components: Industrial valves, pumps, cylinders and accessories. One hundred per cent safety of the components in operation and material function is absolutely vital here. Our engineers' many years of experience and competence guarantee that this requirement is met correctly and in the best possible way.
KRACHT employees demonstrate their know how and commitment every time they take decisions regarding the general field of application and the specific use of valve types of completely different designs, and in the case of the in-house construction of cylinders which can satisfy the most demanding requirements. This result in the optimal realisation of special concepts for client-specific needs.
|
|
|
These valves control the (low direction in the hydraulic circuit. The various directional valves ranging from the solenoid operated directional valves to the check valves conforming to JOHS Standard-The Japan Oil Hydraulics Standard-are available to meet the variety in customers' needs
|
|
Nominal sizes NG3-Mini, NG4-Mini, NG6 and NG10
Maximum pressures up to 350 bar
Volume flows up to 80 l/min
Electric, pneumatic, hydraulic and
mechanical actuation
Flange -, sandwich - and cartridge construction
Valves operable in both flow directions
|
|
For your stationary hydraulic installation, KRACHT offers a complete programme of hydraulic components: Industrial valves, pumps, cylinders and accessories. One hundred per cent safety of the components in operation and material function is absolutely vital here. Our engineers' many years of experience and competence guarantee that this requirement is met correctly and in the best possible way.
KRACHT employees demonstrate their know how and commitment every time they take decisions regarding the general field of application and the specific use of valve types of completely different designs, and in the case of the in-house construction of cylinders which can satisfy the most demanding requirements. This result in the optimal realisation of special concepts for client-specific needs.
|
|
For your stationary hydraulic installation, KRACHT offers a complete programme of hydraulic components: Industrial valves, pumps, cylinders and accessories. One hundred per cent safety of the components in operation and material function is absolutely vital here. Our engineers' many years of experience and competence guarantee that this requirement is met correctly and in the best possible way.
KRACHT employees demonstrate their know how and commitment every time they take decisions regarding the general field of application and the specific use of valve types of completely different designs, and in the case of the in-house construction of cylinders which can satisfy the most demanding requirements. This result in the optimal realisation of special concepts for client-specific needs.
|
|
|
Barksdale's High Pressure OEM Valve line provides exceptional directional control for fluids up to 3000 psi in the toughest industrial applications. Using Barksdale's Shear-Seal® technology the OEM Valve products offer dependable performance and long life even when the media being controlled is contaminated with debris that would ruin ordinary valves. Flexibility is built into the OEM line which features several standard options that can be adapted to meet the unique needs that OEM customers require in their products.
|
|
Your Hydraulic Control Solution!
• All valves are rated for 700 bar operating pressure
• All valves feature NPTF porting to insure against leakage at
rated pressure
• All valves are painted, coated, or plated for corrosion
resistance
|
|
These compact hydraulic systems feature modular valves that are "sandwich" mounted between a directional control valve and a standard mounting surface. All circuit flow paths are contained within the control valve and modules. These valves provide a compact hydraulic circuit at a reduced cost, eliminating interconnecting piping. Each valve "stack" can be configured to provide the specific system functions.
Benefits & Customer Values
- Design flexibility and reduced system space
- Cost-effective, Versatile and easy to install
- Rugged and reliable
- Easy to service
Specs
- Size - NG4 - 8 (D02 - 08)
- Rated pressure up to 315 bar/4500 psi
- Rated flow up to 340 LPM /90 GPM
- Function - relief, reducing, sequence, check, PO check, throttle, counterbalance
|
|
YUKEN MODULAR VALVES are designed to Simplify hydraulic systems, to eliminate the use of pipe connections and thus to save space, time and costs. The modular valves have standardized interfaces (lSO 4401. CETOP. NFPA) and thickness in accordance with each valve size. Any hydraulic circuit can be composed by stacking the modular valves in the correct sequence one upon another and bolting the various stacks to a common manifold base.
•Modular valves remarkably minimize the installing area and space.
• No expert skill is required to assemble, and furthermore, a supplement and a change to the circuit can easily and quickly be carried out.
• Problems such as oil leaks, vibration and noise resulting from pipes and tubes are minimized because pipes and tubes are not necessary.
•Checks and maintenance of these valves can be performed with ease because of the method of installation.
|
|
NG3-Mini
In accordance with Wandfluh standards
Maximum pressures up to 350 bar
Volume flows of the directional valves up to 15 l/min
Volume flows of the pressure -, flow control - and non-return valves up to 8 l/min
NG4-Mini
According to Cetop RP 121 H-P02
Maximum pressures up to 350 bar
Volume flows up to 20 l/min
NG4-ISO
On request
|
|
|
70 litres, proportional open circuit or close circuit tipping valve, pneumatic or mechanic operated with 350 bar relief valve. It also includes check valve, pulling end of stroke and electrical switch as option.
|
|
Directional Valves
Pressure Control Valves
Flow Control Valves
Solenoid Valves
|
|
Slip-In Cartridge
6 Sizes for a variety of
Pressure and Flow Applications.
Screw-In Cartridge
5 Sizes for a variety of
Pressure and Flow Applications
|
|
Sauer-Danfoss valves are designed to be flexible, which allows them to meet virtually any need. The modularity of our proportional and directional valves, the variety of our cartridge valves - as well as the flexibility of our electrohydraulic products - allows Sauer-Danfoss valves to be used in applications ranging from road building and construction machinery to agriculture and forestry equipment.
PVG 32 is a hydraulic load-sensing valve designed to give maximum flexibility. It is available in many versions, from a simple load sensing directional valve to an advanced electrically controlled load-independent proportional valve. The module capability of the PVG 32 makes it possible to build up a valve group to precisely meet your requirements. The compact external dimensions of the valve remain unchanged whatever combination is specified.
|
|
Parker offers a variety of directional control elements which can be actuated via oil pressure instead of manual or electric.
2-Way Spool
3-Way Spool
|
|
VDC Series
Valve Features and Benefits
1. 5000 psi rating on all ports.
2. Long plunger stroke coupled with "U" slots for progressive "shut-oft" action provides smooth
and controlled decompression
and load reversal.
3. Custom plungers available.
4. Plungers are interchangeable.
5. High flow capacity, with low pressure drop.
6. Fast response.
7. Solenoid actuated 4-way pilot valve.
8. Check and choke modules available.
9. Compact (but heavy-duty) construction virtually eliminates body deflection and tendency for manifold O-rings to extrude.
WE Series
Features
Direct operated, solenoid controlled directional spool valve
ISO4401-03 mounting pattern
2 or 3 switching positions (4/2-, 4/3- valves)
Three chamber design for high performance
Wet pin solenoids standard
Removable coils for easy replacement or conversion
Standard manual override
|
|
1.All of valve are 100% made in Taiwan R.O.C.
2.The valve received the 1999 CE KEMA Registered Quality B.V.
3.We conform to the international standard ISO-4401-03/05 allowing use on the industry standard manifolds and subplates.
4.DIN plug connector standard with directed pilot light conforming to DIN-43650.
5. Larger flow paths in the main body to raise the flow and pressure.
6.We offer over 100 types of spool functions in our stock.
|
|
|
|
|
|
Continental Hydraulics PowrFlowTM Directional Control Valves offer some of the highest flow and pressure ratings in the industry today, making them the perfect choice whether you are designing a new system or just simply trying to get more out of your current system. Noted for superior performance and durability, Continental Hydraulics Directional Control Valves are a great investment.
With 12 standard spools, numerous specialty spools and 7 functions, these directional control valves can be ordered to meet the specific needs of your applications.
Precise bore honing and spool grinding results in less cross-port leakage and less wasted energy. These precision valves also allow for interchangeable spools for easy field maintenance and eliminate the need to change valve body when changing spools.
Spools utilize U-groove machining making them more tolerant of contaminants than v-groove designs resulting in less spool hang-ups. Bolt heads are below the spool centerline to reduce the body distortion that can lead to sticking spools and loss of production.
Control options include solenoid, lever, air, soft shift and cam operators.
All valves are 100% tested and come with a standard 3-year warranty.
Our CAD/CAM system takes the design directly from computer to high-speed CNC machining centers. Set ups are fast and multi-part designs are no problem. We can easily produce directional control valve variations for even greater flexibility. Click here to tell us what you need.
Specifications
Mounting: Sub-plate or manifold mount in D03, D05, D08, and D10 configurations, Conforming to NFPA and ANSI/ISO Standards
High Flow rates
D03 up to 20 GPM
D05 up to 35 GPM
D08 up to 150 GPM
D10 up to 275 GPM
Pressures up to 5000 PSI
Seals - Viton
Available Standard Actuator Types: solenoid, air, cam, lever, and soft-shift styles
Fluids: Petroleum-base, most phosphate esters, water-based fluids (not more than 40% water) and water glycol
|
|
- Check Valves, Guided
- Check Valve Discs
- Pilot-Operated Check Valves, Lock Valve
- Load Shuttle Valves
- Low Side (Hot Oil) Shuttle Valves
- Piloted, 2-Way Spool Valves, Vented
- Piloted, 3-Way Spool Valves, Vented
- Piloted, 2-Way Spool Valves, Ported Vent
- Piloted, 3-Way Spool Valves, Ported Vent
- Piloted, 4-Way Spool Valves, with Vented Spring
- Piloted, 4-Way Spool Valves
- Pilot-Operated, Proportional Valves
- Pressure-Compensating Logic Elements
- Piloted Logic Elements
- Vented, Spool-Type Logic Elements
- Manually-Operated, 2-Way Valves
- Manually-Operated, 3-Way Valves
- Manually-Operated, 4-Way Valves
- Manual Valves, Pull / Push-to-Shift
- Brake Release Valves
|
|

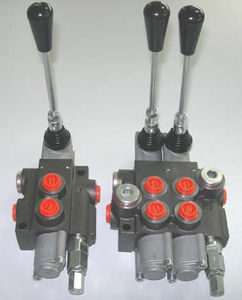

Monoblock directional control valves
PL 30, PL 50, PL 80 and PL 100
• Sectional control valves
• possible to mount up to 10 elements
• Max. flow capacity from 50 up to 150 l/min.
• Working pressures up to 350 bar
|
|
Sauer-Danfoss valves are designed to be flexible, which allows them to meet virtually any need. The modularity of our proportional and directional valves, the variety of our cartridge valves - as well as the flexibility of our electrohydraulic products - allows Sauer-Danfoss valves to be used in applications ranging from road building and construction machinery to agriculture and forestry equipment.
PVG 32 is a hydraulic load-sensing valve designed to give maximum flexibility. It is available in many versions, from a simple load sensing directional valve to an advanced electrically controlled load-independent proportional valve. The module capability of the PVG 32 makes it possible to build up a valve group to precisely meet your requirements. The compact external dimensions of the valve remain unchanged whatever combination is specified.
|
|
|
This section contains a wide range of shuttle valves which are ideal for brake circuits and pilot logic circuits. Also included are remote sequence cartridges which can be used for unloading or sequencing small flows. Pressures up to 350 bar (5000 psi) and flows up to 30 litres/min (8 US GPM). Hot oil shuttle integrated circuits are also included, with pressures up to 350 bar (5000 psi) and flows up to 120 litres/min (32 US GPM).
|
|
|
|
