The particularity of Dinamic Oil's pulling winches is the design of independent modular blocks (hydraulic motor, negative disc brake and planetary reduction step). This concept guarantees a high reliability and simplicity of use that satisfies the requirements of the end user and facilitates the installation and maintenance work.
|
|
|
Dinamic Oil is available to evaluate, design and produce special winches driven hydraulically or electrically, according to our customer's specific requests. The product will be personalized to completely satisfy the technical and dimensional requirements of the application; the use of standard products guarantees an economical solution of high quality, reliability and performance.
|
|
|
|
|
|
Hydraulic Winches up to 10 ton

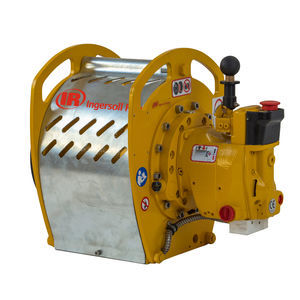

For nearly 50 years, Ingersoll Rand has been serving the material handling needs of the following industries worldwide: automotive, appliance, aerospace, electronics, food, furniture, glass packaging, printing, pharmaceutical, sheet metal, textile, and warehousing.
The many years of manufacturing experience, ISO 9001 certification, and a 24 hour service network has created a unique ability to respond to your needs with the highest quality material handling solutions, technology, and services available in the world.
Ingersoll Rand has pioneered the development of pneumatic powered lifting, balancing, and handling equipment making us the world leader in the manufacturing of ergonomic, in process, manual assist, pick and place solutions.
With a solid commitment to research and development we have applied our expertise to introduce new products and technology which can also integrate the latest electronics and controls, such as the InteLIFT system: an electronically controlled, air powered intelligent handling solution.
By using Ingersoll Rand solutions created for your material handling needs, you can expect improved productivity mandated by a global economy. At the same time, you can expect ergonomic solutions which improve operator performance and avoid labor downtime due to health or safety issues in using automation.
|
|
Application
Towing
Motorization
Hydraulics
Standard characteristics
Planetary gear reducers
Options
Options winch
- Fluted car
- Roller press-cable
- manual direct-drive dog clutch
- Brake with band manual or automatic
- Crank of help
- Trancanage
- Headstock capstan
- Marine Painting
Options control device
- Hanging Box IP65
- End of the road high and low
- Limiting device of load
- Variation speed
- Slackness of cable
- Radio control
- Hydraulic Distributer
- Pneumatic Distributer
- Untié of treatment of air
|
|
HYDRAULIC WINCH Mod. AMB 101
Hydraulic winch specifically designed for stringing operations on low and medium voltage overhead lines and for assembling and lifting operations. The winches are provided with a detachable capstan.
HYDRAULIC WINCHES Mod. AMB 206 AMB 207
Hydraulic winches specifically designed for stringing operations on low and medium voltage overhead lines. The winches are available in 2 versions: with 2 side capstans (Mod. AMB 206) or with 1 side capstan and 1 drum with automatic level wind (Mod. AMB 207).
HYDRAULIC WINCH Mod. AMC 402
Single drum winch specifically designed for stringing of overhead lines and for lifting operations.
HYDRAULIC WINCH Mod. AMC 501 Single drum winch specifically designed for stringing of overhead lines and for lifting operations.
|
|
|
Orbital motors of BZM series have a very good load capacity as axial as radial, and a high ratio torque-weight in output shaft, with high performance at low speed. Also they have reduced dimensions, allowing use it in applications with less space than normal, like in Hydraulic winches.
|
|
CH Series
The CH series is used for hydraulic winch motors for truck cranes and crawler cranes, and also for hydraulic winch motors for sub-winches for forestry.
|
|
Winches and special winch gear units in customized versions for specific application sectors were designed to solve particular hoisting needs in factories and on self-propelled machinery.
According to client specifications, winches can have a customized configuration, special motor, brakes and accessories to adapt the hoisting system to the specific application, such as tractors, fixed and self-propelled cranes, large platform trucks, and ship launching equipment.
|
|
RAPTOR - BWT: Maximum line pull from 2.500 to 30.000 kg
This series of light, compact hydraulic winches sold by Brevini Winches is a huge success with tow truck manufacturers. The versions ranging from 2.500 to 6.000 kg all have as a standard feature the integrated negative lamellar brake (we were the first in the world to introduce this solution) and a manual declutch system (hydraulic or pneumatic are also available on request). A hydraulic motor-driven unit with variable displacement can also be installed on larger versions.
The power generated by the hydraulic motor-driven unit is transferred to the drum by way of planetary gear units incorporated in the drum and a mobile crown to facilitate the declutch process.
A range of accessories such as rope guides and pressure rollers are available on request.
The new version, lighter and more compact, with a maximum line pull from 2.500 to 4.600 kg and greater rope capacity, is launched on the market in 2004.
|
|
Self-propelled industrial cranes are adaptable, flexible, quiet and sufficiently compact to pass through most factory corridors, but sturdy enough to be used in grueling sectors such as mining, quarrying, steel processing and aircraft assembly.
On these machines, Brevini Winches hydraulic winches offer high performance and compact dimensions. All winches have hydraulic motor-driven units with a fixed cylinder axial piston motor and a balancing valve unit for controlling the load when descending and a selector valve for opening the integrated motor brake. As a result, the rope can be easily and quickly wound clockwise or counterclockwise simply by rotating the load control valve. Installation is simplified by the exclusive design of the lateral supports in the square frame versions.
|
|
|
|
|
|
EGO: Maximum line pull from 1.100 to 5.750 kg
Specifically designed by Brevini Winches to satisfy the needs of companies that manufacture drilling machinery, earth-moving equipment, and stationary or truck cranes, these new series of winches have been designed in conformity with FEM standard. The main characteristics of these winches are: high performance and reduced dimensions, thanks to the gearbox installed inside the drum.
BW: Maximum line pull from 1.000 to 7.000 kg
This series of hydraulic hoisting winches stands out for its excellent performance and compact size made possible by the special design in which all mechanical and hydraulic parts are inside the winch drum. The winches in this series all have hydraulic motor-driven units with a fixed displacement axial piston motor type and an integrated balancing valve unit for controlling the load while it is descending, as well as a selector valve for opening the integrated motor brake. As a result, the rope can be easily and quickly wound clockwise or counterclockwise, simply by rotating the load control valve. The generously proportioned negative lamellar brake was designed to withstand very high braking torques.
|
|
OHW/OHR offshore hydraulic winches
A range of ultra compact lifting and pulling hydraulically driven winches specially designed for offshore applications or in any other hazardous environment where space is limited. The heavy duty planetary gearbox and brake are mounted within the drum core, which both saves space and protects from any external damage. Winches designed to meet independent third party requirements like; Lloyds, ABS, DNV, etc. These standard winches can be fi tted with several options and accessories. Further the winches are man riding prepared, adding some options and reducing the W.L.L. means that the winch can be used for man riding applications too. Winches are standard supplied without control valve however with single acting shuttle valve.
|
|
