This board is an interface board of PCI bus conformity which inputs a digital signal.
The opening-and-closing state of a switch can be inputted.
A maximum of 128 input can be performed on board.
"Attached API function library [API-PAC(W32)] The application software for Windows can be created by the various programming languages which are supporting Win32API functions, such as Visual Basic, and Visual C/C++, by using it.
|
|
|
|
|
|
This product is the interface board of the PCI bus conformity which I/O digital signal.
Digital signal of 12-24VDC can be outputted and inputted.
Input of a maximum of 32 points and output of a maximum of 32 points can be performed in onAttached API function library [API-PAC(W32)] The application software for Windows can be created by the various programming languages which are supporting Win32API functions, such as Visual Basic, and Visual C/C , by using it.
Features:
In order for 16-point unit to carry out common composition, it can common every respond to a different external power supply.
Since the PCI bus (personal computer) and the I/O interface are insulated by the photo-coupler, it excels in noise-proof nature.
32 points of an input signal can be used as an interruption input.
Moreover, the edge of the input signal which generates interruption can also be chosen.
It has the digital filter function for preventing the incorrect input by the noise or the chattering.
The rating of an output signal is a maximum of 35VDC and 100mA per point.
Zener diode is connected to the output transistor for protection from serge voltage. Moreover, the over-current protection element is attached per eight output transistors.
PIO-32/32L(PCI)H, and PIO-32/32L(PCI) are connector pin compatibles.
|
|
These new boards are compatible with L Series PCI board products and feature high-precision 16 bit analog input and output, digital I/O and a counter function. Other than their bus interface, these new boards share the same specifications as existing L series PCI products allowing applications to be easily transferred through hardware setting changes. External pin assignment and connectors are also the same allowing the user to use existing cabling.
|
|

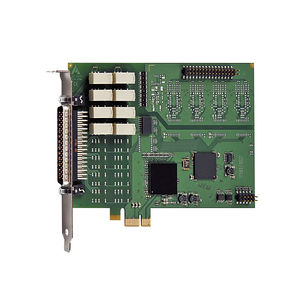

This product is an interface board for PCI Express bus conformity which perform bidirectional input and output of a LVTTL level digital singnal. Input and output of 48 points at the maximum is possible with one piece. Choice is possible by applications software for the input or the output at a unit of eight points. By an attached driver library[API-PAC(W32)], it can make applications software for Windows in various programming languages that support Win32API functions such as Visual Basic or Visual C++.
|
|
Kontron provides a large array of PCI and ISA industrial I/O boards for data acquisition, control and monitoring for industrial automation, military, medical, security, test and general R/D
|
|
|
|
|
|
* Universal digital I/O
* 32 bit data width at 125 MS/s
* configured for input and output
* 32 Bit 66 MHz PCI interface available
* PCI Express x1 interface available
* 110 Ohm input impedance selectable
* Inputs 3.3 V and 5 V TTL compatible
* Outputs 3.3 V TTL compatible
* Up to 4 GByte on-board memory
* FIFO mode for input and output
* Pattern/edge/pulse width/delay trigger
* Synchronization option available for up to 16 cards
* Options: ABA mode, Multiple Recording/Replay, Gated Sampling/Replay, BaseXIO
The M2i.70xx series of fast digital I/O boards offer a resolution between 1 bit and 64 bit with a maximum sampling rate of 125 MS/s (60 MS/s). All I/O lines of the card can be programmed for either input or output direction. The on-board memory of up to 4 GByte can be used completely for recording or replaying digital data. Alternatively the M2i.70xx can be used in FIFO mode. Then data is transferred on-line to PC memory or hard disk. The internal standard synchronisation bus allows synchronisation of several M2i series cards. Therefore the M2i.70xx board can be used as an enlargement to analog boards.
|
|
|
|
|
|
* Universal digital I/O
* 32 bit data width at 125 MS/s
* configured for input and output
* 110 Ohm termination software selectable
* 3,3V and 5V TTL tolerant I/O lines
* Up to 512 MByte on-board memory
* continuous FIFO transfer possible
* Pattern edge pulsewidth trigger
* internal synchronisation with analog cards possible
* 32 Bit CompactPCI 6U interface
* Compatible with 3,3V and 5V PCI I/O-Voltage
The MC.70xx series of fast digital I/O boards offer a resolution between 16 bit and 64 bit with a maximum sampling rate of 125 MS/s (60 MS/s). Every 16 bit / 32 bit of the board could be separately programmed for input or output. The on-board memory of up to 512 MByte could be completely used for recording or replaying digital data. Alternatively the MC.70xx could be used in FIFO mode. Then data is transferred on-line to PC memory or hard disk. The internal standard synchronisation bus allows synchronisation of several MC.xxxx boards. Therefore the MC.70xx board could be used as an enlargement to analogue boards.
|
|
* Universal digital I/O
* 16 bit data width at 125 MS/s
* 110 Ohm termination software selectable
* 3,3V and 5V TTL tolerant I/O lines
* Up to 128 MByte on-board memory
* continuous FIFO transfer possible
* Pattern edge pulsewidth trigger
* internal synchronisation with analog cards possible
* 32 Bit PXI / CompactPCI 3U interface
* Compatible with 3,3V and 5V PCI I/O-Voltage
The MX.70xx series of fast digital I/O boards offer a resolution between 16 bit and 32 bit with a maximum sampling rate of 125 MS/s (60 MS/s). The on-board memory of up to 128 MByte could be completely used for recording or replaying digital data. Alternatively the MX.70xx could be used in FIFO mode. Then data is transferred on-line to PC memory or hard disk. The internal standard synchronisation bus allows synchronisation of several MX.xxxx boards. Therefore the MX.70xx board could be used as an enlargement to analogue boards.
|
|
|
|
|
|
Addi-Data presents the new 32-bit digital input/output board PC104-PLUS1500 which has 32 I/O. The PC104-PLUS1500 is equipped with both PCI and ISA connectors on the circuit board. The direct connection to SPS controls is guaranteed because the I/O channels correspond to the industrial standard +24 V for “logic 1”. The input voltage is designed precisely so that the PC104-PLUS1500 switches reliably to „0“ or „1“, even in the case of disturbances. With 0-14 V as “low” and 19-30 V as “high” the ranges are set very high. In order to ensure that the board is interference-free and thus the flawless use in applications, the 32 digital inputs/outputs are isolated up to 1000 V and protected against fast transients, electrostatic discharge and high-frequency EMI.
Two digital inputs are interruptible and thus the main programs are relieved of the standard monitoring and evaluation tasks. In order to avoid undefined states the outputs stay on “status 0” when the PC is started.
The High-Side switch outputs that are available on the PC104-PLUS1500 are designed for inductive loads and PTC resistors, in contrast to the open collector outputs. They work with a nominal voltage of 24 V and an output current of 150 mA and are protected against short-circuit, overtemperature and undervoltage. Additionally, 3 timers or counters are available, whereas Timer1 can work as programmable watchdog for resetting the outputs. A status register that can be read out allows to detect short-circuit or overtemperature.
|
|
Product Range:
AIM104-IN16 16 opto-isolated inputs
AIM104-IO32 32 TTL compatible digital I/O
AIM104-RELAY8-IN8 8 changeover relays and 8 opto-isolated inputs
AIM104-OUT16 16 opto-isolated Darlington driver outputs
AIM104-OPTO-IN8/OUT8 8 opto-isolated inputs and 8 opto-isolated outputs
AIM104-ADC16/IN8 Isolated 16 channel 12 bit ADC and 8 channel digital input
AIM104-MULTI-IO Isolated 16 channel 12-bit ADC, 2 channel 12 DAC and 8 channel digital input
AIM104-MOTION-1 8-bit PC/104 module providing single axis stepper / DC servo motor control with on-board drivers
AIM104-MULTI-IO Isolated 16 channel 12-bit ADC, 2 channel 12 DAC and 8 channel digital input
CTR-1462 Galvanically isolated DIO, 24 inputs and 24 outputs
DAQ-1278 Cardbus controller with 1 x 32-bit slot for type I, II and III card support
|
|
Product specification:
- #8 differential analog inputs, 12 bits
- Selectable ranges: 0/10V, -5/+5V, -10/+10V
- An output voltage reference per channel of 10VDC 5mA is available
- External connectors provided
|
|
Product specification:
- #32 digital opto-coupled inputs;
- 8 channels are interrupting channels
- Positive logic, 24VDC, PLC compatible
- Input status led provided
- External connectors provided
|
|
Board-only configurations that allow you to easily embed intelligence into small spaces and custom enclosures.
|
|
Description
The GX3500 is a user configurable FPGA 3U PXI card which offers 160 digital I/O signals for specific application needs. The card employs the Altera Cyclone III FPGA which can support clock rates up to 150 MHz and features over 55,000 logic elements and 2.34 Mb of memory. The GX3500 can also accept an expansion card assembly which can be used to customize the interface to the UUT – eliminating the need for additional external boards which are cumbersome and physically difficult to integrate into a test system. The design of the FPGA is done by using Altera’s free Quartus II Web Edition tool set. Once the user has compiled the FPGA design, the image can be loaded into the FPGA via the PXI bus interface or via an on-board EEROM.
|
|
104-DIO48
PC/104 48 Digital I/O, Two 50-Pin IDC with High Sink Current
48 channels of digital I/O
E2 extended temperature option available
Compatible with PB module racks
High sink/source current (64mA/32mA)
|
|
Micronix PC/104 boards is European manufactured expansion modules for the PC/104 bus, designed for industrial and process control systems and for automotive applications.
|
|
The 8011 digital I/O interface provides 8 optically isolated inputs and 8 Form C relay outputs. The inputs protect the PC and other sensitive equipment from spikes and ground loop current that can be generated in industrial environments, while the outputs provide higher current capabilities (up to 2A) and are optimized for 24V operation. Form C relays can be wired for either normally open or normally closed operation.
If your application requires RoHS compliance, order the 8011-RoHS.
Sealevel's SeaI/O Classic software drivers and utilities make installation and operation easy using Windows 98, ME, NT, 2000, XP and Vista operating systems.
Get a jumpstart on your digital I/O development with The Digital I/O Handbook that will provide helpful information that you will use again and again. Check out Chapter 1 for an overview of logic principles.
|
|
A complete range of extension modules for Touch PLCs: EXM modules range:
- 4 digital outputs modules
- 2 digital inputs modules
- 2 digital inputs/outputs modules
- 8 analog and temperature modules.
EXM range: 16 add-on modules for Touch PLCs.
Flow, pressure, temperature, speed, cadence, level,...
Pro-face : a wide range of Touch PLCs (4"..12", colour TFT/STN or monochrome, various interfaces: Ethernet, USB, cf-card, etc...),
DIO or on CANopen / Flex networks.
|
|
Analog Input & I/O
12-bit or less resolution
14 and 16 bit resolution
Analog Output
12-bit or less resolution
Digital I/O
Parallel
Quadrature Encoders and Interrupts
|
|
Analog I/O
12-bit or less resolution
14 and 16 bit resolution
Temperature
Analog Output
12 bit or less resolution
14 and 16 bit resolution
Digital I/O
Counter-Timer
High Voltage
Parallel
Quadrature Encoders and Interrupts
Serial Communications
16 Port
4-8 Port
Single & Dual Port
|
|
Analog Input & I/O
12-bit or less resolution
14 and 16 bit resolution
Analog Output
12-bit or less resolution
Digital I/O
Counter-Timer
Parallel
Special purpose
Serial Communications
LPT Port and 2
|
|
