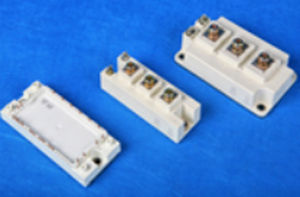

THE ModSTACK™ FAMILY includes Infineon Technologies IGBT modules with IGBT driver to achieve current ratings from 100 A up to 1600 A at line supply 690 V AC. The appropriate interfaces and thermal management are included. All inverter topologies (B6U+B6I; B6I+B6Ietc.) and various converter topologies are available.
THE PrimeSTACK FAMILY is a complete switch assembly for power electronic circuits containing all the necessary components for current, voltage and temperature measurement based on the established 62mm IGBT modules. Control electronics and power section are fully separated from each other by “reinforced isolation”. With several superior monitor functions, PrimeSTACK offers a self protecting switch function. With PrimeSTACK highly efficient and safe inverters can be developed very fast with minimum effort for the designer. The product scope covers chip current ratings from 100 A up to 3600 A at 600 V, 1200 V or 1700 V.
|
|

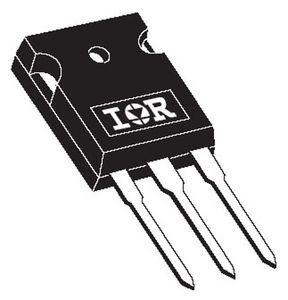

Part: IRG4P254S
Description:250V DC-1 kHz (Standard) Discrete IGBT in a TO-247AC package
IRG4P254S A IRG4P254S with Standard Packaging
IRG4P254SPBF Similar to IRG4P254S with Lead Free Packaging
|
|
| ... products without technical information |
| |
|
|
|
|

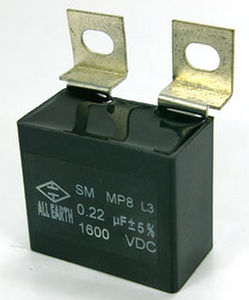

Technical Data
1. Dielectric: Polypropylene film.
2. Encapsulation: Flame-retardent plastic case, UL 94 V-0,
3. With epoxy resin seal: Black.
4. Temperature range: 25°C to 100°C
5. Capacitance range: 0.1 ~ 4.7µF.
6. Rated working voltage range: 1000V, 1200V, 1600V DC
7. Test category: 25/100/21 in accordance with IEC
8. DAMP-HEAT TEST: Capacitor are subjected to an environmental test chamber at R.H. 90 to 95 %, operating temperatures for 240 hours.
After the test, capacitor shall be conditioned at room temperature for 2 hours and meet the following criteria
( A ) Capacitance change shall be less than 3 %.
( B ) Dissipation factor shall be less than 0.2 %.
( C ) Insulation resistance shall be over 50 % of the minimum requirement.
9. Insulation resistance ( IR ) at 25°C: Measurement shall be mad at 25°C after applyingfor 60 Sec, at 1000VDC, Above 20,000 F.
10. Dissipations factors at 25°C (tan ): 0.1 % MAX. When measured at 1 KHZ.
11. Capacitance tolerances: ± 5 %.
12. Test voltage: 2.5 Ur, 2 sec.
13. PULL TEST: Will sustain 2 Kg steady pull in the direction of lead egress and 1 Kg steady pull at any 90 degree angle for 60 seconds. After test, capacitor shall show no evidence of damage and pass all electrical requirements.
|
|

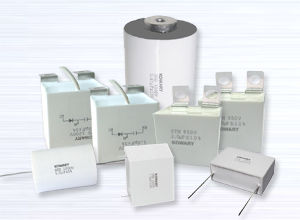

Protect IGBT modules against voltage and current transients and applications where high dv/dt is encountered.

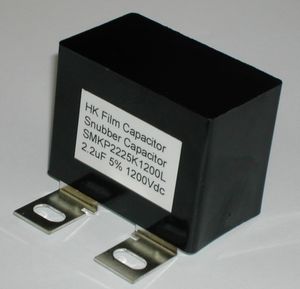

SMKP2 series :
Voltage Range :
1000Vdc ~ 2000Vdc
500Vac ~ 650Vac
Capacitance Range : 0.1 uF - 3 uF
very Low ESR and ESL self-Inductance
High rms Current
Temperature range: -25C~+85C / -25~+105C
Full rated voltage at 85C, derate linearly to 50% rated voltage at 105C
Construction :
- Extended double sided metallized carrier film design with internal series connection and metallized film construction
- Direct Mount IGBT
Catalogue can be download in our website. http://www.filmcapacitor-st.com
We support small quantity order.
Prompt Delivery within 3-5weeks, worldwide !
For further details and quotation please contact us : info@filmcapacitor-st.com
|
|
