Application
* Intensive industrial use for hard, half-hard, stuffs, humid or dry,
* High reduction ratio, upto 20:1
* Shape index of the product: optimum
Working principle
* The product is crashed against impact plates, in the grinding chamber.
* The final corn size is depending on the adjustable space between the impact plates and the rotating beaters.
* No grid, no screen, which involves no build up.
|
|
|
|
|
|

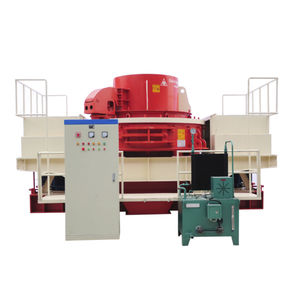

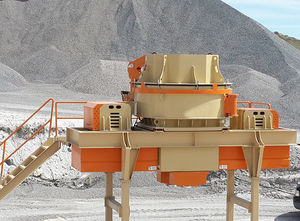

VSI5X series vertical shaft impact crusher is a new generation high effective product which introduces German technology, and owns many independent patents property. It integrates three crushing methods into one. All of these made it the core equipment in sand making industries. It is widely used in a variety of metals and non-metallic minerals, cement, refractories, abrasives, glass raw materials, construction aggregate, sand, metallurgical and other industries. Applicable for medium and fine crushing of various ores and rocks, such as iron ore, non-ferrous metal ore, corundum, bauxite, quartz sand, corundum, perlite, basalt materials.
VSI5X series vertical shaft Impact Crusher Feature:
1, deep cavity-type rotor design is optimized to increase material pass-through volume by 30%.
2, when wear shield partial wear out, put upside down, material utilization improved, and service life increase more than 48%.
3, modular-design hammer, just to replace worn parts when wear out, it can reduce cost more than 30%. Add vice hammer, which effectively prevent damage to stand plate after wear out.
4, the core abrasion-resistant material is high degree wear-resistant and temperature-resistant material which used in American important industries.
5, diamond-shaped impact block, avoid stand plate damage after wear out.
6, bearing uses Japanese, Swedish and American international brand.
|
|
Crushing - I-1312 Impact Crusher
The New FINLAY I-1312 impact crusher is the latest development to complement FINLAYS' extensive range of mobile Crushing, Screening and Washing plants.
The I-1312 is fitted with a Cedarapids 5048LP impact chamber. It features a standard 3 bar rotor configuration Ø50” x 48” (1270x1220mm) or an optional 4 bar system.
Standard Features
* Cedarapids 5048LP Impact chamber
* Inlet opening 1100x1240mm (43x48")
* Rotor size Ø1270x1220mm (50x48")
* Hydrostatic drive
* CAT C13 engine
* Rapid set up time.
* Advanced electronic control system
Options to Include
* By Pass Conveyor
* Overband Magnet
* Belt Weigher
* Radio Remote Control for machine movement
|
|
|
|
|
|
428 Trakpactor
The 428 Trakpactor is suitable for processing soft to medium strength quarried rock, demolition debris and recyclable materials at up to 360 tph.
It can be used as a primary crusher for well broken feed material or alternatively to give increased reduction by operating as a secondary crusher.
It features a multi stage reduction impactor fitted with two adjustable aprons and hydraulic case opening for quick and easy replacement of wear parts. It has a heavy-duty vibrating grizzly feeder with underscreen option and a 1000mm wide discharge conveyor. The plant can be fitted with a magnetic overband separator for recycling applications.
A wide selection of optional features are available with this machine and include: dirt conveyor, magnet, radio control, grinding path, a range of wire meshes for the underscreen, a refuelling pump and hydraulic water pump.
It is fitted with a four bar rotor and two aprons for high reduction performance. An optional third apron or grinding path is also available for addition reduction capability on quarry applications.
|
|
1412 Trakpactor
Terex Pegson has reconfirmed its commitment to continual product improvement. Designed specifically for the heavy duty recycling applications with high re-bar content, we are now able to offer an option of an under pan feeder for the 1412 Trakpactor.
The vibratory pan feeder is situated immediately below the crusher outlet and replaces the deflector which is supplied as standard on the 1412 Trakpactor.
The pan assembly is driven by a hydraulic motor which and two out of balance shafts. It is mounted springs which allow the pan to move in a back-and-downward motion and in an up-and-forward motion. These combined motions cause any material discharged onto the pan feeder to move forwards until it discharges onto the main product belt.
The pan feeder is 2.5m long by 1.1m wide and is fully lined with Hardox 400 wear resistant plate. The under pan feeder retains the excellent conveyor access provided by the hydraulic lower conveyor system from the standard plant.
|
|
XV350
The XV350 is the latest development from engineers at Terex Pegson and features the well-proven Terex Canica 2050 DG vertical shaft impactor. This is driven from a 438HP Caterpillar C13 engine via a self adjusting HFO clutch with a wedge belt drive through a countershaft assembly.
The VSI is fitted with a shoe and anvil arrangement, which is interchangeable with a variety of other configurations depending on the requirements of the application.
The XV350 is fed by a 1.3m wide variable speed inclined feed belt which can be hydraulically raised and lowered for transport purposes. This new plant accepts a maximum feed size of up to 102mm, producing a maximum throughput of up to 350 tonnes per hour depending on application.
|
|
|
|
|
|
4242SR
The demand for a single crushing and screening unit capable of producing a controlled top size of finished product in closed circuit has led TEREX Pegson to design and manufacture the 4242SR plant.
The 4242SR is based around the acclaimed 428 Trakpactor and comprises a complete crushing, screening and stockpiling unit built onto one tracked chassis.
Suitable for primary and secondary applications in quarrying, contracting and recycling, the 4242SR has outstanding performance characteristics with capacities up to 360 tonnes per hour. Up to four products sizes, depending on the set-up, can be produced and stockpiled. Alternatively, oversize material can be recirculated back to the crusher via an on-board conveyor system to give a guaranteed finished top size.
The unit features a heavy duty vibrating grizzly feeder with two step grizzly, optional underscreen and side conveyor for stockpiling waste material or an additional product. Scalped material can also be fed on to the main product conveyor via a by-pass chute to increase overall capacity. An overband magnetic separator is available for removal of re-bar and steel when used in recycling applications before the crushed material is fed onto a 3.3 x 1.5 mm two deck screen for sizing. To reduce environmental impact, dust suppression sprays are also included as standard.
Our patented access system simplifies screen and conveyor maintenance by allowing the easy separation of the crusher and screen discharge conveyor.
It is fitted with a four bar rotor and two aprons for high reduction performance. An optional third apron or grinding path is also available for addition reduction capability on quarry applications.
|
|
XH250
The XH250 impactor is suitable for compact primary and secondary applications and has been equipped with a powerful C-6.6 Tier III engine and under crusher vibrating pan feeder. The crusher’s direct drive system optimises running costs and ensures downtime is reduced to a minimum.
This plant is capable of processing all material types and can achieve a throughput capacity of 250tph. Additional features also include an overband magnet for the removal of rebar and a product conveyor that can be hydraulically raised/lowered using the automated Canbus PLC system.
|
|
Lower Silesian Machine's Factory ZANAM-LEGMET Spółka z o. o. , producer of
machines and equipment for mining and building industries, offers:
• ZKMS 100/55 and ZKDS 130/75 crushing sets with jaw crushers
• KWS 40/20E jaw crusher for preliminary crushing
• ZKMU 100/110 and ZKDU 120/130 crushing sets with impact
crushers
• KKL 50E container crusher
• KKL 100E compact impact crusher
• KDSn 130/75E stationary jaw crusher
The crushers are designed for crushing materials of 200 Mpa
compression strength such as: granite, amphibolite, gneiss, quartzite, limestone etc.
The crushers can be used for crushing materials in which silty-argillaceous impurities and humidity in the charge should not exceed 15% and 10% respectively.
|
|
|
|
|
|

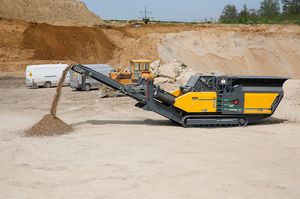

The RM100 sets standards defining a new class of mobile crushers. The robust crusher is a continuation of advanced RM technology and design - delivering a significant increase in feed material size and throughput.
Dynamic automatic operation and optimized crusher hammer geometry ensure the highest possible continuous throughput and uniform final grain size. RM100 crushers are operated safely and cost efficiently by a single person - thanks to the radio control system for simultaneous remote operation of the crusher, crawler gear and Release System for removing blockages at the touch of a button.
At just 28 tonnes the crawler-equipped RM100 is a typical RM Compact Recycler that is easy to transport. The system has been cost-optimised from the ground up and offers impressive service life, well below average wear costs , long maintenance intervals and optimum ease of operation. The machine is set up quickly thanks to quick-release connections and perfect accessibility.
Magnetic separator, side conveyor belt and mobile oversize grain screen are also available as proven RUBBLE MASTER add-on modules.
|
|
|
|
|
|
The RM80 fully meets the requirements of cost-conscious building contractors.
The crusher is programmed to perform - with automatic conveying in line with crusher workload, material and feeding type. Its high continuous throughput is due to the compact crusher's excellent intake behaviour and optimum crusher kinematics.
The RM80 is flexible regarding the material it processes. In recycling mode the magnetic separator reliably removes reinforcing steel from the crushed material. Only one person is required to operate and manoeuvre the RM80 using remote control. Even the unique release system to remove blockages works at the press of a button.
The crusher with crawler gear is mobile even in tight spaces and in mountainous areas. The RM80 is extremely versatile and can be reconfigured from a primary to secondary crusher in just 20 minutes. RUBBLE MASTER ENVIRO technology ensures it can operate without disturbing local residents. Magnetic separator, side conveyor belt and mobile oversize grain screen are also available as proven RM add-on modules.
|
|
I-C13
This is a large heavy-duty tracked crusher incorporating the definitive Impact crusher made by Krupp Hazemag SA. Combining the revolutionary mobility, power and design of Extec crushers with the world reputation of Krupp Hazemag SA for Impactor performance. The following are among the features that set it apart:
* Very high production
* Vibrating feeder automatically meters the flow of material to the crusher
* Large crusher box promotes free flow of re-bar without blockage while fast track facility allows tangled material to clear machine
* Complete machine raises hydraulically for cleaning and service
* Full dust suppression system fitted
* Operated by remote control
* Self-propelled on site and travels on road without low-loader
|
|
|
|
|
|
Fintec Crushers and Screen Ltd has announced the introduction of the new 1440, a track-mounted mobile unit equipped with a field proven Sandvik impact crusher
The new model, the company’s first since it was acquired by Sandvik last year, combines Fintec’s experience in the design of mobile crushers with Sandvik’s unquestionable leadership in the manufacture of high output impact crushers for quarrying, demolition and recycling applications.
Powered by a fuel-efficient 330 kW Cat C-13 Tier 3 compliant diesel engine, the Fintec 1440 is carried on a manoeuvrable tracked undercarriage and incorporates a Sandvik PR301D impactor with a fluid clutch drive. Fed via a two-deck pre-screen, the crusher is a four hammer open-style rotor with a diameter of 1,150mm and a width of 1,330mm and discharges onto a secondary pan feeder. The plant is also equipped with a primary feeder and a separate two-deck pre-screen.
A relatively low weight and compact dimensions – the unit has an operating weight of 49.8 tonnes and is 15.5 metres in length in transport configuration - means the Fintec 1440 is transportable in a single load, allowing it to be readily moved and redeployed for maximum utilisation. Optional equipment includes a remote diesel and water pump, an over-band magnet for recycling and demolition applications, and a dolly chassis for ease of transport.
The machine is designed to deliver throughputs from 300 to 350 tonnes/hour in materials including granite, slate, limestone, brick and asphalt and is suitable for a wide variety of many applications such as secondary or fine crushing of softer rocks and in various demolition and recycling applications.
|
|
The RM60 is the most compact RM crusher and perfect for newcomers to recycling. This semi-mobile crusher can be transported using a truck with drag-on hook system (for example) and is ready for operation in just 10 minutes.
With a transport weight of just 12 tonnes, the crusher produces up to 80 tonnes of cubic high-quality grain per hour from rubble, asphalt and concrete. The RM60 is easy to operate and all service work can be carried out from the ground.
With high-performance components such as pre-screens and final screens, you can create a complete recycling centre. Construction companies can then offer their services to businesses and communities, creating clearly defined, cost-effective recycling systems.
|
|
The RM70 delivers the ultimate combination of ease-of-use and high-performance crushing. Thanks to completely new technical solutions for the transmission, crushing mechanism and overall process technology, the compact RM70 reaches new heights in throughput continuity - with excellent quality of the homogenous final grain. The innovative crusher geometry guarantees a high-quality, uniformly cube-shaped grain. The impact arm linkages can be adjusted hydraulically for different applications.
All routine maintenance and service work can be carried out quickly and safely from ground level. 3 folding doors make access even easier. The attractive industrial design fully reflects the revolutionary character of this machine.
Residents and authorities alike value the whispering performance of this highly manoeuvrable crusher - especially in built-up areas. The proven RM ENVIRO concept was taken into account in the design phase and developed even further.
|
|
