A315
Recommended for gas-liquid dispersion and mass transfer-controlled applications
Can improve mass transfer by 30% compared with Rushton turbines
Decreases shear rates up to 75%
Can reduce energy costs up to 45%
Improves yields in shear-sensitive processes
|
|
C104
Recommended for high-viscosity applications
Circulator impeller has high head capability 3 times greater than conventional impellers
|
|
A312
Recommended for axial-flow impeller for side-entry applications
Designed for demanding pulp and paper applications
Also used in other side-entry applications, such as oil storage
Features minimal radial flow
|
|

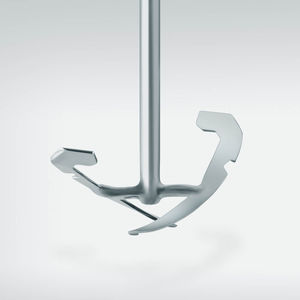

R400
Recommended for higher-viscosity applications
Contoured two-bladed anchor design
For use in blending and heat transfer, with viscosities from 10,000 to 100,000 centipoise
|
|
The new Enhanced Classic Line (ECL) mixer gives our customer an even stronger and more flexible product. Never before has there been a range of mixers offering so much quality and value.
Direct- and gear-drive mixers for a wide range of mixing applications
Direct-drive mixers are recommended for dispersing powders and small batch mixing
Gear-drive mixers feature two available lower speeds and higher torque for use with larger batches and a range of viscosities
Larger output shaft bearings for longer shafts and longer life
Positive chuck grips the mixer shaft to prevent unintentional shaft release
|
|
High Pumping
High Thrust
Minimum Power Draw
No Cavitation
Solid Reliability
|
|
Features
·Motors are built to the latest NEMA frame design specifications and available either with totally enclosed fan cooled or explosion-proof enclosures. Power supplies of 115/230V - single phase or 230/460V, 3-phase, 60 cycles at 1725 RPM are standard. Air motors may be mounted interchangeable with other types.
·The Speed Reducer for Gear Drive units feature Single Reduction Oil Lubricated Helical Gearing for quiet, trouble-free operation. Standard output speed is 420 RPM.
·A Shaft Chuck couples the drive to the agitator shaft. Standard arrangement allows up to 6" adjustment of shaft extension.
·Oversize pre-lubricated ball bearings are mounted in the lower end of the housing and provide ample support for the Shaft Chuck to withstand the overhung load of the propeller shaft and the "deflection" caused by the mixing load.
·Strong lightweight cast aluminum mixer housing.
·Single ball and socket clamp arrangement is standard with (optional) four-bolt mounting base available.
·Electronic variable speed unit with solid state SCR gives the operator full control of the mixing process. Standard models range from 1/4 or 1/2 H.P., 115V, single phase, 60-cycle or 1 H.P., 230V, single phase 60 cycle; direct drive 90 to 1800 RPM, gear drive 21 to 420 RPM.
|
|
|
|
