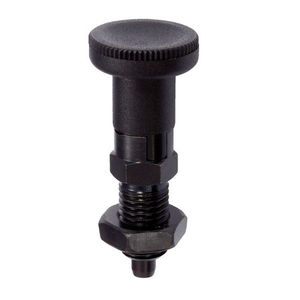

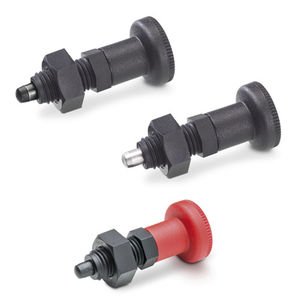

Spring-loaded plunger that locks in retracted position. To lock, pull knurled knob back and turn 90°. Standard plunger has a slight taper on plunger tip for easy alignment. Also available with a radiused Delrin plunger (slightly larger plunger diameter and lighter spring force). Available in steel or stainless steel.
|
|
|
The range fingers of indexing EMILE MAURIN: nearly 70 different versions! Fingers of indexing steel or stainless Fingers of indexing with or without device of blocking Fingers of indexing to button polyamide, handle, ring or without head Fingers of indexing not metric or not fine Fingers of indexing standard or miniature height Fingers of indexing to be screwed, weld or with platinum… etc… The models with device of blocking are used when the pin of centering must be retracted. Blocking is carried out by a rotation of the head of 90°. The range proposes also accessories for the fingers of indexing: brace, supports and casing of positioning
|
|

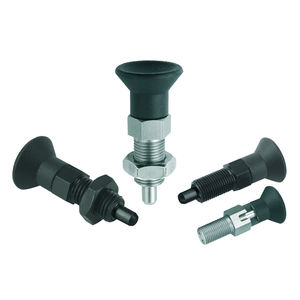

The product family Index Plungers covers the following article groups:
- EH 2211. Index Plungers „mini index“,
- EH 2211. Index Plungers with hexagon collar,
- EH 2211. Index Plungers with hexagon collar and locking,
- EH 2212. Index Plungers with hexagon collar,
- EH 2212. Index Plungers with hexagon collar and locking,
- EH 2212. Index Plungers without hexagon collar,
- EH 2212. Index Plungers without thread, weldable,
- EH 2212. Index Plungers with hexagon collar, short
- EH 2212. Distance Collars for Index Plungers,

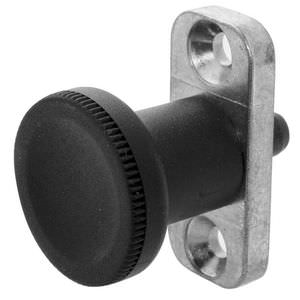

- EH 2212. Index Plungers with screwed flange,
- EH 2212. Index Plungers, simple finish,
- EH 2212. Index Plungers for thin-walled pieces,
- EH 2212. Index Bolts,
- EH 2212. Securing Bars for Index Bolts,

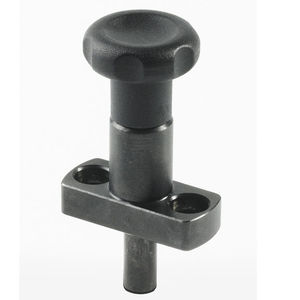

- EH 2212. Index Bolts with mounting flange,
- EH 2213. Precision Index Plungers with cylindrical support,
- EH 2213. Precision Index Plungers with tapered support.
The Index Plungers / Index Bolts are used for indexing purposes.
|
|
|
|
|
|
ART. D602
TWO-SPOKE CONTROL HANDWHEEL WITH REVOLVING FOLDING
HANDLE AND LOCKING PISTON
MATERIAL:
Reinforced and stabilised polyamide.
Oils and greases resistant.
SURFACE:
Satin.
COMPLETE HANDWHEEL COLOUR:
Black (RAL 9011).
CENTRAL CAP:
Grey polyamide (RAL 7035 code 13).
ALTERNATIVE CAP COLOUR:
Orange (RAL 2004 code 02).
Blue (RAL 5015 code 07).
Yellow (RAL 1021 code 10).
Red (RAL 3000 code 16).
Green (RAL 6024 code 17).
Black (RAL 9011 code 01).
LOCKING PISTON KIT:
(1) PA6+GF hole cover ring. Black (RAL 9011). Push-fit assembly. Removable.
(2) PA6+GF piston holder. Black (RAL 9011). Assembly by means
of two self-tapping, galvanised steel screws, screwdriver head 3.5x30.
(3) PA6+GF gear stick d. 26 with M4 brass female threaded insert
and positioning brackets. Black (RAL 9011).
(5) PA6+GF gear stick support with positioner. Black (RAL 9011).
(6) Galvanised steel return spring.
(7) Galvanised steel washer.
(8) Galvanised steel locking piston. Seat for Allen wrench no. 5 for fastening.
Piston stroke 10 mm. Useful projection from handwheel 8 mm.
INSERTS:
(1) Customised galvanised steel through-hole insert.
(4) Black-oxide treated hexagon socket button head screw ISO 7838 for fastening handle.
(9) (art. D602) Black-oxide treated steel insert with hexagonal threaded through-hole.
|
|

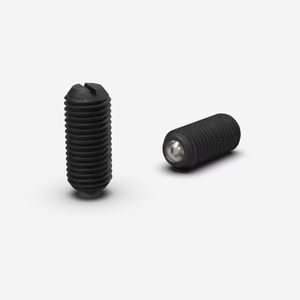

SPRING PLUNGER SLOTTED
SPRING PLUNGER, SLOTTED AND LONG-LOK SECURED
SPRING PLUNGER HEX SOCKET AND PRESSURE PIN
SPRING PLUNGER, HEX SOCKET, LONG-LOK SECURED
|
|
