Readouts series VD3 and VD4 display voltage, current, speed, angular or linear positionss and any physical or chemical measure which can be converted into an electrical signal.
All the different availble versions can read analogue or digital signals alike.
The indicators series VD4 avail on front parameter-entering keys and on two relay-outputs with threshold alarms on the displayed variable.
|
|
|
|
|
|
Examples:
-JUMO di 308 Digital Indicator, microprocessor-controlled, with max. 2 inputs, wide range of expansion options, panel-mounting DIN housing, bezel 96mm x 48mm (70.1550)
Configurable process display text (max. 24-character running text)
Alarm signal text with color changeover green-red (also as running text)
Up to two configurable analog inputs
Three option slots
Math and logic module (option)
4 limit comparators
Fast and convenient configuration through setup program
RS422/485 interface (option)
PROFIBUS-DP interface (option)
cUL/UL approval applied for
-JUMO di48 indicating instrument, programmable via PC Setup with voltage output 24V DC / 45mA, bezel size 96 x 48mm (70.1520/95.1520)
configuration from PC through setup program
electrically isolated measurement input (setup is not isolated from the measurement input)
many different inputs possible: resistance thermometer in 2-/3-/4-wire circuit, thermocouple, resistance transmitter, standard signals, potentiometer in 2-/3-/4-wire circuit
internal cold junction
customised linearisation
offset correction
input filter for interference suppression
24 V supply for 2-wire transmitter
|
|
The DMP200 series consists of four universal input indicators offering unparalleled price and performance. The use of surface mount components and modern microprocessor technology has enabled powerful features to be packed into a standard 1/8 DIN case.
The DML300 series of digital panel indicators is designed specifically for use with LVDT transducers. The "Fast-Cal" feature provides a fast and simple means of calibrating an indicator to the transducer at any two stroke positions.
|
|

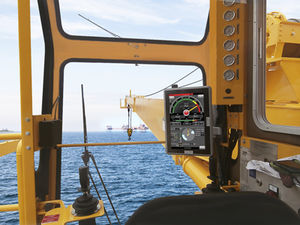

Electronic-digital position indicators proviede flexible, electronic capture of measured values and semi-automatic adjustment control at axels.
Benefits:
- Spindle pitch, direction of rotation and decimal point can be freely programmed
- Length or angle indication
- Incremental measurement function or offset input
- Zero setting of the shaft is performed at the touch of a button
|
|
|
Position values on shafts and spindles can be simply and clearly controlled with the original SIKO counters. Extremely simple installation and retrofitting is one of the decisive advantages. The displayed value can be adapted to the required spindle pitch with an integrated gear unit.
|
|
|
|
|
|
The digital indicator DI25 is a competitively-priced, multifunction instrument for a wide variety of measuring tasks.
The multi-function input has 18 different input configurations, which can be selected via the rear connections and also by selection the appropriate input signal with in the instrument configuration. In this way it is possible to connect transmitters with current or voltage signals, and both resistance thermometers or thermocouples to the same instrument.
The measured value can be retransmitted for further processing via an analogue 4 ... 20 mA output (standard) or via an RS-485 Serial Interface (optional).
Other analogue retransmission signals are also available as option.
The basic version of the DI25 indicator features three alarm outputs. Instruments with the optional 24 V transmitter power supply have two alarm outputs available.
With the high ingress protection of the fascia (IP66) the digital indicator DI25 can also be used under extreme operating conditions.
All configuration and programming can be done using the front control keys.
|
|
Endress+Hauser is one of the pioneers in fieldbus technology and plays a leading part in the implementation of HART®, PROFIBUS and FOUNDATION™ Fieldbus technology worldwide.
Apart from field instruments, we offer network components, registration technology, automation and visualization platforms in hardware and software as well as systems for asset management of components and
plants in known Endress+Hauser quality.
|
|
FUTEK products include Sensors, Cables, Digital Displays, Signal Conditioners, Accessories, and Sensor Verification Systems just to name a few.
Once a particular Futek Transducer has been chosen for a given application, provisions must be made for appropriate excitation and for conditioning the output signal. The nature of the conditioning depends on the electrical characteristics of the transducer and the destination of the signal.
FUTEK related Signal Conditioners with Digital Displays are as follows:
1) IBT100 Bench Top Rotary Torque & Angle Digital Display
2) TEDS Capable IBT500 Bench Top Signal Conditioner with Digital Display
3) IHH300 Hand Held Portable Signal Conditioner with Digital Display
4) TEDS Capable IPM500 Panel Mount Signal Conditioner with Digital Display
5) IPM600 Color LCD Touch Panel Signal Conditioner with Digital Display
6) EXCLUSIVE TEDS Capable Verification Calibration (VCAL) System ONLY offered at FUTEK
|
|
New PAX Lite Model with Relay Outputs : PAXLA
The first in a new series of PAX Lite panel meters has just been released. The new PAXLA can accept DC current, DC voltage, or process input signals, and scale them to a desired readout. This new model also has two form "C" relays capable of switching up to 5 amps, providing complete dual setpoint output control capability!
Flexibility has been built-in to the power supply as well. The newly designed universal power supply accepts 50 to 250 VAC or 21.6 to 250 VDC and provides 24 VDC output for sensor power.
Combining dual setpoint capability, the universal signal input and power requirements, and a low PAX Lite price, the new PAXLA offers exceptional value in a panel meter!
- 5 Digit, 0.56" High Red LED Display
- Programmable Scaling and Decimal Points
- Programmable User Input
- Dual 5 AMP Form C Relay
- Universally Powered
- NEMA 4X/IP65 Sealed Front Bezel
- Optional Custom Unit Overlay with Backlight
- Minimum and Maximum Display Capture
|
|
|
|
|
|
The new Digital Indication and Control Instrument VarioFox from AFRISO is a compact, ready-to-connect universal measurement and control instrument with integrated sensor supply and 2 (also choice of 4) voltage-free switching outputs. The instrument is very easy to operate and to program due to its text-orientated menu guidance (German, English or French).
VarioFox features a measurement unit listing, where units can be freely edited, as well as a free scaling/calibration of start and end of scale display values (99.999 - 9,999) which allows for almost all possibly required parameter settings. For horizontal cylindrical and spherical tanks integrated calibration charts can be accessed. For non-linear vessels or specially fabricated tanks a customer- specific 24-point linearization is available. The highest and lowest operational values are memorized but can also be utilized as instrument-internal visual and audible alarms on request. An alarm mute/accept button on the front of the instrument requires the responsible operator to act and this in itself provides for additional operational safety.
The measuring instrument works off an AC 50-253 V or DC 20-253 V supply and integrates a sensor input (4-20 mA, 0-20 mA, 0-10 V) and two isolated separate analogue outputs (0/4-20 mA und 0-10 mA).
|
|
Programmable panel meter for process, temperature and load cells.
Size: 96x48x60 mm.
Tricolor display: ±19999 (4 ½ digits)
|
|
|
|
|
|
The LHL, LHI meets or exceeds factory Mutual (FM) Approval Standard temperature Limit Switches Class 3545.
They are designed to automatically shut down a process when the measured value exceeds a pre-programmed value.
Alarm masking:
Puts the alarms in the stand by condition (mask) during instrument power up or masks a deviation or band alarm if the alarm condition is a
result of a set point change. In both situations the instrument maintains the alarm masking for the duration of the alarm condition.
Logic input:
These instruments are equipped with a logic input used to acknowledge an alarm condition by an external contact.
Maximum and/or minimum data hold:
The LHI is able to memorize the maximum and the minimum measured value. This function is automatically enabled at instrument power up
and it is always active.
Power supply failure indication:
These instruments are able to signal if a power failure occurs during normal instrument operation.
Power fail recovery settings are user configurable.
|
|
|
Configurable indicators for temperature, pressure, force, current and AC voltage, position, normalized inputs, with up to 4 alarm outputs, analog retransmission output, serial communication
|
|
Universal digital panel meter
Reference : AK9400U-2
Setable with keyboards on front plate
Display 99999 Counts
Process input current (<22mA), tension (< 200Vdc)
Potentiometer
Température input Pt100 and Thermocouple
Sensor power supply 24Vdc, 22mA
4 relays output 1RT.
2 insulated analogue outputs curent and tension
1 RS485 MODBUS, JBUS output, allowing configuration and mesure
Input/output insulation 2500V
Power supply 20Vdc to 370Vdc and 80Vac to 265Vac.
|
|
Powered by the process loop signal 4-20 mA.
Loop drop: 5 V max.
Size: 48x24x40 mm.
Display (red LED): -1999/9999
|
|
Accept any voltage or current process signal.
Size 96x48x60 mm.
Display: -9999/9999 (4 digits)
Excitation output to feed the transducer @24V
|
|
|
Configurable indicators for temperature, pressure, force, current and AC voltage, position, normalized inputs
|
|
Process indicator for :
- analogue signals (GSI40)
- temperature signals (GSI41)
- process signals (GSI48)
Panel mounting solution
|
|
|
|
|
|
HGX-1000 Weighing Indicator
With its privileged aluminium frame and included 3 digital inputs / 2 relay outputs feature,ability to communicate with PC and PLC systems HGX-1000 is a high precision digital indicator,which can be utilized in packing,dosing,tank weighing,silo weighing, etc.
Technical specifications
• Easy to read with 20 mm 5 digit 7 segment display
• High accuracy ,high speed
• 3 internal relay outputs
• 3 internal digital inputs
• Automatic or manual zeroing
• Counter option
• 20 Recipes / 6 processes
• Full, Empty and I/O indication LEDs
• Calibration via keypad
• RS232 serial output
• Power down data protection
• Adjustable digital signal filtering
• Full scale zeroing
FSM-2 Weighing Indicator
With its privileged aluminium frame,FSM-2 is commonly used in various weighing applications such as bench scales,silo and tank weighing weighing platforms.
HGX-2000 Weighing Indicator
HGX-2000 Digital weight indicator/control terminal is designed to perform complete automated solition for various weighing application. 2x20LCD character & 6-digit LED Display facilitate utilization of the product. Due to its modular infrastructure, it compensa tes requirements for PLC, PC and Operation Panel applications.
FSM-2 Exproof Weighing Indicator
Ex proof certified packaging box provided for the protection of product in chemical & petroleum industred , encompassing explosion risk.Technical specifications are similar to FSM/2.
FSM-2 S Weighing Indicator
With its privileged stainless steel box to be protected fromdust and water, FSM-2 is commonly used in various weighingappliances such as platform scales,silo and tank weighing etc.
|
|
Range of indicators powerful and versatile weighing:
- Approved 3000d or 3x3000d
- Panel mounting or box versions
- Comprehensive built-in functions covering a wide range of industrial applications: process control, filling, weighbridges, floor scales or on board weighing
|
|
|
Sartorius carries a wide range of control units, indicators and terminals for applications in production processes in the biopharmaceutical, chemical and food industries. This equipment extends from scales for simple weighing all the way to level cells for fill-by-weight level control and entire weighing networks for average weight control of prepackages.
|
|
|
|
|
|
Multi channels weight indicator type G4-PM
The G4-PM indicator is a new generation of multiple weighing indicators.
It is based around a main frame with:
One color LCD touch screen working under Windows CE
A 34 keypad pannel
One CPU unit with RS232; RS485 serial communication in Modbus RTU, an one Ethernet communication interface in Modbus TCP for easy connections to PLC & supervision.
The CPU card is also equipped with a USB connector for Back Up and restore or for a printer / key board connection.
The G4-PM can also handle up to 8 weighing channels through the WF-IN1 and WF-IN2 weighing cards with an internal 24 bits A/D converter and can reach a speed reading of 300 readings / sec or up to 1200 reading / sec with the weighing card HSWF-IN1 or 2.
Each weighing channel is equipped with 4 digital Inputs and 2 digital Outputs.
All set up can be done either on the touch screen or via the 34 push buttons keys pannel.
All set up can be saved and restore on the internal memory via the touch screen working under Widows CE.
Field buses: Profibus DP or Device Net can be installed on the CPU card as an option.
|
|
Setra's SuperViewtm weight indicator includes the SuperII's feature set and familiar, intuitive menu structure. Designed to interface to strain gauge load cell bases, SuperView will drive up to twelve 350ohm load cells and has checkweighing and counting functions built in, with no programming required to use them. 2MB of internal memory provides space for storing APWs, tares, etc, as well as an internal transaction log.
The SuperView features a new and unique touch-capacitance-sensing keypad, which has no moving parts therefore cannot wear out mechanically and is protected by a polycarbonate bezel to prevent physical damage. Additionally, the NEMA 4X washdown stainless steel enclosure makes the SuperView a great, low cost solution for wet and/or industrial environments.
|
|
|
|
|
|
FEATURES :
* Microcontroller based design.
* Single Universal Input (8 user selectable).
* Two fixed type of inputs.
* Built in square root extractor for 4-20mA (optional)
* Two relay outputs for High, Low or Deviation per input.
* 4-20mA retransmission output linearized and proportional to PV.
* PID control output per input (optioanl)
* Bright red LED display for PV and SV.
* 51 LED bar graph display for PV or SV Or Both
* Built in 24VDC loop supply.
* IP 20 metal enclosure (144 x 72 x 120)mm
* RS 485 modbus serial interface (Optional).
Product Description:
Libratherm offers Micro controller based single or two input Bar Graph Process Indicator model BGI-144-S and BGI-144-D with both Digital and Bar graph display. In addition, the instrument provides single or dual analogue retransmission output of 4-20mA and built in 24VDC loop supply to power external loop transmitter. The process value is converted into equivalent percentage value and is displayed on the bar graph using 51 red LEDs. Serial communication on RS485 2 wire with MODBUS RTU protocol is also available with programmable modbus ID in slave mode. BGI-144 is available in 144 x 72 x 120mm panel mounting enclosure with ABS bazel, polycarbonate graphics and metal enclosure. BGI-144 works on 90 to 250VAC supply.
|
|
Product ISI36
Technical data - electrical ratings :
Accuracy 0...0.05 %
Approvals UL/cUL
CE conform
Backlit 24 VDC ±20 %, 50 mA
Control NPN
PNP
Floating contact
Counting frequency 7 kHz, 12 kHz, 30 Hz
Digit height 8 mm
Display LCD, 7-segment display
Display range 0...12000
Display refresh 1 s
Emitted interference DIN EN 61000-6-4
Function Tachometer
Frequence display
Input logic NPN / PNP coded by wire jumper
Interference immunity DIN EN 61000-6-2
Measuring principle Gate time measurement 1 s
Number of digits 8-digits
Power supply lithium battery (approx. 8 years at 20 °C)
Unit displayed 1/s
Other products available:
|
|
|
Electronic indicators for pressure, flow, volume, temperature and level measurement. To program the device a password must be entered. Data are displayed on a 4-digit dispaly; easy setting by using the front panel keys. Some models are available with automatic programming of the sequence of operations. It is possible to programm up to 4 alarms, fix the beginning angìd the full scale values, set the engineering units, the decimal points and the peak value. Bargraph indicators and low-cost series available.
|
|
INDICATORS and CONTROLLERS
KB - DIGITAL INDICATOR
APPLICATIONS
- Laboratory Measurements
- Force, Torque or Pressure
- Process Control
- Weighing Applications
- O.E.M. Requirements
FEATURES
- 260,000 Count Resolution
- 50,000 Display Digits
- Universal Mounting Stand
- 0.02% Accuracy Class
- Digital Filtering
- RS 232 Serial Interface
- Peak Hold Option
- Stainless NEMA 4/4X Option
- One Year Warranty
|
|
Digital Indicators
Dorsey offers the most popular styles of digital indicators to complement our gages
|
|
- BluePort® Front interface and BlueControl® Software
- Maintenance manager and error list
- 5-digit, 20mm big display
- Limit signalling functions with hysteresis, discriminator time and rate of change monitor
- ON/OFF-, 2-point- and continuous controller
- oxygne high-resistance measurement
Applications
Furnaces, ovens, burners and boilers
Weighing and batching
Process engineering
Plastic processing
....
Main attributes
100 ms cycle time ensures a fast reaction
High >14 bit resolution
Customer-specific linearization for all sensors (16 segments)
Maximum and minimum values are always stored and may be displayed on the front
Tare and Sample & hold function
Signal filtering with adjustable tolerance bandwidth
Adjustable display resolution
Screw terminals
|
|
|
|
|
|
MDA241
Digital panel instrument (current) MDA241, 3 1/2 digit, dimensions 96x24x89 mm
MDV241
Digital panel instrument (voltage) MDV241, 3 1/2 digit, dimensions 96x24x89 mm
MDC241
Digital panel instrument (temperature) MDC241, 3 1/2 digit, dimensions 96x24x89 mm
MDK241
Digital panel instrument (process variables) MDK241, 3 1/2 digit, dimensions 96x24x89 mm
MDR241
Digital panel instrument (pressure) MDR241, 3 1/2 digit, dimensions 96x24x89 mm
MDA245
Digital panel instrument (DC currents) MDA 245, 3 1/2 digit, dimensions 48x24x85 mm
MDV245
Digital panel instrument (process variables, DC voltages) MDV 245, 3 1/2 digit, dimensions 48x24x85 mm
MDC245
Digital panel instrument (process variables) MDC245, 3 1/2 digit, dimensions 96x24x89 mm
MDA480
Digital panel instrument (DC and AC currents) MDA 480, 3 1/2 digit, dimensions 96x48x166 mm
MDV480
Digital panel instrument (DC and AC voltages) MDV480, 3 1/2 digit, dimensions 96x48x166 mm
MDK480
Digital panel instrument (process variables) MDK480, 3 1/2 digit, dimensions 96x48x166 mm
MDR480
Digital panel instrument (pressure) MDR480, 3 1/2 digit, dimensions 96x48x166 mm
MDZ480-F
Digital panel instrument (frequencies) MDZ480, 4 digit, dimensions 96x48x166mm
MDZ480-V
Digital panel instrument (frequencies) MDZ480, 5 digit, dimensions 96x48x166 mm
|
|
|
|
