SKF offers a comprehensive range of induction heaters for heating bearings and other components weighing up to a few tonnes.
In SKF's new generation of induction heaters the induction coil is positioned outside the heater's housing, offering a more efficient heating process, better features, and higher quality.This innovation results in reducing heating time and power consumption by up to 80% ultimately saving up to 70% on heating costs.For example the SKF TIH 210m heats a 210 kg bearing from 20 to 110°C in just 20 minutes!
SKF induction heaters range includes:

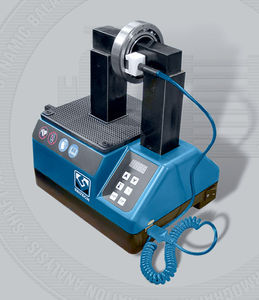

SCORPIO portable induction heater TMBH 1 for bearings up to 5 kg
Portable induction heater TIH 030m for bearings up to 40 kg
Induction heater TIH 100m for bearings up to 120 kg
Induction heater TIH 210m for bearings up to 300 kg
Larger induction heaters can be provided upon special request.
Special features:
- 4 step power reduction,ranging from 20 to 80 %
-Automatic demagnetisation
-Thermal overheating protection of the induction coil and electronics
-Time & temperature modes for heating components other than bearings
-Supplied standard with extra yokes
-Compact design
-Light weight
|
|
Induction Heaters from simatec
For a quick warm-up of roller bearings and other ring-shaped metal parts. Thanks to the heat extension, the work piece can easily be fitted onto the shaft. In the warm-up process, only the work piece is heated but the equipment itself remains cold. Simatec manufactures induction heaters for work pieces from 20 to 4'000 kg. Heaters for special applications are developed on demand.
The inductive warm-up of ring-shaped parts is a quick, clean and efficient method. It replaces traditional warm-up techniques such as hotplates, hot oil baths, open flames or stoves. |
|
The introduction of induction heating systems in rolling processes is common among the most qualified producers of hot rolled steel sections. The main advantage linked to the use of an induction furnace, in the different parts of the roll train, is temperature control for different materials and different dimensions.
In fact, thanks to the absence of the thermal transistors of the application, and to the high value of specific power density per unit of volume, rapid responses in time of delivered power are possible, allowing to obtain the heating profile desired.

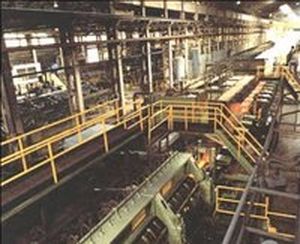

Generally, in the sector of hot rolling, bars are usually heated through intermittent passages. This increases the average temperature before intermediate forging or final machining, and allows to compensate the irregular head – tail temperature, making it possible to increase the system’s productivity by reducing gas consumption, as well as wear of the main furnace’s refractory material. Furthermore, it’s possible to carry out rapid changes in production while maintaining temperature control within common industrial standards, and reduce the number of defects due to temperature irregularity.
Induction is also present on the market with static heating operations for bars subject to subsequent hot rolling, allowing flexibility in production changes even with small lots of material, along with other advantages such as reduction of superficial decarburization even with atmospheric heating, elimination of ordinary maintenance costs of the gas furnace, and elimination of localized overheating in the combustion area. |
|
The application of Induction heating technology in the sector of pipe coating is now a consolidated practice. In fact, the coating’s polymerization process is guaranteed by optimal thermal conditions.
Induction’s experience is confirmed by the fact that we supply the largest companies of the sector in production plants all over the world.
Given the peculiarity of the application, Induction is specialized in supporting the Customer with extremely compact and flexible solutions for all production needs, and with innovative automatic temperature control for respecting process specifications.
The quality of the inductors assures for the supply, which is more subject to wear, a ten-year long duration, while fully respecting system performance.
Thanks to its experience in the piping sector, Induction is able to propose systems for loading, unloading and transporting pipes even of considerable thicknesses.
Due to the particular environmental conditions in which the coating systems are often installed, Induction offers quick and on-time service for any specific Customer request. |
|

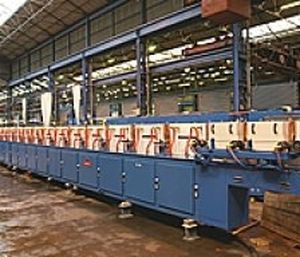

Modular induction billet heating system for forging applications
Features
• Modular Design induction power supply
• Hardened chain in-feed conveyor
• Continuous-feed pinch roll drive
• Lost motion protection
• Heavy-duty direct drive
• Single utility connections
• No special foundations required
• Open-wound or cast coil design
• Epoxy insulated coil windings
• Replaceable refractory coil liner or cast coil
• Discharge Fastractor™ with weld and scale breaker
• Double shut off, quick disconnect water connections
• Quick coil change feature
• Water flow temperature and pressure interlocks
Enhanced Features (included)
• InductoForge™ Easy setup PLC controls
• Pendulum Mounted Operator interface panel
• Standby (must have a minimum of 3 modules)
|
|
ISM HF CE marked induction heating systems provide a reliable, compact solution for heating your parts with a quick, clean source of heat. Available in models from 60kW to 120kW, all are ideal for repeatable, non-contact heating of your parts.
Model Power (kW)1 Frequency (kHz) Vac Line kVA Input
ISMÂ HF 60 60 50-150 360 - 528, 3 ph 81
ISMÂ HF 80 80 50-150 360 - 528, 3 ph 108
ISMÂ HF100 100 50-150 360 - 528, 3 ph 135
ISMÂ HF 120 120 50-150 360 - 528, 3 ph 162 |
|
HOTSHOT Catalogue
HOTSHOT RF power supplies provide an exciting new alternative for small part manufacturing processes which require a quick, clean heat source.
HOTSHOT RF power supplies provide a compact alternative for heating parts that require a quick, clean source of heat.
Two models are available:
• 2 kW HOTSHOT: ideal for quick, non-contact heating of your parts, supplied with a convenient remote heat station, located up to ten feet from the power supply
• 1kW HOTSHOT: available with either a remote heat station or an integrated, front panel heat station
• Remote models also available with Free-Front® configuration, with all utilities co-located at the back
For maximum flexibility in heating parts of different sizes and composition, both models operate over a 150 to 400 kHz frequency range with excellent power control to under 10W resolution. |
|

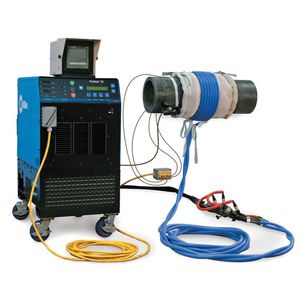

EASYHEAT induction heating systems provide a reliable, compact solution for heating your parts with a quick, clean source of heat. Available in these models, all are ideal for repeatable, non-contact heating of your parts. The remote heat station is typically located up to ten feet from the power supply
Equipped to operate over a broad frequency range, EASYHEAT is ideal for heating parts of many geometries and compositions with excellent power control to better than 50 W resolution. |
|

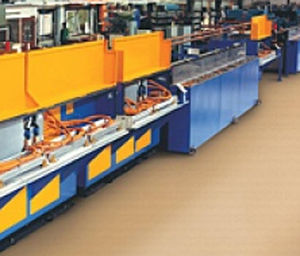

HEATER FOR SHEAR-BAR - heating lines with hot cutting shear :
* FCB15-600-2,4. Heater mod. FCB15, 600 Kw,2,4 Khz, output 1600 kg/h.
* FCB 36-1500-1. Heater mod. FCB 36, 1500 Kw, 1 Khz, output 4000kg/h. |
|
The induction coil is the heart of the bar heater. At Newelco coil design benefits from many years of practical experience gained as world leader in induction heating, together with utilisation of the most up to date materials and technology. This combination enables designers to provide the most efficient use of energy while heating bars to optimum forming temperatures.
Efficiency:
-Bar heaters from Newelco provide:
-High energy efficiency
-Enhanced productivity
-Optimum forming temperature
-Environmental acceptability
-Shorter start up time |
|
FC6-280-4. Heater mod. FC6, 280 kw, 4 khz, output 800 kg/h, with complete deionised water closed loop circuit.
FC15-600-2,4. Heater mod FC15, 600kw, 2,4khz output 1770 kg/h with automatic feeder at inclined sections.
FC21-1000-1. Heater mod. FC 21, 1000 kw, 1 khz, output 3000 kg/h with 3 way accept/reject system, automatic multiblade feeder and vibratory table with bin tipper.
FC36-1500-1.Heater mod. FC36, 1500 kw, 1khz output 4500 kg/h, with semi- automatic feeder. |
|
The latest development of the billet heater product range is the InductoForge which is a modular system designed to deliver solutions to a wide range of customer needs.
Efficiency:
- Newelco billet heaters provide:
- Reduced energy cost
- Increased productivity
- Optimum forming temperature
- Reduced space requirements |
|
* FC6-280-4. Heater mod. FC6, 280 kw, 4 khz, output 800 kg/h, with complete deionised water closed loop circuit.
* FC15-600-2,4. Heater mod FC15, 600kw, 2,4khz output 1770 kg/h with automatic feeder at inclined sections.
* FC21-1000-1. Heater mod. FC 21, 1000 kw, 1 khz, output 3000 kg/h with 3 way accept/reject system, automatic multiblade feeder and vibratory table with bin tipper.
* FC36-1500-1.Heater mod. FC36, 1500 kw, 1khz output 4500 kg/h, with semi- automatic feeder. |
|
| Heating line for wire hardening and tempering (oil hardening and tempering). Output of 2000 Kg/h with ø 15mm wire. It consists of three induction heaters: 400 Kw, 6 Khz; 150 Kw, 40 Khz; 300 Kw, 6 Khz. |
|
* Model with open coil for high outputs. It's suitable for heating pieces of small diameter (18-40mm) with high output rates (more than1000 pieces/h), for applications like forging of bolts, screw spike, trackbolts.
* Model with circular tunnel closed coil and with automatic introduction and extraction. It's suitable for the heating of pieces of small diameter (12-35 mm) with medium output rates (max. 400 pieces/h), advisable for applications like the forging of middle /long tools and bolts.
* Model with closed coil with rectangular tunnel. It's suitable for the heating of pieces of medium diameters (20-100 mm) with medium output rates (max 400 pieces/h), and so for applications like bolts forging and similar pieces.
* Model with closed coils with circular tunnel and automatic loading slide. It's suitable for the Heating of the pieces of medium/large diameters (40-120 mm) with low output rates (max 200 pieces/h) and automatic piece loading beginning from aligned bar magazine. The slide for the piece loading in the three coils translates in sequence from one to another coil: the introduction of a cold piece let go out the piece in temperature. It' s suitable for applications like forging of axle shafts and similar pieces. |
|
| Newelco produce a range of standard bar heaters to feed automatic forging machines, hot shear lines and rolling mills. Where a customer`s requirements cannot be met by standard heaters, Newelco will design and manufacture to meet specific needs. |
|
The standard production of Induction systems has been therefore enriched with the construction of prototype systems that express our growth in the direction of applied research, and that allow to develop innovative solutions in the induction heating sector.
Induction’s main objective is the application and development of innovative solutions in medium and high frequency induction heating, allowing maximum system reliability together with high technological content.
The personalization of Induction systems, together with Customer interaction, assures an enduring relationship over time, and professional service during the product’s entire lifecycle.
The Induction production line-up is able to satisfy all standard and special requirements of industrial induction heating, by means of an innovative technology that allows to obtain an electrical efficiency close to the theoretic limits.
Induction converters are medium frequency static generators, applied to series or parallel resonant circuits, whose use allows heating though magnetic coupling.
In spite of different circuit solutions, Induction converter performance is assured by continuously updating projects for the tuning of new constructive solutions. Furthermore, the development of control and adjustment power components is in continuous evolution, while all applications are compliant with the norms in force in the area of machine directives. |
|
UNIFORGE®
Unitized Solid State Induction Billet/Bar Heating System
Features / Benefits
Unitized workcell design for low installation time and cost.
Infeed and outfeed mechanics, integrated coil line and power supply for minimum use of floor space.
Voltage fed, high efficiency series inverter with 0.95 input power factor over full operating range.
Series capacitors to match connected induction coil/load.
Built-in annunciator panel for simplified status/fault diagnostics.
Single control board, field replaceable for easy maintenance.
Backed by the world's largest designer and manufacturer of induction heating equipment.
Self-Contained Design With Built-in Power Supply
The UNIFORGE® heating system is a compact, unitized induction billet/bar heating system incorporating a solid state power supply, induction heating coil(s), operator control panel and material handling system. The unitized construction of the UNIFORGE® eliminates the need for interconnections between separate components typical of conventional heating systems, saving floor space and installation time.
Job Matched Induction Heating Systems
UNIFORGE® is designed for forging, mass heating, annealing, extruding and many other induction heating applications. Its concept easily adapts for continuous bar and tube heating or for partial heating of billets and tube. Power and frequency combinations are available from 100 kW to 1000 kW and 500 Hz to 30 kHz. Full power draw over a wide range of billet sizes.
|
|
Fluxtrol concentrator manufacturing and application technique plays a very important role in successful performance of induction coils. With respect to Fluxtrol concentrator application - magnetic, thermal and mechanical aspects must be considered. Additionally, the electrical strength of our concentrator must be considered or insulation provided.
This section is intended to provide methods for safety, handling and machining FLUXTROL® & FERROTRON® concentrator materials when applying the product to induction coils. |
|

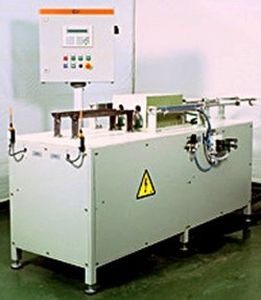

HORIZONTAL SCANNING MACHINE
An In-Line Continuous Feed Hardening Machine For Parts From 5/16" to 13/8" (8 - 35 mm) In Diameter
Features/Benefits:
Fast change over for maximum uptime.
Unique probe arrangement makes partial hardening easy.
Adapts to a variety of power supplies for maximum application versatility.
Straight through tractor feed for high production rate.
Rotation speed and feed rate independently adjusts for the best process capability.
Easily adapts to in-line induction tempering.
Built to machine tool standards for reliable performance.
Backed by the world's leading manufacturer of induction systems.
Worldwide parts and service ensures maximum system uptime.
High Production, In-Line Hardening system:
Our Horizontal Scan-Hardening Machine is a system for surface hardening of cylindrical components end to end in a continuous feed for high volume production operations. This system can be integrated with many of our solid state high frequency power supplies for either short or long run production. It can also be incorporated into cellular arrangements for intermittent hardening of shock absorber shafts, water pump shafts, heavy duty sewing and knitting needles and many other shaft like parts. |
|
| Especially designed for inductive heat generating plants operating at frequencies between 50 and 1000 Hz. |
|
STATISCAN® IV
Unitized Vertical-Scanning System With Four Spindles
Features / Benefits
Four spindles to process four parts at a time.
Scan long parts up to 24" on standard model.
Self-contained system easily integrated into workcell.
Different power ratings and frequency ranges available for application matched precision hardening.
User-friendly controls simplify set-up, changeover and diagnostics.
Flexible workpiece capacity.
Simple utility connection for fast, low cost installation.
Compact. Requires minimum floor space.
Built by the world%u2019s largest designer and manufacturer of induction heating equipment.
Worldwide parts and service.
Compact Production Hardening System
The STATISCAN® IV can be configured as a two or four spindle vertical-scanner or high production lift/rotate machine for hardening and tempering a wide variety of parts.
Self-Contained Design With Heat Station/Power Supply
The STATISCAN® IV system features a built-in transistorized solid state power supply with heat station, programmable scanner, control and quench recirculating system. This unitized construction reduces floor space 50-80% compared to conventional systems.
|
|

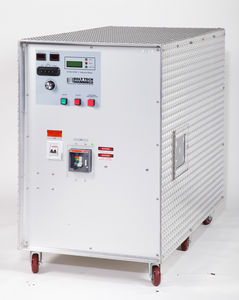

STATIPOWER® SP11
Radio Frequency Induction Heating Power Supplies
Features / Benefits
50-200 kHz with a wide range of power outputs for application flexibility.
Continuous or intermittent duty.
100% solid state design. Ideal replacement for less efficient oscillator tube power supplies.
High, 0.95 input power factor under all operating conditions.
±1% output regulation accuracy with ±10% line variance under all operating conditions.
Single control board for reliable operation and simplified maintenance.
Analog display of voltage, frequency, current and output power. Built-in digital heat timer.
Optional RS-232/485 interface for automatic operation under computer control.
Built-in load matching capacitors and variable ratio isolation transformer.
Built by the world%u2019s largest designer and manufacturer of induction heating equipment.
RF Power Supply For General Purpose Induction Heating
STATIPOWER® SP11 is a self-contained, stand-alone solid state transistorized power supply for heating a wide variety of parts. Application capabilities include hardening, tempering, brazing, soldering, melting, bonding and shrink fitting. A broad range of single-turn and other low impedance heating coils can be properly matched with built-in load tuning capacitors and multi-tap output isolation transformer.
|
|

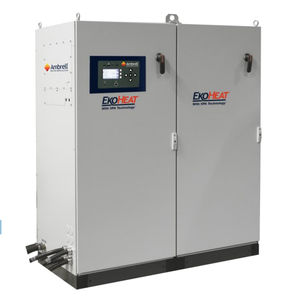

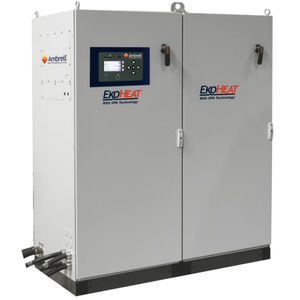

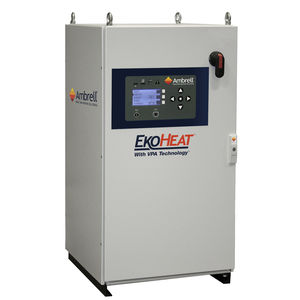

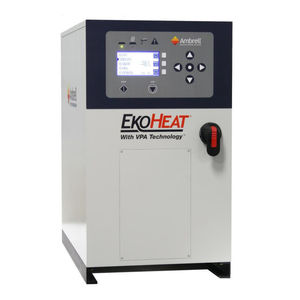

EKOHEAT induction heating systems provide a reliable, compact solution for heating your parts with a quick, clean source of heat. Available in these models, all are ideal for repeatable, non-contact heating of your parts. The remote heat station is typically located up to 100 feet from the power supply
Equipped to operate over a broad frequency range, EKOHEAT is ideal for heating parts of many geometries and compositions with excellent power control to better than 50 W resolution.
Model Power (kW)1 Frequency (kHz) Vac Line kVA Input
EKOHEAT 15/100 15 50-150 360 - 520, 3 ph 17
EKOHEAT 30/100 30 50-150 360 - 520, 3 ph 35
EKOHEAT 45/100 45 50-150 360 - 520, 3 ph 52 |
|
STATIPOWER® SP5 & 7
Solid State Induction Heating Power Supplies
Features / Benefits
Multiple power/frequency combinations for application matched performance.
"Bullet-Proof" circuitry eliminates nuisance shutdowns and restarts.
Voltage fed for 0.95 input power factor over full operating range.
Output regulation by voltage, power or current. Jumper selected.
Single board control. Field replaceable for easy maintenance.
Interchangeable control board. Factory calibrated to eliminate field adjustment and calibration.
Modular, single-layer design for easy access and maintenance.
Pressure switches on all capacitors to shut down system before complete capacitor failure.
Built-in annunciator panel for simplified status/fault diagnostics.
< 85 dB operating sound level for quiet operation.
Job-Matched Induction Heating Power Supplies
STATIPOWER® water-cooled, solid state power supplies are designed for case hardening, through hardening, annealing, mass heating and many other applications. Power and frequency combinations from 10 to 1,300 kW/1 to 25 kHz are available in single and dual frequency models.
|
|
Modular Induction Scanning System
The InductoScan® is a modular system using a variety of standard components in an integrated package mounted on a common base for easy shipping and installation.
A significant advantage for customers is that this system can be upgraded to accommodate future production needs.
Features/Benefits:
• Mechanical modules provide various process solutions; scan, lift/rotate, pick & place, linear transfer and rotary index.
• Flexible design allows a wide range of power supplies and controls to be changed or upgraded to meet future needs.
• Single utility connection for fast installation or relocation
• Removable plumbing cover enables full access to all mechanical components for easy maintenance/changeover.
• Self-contained system on a common base to support standalone work cell requirements.
• User-friendly PC/PLC based controls simplify set-up, changeover, diagnostics and process monitoring.
• Quench recirculating system with plate and frame heat exchanger.
• Water cooling recirculating system for inverter and coils.
|
|
WATER RECIRCULATING SYSTEM
Plate Type Closed Loop, Atmospheric Pressure Heat Exchanger System
Features / Benefits
Stainless steel plate & frame heat exchanger operate on low plant water flow and allow for cleaning of all heat transfer surfaces for high efficiency and long life.
Stainless steel tank with easy access for inspection. Tank is constructed of heavy gauge material to resist abuse and corrosion. Also has three 1.5 FPT return ports.
Bronze or stainless steel pump with mechanical seals and a stainless steel shaft to insure long term reliability.
Electric motor is totally enclosed, fan-cooled, NEMA design B ball-bearing type for safe and long lasting operation.
Modulating temperature control valve utilizes plant water to cool system water only when system water exceeds a pre-set temperature 95° F (water temperature warmer than ambient eliminates the possibility of condensate forming inside electrical enclosures).
Dial thermometer on tank shows water temperature for quick trouble shooting.
Self-contained disconnect/motor starter/push button control allows the WRS to interconnect easily with the induction system without special controls being added.
Screw-in filler cap keeps dirt and debris out of system water.
Suction shut-off valve for easy pump replacement.
Y-Strainer to assure water cleanliness. |
|
| Lepel offers one of the widest selections of induction heating power supplies in the industry. With output power ranging from 500W to 2500kW at frequencies ranging from 10kHz to 30MHz, Lepel can provide the appropriate solid-state or vacuum tube power supply for virtually any application. |
|
|
