The IRI 2010 Thermal Imaging Camera is an innovative Thermal Imager, offering outstanding imaging and temperature measurement performance, together with the traditional Irisys features of flexibility, ease of use, and minimal cost of ownership.
The IRI 2010 boasts an impressive set of features, making it a unique product
for its price. Image Fusion lets you view the world in visual, thermal, or a blend of both. Hot and Cold Tracking identifies the hottest or coldest point in the scene automatically. The Audible Alarm feature enables the camera to issue an alarm when a point in the scene exceeds a set temperature threshold
value. Voice Annotation allows the user to add voice messages to saved images
as an aide mémoire for later report writing. There is also a comprehensive Software Suite for off-line analysis and report generation.
The IRI 2010 is the Thermal Imaging product designed for the Mass Market.
|
|
With the PYROVIEW compact DIAS Infrared GmbH offers you a compact fixed-mount infrared camera based on state-of-the-art uncooled microbolometer arrays with up to 384 × 288 pixels with a temperature measurement range from -20 °C to 500 °C and a spectral range of 8 µm to 14 µm.
Different lenses with different aperture angles, optional weather protective housing and the real time data transfer via Ethernet interface with up to 50 frames per second and optional stand alone operation without PC ensure an easy integration into your systems.
|
|
DIAS Infrared GmbH as a manufacturer of state-of-the-art infrared cameras offers you an innovative infrared measuring technique for contactless temperature measurement of temperature distributions. The uncooled infrared cameras PYROVIEW with a robust housing are excellently suitable for industrial use.
The newest microbolometer arrays with up to 384 x 288 pixels, different temperature measurement ranges of -20 °C to 1250 °C and spectral ranges 8 µm to 14 µm, 3 µm to 5 µm and 4.8 µm to 5.2 µm guarantee optimal customization to your measurement task.
|
|

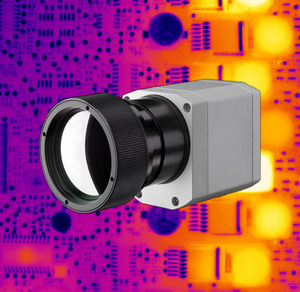

PYROSCAN18 is a pyrometric camera particularly well suited for displaying the inside of a furnace as well as for measuring, in real time, the temperature of various points in the image, whatever the dust level in the furnace.
The system is widely used in industry for combustion process control.
|
|
- High accuracy within temperature ranges of -20°C
up to 900°C
- Real-time thermography with 100 Hz frame rate
- Exchangeable lenses with 9° FOV and 31° FOV
- Extremely lightweight, rugged, IP 65
- Excellent thermal sensitivity (NETD) of 0,08 K
- Vista Software PI Connect processing and analyzing thermal images
- Size 45 mm x 45 mm x 62 mm
|
|
|
The MIDAS 320L is an extremely light-weight, high-performance handheld infrared camera. It measures the infrared radiation emitted by the target surface and converts this radiation into a two-dimensional image relating to the temperature distribution at the target surface. This temperature distribution can be viewed in full color or grey-scale on the TFT-LCD display or viewfinder. This radiometric camera is ergonomically designed and easy tu use for applications in maintenance, building thermography and developement.
|
|
The starter instrument for fast fault-finding and quality assurance
· High-quality wide angle lens 32° x 24° with F1 optics
· Image refresh rate 9 Hz
· Detector 160 x 120
· NETD < 0.1°C
· Manual focus
· Minimum focus distance 10 cm
· Data storage device SD, 1 GB (approx. 800-1.000 images)
Included in delivery
· IR software with integrated report creation
· USB cable
· Li-ion battery
· High-quality, robust case
|
|
|
The established infrared camera series PYROVIEW has been extended by DIAS Infrared GmbH with the new high temperature camera PYROVIEW 640 using a spectral range in the near infrared region. A continuous temperature measurement range from 600°C up to 1500°C is realised with a resolution of 640x480 points and a measuring frequency of 25Hz. Digital data transmission is made via a Fast Ethernet interface. The size of the compact housing is app. 60 x 60 x 160mm³.
|
|
|
The product line VarioCAM® high resolution of the German manufacturer JENOPTIK Laser, Optik, Systeme GmbH stands for a new generation of high-performance thermographic cameras based on state-of-the-art uncooled microbolometer FPA detectors with up to 1,280 x 960 infrared pixels.
|
|
|
|
|
|
Portable Thermal Image System of High Range for Non-military Security Tasks
The Dresden specialist for infrared measuring technology InfraTec GmbH presents a newly developed binocular thermal image system of the highest geometric resolution commercially available at this time.
This brand new product line VarioVIEW of the exclusively represented manufacturer JENOPTIK Laser, Optik, Systeme GmbH combines a high-resolution infrared imager with an eye-safe and hardly detectable laser distance meter.
A microbolometer detector of a geometric resolution of 640 x 480 pixels guarantees, in conjunction with a highly precise, light-intense 150 mm lens, excellent ranges in object detection, recognition and identification. The VarioVIEWTM permits to discover people within a range of up to 5 km and vehicles up to 7 km. The laser distance meter works at 1,550 nm and is able to measure distances of up to 5 km most precisely.
Further outstanding technical features of the VarioVIEW are both ist fast infrared image frequency at 30 Hz and its high thermal resolution (< 70 mK). The high-resolution OLED binocular view finder allows for fatigue-free observation.
The easily portable thermal image system VarioVIEW also distinguishes itself by robust design and intuitive handling. Weighing less than 3 kg and staying operable for more than five hours without having to change the rechargeable battery, it is particularly suited for mobile application, such as border observation or in the security service.
|
|
|
With the new PYROVIEW 380L compact DIAS Infrared GmbH offers a small robust infrared camera for measurement of temperature distributions in laboratories as well as factories. This camera with an uncooled microbolometer array has a geometrical resolution of 384 x 288 pixels and a thermal resolution of 0.08°C. The data are transferred via Ethernet interface with a maximum frame rate of 50 frames per second. Temperature measurements, e.g. for development and research purposes may be done with an excellent time and geometrical resolution for a reasonable price.
|
|
The Stinger thermal imaging camera is designed to deliver the highest quality, real-time video temperature representation of your process. By combining the latest uncooled focal plane array technology with Ircon%u2019s ruggedizing expertise, we are able to provide an unprecedented level of performance for industrial process control applications.
The Maxline 2 is Ircon's next generation of thermal imaging camera. With a NEMA 4 housing stainless steel body, and remote focusing capabilities, the Maxline 2 is built ready to take on the toughest applications.
|
|
|
Thermal Imaging Cameras become more and more important in fire applications. Convince yourself of our innovative product range!
|
|
Fluke Ti10/Ti25: Latest innovation in affordable thermal imaging
Put problems clearly in the picture
With the rugged and reliable Fluke Ti10/Ti25 Thermal Imagers, you get the advanced problem-finding capability of IR-Fusion® technology. They are a complete and easy-to-use thermal imaging solution for troubleshooting and maintenance of industrial and electrical equipment.
|
|
|
|
|
|
LumaSense Technologies offers different portable thermal imagers featuring measuring ranges between -40…500°C (optional up to 2000°C) and for special industrial applications on glass surfaces or through flames up to 1600°C. Due to their compact dimensions and lightweight they ideally suit for mobile applications, e.g. in areas of building inspection, predictive maintenance and process monitoring and optimization.
The fast, easy-to-use MikroSHOT models offer affordable pocket-sized portability with key features and versatility to fit a wide variety of building inspection applications at a measuring range between -20…350°C. With one click two images (infrared and visible) are taken at a resolution of 160 x 120 pixels (19,200 measurement points).
High resolution imagers such as the M7800DV and M7600Pro feature a resolution of 320 x 240 pixels (76,000 measurement points). They can be used for applications in order to measure small objects (e.g. in process monitoring) or objects at long distances (e.g. inspection of equipment) with temperature ranges between -40 …500°C (optional up to 2000°C).
Especially designed for building inspections the M7815B is a lightweight, high-performance handheld IR camera featuring a temperature range of -40 to 120°C and a digital visual camera.
The high-resolution thermal imaging camera M7640 for demanding environments features a unique high resolution of 640 x 480 pixels (307,200 measurement points). The camera is used in applications which demand a high resolution. Using the optional high temperature adder measurements up to 2000°C are possible.
Moreover, there are software for visualization, data analysis and reporting available.
|
|
The Testboy® TV303
Do you need to discover hidden damage to electrical facilities in the shortest time possible? You can quite easily – with the inexpensive Testboy® TV303. With the TV303, you can use thermal imaging to reveal hotspots – before they cause serious damage – in ofice buildings,
hospitals, hotels or industrial facilities. The camera’s temperature resolution of 0.10°C and the large LCD display allow you to see the smallest of temperature variances. You can also view clear images in real time thanks to the detector’s 50-Hz capture frequency. The wide-angle lens de-
livered with the camera enables you to extend your view of the object.
The TV303 weighs only 680 grams and is easy to operate. It allows you to perform no-contact measurements of objects. The camera can store up to 1000 JPEG-formatted infrared images; these can be downloaded to your PC and analyzed with the Testboy® Reporter software.
|
|
|
|
|
|
The Testboy® TV 304
Are you looking for a handy yet powerful thermal imaging camera with excellent imaging quality? Then the Testboy® TV304 is right for you. It features 384 x 288 pixel resolution and a thermal sensitivity less than or equal to 0.06 °C (NETD). The detector’s 50-Hz capture frequency allows temperatures of up to 500°C to be displayed in real time on the 2.8-inch display. This camera is perfect for nearly all thermal imaging applications: with up to four movable measurement points, up to three movable measurement surfaces, and a linear measurement function. The TV304 features a switchable laser pointer for orienting the camera to the object to be measured. The TV304 also comes with optical and acoustic alarm functionality, as well as an isothermal analysis function. The camera is easy to handle and weighs only 910 grams. It can save up to 4,000 images (with voice commentary) on its SD card. The saved results can then be downloaded to a PC and analyzed with the Testboy® Reporter software. The powerful Lithium-Ion rechargeable battery allows up to three hours of continual operation. With the camera’s easy-to-understand operating panel and clearly-structured menus, one-handed operation is not a problem.
|
|
The Testboy® TV301
The TV300’s well-known reliability can be extended even further with several additional technical features. These extend the camera’s professional
measurement capabilities. For example, up to 40 seconds of voice commentary can be appended to each thermal image (with a capacity of 2,000 images in the flash memory)! The camera’s temperature re-
solution is 80 mK. Or, an alarm can be set to trigger if the temperature exceeds or falls below specifi ed limit values. As another option, the TV301 model is able to produce precise infrared images up to +500°C.
|
|
Designed for industrial use, it is particularly suitable for preventive or predictive maintenance. It provides all the measurements necessary to draw up comprehensive maintenance reports, whether electrical, electronic, mechanical or more focused on building thermics.
Its advantages include:
- multi-directional colour screen
- pistol shape for easy handling
- measurements from as close as 10 cm
- recording capacity of 1,000 radiometric images
- adjustment of ambient temperature, emissivity, measurement distance and relative humidity
The RayCAm Report software supplied with the camera can be used to analyse the measurements and create customized reports that can then be exported into Word. Its simple ergonomics mean that anyone can use it. It allows zone analysis (square or circle), ideal for parameterizing the thermogram according to the different emissivity values, which vary according to the material.
|
|
The Testboy® TV 305
The Testboy® TV305 is your best choice when you demand images of the finest quality. With its 320 x 240 pixels and outstanding thermal sensitivity (≤ 0.06 °C NETD), the Testboy® TV305 features the highest quality in resolution and imagery. Moreover, the detector’s 50-Hz capture frequency allows temperatures to be displayed in real time on the large four-inch display.
The TV305 also features an innovative embedded image function. This technology captures both a thermal image and a real optical image – thus facilitating the thermal image analysis process. This helps you to identify suspicious components more quickly and to incorporate the information in a report. Repairs can then be made more quickly and effi ciently.
|
|
For high-temperature applications in industrial processes e.g. on metal surfaces, LumaSense Technologies developed the fixed installation imaging system MCS640.
The camera detects temperatures in ranges between 600°C…3000°C and features a high resolution of 640 x 480 pixels.
As an option, the camera can be integrated into an industrial proven enclosure with lens air purge and cooling system. Moreover, the camera features a 1000 Mbit/s Gigabit Ethernet for data transmission.
|
|
|
|
|
|

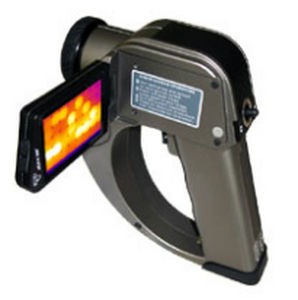

Features :
- High resolution 640 x 480-pixel detector
Image resolution is four times higher than 320 x 240 detector.
Users can achieve quick measurement of wider area with high resolution.
- Basic performance
Resolution: 0.06°C or better at 30°C (30Hz)
Accuracy: ±2%(of reading) or ±2°C
Environmental protection: IP54
I.F.O.V.: 0.6mrad
- Wide 5.6-inch LCD & color viewfinder
Wide 5.6" LCD & viewfinder for clearly visible image at both indoor and
outdoor.
- Visual/thermal image fusion function
Measures visual and thermal images simultaneously and displays the fusion image for easy identification of thermal spots
- Easy operation
Large control buttons
Multilingual menu: English, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish, Simplified Chinese and Traditional Chinese
Light weight: Approx. 1.7kg (including battery)
- Visual camera & target illuminator
High quality visual camera at 1.3 Mega pixels.
Simultaneous recording of thermal & visual images.
Easy identification of location and data management.
Target illuminator provides light for visible camera where condition is dark.
- Laser pointer
For easy determination of measuring spot.
Voice recording
Voice recording available up to 30 seconds per image.
|
|
Fluke TiR Thermal Imager
Optimized for building envelope, restoration and remediation, inspection and roofing applications.
The Fluke TiR Thermal Imaging cameras are the perfect imagers for building envelope, restoration and remediation, inspection and roofing applications.
IR-Fusion® Technology
See things both ways—infrared and visual (visible light) images fused together communicating critical information faster and easier—traditional infrared images are no longer enough. IR-Fusion, a patent-pending technology that simultaneously captures a digital photo in addition to the infrared image and fuses it together taking the mystery out of IR image analysis. IR-Fusion is standard on TiR models.
|
|
|
|
|
|
The M7815B of LumaSense Technologies represents innovative infrared thermometry for building inspections to locate thermal anomalies and detect potential or existing deficiencies or defects. This fully-radiometric camera is ergonomically designed for comfortable one-handed point-and-shoot operation and features an extraordinary resolution of 320 x 240 pixels (76,000 measurement points). It is an extremely lightweight, high-performance handheld IR camera offering capabilities normally found in models costing much more. This camera is able to measure temperature ranges of -40°C to 120°C.
The ultra-light weight MikroSHOT-B model offers affordable pocket-sized portability with capabilities normally found in larger, more expensive thermal imagers at a measuring range of -20°C to 100°C. Both infrared and visible images are taken with one click at a resolution of 160 x 120 pixels (19,200 measurement points). The fast, easy-to-use and fully radiometric thermal imaging camera has the key features and versatility to fit a wide variety of building inspection applications.
Moreover there are comprehensive software packages for visualization purposes, data analysis, reporting and documentation available.
|
|
|
|
|
|
FLIR i5 - A small infrared revolution
POINT, CLICK AND SEE THE HEAT
The FLIR i5 is the most compact, lightweight and easy-to-use infrared camera of its class that is currently available on the market.
All you have to do is just point and click to see the heat variations in the environment around you - and find exactly what you are looking for. No matter if you repair fuses, install windows, insulation or heating, ventilation or air conditioning systems.
See what you've been missing
The Infrared imagery is immediately and clearly visible on a full-colour display. You can save your readings as an image for later reference. The combination of advanced Infrared technology and modern digital imaging will make your building and maintenance inspections, as well as damage estimation, a lot easier.
CATCHING THE HEAT OF THE MOMENT
The FLIR i5 visualizes heat differences. Heat, or infrared radiation, is a part of the electromagnetic spectrum that is invisible to the human eye. Infrared radiation (IR) is emitted by every object above a temperature of -273°C. Every object - both living and inanimate - gives off heat as long as its temperature is above absolute zero or -273°C. That means even AC installations and ice cubes.
The human eye cannot detect infrared radiation, but an infrared camera can. It can take pictures of objects to show the amount of heat they are emitting. Such pictures consist of a map of colors that show surface temperatures of the object.
An infrared camera is thus an invaluable diagnostic tool in a variety of industries and applications, as it can detect abnormally hot or cold areas or components. In other words, you can detect problems that are not normally visible with the naked eye.
Infrared at work
Infrared cameras help many industries, sectors, companies, institutions, technicians and workmen finding what they are looking for and solving their problems. Faults, leaks, damages - anything that emits differentiated heat signatures - and in all types of situations and environments.
Our Infrared cameras are ideal to:
- Detect hidden problems
- Assess damages
- Survey moisture and leaks
- Identify energy losses and poor insulation
- Find electrical faults and overheating
|
|
The FLIR i-Series are small and lightweight infrared cameras designed for those needing higher resolution and more features and for whom documentation of findings are important.
The FLIR i-Series infrared cameras are IP54-rated, making them suitable for use in harsh industrial environments. The cameras are ideal for predictive maintenance and planned inspection of electrical and mechanical systems to ensure they operate at maximum efficiency and safety with minimal energy consumption.
|
|
NEC Avio Modules 320x240 or 640x480 Detektor sized
It consists of a sensor module, a lens, an I/F and a camera housing, and it is suitable for incorporation into various equipment or into robot in addition to the application for installation type fixed monitoring system.
A P P L I C A T I O N S (radiometric & non-radiometric)
Security & Entree control
Process & quality control
Conditional monitoring
Robotik
Surveillance
Metal processing
Glass and mineral production
Plastics production
Solar
Semiconductor
Utility
Medical
Automotive & Traffic control
Environmental
R&D and Industrial
OEM Solutions
Aerospace and Defense
|
|
Small size. Big performance.

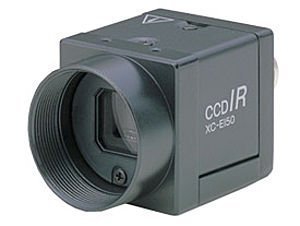

The XC-EI50/CE and XC-EI30/CE incorporate the latest 1/2 type and 1/3 type Interline (IT) CCD with near-infrared sensitivity. Sony surface mount technology results in an ultra compact, rugged unit that provides high quality images.
IR lighting has become very popular in machine vision applications. When used with an IR LED illuminator, these cameras can capture clear images because of their sensitivity at infrared wavelengths. In addition the XC-EI Series camera modules have high overall sensitivity. This makes them suitable for low light environments as well as for special IR lighting conditions.
A single standard 12-pin connector provides control of input/output signals as well as power.
The recommended camera adaptor for these units is the compact and lightweight DC-700/CE.
|
|
The FLIR i-Series are small and lightweight infrared cameras designed for those needing higher resolution and more features and for whom documentation of findings are important.
The FLIR i-Series infrared cameras are IP54-rated, making them suitable for use in harsh industrial environments. The cameras are ideal for predictive maintenance and planned inspection of electrical and mechanical systems to ensure they operate at maximum efficiency and safety with minimal energy consumption.
|
|
In addition to X ray, UV and visible wavelengths, the infrared region is of great importance for many scientific and industrial applications. Hamamatsu offers two options for infrared imaging:
special vidicon tube technology which permit imaging to a maximum 2.2 µm
back thinned chips, using our solid state CCD technology, which permit imaging to a maximum of 1.1 µm
This ability, when combined with cooling levels and low noise characteristics allows users to detect the lowest UV light levels. Additional capabilities include:
High frame rate
IEEE 1394, RS422, LVDS and camera link frame grabber outputs
analog video output with contrast enhancement for vidicon tube cameras.
|
|
|
|
