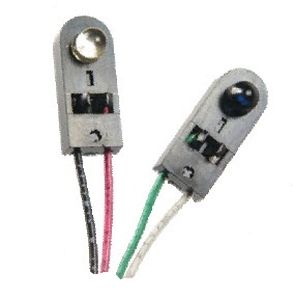

Honeywell infrared emitters provide a radiation source. These metal or plastic products are available in a variety of electro-optical characteristics, package styles and mounting configurations. Often used with a corresponding detector.
Best Used For:
Applications requiring object presence and limit sensing, position encoding, movement detection and counting.
|
|
|
You can only get this much power from IR DRAGON, OSRAM Opto Semiconductors' strongest infrared emitter. Besides stellar performance in a small package, the IR DRAGON offers a long service life and high power in continuous driving mode thanks to its excellent thermal design. It operates at wavelengths designed to support CMOS and CCD camera applications.
|
|
INFRARED TRANSMITTER FOR OFFSET INPUT/OUTPUT, BRIDGE CRANE LOCKING, VEHICLE MONITORING…
Fixed industrial transmitter.
Up to 10 TOR channels +1 Emergency Stop channel.
4-position DIP SWITCH for transmitter/receiver pairing.
Input via industrial circular connector.
TRANSMISSION:
Modulated infrared: 875 nm wavelength.
2 channels available: 31 and 46 Khz.
Range: from 3 to 100 meters, depending on application, configuration, installation and environment.
4-position DIP SWITCH for transmitter/receiver paring, i.e. 16 combinations possible.
ELECTRONIC FEATURES:
Temperature range for usage: guaranteed for –10 to +35°C.
No microphonic effects: shock and vibration resistant.
POWER FEED:
Direct current: 12 or 24 V DC;
Alternating current: 48 or 230 V AC.
Consumption: 80 mA to 110 mA (depending on application).
HOUSING:
Polycarbonate housing with translucent window, dimensions : 120 x 80 x 55 mm, weight: 0.450 Kg.
WIRING:
18-prong circular connector.
|
|
|
|
