GOLD MCXI700
Inverted Metallurgical Microscope
Inverted microscopes are used for inspection, analysis and testing of microstructure of materials. The special design is necessary for observing large and heavy objects, e.g. metallurgical or electronic parts which are integrated in a compact body without special and expensive sample preparation.
OPTICS:
Objectives: MET ICO PLAN 5x/0.12, 10x/0.25, 20x/0.40, 50x/0.75; Eyepieces: EWF 10x/22 high eyepoint
MECHANICS
Body: stable, sturdy base, 360 x 280 mm; Head: ERGO head with variable inclination from 5° to 35°; Nosepiece: Quintuple ball-bearing nose-piece; Stage: Plain stage with glass insert plate; Illumination: 6V30W halogen for 100 - 240V / 50 - 60 Hz
OPTIONS
Photo/video port for ERGO head, binocular or trinocular head, objective MET ICO PLAN 100x/0.9, WD 0.7 mm, various eyepieces, attachable mechanical stage, auxiliary stages, photo/video adapters, digital cameras, aluminium carrying case
|
|
The KH-1300 digital microscope is revolutionary in that it achieves both the highest transfer speeds in its class and high-quality images at the same time.
An original CCD camera was developed exclusively to create the highest quality images.
As a result, high-resolution images can be transferred quickly allowing video to be observed on PC screens.
High quality imaging with cost effectiveness in mind.
|
|
Mantis Compact excels in the low magnification range for inspection or manipulation tasks where bench magnifiers have traditionally been used. Mantis Compact has a small footprint and low investment cost giving a superb price / performance ratio.
Patented optical technology allows operators freedom of head movement for superb ergonomics and hand-eye co-ordination, with the ability to wear glasses if required. Operators can increase productivity and improve quality, at an affordable price.
Mantis Compact offers: Superb hand-eye co-ordination for inspection and manipulation tasks; a choice of x4, x6 quick change objectives; Bright white, true colour, LED illumination providing over 10,000 hours of shadow-free viewing.
|
|
MicroInspector II with microscope optic and big TFT
Inspection system for optical inspection with rigid endoscopes and microscope optics
The modular design allows all types of inspection using one system. This includes a sophisticated XYZ manipulator with a special object mount system, a MegaPixel camera set-up and an innovative Xenon lamp illumination system. One system provides both overviews and microendoscopic details.
|
|
The measuring software SAPHIR makes this microscope an universal, though manual 2D-microscope, state-of-the-art tool. Esspecially while making first samples, the WM1 in combination with SAPHIR takes full advantage of its strenghts and capabilities.
Modular design, high optical quality via especially good surface light illumination and an excellent data reporting, these are prominent features of these microscopes.
|
|
|
|
|
|
AM413ZT - Dino-Lite PRO (Polarizer)
The handheld digital microscope AM413ZT is a product extended from
handheld digital microscope AM413T by adding rotatable polarizer filter.
Simply by rotating the polarizer filter, the handheld digital microscope
AM413ZT could amazingly decrease the reflection glare to almost any extent, and could thus help the user see through the surface of fully or partially transparent materials, such as jewerly, skin, glass, and plastic, or see clearly the high reflectivity materials, such as metal or soldering. The handheld digital microscope AM413ZT could be very userful in some application including PCB, printing, machining, textile, jewerly, or skin care etc.
Product Features:
*Resolution: 1.3M pixels
*Adjustable magnification: 10x~50x, 200x
*Built-in 8 white-light LED illumination (software switchable)
*MicroTouch snapshot
*Frame rate: up to 30fps
*Interface: High speed USB image transmission (PC)
*Dimension:10cm (Height) *3.2CM (R)
*Software: DinoCapture
*With measurement & calibration capabilities
Support Operation System: Windows Vista, XP Professional x64 Edition, XP, 2000, or Windows Server 2003
|
|
The VDM-E/Z™ is available with two interchangeable optics options:
- Patented Extended Depth of Field (EDF) Objective with on-axis lighting
- Zoom Objective with fiber optic ringlight and add-on lenses
The system is complete with fiber optic lighting and is available with a number of options to enhance its versatility. When inspecting small parts from any angle, VDM is the effortless clear choice.
|
|
New Mantis combines the viewing ease of bench magnifiers with the high resolution of a microscope. Bench magnifiers have magnification and resolution limitations, while conventional-eyepiece systems are inherently difficult to use.
The Mantis large viewing area promotes maximum comfort while producing razor sharp, three dimensional stereo images.
The Mantis Elite hosts x4 - x20 magnification options with quick change turret allowing users to switch between low magnification inspection and high magnification fine detail tasks. Bright white, true colour, LED illumination providing over 10,000 hours of shadow-free viewing.
|
|
The Alpha Stereo Binocular Microscope utilises Vision Engineering's patented ISIS Exit Pupil Expansion technology to provide up to 10x greater freedom of head position than conventional binocular eyepiece systems.
ISIS technology expands the available optical pupil by means of multilenticular optical surfaces, allowing the operator more than 38mm of head freedom from the eyepieces.
Alpha eliminates the need for users to precisely align their eye with the centre of each eyepiece. A small movement of the eye no longer means losing part of the field of vision, as the pupil easily stays within the latitude of the twelve-times-wider exit ray bundle.
Users can simply move their eyes to view the full image area, rather than repositioning their heads or the workpiece to operate within the constraints of a narrow conventional exit field.
Spectacles or contact lenses can thus be worn in comfort during use.
|
|
New Hirox All in one Digital Microscope System with 2 Zoom Lenses (20x-160x and 50x-400x) and Standard Stand
Very easy to use and to transport, excellent image quality, Remote control for more ease of use.
Main unit with 2.1 Mega pixel video CCD
- Image recording,
- High resolution UXGA 15 inches Flat Screen with Multi Screen fonction
- TWAIN connection with PC,
- Compact Flash Card recording.
2 Zoom Lenses with LED directional Lighting:
- 20x to 160x magnification (Working distance: 44mm - Field of view: 15.4 - 2.0mm)
- 50x to 400x magnification (Working distance: 54 mm - Field of view: 6.1 - 0.78mm)
Standard Stand with Extension Pole (ST-HE)
Options: 2D measurement software, XY table, Lens Contact Adapter
|
|
|
KH-7700 Digital Microscope System is HIROX's newest most advanced development. The digital camera, light source, LCD monitor, computer and software are all integrated into this one unit. The KH-7700 provides the user with the ultimate in high performance observation, measurement, analysis, recording, management, and output.
|
|
EasyInspector
The EasyInspector is a portable high-resolution video microscope with autofocus (Full HD resolution available).
The device has a modular design and is suitable for visual quality control, i.e. as a video magnifying glass with a magnification rate of up to 300.
The EasyInspector is a fully integrated system appropriate for visual tests. The camera has a resolution of 0.5 mega pixels, and the system includes a 8.5" TFT LCD display.
|
|
|

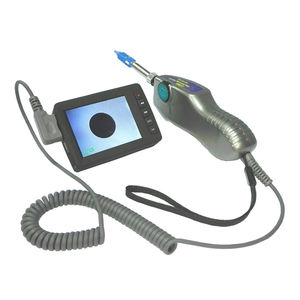

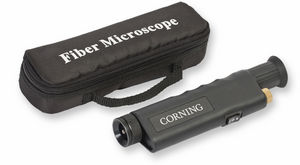

Benchmark microscope for field inspection of fibre optic connectors for contamination or damage. Available in 200x, 400x and 200-400x zoom versions with adapters for all popular connector types the PriorSpec II offers a high degree of flexibility along with the highest image quality of its class.
|
|
The StarLite GX is the newest design in a complete non-contact inspection system with interactive measurement capabilities at your fingertips. It is everything you need for accurate video measurement.
Interactive Measurement at your fingertips
StarLite GX - fast, accurate and repeatable results you expect from a measurement system.
StarLite GX is designed for ease of use, with ergonomic controls, and innovative full-featured software. Increase your productivity with optional front panel controls - motorized zoom, XYZ zero set, enter point button, skew alignment, and an inch/millimeter switch.
eGx metrology software guides users through measurement routines with graphical icons, and unique tools for fast results on a manual measurement system.
|
|
|
|
|
|
LED illumination and Fiberoptics
SATURN – LED ring light for high level illumination
SATURN is a LED illumination used for the optimal light contrast for stereomicroscopes. Made of premium black-anodized aluminium housing, SATURN features 80 highlighted LEDs, which can be divided into 8 segments.
With the built in joystick on the light controller, you have the possibility to switch between each segment and its combinations. With the brightness wheel on the light controller, every single segment can be dimmed separately. It also features a memory function, where you can store 9 different illumination settings, which can be easily called up later.
With SATURN, you have two ways to take control over your ring light.
Joystick and brightness wheel on the light controller, but you also have a built in USB interface, which gives you the possibility to adjust the ring light using your PC.
Dimensions of the ring light are - outer diameter of the ring is 114mm, the inner diameter is 66mm. With the adapter rings available, you can use the ring light for objectives with diameters from 58mm to 66mm.
VENUS – Compact ring light
Also made of premium black-anodized aluminium housing, VENUS ring light also features highlighted LEDs, which can be dimmed with a brightness regulator on the light controller.
Although VENUS ring light is not divided in segments, with its alternatively 40 or 80 highlighted LEDs, it creates a very bright and homogenous illumination of the object.
Also available:
MARS – fiberoptic coldlight source for microscopy and general illumination
|
|
Mantis combines the viewing ease of bench magnifiers with the high resolution of a microscope. Bench magnifiers have magnification and resolution limitations, while conventional-eyepiece systems are inherently difficult to use.
The Mantis large viewing area promotes maximum comfort while producing razor sharp, three dimensional stereo images.
The Mantis Elite hosts x2 - x20 magnification options with quick change turret allowing users to switch between low magnification inspection and high magnification fine detail tasks. Bright white, true colour, LED illumination providing over 10,000 hours of shadow-free viewing.
What is more, the Mantis Elite bench stand option benefits from both reflected and transmitted light and the added advantage of optimum stability with the floating stage, for intricate tasks and requiring careful manoeuvring.
|
|
Lynx VS8 is an advanced stereo zoom microscope for Printed Circuit Board inspection and is ideal for all electronics applications including fine pitch, surface mount, TAB and BGA technology.
The Lynx VS8 consists of a stable, high capacity scanning stage that provides free floating movement for all sizes of board, including double sided PCBs. Stage can be locked for precision inspection tasks (x-axis, y-axis, or both). Complete with earthing point for static safe inspection.
Lynx VS8 provides magnification from x7 - x40 within the standard zoom range. An oblique and direct viewer can also be added to the modular system allowing the operator to view a subject direct or from an angle of 34° from vertical, which can be rotated through 360°.
|
|
| ... products without technical information |
| |
The SPIRIG portable microscopes are designed and manufactured as a compact
assembly of a lens case, containing the microscope itself, with a battery
compartment and a light source. Two models of the SPIRIG portable microscope
are available: SPIRIG 30X and SPIRIG 100X. Powered by two AA-size
alkaline batteries, the SPIRIG 30X and 100X microscopes provide their own
light source to illuminate whatever requires very close examination. The microscope
itself weighs 100 grams and its size measures 140 mm long, 45 mm
wide, and 20 mm deep. The SPIRIG 100X microscope also comes with its own
stand and object holder clips.
|
|
|
|
