DF PROFI II PCI/PCIe/CPCI/PC104+
High performance PROFIBUS DP/DPV1 interface
The DF PROFI II is a high performant PROFIBUS DP/DPV1 board of the newest generation and is available as PCI, PCIe, CompactPCI and PC104+ board. The DF PROFI II PCI interface supports 5V and 3.3V 32 Bit PCI slots, so it can be used in server pcs and workstations without problems. Beside the standard DP/DPV1 PROFIBUS services the board implements useful additional options.
The implemented hardware watchdog allows the electrical switch off of the PROFIBUS interface, that allows the board to be used in redundant DP Master concepts with 2 pc systems.
The process image contains except I/O data and status information a relative time stamp with millisecond resolution.
The DF PROFI II board needs for the data exchange of the process image only round about 1 ms with common I/O data sizes up to 3 Kbytes and stores the PROFIBUS configuration data in a failsafe flash memory.
For the compilation of the PROFIBUS configuration a very powerful and comfortable tool is available. The DF PROFI II board supports beside the popular operating systems Windows 2000/XP and Linux (SUSE, Redhat, Fedora) real-time operating systems like LINUX RT and LabVIEW RT.
|
|
|
Advantech is a global leader in plug-in I/O card design and manufacturing, providing a full range of industrial data acquisition (DAQ) and control products which are widely used in industrial and laboratory applications such as: monitoring, motion control, data acquisition, and automated testing. There are six major categories - CompactPCI, PCI-bus, ISA-bus, USB-bus, PC/104 modules, and Motion Control I/O products. With rich wiring terminals and extensive software support, Advantech provides reliable, efficient, and cost-saving industrial solutions. Moreover, Advantech’s DAQ products could simply be bundled with versatile industrial PC chassis, backplanes, CPU modules, flat panel monitors and embedded automation computers.
|
|
|
|
|
|
The interference-free PCI Express boards with numerous protective measures are especially suited for applications in rough industrial environments.
Analog multifunction board APCIe-3121:
- 16 SE/8 diff. or 8 SE/4 diff. inputs, 16-bit
- 8/4 analog outputs, 16-bit
- Optical isolation
- PCI express DMA, programmable Gain
- Trigger functions, timer, watchdog
- 8 digital I/O, 24 V, optical isolated
1- to 8-port serial interface APCIe-7xxx:
- Serial interfaces with modules: RS232, RS422, RS485, 20 mA CL
- Free mode configuration for each port
- with/without optical isolation
- 128-byte FIFO buffer for each port
Multifunction counter board APCIe-1711: for many counting applications on the same hardware base – Programmable FPGA modules
- Functions: Incremental counter, SSI, counter /timer, pulse acquisition, frequency, pulse width, period duration , velocity measurement, PWM, BiSS-Master, …
- Function selection through software
- Optical isolation 1000 V
- Customer-tailored functions
Digital I/O boards APCIe-1532 and APCIe-1516, 24 V:
- 32 or 16 I/O, 24 V
- 15 interruptible inputs
- Reliable switching to „0“ or „1“, even in case of interferences
- Optical isolation 1000 V
- Output current per channel 500 mA
Free drivers for standard operating systems and programming samples.
|
|
|
Very High speed load cell interface that was especially designed for WIM application either trucks or trains. The LCIC-WIM comes with embedded application calculates "on the fly" the axle weight, axle speed and distance between axles. With 52000 samples per second high resolution A/D and powerful DSP that runs the WIM application on board, it consider to be the fastest and most intelligent Load Cell Interface that is available today in the market. The LCIC-WIM equipped with USB and RS232/485 and comes with drivers and full examples on how to communicate with the board and our monitoring package that helps to analyze the scale behavior under different speeds.
|
|
Overview
Moxa's new CP-602U-I CAN (Controller Area Network) interface board supports the Universal PCI interface. As a stand-alone CAN controller, the CP-602U-I is a cost-effective solution that provides two active CAN controllers with a DB9 connector on the same board. The CP-602U-I CAN interface board uses the NXP SJA1000 and transceiver PCA82C251, which provides the bus arbitration and error detection. The -40 to 85°C wide operating temperature (CP-602U-I-T only) and 2 KV isolation make the boards suitable for use in harsh industrial environments.
Features:
CAN 2.0A and CAN 2.0B supported
Two independent CAN communication ports
CAN transfer rate up to 1 Mbps
2 KV optical isolation protection
LED for transmit/receive status on each port
Optional 120 ohm terminal resistor for CAN bus network
DLL library and examples included
Windows driver provided
|
|
|
|
|
|
PCI-X BUS Serial Port Expansion
RocketPort INFINITY cards are flexible, reliable, and high-speed in-server serial port expansion cards. They provide connectivity for applications like factory systems, SCADA systems, point-of-sale, telecommunications, medical systems and traffic equipment. Connect serial devices like printers, scanners, cameras, and LCD screens.
The RocketPort INFINITY product family is Comtrol’s next generation multi-port serial adapter. Products are fully compatible with systems that have 32 or 64 bit 3.3 or 5 volt uPCI and PCI-X expansion slots. The INFINITY design maximizes serial performance via Comtrol’s exclusive high-performance Unity ASIC chip. Cards are low profile and are for use in both standard PCs and low-profile servers. Quad-cabled and octa-cabled products reach serial communication speeds of 921 Kbps and products with an interface communicate at up to 460 Kbps. All products support software-selectable RS-232/422/485 serial communication modes. The product family includes models from 4-ports up to 32-ports with up to 128-ports per system. They provide an infinity of options for connecting and communicating with your devices.
Highlights
32 or 64 Bit 3.3 or 5 Volt uPCI or PCI-X Connectivity
Low-profile or Standard Height Compatible
RS-232, RS-422, RS-485 Software-selectable
4- to 32-Port Interfaces
High Performance Cards with Speeds up to 921 Kbps
RoHS Compliant
Microsoft Certified Drivers for Windows VISTA, Windows XP and Windows Server 2003
|
|
|
|
|
|
Protech Systems Co., Ltd., the leading provider of industrial computers, continues to innovate with the introduction of the powerful and cost-effective PCI-381LF half-size CPU card. Powered by an onboard VIA Mark 533 or 800 MHz CPU and VIA VT828626B Southbridge, the PCI-381LF delivers reliable, high performance operation with the durability needed by a range of industrial and embedded computing applications.
The PCI-381LF÷Õ onboard VIA Mark 533 MHz CPU provides great fanless performance with superb vibration resistance. The integrated graphics controller offers 18/24-bit TTL and an 18/36-bit dual-LVDS, LCD or CRT display output ideal for graphics-driven control and automation processes. The PCI-382LF CPU card features a 133 MHz Front Side Bus and supports a maximum of 512 MB in a single PC100/133 SODIMM SDRAM. A 40-pin IDE connector is onboard for higher-capacity hard disk drives, while a PC/104 slot provides scalable expansion for feature upgrade. The PCI-382LF offers a 16-level selectable watchdog timer and reset/NMI functionality for unattended application support. The PCI-382LF can support AT or ATX power. Wake-on LAN supports remote booting with ATX power.
|
|

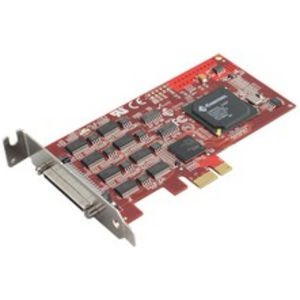

PCI Express BUS Serial Port Expansion
RocketPort EXPRESS serial cards are flexible, reliable, and high-speed in-server PCIe slot serial port expansion cards. They provide serial connectivity for applications like factory systems, SCADA systems, point-of-sale, telecommunications, medical systems and traffic equipment. Connect serial devices like printers, scanners, cameras, and LCD screens.
Highlights:
- PCI Express x1, x2, x4, x8, x12 and x16 Lane Connectivity
- Low-profile or Standard Height Compatible
- RS-232, RS-422, RS-845 Software-selectable
- 4 to 32-Port Interfaces
- High Performance Serial Cards with Speeds up to 921 Kbps
- RoHS Compliant
|
|

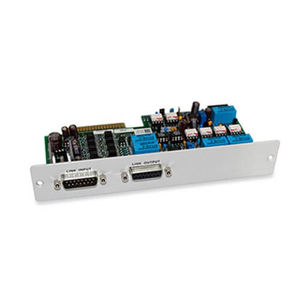

Has been designed for electronic weighing systems using strain-gage load cells. - Hopper and silos weighing - Platform scales - Batching and weighing systems - Weighing for intrinsically safe installations.
MAIN FEATURES :
- Heavy duty and small size construction
- Corner correction trimmers
- Six wire extension cable terminal board
|
|
PROFIBUS interface cards
(PCI, ISA, PC/104, PCMCIA, USB)
-One- and two-channel
-Master or slave, master and slave
-Form factors: PCI, ISA, PC/104, PCMCIA, USB (high speed)
-Drivers for Windows, Linux
-Toolkit for developing customer-specific drivers for PC/104
-OPC server available
|
|
CAN / DeviceNET interface cards
-One- and two-channel
-Form factors: PCI, ISA, PC/104, PCMCIA, USB
-Drivers for Windows
-CANopen API, DeviceNET API available
|
|
|
|
|
|
As a Universal PCI card, PBpro PCI is compatible with both the 5 V signal levels of traditional PCs and the 3.3 V signals used primarily in modern server PCs. The small form factor of the one-channel card means it can also be used in compact "low-profile" systems.
The one-channel PBpro PC/104plus card is particularly suited to use in compact industrial computer systems in the PC/104 format. In keeping with the development of this standard, the card uses Universal PCI as the interface to the CPU board. The card also has an ISA interface which is passively passed on to the many peripheral cards which still require it.
All of the cards mentioned work as a PROFIBUS master or slave and support DP-V0, DP-V1 and DP-V2. Furthermore, any number of other PROFIBUS applications can be realized through an FDL interface. The package includes drivers for Windows XP and 2000. Other operating system drivers are currently in preparation.
Connections to the application can be established directly through the application programming interface (API), which is compatible with the other PROFIBUS cards from Softing; the programming examples that are included make integration easy. Additional software products are also offered which enable connections to visualizations (via the PROFIBUS OPC server).
|
|
|
Qualcomm’s MDDI standard provides a proven solution for the interconnect challenge between the upper and lower clamshell in a flip phone. The MDDI high-speed solution supports variable data rates of up to 3.2 Gbps. The solution decreases the number of signals that connect the digital baseband controller with the LCD display and camera from as many as 90 to as few as eight pins plus power. This reduction in the interconnect complexity decreases the cost of interconnect, increases reliability and reduces the complexity of handset integration by eliminating multiple synchronous high-speed signals through the hinge in advanced multimedia handsets equipped with high-resolution LCD displays and cameras.
|
|
In addition to use in cars and commercial vehicles as well as in mobile systems of all types (e.g. public transport vehicles, elevators, ships, trains, special-purpose vehicles, airplanes etc.), CAN is being used increasingly in industrial automation technology and in a large number of embedded systems in various fields of application - from coffee machines to kidney stone lithotripters. Based on the standardized higher protocols and profiles CANopen and DeviceNet, complete solutions for the implementation of distributed applications are available for system implementation.
In addition, standardized communication mechanisms, identifier assignment, network management functions and numerous device and application profiles enable interoperability and exchangeability of devices from different manufacturers. In addition to the implementation of very low-cost system solutions, CAN-based networks have a series of special features compared to other system solutions
|
|
|
Intel networking solutions boost reliability and productivity using best-of-breed technologies for fast, flexible connectivity throughout the network. This is Intel's award-winning line of desktop and server adapters designed to meet businesses' needs for fast, reliable, more secure network environments with Ethernet, Fast Ethernet, Gigabit Ethernet and now 10 Gigabit Ethernet technology.
|
|
|
Designed for requirements from 4 to 8 ports, these intelligent serial I/O adapters dramatically increase data throughput and enhance overall system response.
|
|
FAS-PCI Main Board
Selectable 64-point I/O to Input/Output/Latch
I/O main board using parallel direct connect type
Input/Output isolated by photocoupler
Slave module selectable Input/Output/Latch function
|
|
CANnes
Description
CAN-Bus PCI-Card with open source Linux driver
The CANnes card is a PCI card which provides a simple, easy to use CAN interface. It is equipped with a male and a female 9 pin Sub-D connector with standard CAN pin assignments. CAN bit rates between 10 and 1000 kBit/s (1MBit/s) are possible. The industry standard CAN controller SJA1000 is used together with the CAN bus driver 82C250 and optical isolation between the CAN controller and the CAN bus driver. A 120 ohms termination resistor is also provided. This resistor can be switched on and off either by a software controlled relay. Device drivers and function libraries are provided for the Windows (98/ME/2000 and NT4) operating systems and also for the Linux operating system. The CANnes cards is CE-approved and also meets FCC specifications. It can be used with every PC which is equipped with PCI slots fulfilling at least the PCI 2.1 standard.
|
|
|
The Imaging Source - an international manufacturer of industrial cameras, video converters and frame grabbers announces today a new series of PCI-Express frame grabbers. The models ship with a number of different video inputs. Some models are available for low profile PC cases. The Imaging Source frame grabbers are deployed for applications in which analog video signals (PAL, CCIR, NTSC, RS-170) need to be processed by a PC. In addition to cameras, such video input devices include ultrasound and x-ray machines. Analog cameras are not only used in legacy applications. Often they are preferred for price sensitive projects, in which long cables are required. The Imaging Source frame grabbers ship with drivers for Windows, the SDK 'IC Imaging Control' and the end-user application software 'IC Capture'. The latter is a powerful software that allows the setting of all frame grabber parameters, the display of live video stream and the acquisition of singular images and sequences.
|
|
|
|
|
|
- 24 channels of digital I/O with selectable 3.3 V and 5 V logic levels:
- 8-bit Port A, 8-bit Port B, 8-bit Port C (may be made up of 4-bit C-HI, and 4-bit C-LO)
- Fully plug and play
- Emulates 82C55 mode zero
- Software selectable pull-up and pull-down resistor configurations
- Digital I/O lines are accessed through a 37-pin D-type connector
The PCIe-DIO24 is a 24-channel digital I/O board with selectable 3.3 V or 5 V logic levels for PCI Express bus compatible computers. The 24 bits function as an 8-bit Port A, an 8-bit Port B, and an 8-bit Port C, which may be further divided into two 4-bit ports (Port C-HI and Port C-LO).
There is a 10 kilohm pull-up/pull-down resistor network associated with each digital port. Their direction is software selectable and stored on the board, so the user can use the board in a different PC without running configuration software: simply set the board number in InstaCal.
The PCIe-DIO24 is connector and software compatible with Measurement Computing's highly popular PCI-based PCI-DIO24 and ISA-based CIO-DIO24 boards, making migration from the ISA or PCI bus about as simple as unplugging the digital I/O cable’s 37-pin connector from the old board and plugging it into the new one. The PCIe-DIO24 is also supported by the same wide variety of external relay and solid state I/O module racks.
The PCIe-DIO24 is completely plug-and-play. There are no switches, or jumpers on the board. All board addresses, interrupt channels, etc. are set by your computer's plug-and-play software.
|
|
|
|
|
|
PCI334A Four-Port High Performance WAN Communications Adapter
Our PCI334A Intelligent Synchronous WAN Communications Adapter provides four high performance synchronous/serial channels for WAN connectivity. The adapter is ideally suited for use within SS7 nodes - or as an interface to T1 routers, DSU/CSUs, frame relay access devices, high speed modems or other high speed communication devices.
The PCI334A continues Performance Technologies' role as a leading supplier of hardware, software, system solutions and technologies for embedded applications.
Highlights
Multipurpose intelligent WAN communications adapter
Four high-speed channels capable of sustaining 2 Mbps per port
Four MB of shared SRAM memory
Universal I/O supporting 3.3V and 5V
Support for 33MHz and 66MHz PCI Bus
Increased RS-232 support allowing for data transmission range of up to 100Kbps
Existing PCI334 software compatible with PCI334A
Integrated WAN Communications Software includes Radar Receiver/SBSI, HDLC, Frame Relay, LAPD and X.25
Broad operating system support includes: Solaris®, Windows®NT and Linux®
|
|
