Direct analysis by Ion Chromatography is attractive for Halogen and Sulfur.
But various material has to be prepared adequately to the aqueous solution. To do this, bomb-absorbing method is often used. Even this method there are issue that abnormal combustion could occurred for polymer and organic solvent sample, and also way of absorbing requires know-how to obtain sufficient result.
Automatic sample combustion AQF -100 is able combustion - Ion chromatography measurement by automatically. This instrument enable low level analysis of Fluorine/Chlorine/Bromine/Iodine/Sulfur of organic, inorganic sample in faster and easier.
By combine of sample combustion and IC, halogen/sulfur analysis of organic and inorganic sample is able more easily than before. It is applicable for various industries like polymer, additives, composite for electronics, coal, cement, etc.
|
|
|
|
|
|

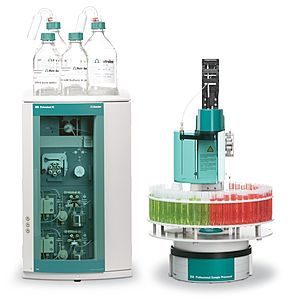

881 Compact IC pro / 882 Compact IC plus for ion chromatography.
Intelligent. Reliable. Precise.
The 881 Compact IC pro and the 882 Compact IC plus are ideal for users in all fields with clearly defined analytical requirements. These instruments ensure the rapid and safe determination of anions, cations and polar substances in the parts per billion (ppb) to the percent (%) range.
All intelligent functions of the Professional IC instrument series have been integrated into the
new compact instruments 881 and 882: iPump, iDetector, iColumn technology. These features guarantee precise results and help prevent operator errors. The MagIC NetTM chromatography software controls all system components and monitors all parameters that are relevant to the chromatographic analysis.
The highlights
• Intelligent ion chromatography
• For routine analyses that satisfy the highest demands in the range ppb – ppm – %
• Limits of detection <1 ppb
• Space-saving footprint, compact design
• Excellent price-performance ratio
• Complies with all GLP and FDA requirements
• Intelligent system components: iPump, iDetector, iColumn
• System control by MagIC NetTM
• Comprehensive monitoring and control functions
• Wide range of automation options
• Unique Metrohm Inline Sample Preparation – MISP
• Reliable, accurate and precise ion analysis
|
|
|
The easy-to-use ICS-1600 system provides excellent performance with isocratic IC methods. Run 2 mm columns routinely to greatly reduce eluent costs. Add automated sample preparation capabilities (matrix elimination and filtrate, for example) with the optional, integrated 6- or 10-port sample prep valve. With dual-piston pumping, electrolytic suppression, and column heater all standard, this compact, integrated instrument offers outstanding sensitivity and stability.The vacuum degas option delivers even quieter baselines for trace-level work. Operate in manual or automated mode using a convenient touch-screen status panel or Chromeleon® software. For traditional IC applications, the ICS-1600 is a great choice.
|
|
The award-winning ICS-3000 meets a wide and ever-increasing range of application needs. From an entry-level IC for routine, dedicated analysis to a high-throughput, dual RFIC TM system, the ICS-3000 is truly designed for versatility and productivity. The system can be upgraded to a dual system configuration—without taking up more valuable laboratory bench space.
Significant performance enhancements make the ICS-3000 the most reproducible, stable, and sensitive ion chromatography system available today. Dramatic improvement in flow rate accuracy, eluent generator electronics stability, and conductivity cell temperature control increase baseline stability and enhance sensitivity. Each module offers new innovations for increased performance and help your lab become more productive.
|
|
CPC and Prep HPLC have some similarities:
- Same objectives : high purification of all kinds of molecules at Prep and industrial scales
- Same fundamental chromatographic process.
- Identical peripherals : pumps, injectors, inline detectors and fraction collectors.
|
|
| ... products without technical information |
| |
Ion chromatography should be fun and should not get on your nerves. Metrohm does everything it can to ensure that your IC system will work reliably with minimum service, maintenance and costs. Metrosep separating columns stand for good quality, a long working life and excellent results.
Some of our new columns for ion chromatography:
Metrosep Dual 4 - 25
Separation of some standard anions in less than a minute, e.g. nitrate in just 45 seconds - faster than many FIA systems.
Metrosep A Supp 7 - 250
Separation column for the simultaneous determination of the standard anions, the oxo halides and dichloroacetic acid.
Metrosep A Supp 10 - 50
Allows very fast separations of the standard anions. Ideal for straightforward separation tasks and non-critical matrices.
Visit our homepage to see our whole range of ion chromatography columns.
|
|
|
|
|
|
IC and RFIC Columns
Hydroxide-Selective Anion Columns
Hydroxide-selective, anion-exchange columns are optimized for use with a hydroxide eluent. Choose a hydroxide eluent column for use with an eluent generator for gradient work or trace analysis. Hydroxide eluents for isocratic or gradient elution are very convenient with Reagent-FreeTM Ion Chromatography (RFICTM) technology using electrolytic generation of the eluent. RFIC technology simplifies methods development for hydroxide-gradient systems since the electrolytic eluent generator provides gradient methods that are simpler to use than manually prepared isocratic eluents. Modern continuous-eluent-suppression systems are designed to suppress hydroxide eluents, even at very high eluting strengths.
Carbonate-Based Anion Columns
Each of these anion-exchange columns are optimized for use with a carbonate/bicarbonate eluent. Carbonate eluent columns are useful for well-characterized isocratic separations, including regulated methods for drinking and wastewater.
Specialty Anion Columns
Specialty columns are anion-exchange columns that can be used with nonsuppressible eluents such as nitric acid in combination with a variety of detection modes, including amperometric and UV-VIS detection.
Cation Columns
Cation-exchange columns are designed for high-resolution separations of inorganic cations, ammonium, amines, and transition metals. These columns provide an excellent approach to separations of alkylamines, alkanolamines, and quaternary ammonium ions.
Transition Metal Columns
Transition metal columns are designed for determination of transition and lanthanide metals in diverse sample matrices.
Ion Exclusion Columns
In ion-exclusion separations, Donnan exclusion causes strong acids to elute in the void volume of the column. Weak acids that are protonated in the acidic eluent are not subject to Donnan exclusion and penetrate into the pores of the packing. Separation is accomplished by differences in pKa, size, and hydrophobicity.
Trap Columns
Trap columns are short columns installed in the system to prevent unwanted analytes from interfering with the separation of your analytes of interest. IonPac trap columns contain high-capacity, low-efficiency, ion-exchange resin. The columns strip trace contaminants from the eluent and prevent them from reaching the guard and analytical columns. The trap is installed in the eluent line prior to the injection valve to prevent spurious peaks during gradient chromatography. These trap columns are specialized columns that remove unwanted analytes from the sample, and are installed before the analytical column.
Concentrator Columns
IonPac concentrator columns are designed primarily for high purity water analysis. The concentrator column strips ions from a measured volume of an aqueous sample matrix, concentrating the analyte species and lowering detection limits.
|
|
|
|
|
|
The MCX314As is a high-speed 4-axes motion control chip for stepper or pulse-type servo motor drives and interpolation controls. All of the MCX314As's functions are controlled by specific registers. There are command registers, data registers, and mode registers. Its very powerful functions simplify complex motion control. The MCX314As is a highly advanced ASIC.
Features
* 4-axes independent position/speed control for stepper/pulse-type servo motor drives
* Max. speed of 4 MHz, pulse output and encoder feedback frequency
* 4 MHz speed available for point to point, linear, and circular moves
* Selectable pulse and direction or up/down outputs for each axis
* 32-bit command and actual position registers
* Programmable S-curve, trapezoidal or contoured profiles
* Linear interpolation of any 2 or 3 axes out of 4
* Circular interpolation of any 2 axes out of 4
* Bit pattern interpolation of any 2 or 3 axes out of 4
* 32-bit compare registers (breakpoints) for each axis
* On the fly control of position and speed
* Dedicated inputs for each axis (limits, In-position from amplifier, amplifier alarm)
* Emergency OFF input for all axes
* Dedicated outputs for each axis (in motion, accelerating, decelerating, compare + and -)
|
|
General Description
The FAN8434 is a camcorder one-chip motor driver IC. It is composed of capstan motor driver , drum motor driver and loading motor driver
Features :
* Capstan motor drive block
- 3-phase, linear BLDC motor driver with 3 hall sensors.
- Built-in FG amplifier.
- Forward and reverse rotation function.
- Built-in amplitude limiter.
* Drum motor drive block
- 3-phase soft commutating sensor less drive method.
- Built-in FG amplifier.
- Built-in PG amplifier.
* Loading motor drive block
- Single phase H-bridge driving method.
- 4-mode selection function(forward, reverse,
brake,standby).
* Common block
- Built-in TSD(thermal shut down)
- Built-in 4-normal op-amp.
|
|
|
The PIC-SERVO SC Motion Control Chip is a complete servo motion control system based on the PIC18F2331 microcontroller. It executes all of the real time processes (PID servo filter, motion profiling, commutation, error monitoring, communications) needed for controlling your motor. The simple serial NMC communications protocol lets you easily connect your microcontroller or PC host computer to multiple controller chips.
|
|
MSK offers a large selection of high performance parts for driving or controlling motors. From simple, compact bridges to complete brushless DC torque amplifiers. Our high performance, high reliability products are used on such critical applications as the gimbal drive for the PAC-3 (Patriot Advanced Capability 3) Missile's millimeter wave radar and the thermal imager on the Bradley Fighting Vehicle. Other programs include the steerable antenna on the Predator and Global Hawk UAV's, and many more.
- Output Current from 5 Amps to 600 Amps
- Supply Voltage Range from 55 Volts to 1200 Volts
- Both Hermetic and Plastic Encapsulated Modules (PEM) available
- Fully Isolated Versions Available
|
|
Integrated Circuits
Trinamic offers comprehensive IC solutions to control and drive electric motors. We focus on developing Application Specific Standard Products (ASSPs) for motion control. These dedicated ICs offer an economic approach to time critical motion control tasks thus lowering total system cost.
Extensive experience in IC design and drive technology enables us to effectively serve our customers. Our applications range from high volume automotive and computer peripherals to industrial embedded systems.
|
|
HVICs
* General Purpose ICs
* Single Driver ICs - High Side
* Single Driver ICs - Low Side
* Dual Driver ICs - Low Side
* Dual Driver ICs - Independent Low and High Side
* Dual Driver ICs - Half Bridge
* 3-Phase Driver ICs - Independent Low and High Side
* 3-Phase AC Motor Controller ICs
|
|
|
|
|
|
TMC428
Description
3-axis economic miniature microstepping stepper motion controller
The TMC428 is a miniaturized low cost, but high performance stepper motor controller for up to three motors. It integrates all real time critical tasks in reliable, dedicated hardware: An integrated motion ramp profile generator as well as an adaptable microstep sequencer with microstep RAM table. Advanced stop- and reference switch handling allows for precise and fast referencing as well as on-the-fly position checking. Automatic motor current control gives high motor dynamics while saving energy. The interrupt output can generate precise position pulses.
The TMC428 connects to the TRINAMICs SPI™ drivers (TMC236,TMC239,TMC246 and TMC249) or to Step-/direction drivers. A second SPI™ interface allows communication with a host microcontroller. The host microcontroller just needs to do high-level control tasks, e.g. giving the command: Drive motor 2 to position 1000. The TMC428 then automatically calculates the motion ramp based on velocity and acceleration parameters.
The TMC423 adds encoder functionality as well as step- direction impulse forming to the TMC428. Evaluation Boards, application notes, spreadsheets for parameter calculation, C code examples and schematics are available in order to support short design-in times.
TMC 428 - The small but intelligent Controller:
* Miniaturized low-cost 3 axes motor controller
* High-performance micro stepping
* SPI interface with easy-to-use protocol
* On-the-fly alteration of position set point
|
|
|
|
|
|
TMC454
Description
1-axis stepper motion controller with S-ramps and encoder feedback
The TMC454 is the direct successor of the TMC453 and is 100% software compatible.
The TMC454 is a high-end motor controller for all common 2-, 3-, and 5-phase stepper motors. It provides encoder feedback for high reliability or high position resolution drives. A large set of motion control features is included on this IC. The various function blocks are hardwired and „ready-to-use“. All processes can be serialized using the instruction based interface. A complete linear & S-shaped ramp generation unit is integrated within the TMC454. All dynamic parameters can be adjusted for a given application in a very broad range. The CPU is relieved from all time critical tasks like ramp calculation or microstep generation. Thus CPU and software engineer can focus on higher level motion control
jobs. In many applications, the TMC454 reduces the time time-to-market, and it saves costs for software development and hardware engineering. The TMC454 turns stepper motors into easy to use peripherals!
The TMC454 is upwards function compatible to its predecessor TMC453.
|
|
Matrix motor: DC, DC brushless trapezoidal tri-phase, AC mono-phase
Voltage: 6..60VDC
Description (single line): Base module, 16-bit, 2 independent MosFet/IGBT drivers, monitoring / data processing blocks
|
|
| ... products without technical information |
| |
| ... products without technical information |
| |
| ... products without technical information |
| |
| ... products without technical information |
| |
| ... products without technical information |
| |
HEATING WIRE IC RANGE - for cold room doors and refrigerated showcases
Applications :
. Framing of cold room doors and negative cabinets
. Doorstep of cold room
. Demisting of refrigerated showcases
advantages :
. No over-thickness at junctions heating part/cold leads
. Heating part and cold leads are mechanically and electrically shielded
caractéristiques techniques :
. Maximum maintening temperature (power ON) : 140 °C
. Maximum exposure temperature (power OFF) : 180 °C
. Standard power : 30W/m
. Standard voltage : 230 V
. Standard lengths (multiple of 0.5 m) : from 1 to 8 m
. Tinned-copper braid from one end to the other end
|
|
|
|
