A logistic solution, economic and reliable for short-distance transportation with frequent stops
Autonomous isothermal container with temperature control
Secure refrigerated transport (+2°C to +12°C),
permanent temperature display
Temperature traceability
Advantages against a refrigerator car
Thanks to this technology, your car park can do without refrigerator cars, costly in purchase, fuel consumption and maintenance.
A standard utility vehicle can be equipped for bi or tri temperature transport.
Continuous cold production even during vehicle stops.
|
|
Insulated Rolls are particularly well suited to the food supply chain from warehouses to points-of-delivery or any other logistics networks with multi-destinations. Distribution is a very sensitive phase of the cold chain because of handling, loading and unloading and frequent door openings of the vehicle.
The insulated ROLL is a very flexible solution suited to most logistics organisation,
and ensuring perfect thermal safety throughout the cold chain :
- waiting on distribution centre docks and transport at ambient temperature.
- simultaneous transport of chilled, frozen and dry (food or non food) products.
- integration of frozen foodstuffs in a refrigerated chilled vehicle.
- waiting at point of delivery reception area before transfer to display or cold room.
Reliable and easy to use, the insulated ROLL is the perfect solution for distribution of temperature sensitive products.
In addition to having dimensions in accordance with standard transport sizes, the 100% plastic design meets all industrial requirements with performance exceeding ATP regulations.
|
|

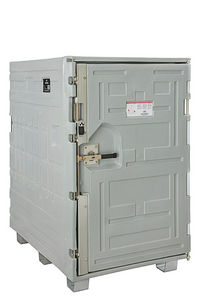

Isotherm Container
The entire bodywork assembly is composed of sandwich panels based on smooth laminated polyester, fibreglass reinforced, coloured white right through; the material is of constant thickness, food-grade approved, polymerized right through at controlled temperature and pressure. Outside and inside, it covers an insulating core of rigid, high-density polyurethane foam.
The best coefficients of thermal resistivity (0.25 watts) are obtained by means of a high performance technology. There are no visible joints, and the rigid construction helps to ensure that no thermal bridges are formed. The substance used is rot-proof and resistant to mechanical or chemical attack. In case of accident, it can be easily repaired in a very short time.
The materials are suitable for transport at controlled temperatures between +5° and -25°C, but they are also strong enough for industrial use. The floors, in particular, are designed to withstand intensive trolley traffic.
|
|
ALCATHERM MOBILE : the unique « intelligent » container comparable to a true medical device
Autonomous isothermal containers with temperature control
(-20°C to +37°C) dedicated to the transport of thermo-sensitive products:
- Labile blood products
- Blood bags
- Biological samples
- Organs, tissues, transplants...
Functioning
Thanks to its patented thermochemical system, ALCATHERM container produces self-sufficient refrigeration (for up to 12 hours!) without any electrical connection.
Refrigeration starts as soon as the user decides it.
To recharge the system, you only have to connect it to the main supply 230V- 50/60 Hz during 5 or 6 hours according to the volume.
The solution for legal requirements
Transport of human blood and blood components at controlled temperatures of 22°C, 4°C, -30°C
(Directive 2002/98 EC of the European Parliament and of the Council of 27 January 2003)
Storing of labile blood products within health facilities (Decree of 10 October 2007)
Container qualified triple packaging for the transport of infectious goods of class 6.2 (ADR)
Audible alarms in case of high or low temperatures
Integrated traceability system of inside temperature and lid openings and closings
|
|
ALCATHERM COOLSPLIT
A unique logistic solution, economic and reliable for the temperature controlled transport of thermo-sensitive products
Autonomous isothermal containers designed for the temperature controlled transport of thermo-sensitive products
Autonomous and ventilated cool production without electrical connection
-Temperature programming from +2°C to +12°C ± 1°C
-Monitoring of temperature and lid openings and closings
-Audible alarms in case of high or low temperatures
Insulated box detachable from cooling group: one base = several boxes
- No interruption of the cold chain until point of delivery
- Easy handling
- Highly insulated detachable box which can be sent unaccompanied
(up to 16 hours autonomy)
Functioning
Thanks to its patented thermochemical system, ALCATHERM container produces self-sufficient refrigeration (for up to 12 hours!) without any electrical connection.
Refrigeration starts as soon as the user decides it.
To recharge the system, you only have to connect it to the main supply 230V- 50/60 Hz during 5 or 6 hours according to the volume.
|
|
FREETHERM CONTAINER
Production of autonomous and controlled cold for long-distance transports of frozen products
Operation
Dry ice is the most powerful solution for the transport of frozen products, but the difficulty was to obtain constant temperatures because of its proper low temperature (-80°C).
The COLDWAY Solution
Dry ice is introduced into a separately insulated compartment inside the container. Thanks to a ventilation system, the inside temperature can be regulated between -35°C and +8°C precisely adjusted to 1°C. According to the quantity of dry ice, the autonomy can reach more than 24 hours at an ambient temperature of more than 30°C.
Technical characteristics
•Cold production thanks to FREETHERM system and dry ice
•Reliable and robust container, requiring little maintenance
•The transported goods are not directly in contact with dry ice
•Cold ventilation system in order to obtain a homogeneous temperature inside the container
•Temperature setting between -35°C and +8°C
•External digital temperature display
•Precise regulation of inside temperature with 1°C independently from the outside temperature
General characteristics
•Solid body and lid out of roto-moulded polyethylene with foodstuff quality
•Easy to clean for a perfect hygiene
•Very high thermal insulation due to CFC-free expanded polyurethane
•Conform to HACCP requirements
•Container certified outer packaging for the transport of infectious products of class 6.2 (ADR) (only for BI 55 R et BI 75 R)
|
|
ALCABOX ISOTHERM
Insulation material
Polyurethane foam of 1.6 mm thickness
Outside
Material : washable PVC with welt edge in contrasting tissue
Colour : Royal Blue RAL 5002
Easy to clean with a clinical detergent or disinfectant
Inside
White liner of washable PVC
Easy to clean with a clinical detergent or disinfectant
Double zippers which can be locked by a zipper lock
Removable shoulder strap and handles (in the front and the back), 3 outside see-through pockets (on top and on the right and left sides)
Velcro® fastening of the lid to keep the cooling bag open in the Alcatherm Mobile container
One or two inside pockets for storage of the eutectic plate(s) according to size
Ref Usable volume Designation Dimensions (Lxlxh) in mm
CP4L 4 ALCABOX 4 L Isotherm 200 x 140 x 140
CP12L 10 ALCABOX 10 L Isotherm 390 x 190 x 190
CP20L 20 ALCABOX 20 L Isotherm 390 x 190 x 250
CP35L 35 ALCABOX 35 L Isotherm 390 x 300 x 300
CP60L 60 ALCABOX 60 L Isotherm 590 x 320 x 320
|
|

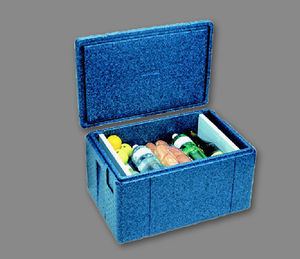

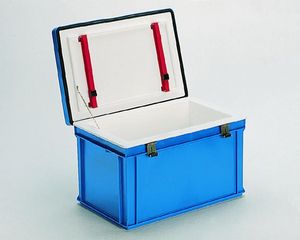

The insulated Bacs are designed for food and non food products requiring temperature control. The Bacs are in use in various fields of business e.g.
- farm-produce industry for packed or bulk products
- technical industries for very temperature sensitive products or low temperature
such as Dry Ice, frozen glue, fermenting agent...
- health care sector for the collect or distribution of very light loads under temperature control (blood samples, insulin, vaccines etc.)
OLIVO offer two ranges of manufacturing technologies: classical concept made of fibreglass/polyester, and the latest technology made of monobloc rotomoulded polyethylene.
The small capacity containers fit conveniently into any ordinary vehicle.
The large capacity containers are designed to be easily handled by forklift trucks.
All of them are stackable and can be fitted with castors.
The high insulation performance provides solutions for demanding thermal requirements.
|
|
|
|
