Aluminum Tie Rod Work Station Jib Cranes (AL100) use Gorbel's patented light-weight, high strength extruded aluminum enclosed track. This revolutionary track reduces the rotational dead weight of the boom by 56% to 68%, making the jib up to 40% easier to rotate than comparable I-beam Jib Cranes. The tie rod design minimizes deflection and is more precise when positioning loads than other Jibs Cranes.
- Can be mounted to wall or column
- Available in capacities from 150 - 2000 lbs. with spans up to 20 ft.
- Has less deflection for easier load control and positioning
|
|
Low headroom offers optimal highest hook position
Optional electric slewing gear
Optional electric hoist travel
Optional mobile control (standard with wire rope hoists)
|
|
|
Load from 150 kg to 500 kg, galvanized, aluminium alloy, or made of stainless steel for waste water treatment plants - corrosion resistant, - wall or ground mounting - supplied in kit form to allow an easy shift - turning capacity: 360° - adjustable support arm, regulating capacity - incorporates haacon's proven rope winch zinc coated or stainless steel and an additional cable for extra lift - Cable stainless steel 1.4401 - quiver for wall and ground mounting or for embedding in concrete
|
|
They are the right choice wherever loads have to be moved quickly and safely at the workplace. They relieve workers of the physical burden and also accelerate working processes.
Thanks to a wide range of sizes and designs, they meet the most diverse requirements in terms of load capacity, slewing range and outreach. They can be easily attached to walls or building columns, erected as free standing units or fitted to machinery and installations.
|
|
pivot arm KSL
Rigid load lifting modules, such as Z-Lift pneumatic lifting axes or electric telescopic lifting devices type TR/TV can also be fitted to KSL pivot arms. This combination is a particularly cost-effective variant for rigid load handling.
|
|
Safetech Articulating Jib Cranes can position loads in places not available to traditional jibs. They provide easy rotation and consistent responsiveness when positioning loads throughout the cranes coverage area.
Safetech's Free Standing Articulating Jibs can rotate up to 360° on the primary boom and 330° on the secondary boom (depending on hoist dimension).
Articulating Jib Cranes provide a rapid return on investment through increased productivity, reduced injuries, and improved safety.
Increases in production result from the easy rotation of the boom and quick, precise load positioning. Injuries are reduced and safety improved since only a low force is required to start and stop the boom rotation.
Ergonomic design makes for superior ease of movement and precise positioning.
|
|
Free Standing Articulating Jib Cranes (AJ360) are perfect for applications that demand an Articulating Jib, but lack the walls or columns needed to mount the crane. These cranes offer effortless rotation and a consistent responsiveness when positioning loads in a work cell, through open doorways, or into machines.
- Floor mounted for easy installation and relocation
- Capacities from 150 to 2000 lbs., spans to 16 ft.
- 360° rotation at both pivot points (optional)
- Can be used with hook mounted lifting devices (electric, air, or vacuum)
|
|
- Electric chain hoists from 160 to 5 000 kg
- Jib cranes from 80 to 2 500 kg

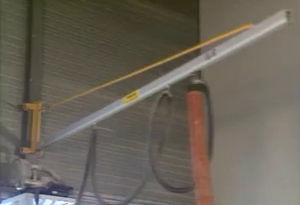

Tubular, inverted Profile, wall or pillar mounted
- Modular tubular system
- Vacuum carrying devices
Vacuum technology system
|
|
The jib cranes made by Donati Sollevamenti offer the most complete range of solutions for the handling of loads up to 10.000 kgs, based on in-depth knowledge of the most varied applications and on more than 70 years of experience in lifting.
Mass production carried out with industrialized processes allows the production via economies of scale of completely reliable cranes which are tecnically innovative and offer excellent value for money.
The quality of the componets used and the excellent finish of the steel structures as well as the quality system certified UNI EN ISO 9001:2000 allows us to offer a product of superior quality, which is long-lasting and in line with the latest international regulation standards.
The jib cranes are part of the range of products for lifting built by Donati, the leading Italian company and one of the biggest at world level in the lifting sector.
|
|

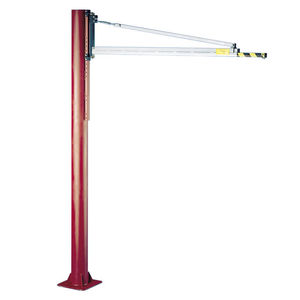

Slewing pillar cranes
- simple and robust construction
- GISKB I + II special profile
- simple installation
- for all industrial applications
|
|
ADJUSTABLE LIFTING JIB CRP30000
Quickly transforms your forklift into a lifting device - Easy to use with forklift
Adjustable lifting jib:• Adjustable jib: 1960 to 3400mm (8 positions possible). • Maximum load: 1000 to 4000 kg (see table for details).
• Automatic fork heel grip system. • 2 safety hooks.
• Check forklift capacity and suitability before use.
• Approved by an inspection body.
|
|
|
|
|
|
OUR LIFTING AND TRANSPORT SYSTEMS
Our activity started by focusing on simple lifting systems:
* STANDARD SINGLE AND DOUBLE GIRDER BRIDGE CRANES
* STANDARD AND SPECIAL GANTRY CRANES FOR MOVEMENT OF CONTAINERS
* ELECTRIC WINCHES
* PATHS AND INFEED POWER LINES
* COLUMN AND PILLAR JIB CRANES
* SUSPENDED SINGLE TRACK LINES
With acquired experience, our wish to grow and diversify our production has pushed us to increase our range of plants, with the objective of service more and more the increasing demands of the market:
* FLAMEPROOF BRIDGE CRANES
* STACKING BRIDGE CRANES
* SPECIAL BRIDGE CRANES WITH TELESCOPIC AND FIXED SPREADERS FOR THE MOVEMENT OF CONTAINERS CAPACITY 50 TONS
* BRIDGE CRANES WITH EXTRACTABLE LOWER GIRDER FOR LATERAL STOCKING
* SUSPENDED CRANES, ACCESSORIES
With these plants we believe to have collected a large consent from the national market, as well as several cranes supplied abroad, by supplying in terms of quality and performance as requested by our clients.
Our offers for each specific product are also completed with a service for installation, start-up and testing on site, as well as an assistance and maintenance service
|
|
|
Bushman AvonTec offers a complete line of quality-built jib cranes to meet the most demanding material handling requirements. There are various jib crane models from which to choose: floor-mounted pillar types; top and bottom-supported units; wall or column-mounted versions; and models that afford manual or motorized rotation. Built to the highest industry standards, Bushman~AvonTec jib cranes have earned a reputation for ruggedness and durability.
|
|

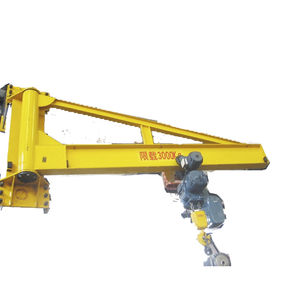

HADEF Cranes and Crane Components Wall-mounted Jib Crane - economy line
* design acc. to DIN 15018 H2/B2
* slewing by hand
* incorporating electric chain Hoist Type 62/05 R with push travel trolley
* load chain for 3 m track height
* solid wall bracket
* low headroom by compact design
* easy-running jib bearing
* including power supply cable for the hoist and disconnecting mains switch
* slewing crane steel grid blasted acc. to ISO 8501 and primed
* adjustable trolley end stops
|
|
Free Standing Work Station Jib Cranes (WSJ360) are the ideal substitute for traditional, heavy I-Beam Jib Cranes. These jibs are designed to service circular areas and support tool balancers, air balancers, vacuum lifters, and hoists. When floor mounted, they can accommodate up to a 360° rotation. Capacities are available from 100 lbs. to 1000 lbs. with spans up to 16 ft.
- Most can be bolted directly to existing floors without adding special foundations
- Feature a retaining pin through the pivot pin to help resist accidental upward dislodgement of the boom assembly
- Includes hoist trolley
- Roller bearings provide for unsurpassed ease of movement.
|
|
Features:
- Manual rotation 180 degrees (wall jib cranes) or 270 degrees (pillar jib cranes)
- Push or motorised trolley movement
- Equipped with XN electric chain hoist or manual chain block
|
|

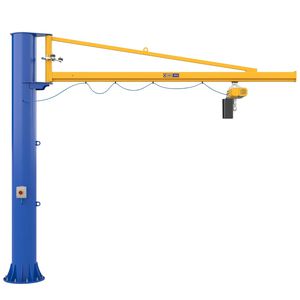

Pillar Mounted Jib Cranes
Work station equipment for a wide operating range. Always available and independent of other handling equipment.

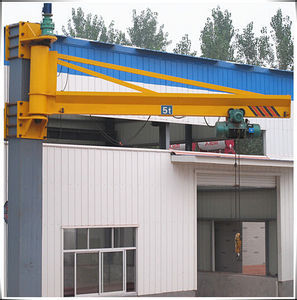

Wall Mounted Jib Cranes
Work station coverage without requirement of additional floor space. Jib booms are mounted on existing walls or columns.
|
|
Konecranes' Jib Cranes are an excellent choice to perform a wide variety of lifting operations.
Because we build an extensive range of Jib Cranes from 80 kg up to 5000 kg, we can provide a jib crane to meet your exact requirements. No matter what workstation features you are looking for, we have the solution. Jib Cranes are commonly used for load handling around a machine or other small area. Depending on the size and configuration of the area, you can choose either a wall mounted or a pillar jib crane with a rotation angle of 180°, 270° or 360°.
|
|
Free Standing Jib Cranes (FS300) are Gorbel®'s most versatile cranes. They are perfect underneath large bridge cranes, in open areas where they can serve several work stations, in outdoor applications such as loading docks, or in machining and assembly operations where they can be overlapped with other jib cranes to provide staged coverage.
- Available in floor mounted (FS300), insert mounted (FS350) and sleeve insert mounted (FS350) styles
- Capacities from 500 to 10,000 lbs, with spans to 20 ft.
- Use I-beam boom assemblies for heavier capacities and longer spans
|
|
Triangulated, raised mural brackets or hollow rail.
Brackets on barrel triangulated, raised, speciaten or hollow rail.
Models out of brackets alone but also in packs (provided with electric hoist and feeder)
And also a whole range of gantries...
|
|
1 - Simple or articulated jib crane :
Range: from 2 to 5 meters.
Charge of 0 to 600 kg
Height under iron from 3 to 4 meters.
On barrel or mural Fixing.
The jib crane can be equipped with a stabilizer with cable or a hoist.
Example of handled products:
- Glazing, Panel of wood.
- Barrels.
- Reels.
- Paperboards.
- Castings.
- Bags.
- automobile Parts (limps speed, coils, doors, cap, seats, panel instrument...)
Specific hand of gripping on request.
Turnkey installation.
|
|
jibs are JMF solutions to handle all type of loads under a circular surface.
Its resultant geometry depends on the type of product, industry and operational needs.
|
|
|
|
|
|
This typology of crane represents the ideal solution for the material handling, in the working area of the crane arm, in a specific workplace.
The Jib cranes are divided in two categories:
- Jib cranes with column
- Jib cranes at wall
JIB CRANES WITH COLUMN
The jib cranes with column have the main pillar fixed on the ground.
The jib crane for the industry is used to serve workplaces and handle materials with medium/low weight. Normally up to 2000 kg. The hoisting is realized with an electrical rope or chain hoist.
The trasversal movements (through the jib arm and its rotation) are done manually by the operator; is possible install motors for the both movements.
JIB CRANE AT WALL
This cranes are bounded to an existing structure (columns, pillars, walls, etc). The operative characteristics are same of the jib cranes for industry.
The Bonfanti's cranes are developed and produced in the respect of the ISO 9001 norms (TUV).
The main features are:
- CE certification
- Hoisting capacity: from 125 to 2000 Kg (jib crane for industry); up to 40 metric ton (jib crane for ports).
- Crane Arm length: from 2 to 7 meters (standard). Other dimensions are done on specific request.
|
|
LodeRail TM (a division of Columbus McKinnon Corporation) manufactures enclosed track cranes and jibs at CM's Western New York facility. LodeRail cranes are pre-engineered and bolted together for ease of installing, relocating and extending the systems.
LodeRail enclosed track cranes and jibs are designed with all-steel components for long service life. Local product support and factory sales, design and engineering all compliments LodeRail enclosed track systems.
|
|
|
|
|
|
This type of crane consists of a pivoting head and boom assembly which carries a hoist and trolley unit. The pivoting head is supported either by a floor-mounted mast providing 360 degree boom rotation or by an existing building column which provides 180 degrees of boom rotation.
- Capacities to 10 tons
- 360 º or 180º rotation
- Motorized or manual rotation
- Complete units or money-saving kits
- Baseplate, pipe, wall or column mounted systems
- simpler and less expensive than bridge or gantry
- precise spotting for light loads (e.g. a few hundred pounds or less)
Common Applications:
The most common applications for jibs are individual workstations; e.g., machine tools, welding/fabrication stations, and some small assembly stations. They are also often used in simple loading / unloading operations where it is not necessary to spot a load precisely.
Jib cranes most often handle lighter loads at lower duty cycles than their bridge and gantry crane counterparts. A "classic" application for jibs is to outfit an assembly floor with a series of jibs at individual workstations, which are then supported by an overhead crane to lift / carry full assemblies. The hook coverage is limited to the boom length (typically a maximum of 20 ft.). The hook operates along a boom which rotates about a fixed point.
If there is a need for precise locating of heavy loads, a large area of hook coverage, or frequent use for heavy loads, the jib crane may not be the best solution.
|
|
| ... products without technical information |
| |
|
|
|
|
SPANCO Workstation Jib Cranes work best for light capacities yet offer the same benefits as a Freestanding Jib Crane. These lighter jib cranes come with a hoist trolley and only require a 6" reinforced concrete floor. Optional portable bases are available to make your Workstation Jib Crane portable. For even lighter capacities, try the affordable Tie Rod Workstation Jib Crane with capabilities up to a 1000 lb capacity.
SPANCO Enclosed Track Workstation Jib Cranes come in two styles:
Freestanding Workstation Jib Cranes
- Capacities from 100 to 1,000 lbs.
- Standard spans up to 16 ft.
- Standard under boom heights to 12 ft.
- 360° rotation.
- Utilizes square or hexagonal base plate mounting secured by anchor bolts to your existing floor or a special foundation, as required by the loading condition. (Anchor bolts by others, or as optional equipment.)
Wall Cantilever Workstation Jib Cranes
- Capacities from 100 to 1,000 lbs.
- Standard spans to 16 ft.
- 200° rotation.
- Wall or column mounted (requires structurally adequate wall or column support).
- Bronze bearings at the pivot points ensure easy rotation.
- Shim stock up to 7/32 in. ensures jib alignment through the pivot axis, which reduces unwanted boom drifting.
SPANCO Enclosed Track Workstation Jib Cranes are designed for light duty applications. Capacities vary up to 11,000 lbs. and spans reach 16 feet. Circular coverage workstation jib cranes offer 200º or 360º of rotation. Workstation jibs offer easy, ergonomic movement for applications requiring repetitive lifting and transferring of loads. An operator could be pushing a 1000 lb. load; however, the operator will experience the force of approximately 10 lbs. to begin moving the load and 8 lbs. to continue moving the load (100 to 1 ratio). Also, a manual crane operates more quickly than a motorized crane.
|
|
Jib cranes
Light-weight jib cranes with swivel arm are machines operated for individual work positions, with limited loading requirements.
Our production series has a complete range of jib cranes: wall- and column-mounted with load capacity from between 125 to 2000 kg, with range of up to 8 m and 270° field of rotation.
|
|
|
|
