Pepperl+Fuchs products are used throughout the world in applications involving industrial, hazardous and corrosive environments. By engineering a complete solution at our own facility, Pepperl+Fuchs is able to offer its world-class products in a variety of panels and enclosures designed and built according to your specifications.
|
|
Junction boxes are used for carrying and distributing electrical power in hazardous areas. They are supplied in different sizes with and without small equipment fuse, and are therefore suitable not only as pure connection and distribution boxes, but also for protecting electrical loads up to 6,3 A. Cable glands in plastic are used as standard cable entries. Bell-mouthed or metal glands can be fitted if ordered. The metal cable entries are connected to the earthing system via brass plates.
Explosion protection to CENELEC, IEC
For use in Zone 1 and Zone 2, Zone 21 and Zone 22
Enclosure in glass fibre reinforced polyester resin
Degree of protection IP 66
|
|

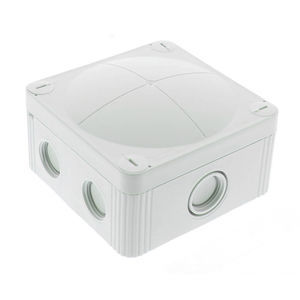

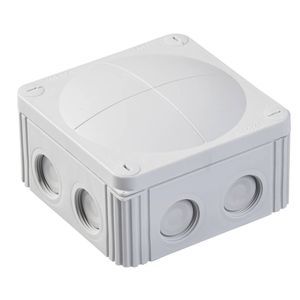

WISKA COMBI. The Bellied box.
The junction boxes with the distinctive 'bellied' lid provides the utmost in visual and functional perfection.
|
|
Junction boxes are intended for a special - typically swiss - installation technique. It consists in establishing branchings from laid through conductors. The involved material are a baseplate fitted with branching terminals and a cover.
Further junction boxes of thermoplastic, polyester or thermosetting material are available for the same type of application.
|
|
4B INLINE JUNCTION BOX
- For use in Atex zone 20& 21
- Tough moulded nylon body
- Accepts 5 x 2,5mm2 cable cores
- Threaded to take standard M25 glands
|
|
-Placing keypad or logo sticker on screw cover type
1. It can be placed keypad or logo sticker on the cover.
2. Type 4X&IP67 for indoor&outdoor application by neoprene gasket seal
3. Available 18 kinds sizes from 80x130x35 mm to 180x255x125 mm
4. selectable gray cover or clear cover
5. Available stainless steel wall mounting bracket
|
|
Helio Box junction boxes for protecting photovoltaic installations are designed to protect between 4 and 12 strings in parallel.
These junction boxes are IP55 according to the IEC 60529 Standard. They are fitted with Helio Fuse dedicated to blow under the vvery low fault currents encountered in such applications. Helio Fuses are hold in fuse-disconnector. Surge Trap® protecting against overvoltages fit also the Helio Box.
|
|
EPIC® SOLAR Module Box
Junction boxes for weather proof cabling of Photovoltaic systems
Application range
The Module Box is used to glue on the backside of the solar modules. The ribbon bands are terminated in the Module Box
For further cabling the pre-assembled solar cables, like EPIC® SOLAR XL multi are terminated at the Module Box
Product features
Rugged junction boxes for cabling of the solar modules with solar cables, like OLFLEX® SOLAR
Dimensions (WxHxD): 118 x 28,5 x 109 mm
Housing material: PPO/PPS
TÜV Rheinland: in preparation
UL: in preparation
|
|
St range of wall mounting enclosures is one of the highest quality metallic enclosures available on the market. A well engineered project, which has been continuously updated and improved, has allowed the creation of a wide range of possible variations.
The actual ST range includes the following versions:
- 32 sizes manufactured from Fe40 sheet steel with blank door
- 19 sizes with glazed doors
in both single and double door versions.
ST range main characteristic is solidity obtained thanks to the considerable thickness of the sheet steel to the high technology and automation used for products and to the proper mix of the components.
|
|
Junction boxes, cabinets and control stations for increased and intrinsic safety EEx e / ed / ia /eia / deia.
Aluminium, polyester and stainless steel (316L). Boxes assembling.
|
|
|
Two new ranges of connection boxes for electrical installations are available in 6 different sizes. Manufactured in thermo-plastic, shock-resistant and self-extinguishing material, Series CUBIK boxes are weather-proof and ideal for housing small equipment.
|
|
Junction box
MATERIAL Tecnopolymer
COLOR Gray RAL 7035
QUALITY MARKS IMQ
STANDARDS CEI 23-48
IEC 670
IMPACT RESISTENCE 6J at -15°C
USAGE TEMPERATURE From -15°C up to +60°C
|
|
Application
This enclosure provides the convenience of quarter-turn latching with an aesthetic, easy-to-maintain light gray textured finish.
Features
- Quarter-turn latch with screw-driver slot for easy access
- Seamless foam-in-place gasket
- Weldnuts provided for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger
- Quarter-turn latch(es) on cover capture(s) internal catch(es)
|
|
modularity
consistent dimensional range, graduated and logical, enabling fast and adapted selection; precise correspondence of boxes means perfect alignment
MUREVA family
the junction box is at the heart of the MUREVA family, now comprising
enclosures, junction boxes and equipment
infallible
the patented mixed EVA/stepped entry enables direct entry of cables.
Cables and tubes are tightly retained for total sealing.
|
|
Protection degree is IP65 according to EN50298 NEMA for single door, IP55 for double door.
Four or six studs are welded inside the boxes (with the exception of 150mm depth enclosure), allowing the mounting of both an inner door, a modular chassis, a rack frame or the mounting plate adjustement system.
All the accessories are supplied separately so that to increase flexibility and optimizing finished products inventory.
|
|
|
|
|
|
Terminal boxes of all sizes and design types provide high dust and water ingress protection at and around cable clamps and other connections. Access protection is designed to ensure electrical and mechanical safety as mandated by the VDE. Terminal boxes are particularly well suited to house small PLCs, so-called intelligent terminal blocks or bus blocks.
- sheet steel housing, powder coated RAL 7032 structure
- narrow chamfer on the body, robust drip rail design
- good overall accessability
- extensive range of accessories
- optional hinged covers with sash fasteners
- foamed PU cover gasket
- foamed PU door gasket / high protection class (>IP 65, EN 60529)
- captive cover screws in plastic sockets
- precise contact pressure due to fixed tap hole depth
- removable cage nuts allow for good accessibility of drillings for wall mounting (even in fully fitted enclosures)
- pre-punched back plane knockouts with blanking plugs
- mounting plate rests on embossed portion when interior profiles are removed
(i.e. clearance is kept for rivet heads)
- removable yellow chromated interior profiles (no doubling of material), variable mounting depth through profile extensions or use of spacer bolts
- zinced support rail or mounting plate makes conductive contact upon installation (excellent conductivity due to copper-plated threaded weld studs)
- also available in stainless steel
|
|
R. STAHL supplies explosion protected terminal boxes in various versions and sizes, as individual enclosures or as terminal box combinations, presented in ecnclosure series.
8118:
glass fibre-rinforced polyester resin, in 3 basic enclosure sizes
8146:
glass fibre-reinforced polyester resin, in 8 basic enclosure sizes and various heights
8125:
painted steel plate or stainless steel, in 6 basic enclosure sizes and various heights
Explosion protection to CENELEC, IEC, NEC
For use in Zone 1 and Zone 2
Terminals fitted to order
Cable entry mounting to order
Degree of protection IP 66
Specialised knowledge is required for designing and construction of explosion protected electrical engineering, it is vital to observe the explosion protection regulations. R. STAHL is experts in this subject! R. STAHL design and manufacture explosion protected terminals to order and to customer specifications taking into account all relevant regulations and standards.
|
|
The robust junction boxes made of plastic stainless steel and light alloy are featured by their friendly mounting and installation capability and their design.
They are fitted with pillar terminals for cable of up to 6 mm2. The practical orientated housing form allows for a problem-free access to the connection
terminals for installation.
|
|
