VORTEX® ROLLER GATE
The Vortex® Roller Gate offers quality features at an economical price. This gate is your best choice for handling dry material in gravity flow applications where positive material shut-off and dust tight sealing are required in compact locations.
The Vortex® Roller GateT is available in a wide variety of configurations to meet customer requirements, including rectangular sizes and customer specific hole patterns.
Valve Specifications
- Size/Bore Options: 150mm to 750mm and larger in Square or Rectangular sizes
- Media: Powder, Pellets, Granulars
- Connection Options: SVC Flange, CEMA Flange, and/or Custom Flanges
- Media Temperature: Up to 82°C continuous to 121°C intermittent service, Modifications up to 204°C continuous to 232°C intermittent service
- Media Pressure: 0 barg, Gravity Flow
- Metal Construction Options: Aluminium, 304 or 316L Stainless Steel, and Carbon Steel. Material contact is 304 or 316L Stainless Steel
- Seal/Seat Material Options: Nylon, PET, UHMW, Glass Filled Teflon, Natural Rubber, and/or Silicon Rubber
- Drive/Actuation Options: Double Acting Air Cylinder, Electric Actuator, Hydraulic Actuator, Hand Crank, or Chain Wheel
- Position Confirmation: Magnetic Reed, Proximity, or Mechanical Limit Switches
- Compliance/Approvals: CE, ATEX, FDA
- Industry Use: Plastics, Petrochem, Chemicals, Foods, Minerals, Textiles, Agriculture
|
|
|
|
|
|
Whatever you want from a Bulk Materials handling valve you’ve got it with Clyde Materials unbeatable Dome Valve® - the cost effective valve solution.
The Clyde Dome Valve®, widely regarded as the original and best material handling valve in the world, offers exceptional life from only a single moving part. The Dome Valve® is recognised as a low maintenance, long life solution that can last at least 1 million cycles between maintenance inspections. It has the ability to cut through static or moving columns of material and is pressure-tight, ensuring a consistent pressure tight seal is created when the valve is in the closed position, but in the open position it provides an unrestricted full bore opening for the best product flow characteristics possible. The Dome Valve® can also be used as a line, vessel or reactor isolation valve.
The Dome Valve® enhances other technologies from Clyde Materials Handling, a leading provider of pneumatic injection, conveying, materials handling & vacuum cleaning solutions.
The solutions we create for our customers generate many benefits and are backed by three decades of domain knowledge, expertise and a track record of generating exemplary success.
Dome Valve® sold in the United States under the trade name ‘Spheri Valve’
|
|
|
|
|
|
VORTEX® QUANTUM SERIES ORIFICE GATE
The patent pending Quantum Series Orifice Gate is specifically designed to handle dry bulk solids in gravity flow, dilute phase, or vacuum conveying systems.
A full flow orifice provides unrestricted conveying of material with no disk or ledges to impede flow or cause material bridging. The gate seat and live-loaded seals are shielded from blast abrasion by a metal insert, which provides a smooth bore through the valve improving performance and decreasing any pressure drop across the orifice.
By design, the valve “self cleans” material from the seat on each stroke of the valve blade, improving overall seat life. The Quantum Series Orifice Gate is designed to eliminate problems, enabling you to meet your objectives by increasing production, while decreasing labour and equipment costs.
Valve Specifications
- Size/Bore Options: 50mm to 350mm Diameters
- Media: Powder, Pellets, Granulars
- Connection Options: Stud Pattern, ANSI, DIN, JIS, and Custom Flanges
- Media Temperature: Up to 82°C continuous to 121°C intermittent service, Modifications up to 204°C continuous to 232°C intermittent service
- Media Pressure: Up to 15 psig, -0.1 MPa +0.1 MPa, 1 barg
- Metal Construction Options: 304 or 316L Stainless Steel, Aluminium, or Carbon Steel
- Seal/Seat Material Options: Nylon, PET, UHMW, Glass Filled Teflon, Rubber, or Silicon
- Drive/Actuation Options: Double Acting Air Cylinder, Electric, Hand Crank, Chain Wheel, Hydraulic
- Position Confirmation: Magnetic Reed Switch, Proximity Switch
- Compliance/Approvals: CE, ATEX, FDA
- Industry Use: Plastics, Petrochem, Chemicals, Foods, Minerals, Textiles, Agriculture
|
|

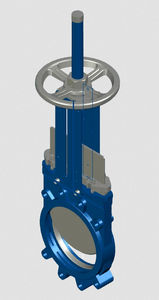

Standard Type A :
Universal knife gate valve, unidirectional for various industrial application, i.e. sewage water-/ power plants, paper-/ food-/ beverage-/ chemical-/ powder industry.
For other special applications other types are available
Silo-hopper valve, valves with through going slide and bonnetted housing.
Flanges as per DIN PN10/16, ANSI or per request.
Motions : Handwheel, pneumatic actuators, electro-mechanical actuators.
Accessories : for example limit switches, solenoid valves can be mounted upon request.
Diameters : DN 50mm-1000mm, other upon request.
|
|
SLIDEVALVE ONLY
• Frame and slidevalve with great thickness
MOTO REDUCTOR CONTROL
• 0.37 kW
• 137 rpm
• Voltage TRI 230/400 V - 50 Hz IP55
• Screw D20 - Pitch 12 mm
• 0.37 kW - 137 rpm
• Voltage TRI 230/400 V - 50 Hz IP55
END OF STROKE
• Set screw on slidevalve main part
D 18 T 10/36 V DC
INDUCTIF
• Set screw on slidevalve main part
D 18 T 10/36 V DC
|
|

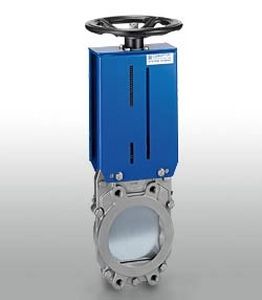

KNIFE GATE VALVE TYPE MV
FEATURES
- Box packing TwinPack gives high operation reliability
- Easy replacement of seat by mecanically locked retainer ring
- Low maintenance
- Can be disassembled, material specifi c recycling possible
GENERAL APPLICATIONS, e.g.:
- Sludge, powder, granulates and other solid media
- Pulp, recycled pulp
- Waste water
- Food industry
- Breweries and beverage industry
|
|
|
|
|
|
The VG-type Slide Gate Valve, which is entirely manufactured in carbon steel, ensures safe interception and excellent durability. The ideal equipment for heavy-duty applications, the VG Slide Gate Valve is available in larger sizes than the VL-type (see relevant page) and is equipped with two replaceable seals. In the VG version the Slide Gate Valves have a square cross section, in the VGR version a rectangular one.
VG Slide Gate Valves are used in all those plant applications where interception of gravity material flow is required. The Valves are mounted on the outlets of hoppers, tanks, silos, mechanical conveyor, and on loading bellow inlets. VG Slide Gate Valves are suitable for virtually all industrial sectors including the food industry.
- Valve frame and blade in carbon or stainless steel
- Small number of components
- Powder-coated
- Sizes up to 1,000mm (3.3 ft)
- Quick maintenance and replacement of the scraper
- Equipped for manual, electropneumatic or gear motor actuator
Options & Accessories
- Food-grade version
|
|
SLIDEVLAVE ONLY
• Frame and slidevalve with great thickness
PNEUMATIC DRIVE
• 2 exhaust reductions
• Distributor 5/2 - 1 EV 48V ALT
• Power supply D 6/8
END OF STROKE
• Fixed on cylinder
D 18 T 10/36 V DC
MAGNETIC
• Fixed on cylinder
INDUCTIVE
• Set screw on slidevalve main part D 18 T 10/36 V DC
|
|
SLIDEVALVE ONLY
• Frame and slidevalve with great thickness
RACK MANUAL CONTROL
• M3 rock outside of the dust flow
• 18 teeth sprocket
• Handle drive
END OF STROKE
• Set screw on slidevalve frame
D 18 T 10/36 V DC
|
|
The Battioni Pagani Pompe S.p.A. gate is unidirectional type and is particularly suitable to be fitted on tankers for agricultural use or on trucks for industrial use.
The gate body in one casting only and the particular seal system of the gate can guarantee a perfect seal for pressures till 10 bar.
The opening and the closure of the gate can be effected in two way:
· With manual lever
· With double effect hydraulic cylinder;
· With pneumatic cylinder.
Models available: Gate 1500 (6”)
Gate 2000 (8”)
Max pressure: 10 bar
|
|
|
This is a range of guillottine valves controlled electro-pneumatically, they have been planned only for granular materials and this kind of valves are mounted on feeders as interception devices especially in the plastic materials field. They are built in stainless steel AISI 304 and in a plastic material worked mechanically.
|
|
Features
* High-quality, full-port design
* Compact, Low Profile
* Leak-proof elastomer packing gland
* Precision-buffed stainless steel gate
* Stock delivery sizes 2” – 24”
Materials of Construction
* Cast Iron Body lined with 316 stainless steel
* 316 metal seat or EPDM resilient seat
* Manual, Pneumatic Electric or Hydraulic Actuators
* ANSI Class 150
The Red Valve Series G Knife Gate Valve features a cast iron body with stainless steel wetted parts. This efficient valve design affords the user a high-quality valve in which all the wetted parts, including the gate, seat, packing gland and flange face are stainless steel while providing cost savings with cast iron flanges.
|
|
|
Posi-flate Series 476 Inflatable Seated Knife Gates are all "full-bore" and available in both mild steel and stainless steel construction. Knife gates come complete with air operator and solenoid valve. All standard valves are pressure rated to 150 psig and temperature rated to 200 degrees Fahrenheit using standard seals. Optional seals are available.
|
|
|
|
|
|
Knife Gate Valves
Tyco Knife Gate and Slurry Valves
The combining of Clarkson, L&M Valve and Rovalve products under Tyco Flow Control gives you the widest selection of knife gate and slurry valves to choose from available from a single source. With roots reaching back over 60 years, the Clarkson, L&M Valve and ROVALVE brands have served the needs of many diverse industries with a wide variety of standard and custom valves. Application experience covers the entire spectrum, Mining, Pulp and Paper, Power, Chemical and Petro-Chem, Waste Treatment, Steel, Food & Beverage, Powder & Bulk and other process industries. Click on knifegate.com for additional information.
Clarkson Slurry Valves
Field proven, heavy duty, trouble-free slurry valves for abrasive, corrosive and coarse slurries. Clarkson slurry valves are in more applications service around the world than any other manufacturer in a broad range of applications.
L&M Valve Polymer Lined Knife Gate and Slide Gate Valves
Unique Performance Plus L&M Valve knife gate and slide gate products offer superior shut-off, full port and positive seal packing. They provide unequaled performance in a variety of applications.
ROVALVE Special Application Knife Gate Valves
Rovalve products include the all new high performance SB1700 bolted body knife gate, the solid cast S20 metal to metal seated knife gate, the Figure 215 slide gate valves, the Figure 220 bonneted knife gate and other special application valves each with its own unique performance and design features. This assures you the right valve for your application.
|
|
Standard Features
- Positive blade lock (PBL) between blade & cylinder rod
- Internal magnetic piston, cushioned air cylinder
- Polished stainless steel blade
- Narrow profile, light weight aluminum frame
- Adjustable nylon cam rollers for dust tight seal on blade
- Constant pressure nylon seals on blade
- Fully lined polymer interior
- Regular flange patterns or CEMA flanges to match screw conveyors
- Standard gate rated for 82o C (180o F)
- Fully tested prior to shipping
|
|
Pipes are flanged on both ends simultaneously, this ensures parallel angled ends.
Pipe ends are calibrated during the flanging process to create a smooth connection. This ensures a further protection against wear and tear.
Pipe ends machine-lip flanged for pull-ring connection, alternative: pipe ends with flange or slip over flange.
Machine-lip flanged version up to diameter 400 mm, the majority of these available ex stock.
|
|
Since 1843, Hopkinsons brand products have been renowned for long and dependable service life and can be seen on installations ranging from shell boilers up to the highest capacity units on electricity generating stations.
Gate & Globe Valves
Hopkinsons - High Performance Drain valves
Hopkinsons Full Bore & Venturi Gate Valves
Hopkinsons - Globe valves
Hopkinsons - Wedge Gate valves
Hopkinsons - Shell Boiler Mountings
Non Return Valves
Hopkinsons - Swing Check valve
|
|
405-NRS-RW: NRS Flanged Gate Valves
Description:
Series 405-NRS-RW NRS Flanged Gate Valves are used in irrigation and water distribution services. They feature an epoxy-coated, cast iron body with ANSI B16.1 flanged connections, resilient wedge disc, cast iron bonnet, bronze non-rising stem and cast iron handwheel. Maximum Pressure: 200psi (13.8 bar) CWP.
|
|
Gearmotor actuation
* Heavy duty construction
* “Full throat" flaps openings
* Compact design
* Zero or minimum maintenance
* No moving parts on the outside
Application: Discharge airlock valves for heavy duty applications. Including applications with high temperature , abrasive materials and/or large granulometry.
SA_ double flap gate valve are designed for free flowing material and are NOT suitable for cutting through a head of material.
|
|
|
Fabri-Valve products (knife gate, slide gate, wedge gate, recycle/reject, butterfly, and check valves) are proven performers for handling process fluids for the pulp and paper, chemical, petroleum, refining, mining, waste water, power, oil sands, and marine industries. Fabri-Valve products can be custom designed to provide economical, dependable solutions for your processing needs. We believe that there is no such thing as a standard valve or a standard job. Based upon our long-standing and diverse valve construction experience, Fabri- Valve can demonstrate a host of options and will customize the exact valve for your exact requirements. We understand the rigors of the fluids, gases and slurries that flow through your piping systems. Our valves substantially reduce downtime and maintenance costs and consistently outlive their payback period.
|
|
|
|
|
|
Gate Valves
Size range : DN40 - DN200 2" - 8"
Pressure rating : CL150, CL300, PN45, PN50
End connections : Screwed, flanged, socket weld / butt weld, stubs
Configurations :Bronze: Bolted or union bonnet. Stainless steel: Full bore. Removable body seat to eliminate risk of damage during installation.
Materials :Bronze, gunmetal, austenitic stainless steel
The Bestobell range of gate valves are extremely versatile and are particularly effective when a low valve pressure drop is vital to the efficiency of the system. The use of a PTFE wedge face allows the valves to achieve minimal leakage rates not normally associated with this valve type. The innovative ‘flexible wedge’ design has been developed to achieve a tight shut off.
The stainless steel gate valves (DN50 – DN80) feature Bestobell’s unique removable seat design to eliminate the risk of ever needing to cut out the body from a pipeline once it has been welded in place.
Extended spindle valves are available for liquid service, along with standard spindle lengths for use on ambient gas requirements. All materials used are selected for their suitability to function at cryogenic temperatures. All valves are degreased for oxygen duty.
|
|
Type:
Gate valves (Design according to API600, ANSI B16.34 or BS 1414)
‘‘Through conduit gate’’ valve according API 6D – B16-34
Gate valves for Navy application
Jacketed gate valves
Cryogenic gate valves
Gate valves for Oxygen service
Bellows sealed gate valves
Parallel slide gate valves
Pressure sealed bonnet gate valves
Custom made gate valves
Design: API600 – B16-34 – API 6D – API 6A (5000 & 10000)
Nominal Sizes range: DN15 (1/2”) to DN650 (26”)
Pressure rating range: PN10/PN16 – Class 150 to Class 2500
End connections: flanges, socket welding, Hub ends,…
|
|
GATE VALVE,
SS316/SS304/WCB,
FLAGNED END OR THREADED END
PRESSURE PN16/40, ANSI150/300 OR
200WOG
|
|
Gate Valves
Gate valves provide optimum performance in conditions where high flow efficiency, tight shut off and long service is required. Ideal for a variety of services within many industries including chemical pulp and paper power and wasterwater. For complete versatility the range includes fabricated, forged, and cast designs.
* Designed to ASME B16.34, API 600 AND BS 1414
* Tested according to API 598
* Bolted bonnet and pressure seal designs
* Material compliance to NACE available
* RF and RT J flanged, buttweld and Hub ends
* Sizes range from 2" – 72"
* Pressure range from 150 PSI CWP, ANSI class 150 to 4500
* Temperature range from -320°F to 1200°F
|
|
|
|
|
|
* Industries:
Bleach Chemicals,Auxiliary,Chemical and Liquor,HVACI,Coatings,OEM,Construction,Pharmaceuticals,Cooling Water - Metals,Plating, Galvanizing and Other Coatings,Delayed Coking,Polymers,Desalination,Primary Processing,Descaling,Wastewater Collection and Treatment,Food Processing,Snowmaking,Solvents,Waste Processing,Water Treatment,Acid Transfer,Caustic and Chlor-Alkali
* Standards:
* Misc:
Our engineers have provided us with the capability to modify Flowserve Vogt Valves with Limitorque or Valtek operators very quickly. The usual long delay for motor operated valves has been eliminated by utilizing a standardized actuator with standardized mounting accessories from stock.
The Vogt valve of your choice can be converted to motor operation in our shop and performance tested on the same exacting equipment used to qualify valves for nuclear service. The valve and actuator are then ready for immediate installation with limit and torque switches set and checked by Vogt craftsmen.
If in field conversion of an in-service Vogt valve is desired, we can supply the field conversion parts and actuator pre-assembled for fast installation.
Features
* Standardized Conversion Design
* Factory Installed
* Performance Tested
* Fast Delivery
* Single Source Responsibility
|
|
long knife gate valve
1. SERVICE TEMP' : -20°C~+600°C
2. SERVICE CONDITION : WATER, STEAM, DUST, HOT AIR, ETC
3. FLANGE RATING : ANSI , AWWA , DIN , JIS(KS) , ETC.
4. SIZE : 50A(2")~2000A(80")
5. FLANGE TYPE : FLANGE, LUG, WELDING TYPE
6. ACTUATOR : GEAR , MOTOR , AIR CYLINDER , CYLINDER , ETC.
|
|
General description
These high conductance, stainless steel SS 304 fabricated valves are designed for reliability and for use as in-line chamber isolation valves and load lock applications. These Gate valves are fitted with Neoprene "O" rings as standard and optionally viton o "O" rings are offered. Viton sealed valves can be baked up to 150 deg.C under normal mode. These Gate valves undergo stringent leak detection tests on a Helium Mass Spectrometer for leak tightness up to 10-10 std cc/second. HINDHIVAC Gate Valves are offered in several models and can be operated in both electro pneumatic as well as manual modes..
Gate Valves are used immediately above the mouth of a diffusion pump or above the water-cooled baffles. The closure between the two sides is made by the movement of a horizontal plate in its own plane, the seal being an elastomeric. These valves are made in sizes of 1", 2", 4", 6", 8", 10", 20" sizes as a standard product.
|
|
Standard Features
- Stainless steel material contact points.
- Dust tight seals.
- Lightweight aluminium frame, corrosion resistant.
- Rated for 82°C (180°F).
|
|
These versatile valves are designed for a wide range of gravity flow applications. All share the same one-piece cast housings and heavy duty components that ensure reliable low maintenance operation for many years. Slides are sealed internally by a replaceable polyurethane or steel wiper ring. The end of the slide plate is sealed with an adjustable packing gland. Between the two seals is a wiper blade that ensures long seal life. Both the inlet and outlet flanges are drilled and tapped with identical patterns to simplify installation. A range of actuators is available to accommodate most applications.
SB-Twin Piston
- Sizes 6" through 16"
- A very compact design
|
|
|
|
|
|
Integral-passage slide valves are suitable for all those uses where perfect tightness has to be assured both to material (VLPM/ VLPC/VLPP) and pressure (VLRM/VLRC/VLRP) even in the presence of high temperature and with abrasive products.
They are used for powders and granules under silos, hoppers, batchers and screw conveyors.
Anyhow our technical service is at your complete disposal to meet any requirement.
- Valves are suitable for tightening between counterflanges UNI-PN 10 or ANSI 150 lb.
- Interior tightness is assured by a toroidal gasket acting on the blade in closed position ((VLRM/VLRC/VLRP).
- Tightness towards the outside is assured by an adjustable packing gland system.
- The manual valve control is achieved by a handwheel (VLPM/VLRM) and by a pulley with chain (VLPC/VLRC)
- The electropneumatic valve control is achieved by a double-effect cylinder activated by 1/4" Gas 5/2 single solenoid valve.
- Two proximity inductive limit-switches ø 18 are used to remote-indicate the blade position.
- Electropneumatic slide valves in special execution may be supplied with 3 positions for course / fine batching on balances.
- Electropneumatic slide valves are designed and manufactured in compliance with Community Regulations 89/392/EEC.
|
|
|
|
