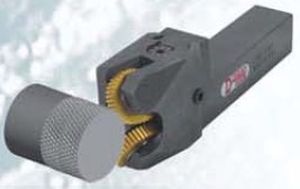

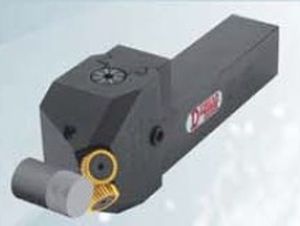

Application:
Cut knurling (swarf removal)
For knurling on work piece according to DIN 82: RGE 30°; RGE 45°
Features:
• Modular system: universal knurling tool for both left and right hand orientation
• Fast and easy head orientation reduces setting time
• Flexible use: Vertical height adjustment for shank size 20 and 25
• Easy handling: Setting scale and setting spindle allows fast diameter adjustment
• Fine height adjustment
• Rigid tool construction: Gear tooth system between tool holder and cut knurling head for a steady vibration-free process
and increase in knurling wheels’ life
• Knurl fastening screw with 60° chamfer allows knurling closer to shoulders
• Special surface hardening for increased tool life (Nitriding)
• Knurling wheel options: – PVD coatings for increased wheel life

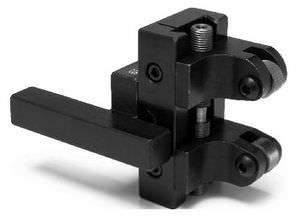

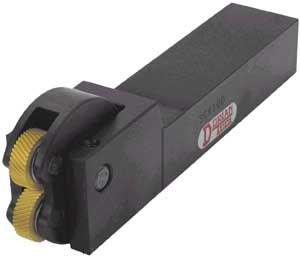

Application:
- Form knurling (without swarf removal)
- For knurling on work piece according to DIN 82: RAA; RGE 30°; RGE 45°
Features:
- Modular system - universal knurling tool for both left and right hand orientation
- Easy handing by moving the knurling head to the reverse side
- With flexible centering
- Knurl pins and pivot pin fixed by a screw - for a quick replacement of knurlling wheels/knurling head
- Special surface hardening for longer tool life time
- Carbide pins: higher speed rates, faster production, prolonged life
