These models have been conceived to be used when more automation is required, in fact the only thing the operator has just to do is to insert the product into the film and to move it onto the sealing area, as the rest of the working cycle ( sealing, product removal and transfer inside the shrink tunnel) happens automatically.
Ideal for medium-high output productions that need to wrap single and multiple products. Easy changement of size according to product dimensions and shape. An alternative choice to "one-step®" systems in order to increase production though beeing very easy to use..
Available in DIFFERENT MODELS according to the sealing dimensions: Espert4050EV, Espert7555EV, Espert11580 to be visited in our website.
SPECIFICATIONS:
- Opening and closing of the sealing-bars (with a pedal or automatically), sealing-time and conveyor belt moving time controlled by a timer
- Two independent conveyor belts in the sealing area and in the shrinking
- The height of the sealing area is adjustable according to the product size
- An efficient safety system guarantees the operator’s hands security, according to the CE regulations
- The shrink tunnel, integrated in the machine structure, is equipped with a rolling-rods conveyor belt with adjustable speed by means of a direct current variator on the control panel. The tunnel itself has shutters for air regulation in order to obtain the best shrinking even in difficult conditions.
- Available options: Boomerang roller conveyor, scrap-rewinder
Machines manufactured according to CE rules
|
|
The MP Series is a complete economic shrink system and is available in three levels of automation: MP-1, MP-2 and MP-3.
MP-1
An economic table-top version, the MP-1 consists of a welded schedule 16 sheet steel construction. Standard features on this model include; manual seal bar hold down, variable speed Teflon mesh belt conveyor, thermostatically controlled heat and top and side heat vents.
MP-2
The MP-2 includes a standard heavy-gauge welded steel body and legs. Standard features unique to the MP-2 include; electromagnetic seal jaw hold down, variable speed Teflon mesh belt conveyor, film perforator roller for vent holes, electronic temperature control on shrink tunnel, and top, side and bottom heat vents.
MP-3
This system adds a variable speed L-sealer package discharge conveyor to the MP-2’s standard features.
|
|
|
Created for the demanding of industrial applications – the KC 5040/450 compact L-sealer in combination with high performance shrink tunnel. The quality of this machine series become evident when subjected to hard, continuous use. Products such as for example printed material, sets of glassware, or oil canisters can all be packed quickly and economically whilst maintaining a high quality. The proven impulse sealing technology using Teflon coated sealing and cutting wire provides for an effective and absolutely inodorous mode of operation.
|
|
Modularity and excellent price/quality ratios are the main features characterizing the manual, semiautomatic and fully automatic L-sealers of the FP series. All the models of this range can indeed be supplied with or without shrink tunnel.

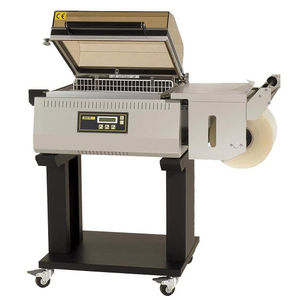

Compared to the traditional L-sealing hood packers, the FP series provides higher outputs as well as the possibility of using Polyethylene film, besides the traditional shrink films.
The FP series of modular L-sealers with shrink tunnel includes different models, for outputs ranging from 600 to 3,000 packs/hour.
|
|
|
|
|
|
Serious but modern design, high-technology, attention to details; very easy to use and extremely functional. Together with the 5525EV shrink tunnel equipped with rolling-rods made of a special fiber, it forms an automatic wrapping line which is compact and efficient.
Visit our website for the other models of the MECPACK range of automatic L-sealers that can be associated with a shrink-tunnel to obtain a complete automatic wrapping line.
MAIN FEATURES:
- Electronic control panel with TOUCH-SENSITIVE and INTUITIVE Operator Interface to set and control all the machine functions in the best and simplest way (conceived by R&D Italdibipack )
- Possibility to memorize several and personalized working programs
- Independent electronic control for sealing-bar temperature
sealing-time controlled by timer
- Teflon coated sealing bars
- Product length detected by a double photo-eye with horizontal and vertical reading according to the product dimensions
- Powered infeed- and outfeed-conveyors controlled by inverter, as well as film-pulling
- Wrapping of both single and multipli pices (multipacks)
- Possibility to non-stop infeed of the products
- On request shrink tunnel in order to have a complete wrapping line
Machines manufactured according to CE rules
|
|
Automatic L-sealer machines joining high performances, extremely low consumption and a striking user-friendliness
|
|

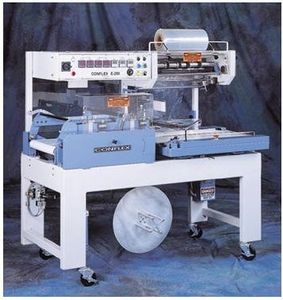

The E-250 Automatic L-Bar Sealer is engineered for efficiency with logic and precision. As product is fed onto the conveyor, electric eyes measure and advance it to the centerfolded film and sealing area. To prevent the next package from entering during the sealing cycle, the belt advance is temporarily deactivated. When the sealing jaw opens, the advance is reactivated and the wrapped product is discharged into the shrink tunnel. It's logical. It's precise. It's efficient.
Standard Features :
Hot tooled steel knife sealing system eliminates wire replacement
Lower heated seal pads for fast, reliable seals
Fully automatic package length adjustments via horizontal or vertical electric eyes
Film selvage winder
Adjustable height legs and casters
Film cradle with power unwind
Hand wheel for product height adjust
Perforator wheels for air evacuation
Film miser/Film support bar
|
|
|
The APS-X is designed to wrap product in polyolefin and PVC shrink films at speeds of up to 28-30 packages per minute. Products are fed either automatically or manually onto the infeed conveyor of the machine. The conveyor carries the product into the infeed section of the wrapper where an electronic photo cell senses the presence of the product and activates a film advance system which allows the product to be fed into the seal area. Once the product is positioned properly the sealing system is activated to bring down the sealing head to seal and trim the film to complete the bag around the product. When the sealing cycle is complete, the seal head releases and a discharge conveyor is activated to remove the package from the seal area, making way for the next product. The discharge conveyor takes the product away from the sealing area and transfers it onto the shrink tunnel conveyor.
|
|
|
Exceptionally compact and easy to operate L-sealer combined with shrink tunnel. Dimensions of the sealing frame 400 x 400 mm. Proven impulse sealing technique with Teflon-coated sealing wire for absolutely inodorous operation. Speed up to approx. 15 cycles/min. Easy installation even in restricted space. Ideally suited for small products in small to medium number of packages.
|
|
- Teflon coated sealing blade
- Double sealing blade with shockabsorber
- Cooling system for sealing blade
- Manual & automatic modes
- Product driver
- Adjustable conveyor belt
- Motorized belt
- Adjustable belt speed
- Larger rewinder
- Rewinder safe-guard
- Film roll support integrated in the machine frame
- Digital control panel with 6 progr.
- Counterpieces
- Safe-guard carters
- Plareholder
- Retarded sealing bars opening
- 5000 machines sold
- Sealing bars with ceramic sectors (opt.)
- Inox working plate (opt.)
- Film opening bar (opt.)
- Automatic pusher (opt.)
|
|
The Compatta CP2N is a Packaging machine for shrinking film(Polyethylene, Polypropylene, PVC). Extremely solid and reliable, it has a sealing armactioned automatically. The working cycle is determinated from a Timer and the pneumatic velocity is max 20 strokes per minute. At the end of the sealing, the armascends in repose position and the feeding belt put the product inside the retraction tunnel. The ventilation and the distribution of hot air inside the retraction tunnel is low turbolence and the device of thermical regeneration reduces to the minimumthe electric consumption of exercise. The Compatta CP2N has an electronic regulation of the retraction temperature and the velocity of the conveyor belt inside the retraction tunnel .The height regulation of packaging is effected changing the
dispositionof the sealing armanda gainst bar in relation with the oven acle
|
|
|
Small, L Sealer, simple, quick and low price. It was manufactured for demanding customers, who require low price, small foot print, but HIGH QUALITY. It is among the most competitive and reliable sealers. It can be produced with one or two conveyors, in manual or semiautomatic version. All models are equipped with an INTELLIGENT SEALING control.
|
|
|
|
|
|
W700-80-automatic-L-sealer
The L sealers offered range from the manual, chamber type, via semi automatic bench top systems through to fully automatic side seal L sealers capable of speeds over 120 packs per minute. Polyolefin film is used in combination with a heat shrink tunnel to provide a tight wrap around the product. Typical products can range from food products, toiletries and pharmaceuticals through to printed material.
The twin reel sleeve wrap machines are also available in manual and fully automatic configurations. The sleeve wrap is placed loosely around the product being wrapped which is then shrunk in a heat tunnel. Speeds up to 30 collations per minute are possible. The film used is Polythene and the resultant wrap leaves the ends of the pack exposed. Wraps UK is able to sleeve wrap individual products, such as a tray of cans or bottles as well as collate and wrap cartonned products.
Wraps UK has the same extensive engineering support as Marden Edwards and hence solutions can be tailor-made. Wraps UK also supplies wrapping film thereby ensuring that film and machine are well matched.
|
|
WHY UNIQUE ?:
Because the adjustments are automatic, only with a button pressure;
Because the set parameters are recalled automatically;
Because the memorisable sizes are 20, upon request 40;
Because the sealer always seals in the MIDDLE OF THE PRODUCT HEIGHT;
Because the performances are high;
BECAUSE THE PRICE IS VERY COMPETITIVE, compared to the performances.
BECAUSE IT IS MANUFACTURED WITH QUALITY AND CARE.
Avalable in two versions: shrink tunnel with mesh conveyor or with roller conveyor.
|
|
The L35/30 is manual L-sealers: simple, solid and best-in-class. This machine can satisfy and packaging requrement by using one fold film and performing a semiperimetrical sealing directly on the product tobe packaged. Fit to operate in any industrial sector at a really low cost.
Heat-sealingtable in stainless steel with height adjustment;manual movement of the heat-sealingframe; dilatothermic control of the sealing wire temperature by means ON/OFF-swithc.
Usablefilms: polyetheylene, polypropylene and PVC
|
|
Model STL
Portable L-Bar Sealer
STL 300 : Max Seal lenght 300 x 300mm
Other Heat Sealers:
Model ST
Portable I-Bar Sealer with film rack and two speed Heat Gun PR .
ST 450 : Seal lenght 450 mm
ST 600 : Seal lenght 600 mm
ST 800 : Seal lenght 800 mm
|
|
The LST 50 semi automatic L sealing machine is an all in one shrink wrap solution for presentation wrapping. It consists of the sealing system and a continuously running heat shrink tunnel mounted onto a single frame.
The machine uses a single phase, 13 amp supply and since the machine is mounted on lockable castors it is easily moved about. Speed of operation is around 600 products per hour and requires an operator to be present at all times to load the product.
The product being wrapped is manually loaded into the centrefolded film. The sealing and cutting head is manually lowered onto the film and is held in place with a solenoid
|
|
This sealer has a seal area of 22” x 28” and is available in three configurations: SM, SMC, SMCP. (S = Sealer, M = Magnetic Hold Down, C = Package Discharge Conveyor in Seal area, P = Pneumatic Operation of the Seal Head)
The SM Series comes with following standard features:
- A console unit consisting of a heavy gauge steel body and welded tubular steel frame.
- Welded tubular steel sealing head with electro-magnetic hold-down and air cushion return cylinder.
- Low voltage impulse type sealing system with unique electronic control system for accurate sealing temperatures.
- Adjustable product loading platform.
- Film clamps.
- Perforator roller.
- Quick change roll holder system, fully adjustable for different sized rolls of film.
- All controls for the machine are conveniently located and include adjustments for conveyor speed, conveyor run time, dwell time and sealing temperature. An "auto-clean" button for simplified wire cleaning is also included on the control panel.
|
|
General description: Automaica Confezionatrice for termoretraibile
The advanced machine more between the lines of the termoretraibile Audion is the EL-MATIC, completely automatic welder to L.
Usable in combination with the tunnel THEMATIC in order to catch up high productive ability, the EL-MATIC can be supplied also in stainless steel.
|
|
* Semi automatic l-welding with shrink tunnel.
* Adjustement sealing time and temperature.
* Adjustement tunnel temperature.
* Silicone coated self rotating bars.
* Adjustement tunnel conveyor speed.
* Hand keeping
* L-welding product carrying band.
* Turkish-English-French menu.
* Adjustement automatic cutting time.
* Plc control panel.
* Silicone coated carrying band.
* Heating resistance with rustproof serpentine
* Aluminium sealing and exit the conveyor tubes with bearing
* Double silicone curtain.
* Double insulation.
* Air pressure : 6 bar
|
|
# Easy adaptation for packing measures which have different dimensions.
# The cutting blade is controlled by continuous fixed heat.
# Automatic perception for the packs which have different heights.
# Adjustement tunnel conveyor speed.
# Easy the control panel.
# Contiunity in packing quality.
# Plc the control pannel.
# The touchscreen.
# The packet counter.
# The automatic film feeding
# The film tension control.
# The heat chin system.
# Easy product feeding with optical sensors.
# The photo sensor which perceive the packets.
# Outgoing product with synchronized conveyor band.
# Adjustements of the front and back waste separately for the different products.
# The product protection.
# Air pressure: 7 bar
|
|
|
The Athena Combi automatic shrink wrapping machine expresses the whole ROBOPAC approach to manufacturing packaging machines. Work characteristics and parameters, top of the line technology features, sturdiness and safety: place this machine at the top of its class. Constant product development and research for better solutions and materials in shrink film technology led to the creation of Athena Combi: a machine that delivers great performances and versatility. Athena Combi offers outstanding adaptability and precision in the sealing-shrink wrapping process of a wide range of products along with a user friendly interface and the highest safety standards.
|
|
The meurer CMW/AL-B packs single and small products of any length, as well as sleeve wrap packs. Enabling complicated forms can be easily packed.
- Servo drives for low noise operation
- Easy access due to an open balcony construction
- Low energy consumption
- Touch panel with clear operator instructions
- Ethernet interfaces
- Up to 70 packs/min.
- Also available in stainless steel construction
- Continuous lateral sealing system
- Low-maintenance design
- Easy set-up for operation
|
|
|
|
|
|
SLAU
Totally automatic "L" sealer machine with or without shrinking tunnel. Designed for any kind of product packaging with shrink films as well as not shrink films.
Automatic "L" sealer ULMA brand, model SLAU, with or without shrink tunnel, designed to wrap all kind of products, with shrink and non shrink films for productions up to 45 cycles / min.
Very flexible machine, with simple regulations, it is quickly adaptable to the different products to be wrapped.
Side sealed products do not have seams over and under, giving clear finishing with or without shrinking.
The SLAU has been specially designed to achieve high productions. Frequent format changes are simple and fast, without need of tools.
Standard equipment:
- Automatic in-line feeding belt, with product separation and alignment. Manual conveyor width regulation.
- Powered 90º reel holder at waist level, with adjustable mechanic perforation and film end detection.
- Triangle frame height manually adjustable.
- Horizontal and vertical photocells for product detection.
- Three options for film sealing and cutting. STD: with nicron wire, OPT: hot knife or PE clamp. These ones with electronic temperature regulation.
- Pneumatic adjustment of the sealing jaws, in three positions, to increase production with low products.
- Sealing arm with safety switches to avoid hazards.
- Kissing conveyor belts for wrapping small or unstable products.
- Height adjustment of the sealing head assembly.
- Automatic film scrap wheel with easy access and film break detection.
- Control, functions and adjustments of parameters with PLC.
|
|
RM
Modular manual "L" sealer designed to wrap with centrefold shrink film a wide range of products.
Modular "L" sealer, ULMA brand, model RM, designed to wrap with centrefold shrink film a great range of products.
Technical features:
- Maximum product height: 200 mm.
- Production: up to 20 pieces / min depending on product.
- Manual opening and closing of the sealing arm, with interlocking by electromagnets.
- Film cutting and sealing with nycron wire.
- Time regulation of cutting and sealing.
- Film perforation with hot point at the closing of sealing arm.
- Sealing table adjustable in height: 100 mm.
- Product transfer by means of conveyor belt.
- Wheels for transport.
- Electronic control panel of simple operation for all machine functions.
- Voltage: 220V single-phase.
- Electric consumption: 0, 8 KW.
- Available in painted and stainless steel version.
|
|
SEALER WITH HEAT-SHRINKING
Separated electric oven; temperature of the oven adjustable through a potentiometer; Welding arm with semiautomatic and automatic movement. Electric micro of safety on the auto-welding bar; conveyor belt with adjustable speed and height. This machine is made of steel and equipped with 4 wheels. the machine mod. L/45 works with compressed-air.e a
|
|
|
L-Sealer, big size machine, suitable for packing many products small, big and very big, such as pictures frames. It can be manufactured with one or two conveyors, in semiautomatic version. All models are equipped with an INTELLIGENT SEALING control.
|
|
Technical Specifications
- Adjustement of the sealing time.
- Adjustement of the sealing temperature.
- The pneumatic chin.
- The hand protection.
- The product carrying band.
- Adjustement of the automatic cutting time.
- Turkish-English-French menu
|
|
|
|
