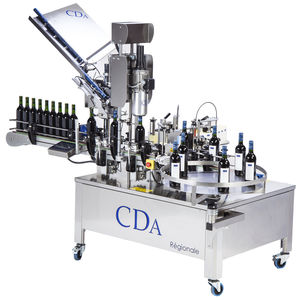

The range of machines offered by CDA to label and capsule wine bottles covers the needs of all small and medium wine production units. From 700 to 2 500 bottles an hour they make your bottles have a perfect look and realy easy. On the machines fitted with a digital touch screen the memorisation of the labeling parameters allows quick changes from one shape of bottle to another, and this without additional tools.
|
|
|
To apply labels on cylindrical items CDA offers a wide range of solutions adapted to every specific need. Our machines are designed for labeling as well as in the F&B industry as in the chemistry or cosmetic industry and can apply any kind of label onto any kind of material. Various types of detection cells and marking devices can be fitted on the machine according to your needs of label positioning and traçability.
|
|
Some cylindrical products require top and wrap around labeling with positioning or top and front and back labeling.
Some production lines require the ability to apply labels onto flat and cylindrical items. Here under some solutions to it :
- Linear labeling machine to apply label on top and on the side off cylindrical items.
- Linear labelling machine that can handle both cylindrical and flat items.
|
|
Semi-automatic labeling machines to apply self adhesive labels onto cylindrical items any kind. These machines, very multivalent, allow the labelling of bottles as well as jars, pots, tubes, cartridges, tin cans, however : a large range of products !
Also, these machines may integrate several options :
- For applications with diverse types of detection cells in order to position.
- the labels on the items to be labeled.
- To apply labels up to 30 cm high.
- To apply labels onto items that have prominences ( cans, caps on jars ).
- To apply labels onto cans with handle.
- To apply labels on light or small items
|
|
Semi-automatic labeling machines to apply self adhesive labels onto cylindrical items any kind. These machines, very multivalent, allow the labelling of bottles as well as jars, pots, tubes, cartridges, tin cans, however : a large range of products !
Also, these machines may integrate several options :
- For applications with diverse types of detection cells in order to position.
- the labels on the items to be labeled.
- To apply labels up to 30 cm high.
- To apply labels onto items that have prominences ( cans, caps on jars ).
- To apply labels onto cans with handle.
- To apply labels on light or small items
|
|
CDA provides diverse solutions to apply labels onto flat products, either from the side or above, or both if required.
Here under a couple of applications, knowing we adapt the machine to the type of items you need to label, its size, weight etc…
|
|
A specific version, ALcode P represents the latest evolution by ALTECH of pallet labelling machines.
The system is able to print and apply A5 format SSCC labels onto two adjacent faces of a pallet (normally front and side) in accordance with the EAN 128 standard (also on three sides if required), providing high reliability, print and apply quality, operations up to 120 pallets/hr.
This print/apply system represents a particularly interesting evolution in the field of pallet labelling machines.
The external structure of the machine has been recently redesigned and is now more ergonomic, thanks to the control panel smartly integrated in the protection cabinet and the (optional) touch screen panel that allows to manage the information to be printed and the applicator logic.
|
|
|
|
|
|
ALmatic is a semiautomatic applicator of self-adhesive labels for cylindrical products. Its easy functioning provides for the manual loads of the product in the labelling position by the operator who activates the control lever. So ALmatic provides to the rotation of the product and to the application of the label till a completely happened adhesion. Thanks to the ergonomics of the system and to the presence of templates of comparison ALmatic allows an exact labelling, making easier the manual operations of the placing of the product. The speed of the label supply, 12 mt/min, allows effecting its application in a very short time.
ALmatic semi automatic labeller can apply labels till 200 mm width on products with variable diameter from a minimum of 25 mm to a maximum of 110 mm.The format change is made in a fast and intuitive way through some simple sliding levers with block pommels. The industrial structure of the system, characterised from a unwind unit of 280 mm diameter with a tensioning arm,a paper traction group and silicon rewinder, guarantee a big reliability, continuous precision at the beginning and the end of roll and high autonomy. In the end, ALmatic semi automatic label applicator can be supplied of some optional devices like the transparent labels sensor or the hot foil printing unit for lots numbers and/or expiry date,that increase the versatility of the system.
|
|
ROTOSTAR™ rotary labeler is capable of processing up to 350 BPM* (*Subject to testing with actual samples). Built on our proven monoblock frame, the RotoStar™ can apply pressure sensitive labels to the top, neck, shoulder, front or back for either round or shaped bottles.
For complex labeling, the RotoStar™ can be configured to apply up to five different labels
|
|
Pharmaceutical Systems Feature
- Sanitary "Raised Bed" Conveyor
- Available with Non-proprietary PLC Controls
- Vision System Interfaces for Lot and Date codes
- Thermal Transfer, Laser and Hot Stamp imprinters
- Barcode Verifications
- Product Eject with Eject Verification options
- Complete validation documentation services
- Available with Servo label drive systems
- Stainless Steel Construction
- Low and High speed systems
- "No Tool" product change over
- Compact space efficient designs
|
|
|
|
|
|

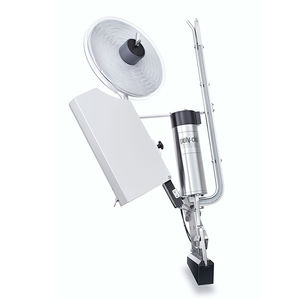

The ALS family represents our latest generation of label applicators, which offer a very high standard of efficiency. These applicators are suitable for all self-adhesive product and decorative labels, as well as for usage in the area of logistics, especially for the drinks, canned goods, hygiene, cosmetics, household goods, electronics and chemical industries.
Fast, Flexible, Favorable
The ALS labelling machines combine extreme robustness with high-performance, and the latest ALS generation is now even more reliable and compact than ever.
All three ALS machines are configured for high requirements in continuous operation. 24 hours a day, 7 days a week, and this with high dispensing accuracy - no problem for the new ALS generation!
The ALS family makes "you" flexible. Its modular concept allows you to effortlessly integrate a unit into your existing system and exchange it for another "member of the family", if required.
Proven Quality
All three ALS machines have been designed in accordance with the tried and tested Avery Dennison Standard, which distinguishes our range of products from all others, and makes the ALS generation so reliable.
Benefits of the ALS-Family
* Attractive price-performance ratio
* High standard of industrial protection
* Integrative
* RFID-enabled
* User-friendly
* Flexible in use
* Flexible post-processing
|
|
Avery Dennison ALS 306 is the first of the new generation of labelling machines, offering a very high standard of efficiency and
reliability. It is the perfect fit for highly
demanding product lines with 24/7 mass flow rate.
The ALS 306 is perfectly made for:
• Decorative labels
• Promotional labels
• Branding labels
• Declaration labels
• Product labels
|
|
PAM 3600
300 and 600 dpi – High Resolution Thermal Transfer Print & Apply Machine
The use of real-time, high performance equipment to label your products in your production environment enables quick traceability, resulting in a significant cost reduction for recalled products. The new compact Brady Print & Apply Machine PAM 3600 offers a variety of possibilities to improve traceability processes.
Ideally suited for applications like PCB** marking, component and product marking in high quality demanding industries like automotive, telecom, microelectronics and laboratory. The PAM 3600 had recently been improved to offer more value for money and to support increased efficiency
|
|
Features:
- For cutting, gluing and affixing pre-printed paper labels directly to the upper side of magazines Lists and label formats:
- Edge-perforated address lists of 100 - 300 mm width with 1, 2, 4 and 5-track printout
- Label length: 66 - 114 mm
- Label width: 1", 1,5" or 2"
- Output: 15,000 cycles/hour
|
|
Features:
- Heavy-duty steel framework.
- L15H label applicator.
- Variable speed components.
- Photoelectric product sensor.
- Easy access controls.
Specifications:
- Dimensions: 42"W x 72"L x 56"H
- Speed: up to 1200" per minute.
- Label roll capacity: 12" OD
- Web Width: up to 4 1/2"
- Electric: 120VAC +/-10%
- Shipping weight: approx. 1075lbs.
|
|
|
|
|
|
Etipack automatic labellers are designed to satisfy four objectives: high-performance, flexibility, reliability and ease of maintenance. Available in a variety of different standard configurations with an array of optional accessories, the four models, Clear, Surprise, Original and Super
Clear
Clear is a compact labeller with speeds of up to 20 metres/minute designed for low to medium speed pack-aging lines or end-of-line applications. It has the technology and structure of an industrial labeller: Clear is solid, accurate and reliable.
Surprise
Fast and versatile, Surprise can dispense labels of up to 130 and 250 mm in width thereby satisfying a variety of labelling requirements in many different industrial sectors. The step motor ensures accurate labelling, the unwinder with loop control tilting roller ensures optimal unwinding tension and the switching technology stabilizes the supply current.
Original
Original was designed for more specific packaging line applications; it combines a solid structure with reliability and high performance levels. Original comes in electric or pneumatic versions, with or without motor-driven rewinder, for labels up to 130 mm and 250 mm in width and 280 mm or 380 mm roll holders.
Super
The labeller designed to meet the most demanding packaging line situations. Thanks to a powerful step motor, it can reach speeds of 80 metres/minute and of 120 metres/minute in the High Speed version. The label roll holder of 380 mm in diameter ensures sufficient production autonomy with the option of automatically switching between two different labellers.
|
|
Burt labelers are exceptional for any roll through application. This horizontal labeler accommodates diameters from 112 to 704 and will run metal, glass, plastic and aerosol containers.
-Models: 408 and 704
-Speeds up to 800 CPM
-Labels replenished without stopping production
-Narrow label packages available
-Container changeovers in 15 minutes
-Valco lap system available
|
|
As the pioneer in the Hand Labeller Market and with a track record second to none, SATO has a complete range of hand-held labelling systems. Ideal for "price marking" applications, sales messages and industrial marking requirements, a variety of models are on offer to suit your individual requirements.
- Durability
- Increased Productivity
- Precise Printing
- Easy-to-use
- Variety of Layouts
|
|
LAP65-60 (NV060) Hand-Held Label Applicator
- Ideal for repetitive labeling of boxes or bags
- Simply squeeze the handle to dispense and apply any die-cut label
- Maximum label width 2.36" (60mm)
- Maximum label length 2.36" (60mm)
- Minimum core size 1" (25.4mm)
- Maximum outside diameter of roll 3.93" (100mm)
- Heavy-duty, made for industrial use
- No custom tooled slots needed to dispense labels, just a 1/8" (3.2mm) gap between labels
- Unique sensor automatically adjusts the label stroke
- Patented mechanism dispenses virtually any shape of die-cut label
|
|
PREMIER
- Premium quality in-line labeling system
- Provides reliable 24/7 performance in the harshest environments
- Applies paper or clear film labels to a wide variety of oval, rectangular and cylindrical containers at speeds up to 400 ppm
- Non-proprietary Allen Bradley PLC control and color touch screen HMI (human machine interface)
- Up to 4 servo or stepper-driven applicators provide high speed labeling
- Encoder-based line speed compensation automatically synchronizes the labeler to the system's product handling
- Product changeovers are fast, accurate and repeatable with precision 4-axis head mounts
- All electronic components feature quick disconnect cabling
- Options may include zero-downtime crossover controls, vision system, bar code verification, hot stamp imprinter, low label, end-of-web, broken web detection, etc.
|
|
|
LINE ADE linear labelling machine to apply self-adhesive labels on the bottom of PET food trays, on flow-packs, bags, carton and PET trays and cases. Production speed: up to 10,000 units/hour.
|
|
The LS-800PLT Pallet Labeler was designed and built with the palletizing and stretch-wrapping environment in mind. It provides reliable on-demand printing of variable data such as time and date stamp, serialized numbering schemes, as well as barcodes and logos. The Pallet Labeler is also available as an apply only machine, the LS-600PLT.
LS-800PLT Features:
- Heavy-duty, random stroke applicator arm automatically adjusts for distance variations in the pallet load.
- Label placement height is easily adjusted (hydraulic foot-pedal is standard).
- Interfacing with stretch-wrap and palletizing equipment control signals is easy and reliable with the provided interface junction box.
- Custom applicators are available for applications such as side tamp and leading edge/trailing edge corner-wrap labeling.
- Scissor-lift is designed to meet the toughest working conditions and safety standards
|
|
9TCustom Front/Back
- Rotary labeling designed by Quadrel Labeling Systems
- Capable of speeds up to 225 ppm
- Speeds up to 500 ppm are available with larger diameter carousels
- Overhead electronics
- Encoder-based line speed compensation automatically synchronizes the applicator to the system's product handling
-High performance and reliability
|
|
- Tabletop large diameter wrap labeling system
- Applies up to 30 ppm with +/-1/32" accuracy
- Labels a wide variety of cylindrical products from 2" to 6" diameter
- Products are manually loaded into a product fixture. The operator activates a foot switch, which lifts the "cradle" up to the impresser roller. When the impresser roller contacts the product, a label is dispensed and wrapped around the product.
- Optional lot/date coders
- Product samples may include beverage containers, automotive parts and wine bottles
|
|
Features:
- Roll-on labeling from ampoules to gallons.
- Fast changeover from one size to another.
- The "roaming peeler", adjustment to support smaller diameter products like vials, markers and lip balms.
- Foot switch activation.
- So compact it fits virtually any tabletop.
|
|
|
|
|
|
The ST400 Semi-Automatic Label Applicator is capable of applying die cut pressure sensitive labels at speeds of up to 400 linear inches per minute. Depending on product size and operator efficiency, 30-40 products per minute can be realized. Heavy duty construction specifically designed for industrial applications.
Microprocessor controller gives flexible and accurate label placement. Stainless steel and anodized aluminum provide protection from corrosive environments. Solid drive construction ensures even pressure to the label web resulting in extremely accurate label placement. Handles a full assortment of label shapes and sizes.
The ST400 encapsulates a table top design, a photo-electric product and label sensor, microprocessor control, a standard 4.5-inch web width, and a variable speed direct drive stepper motor. The wrap assembly is fully adjustable and capable of handling products ranging in size from 1/2-inch to 6-inches in
diameter with a 10-inch label length capacity. The tamp module is capable of placing 4.5-inch by 6-inch labels on any size product. Standard label placement accuracy is ± 1/32 of an inch.
|
|
Complete automatic system to apply a shrinkable safety band onto bottles. The BandStar™ is designed with efficiency and reliability which features a self centering mandrel for easy setup. Stepper motors and pulling belts ensure accurate lengths.
The BandStar™ also features a motorized holder to remove stress from the pulling belts. A horizontally mounted shaft allowing easy loading of reel in proper position. Options are available to complete the line and meet your installation requirements.
|
|
The SL-100 is capable of applying tamper evident cap sleeves & full body sleeves at speeds up to 150 ppm. This introductory system has features only found on high end competitive machinery:
- Stepping Motor sleeve control
- Pneumatic cutter control
- Mandrel with sealed roller bearings
- 0.04mm minimum sleeve thickness capability
- M3 microprocessor controlled with Soft touch keypad and backlit LCD interface
- Fault integration with Audible and Visual alarms
|
|
Our Features Include:
- High Speed Q60 wipe-on label applicator
- Stainless steel construction, shaft driven product handling
- Raised bed sanitary conveyor
- Custom wrap station
- Vertical roller module to stabilize & control products
- Allen Bradley ControlLogix PLC and color touchscreen HMI
- Sick OCR vision system for imprint verification and pneumatic product eject
- Dual remote powered unwind provides minimal label changeover time
- Dispensing speed up to 2800" per minute with our optional "Closed-loop" servo motor label drive
|
|
|
|
|
|
The basic Rotary Labeller configuration is provided with the following modules
- Labelling head/s (from 1 to 2) LS model for the side and double-side label application. Provided with a label unwinding roller and a backing paper collecting roller. Vertical, horizontal and oscillating adjustments allowing to perfectly line up the label on the container.
- Smoothing brush for smoothing labels on flat or square bottles.
- Shaped centring plates provided according to the production requirements.
- In feed lock at the labelling machine infeed to separate the containers entering. Two versions available: with pneumatic cylinder or with rotating divider. It indexes the bottle flow before the auger
- Auger with independent motorization to index the bottles on the conveyor before the star-wheel.
- Rotating star wheel at the infeed: the bottles - already separated by the auger – enter the star wheel ready for the labelling phase.
- Rotating star wheel at the outfeed It places the containers back onto the conveyor system to be driven to the machine out feed.
- Control panel with touch screen for the intuitive setting of machine functions. Provided with the label test button to perform a labeling test.
- Conveyor system with resin or stainless steel chain and guide rails adjustable to the bottle size. Stainless steel supporting structure. Drive unit with idler is available on demand. (Possibility to install a linear conveyor or a closed circuit)
|
|
|
|
