BENCHTOP COMPACT 40 PRIORCLAVE LABORATORY AUTOCLAVE
Compact Priorclaves allow flexible operation for the low volume user, usually only available in larger units.
- 40 litre capacity (up to 11 x 1 litre bottles or 7 x 1 litre conical flasks)
- Bench mounting
- More flexible than fixed cycle sterilisers for laboratory and mixed load use
- Fully settable up to 138oC – 2.4 Bar. 1-999 minutes
- TACTROL microprocessor control system with optional 5 or 10 program memory and optional Printer
- BioCote anti-microbial surface coating – unique to Priorclave
- 12 months parts and labour warranty (parts only outside the UK)
- 10 year or 10,000 cycle pressure vessel warranty
- Thermal interlock for safety with liquids in sealed glass containers
- Pressure interlock
- Quickseal Series II single action closure
- Media Warming facility
- Delayed Start facility
- Fan assisted cooling
- Timed Freesteaming
- Thermocouple port and separate test port
- Two stainless steel shelves
- Stainless basket and stainless waste container available
- Operation from standard 13 Amp socket (UK)
- Full range of options and accessories
|
|
|
|
|
|
DOUBLE-DOOR, PASS-THROUGH LABORATORY AUTOCLAVES – CIRCULAR SECTION (380/415V, 10.5kW)
Where a clean room or containment suite is being installed it is often an advantage to install a through-wall autoclave to ensure containment. Priorclave manufacture Pass-through autoclaves with circular chambers in 150L and 200L capacities. Double Door Priorclaves have interlocks to prevent both doors being open at the same time as this would breach the integrity of the site. They also have an interlock to prevent the door at the unloading end from being opened until the sterilisation cycle has been successfully completed and the load is safe to pass into the unloading end.
Pass-through Priorclaves include all the features of the Front Loading Range.
Priorclave are pleased to offer our uniquely comprehensive design and advisory service to help you to correctly specify and design and autoclave to suit your particular requirements.
Each site is different with the requirement for doors to be hinged to swing in different directions and with the location of the required services. Final manufacture therefore requires full details of the proposed location and operation routines. This can be achieved by a site survey by one of our representatives or by the supply of detailed drawings.
|
|
|
|
|
|
Q63 LARGE CAPACITY FRONT LOADING PRIORCLAVE LABORATORY AUTOCLAVE
Designed to give the advantages (more difficult to overload and lower costs) of Priorclave’s cylindrical section autoclaves but with a higher capacity the Q63 autoclave is ideal for autoclaving heavy or bulky items.
- 630mm Dia. Cylindrical Chamber
- 320 Litre Capacity
- 21kW kW electric or direct steam heating
- Fully settable up to 138oC–2.4 Bar. 1-999 minutes
- TACTROL microprocessor control system with optional 5 or 10 program memory
- BioCote anti-microbial surface coating – unique to Priorclave
- Castor mounted for ease of positioning
- Two non-tipping shelves
- 12 months parts and labour warranty (parts only outside UK)
- 10 year or 10,000 cycle pressure vessel warranty
- Thermal interlock for safety with liquids in glass containers
- Pressure interlock
- Quickseal Series II single action closure
- Media Warming
- Delayed Start
- Fan cooling
- Timed Freesteaming
- Thermocouple port and test port
- Stainless steel baskets, waste containers and loading trolleys available
- Full range of options and accessories
- Vacuum models available (liquid ring vacuum pump)
|
|
|
|
|
|
FRONT LOADING PRIORCLAVE LABORATORY AUTOCLAVES
A firm favourite in laboratories throughout the food, drink, dairy, health and pharmaceutical industries, these autoclaves and are particularly useful for autoclaving heavy or bulky items.
Models are available in 100, 150 and 200 litre capacities and for electrical or direct steam heating.
- 500mm Dia. Cylindrical Chamber
- 7 or 10.5kW electric or direct steam heating
- Fully settable up to 138oC–2.4 Bar. 1-999 minutes
- TACTROL microprocessor control system with optional 5 or 10 program memory
- BioCote anti-microbial surface coating – unique to Priorclave
- Castor mounted for ease of positioning
- Two non-tipping shelves
- 12 months parts and labour warranty (parts only outside UK)
- 10 year or 10,000 cycle pressure vessel warranty
- Thermal interlock for safety with liquids in glass containers
- Pressure interlock
- Quickseal Series II single action closure
- Media Warming
- Delayed Start
- Fan cooling
- Timed Freesteaming
- Thermocouple port and test port
- Stainless steel baskets, waste containers and loading trolleys available
- Full range of options and accessories
- Vacuum models available (liquid ring vacuum pump)
|
|
|
|
|
|
New OPAL range of laboratory autoclaves
This entry-level, four option range starts with a 35L Bench-top model and includes 55L and 95L top loading models. A 125L Bench-top model with optional mounting stand completes the range.
They have been specifically designed to perform everyday laboratory autoclaving functions such as growth media preparation and laboratory waste sterilisation. It is intended to enable laboratories, with a more basic need, to perform these operations within their own laboratory to specific requirements, without unnecessary expenditure on additional functions and control systems often fitted as standard on today's autoclaves, for more exacting procedures.
All autoclaves in the range feature automatic free steaming and a thermal safety lock and are managed by a slimmed down version of Priorclave's tried and tested TACTROL microprocessor control system. They will operate up to 138oC - 2.4 Bar.
The models are based around Priorclave's existing product range and so are fully compliant and CE marked in accordance with the European Pressure Equipment Directive (97/23/EC) and other relevant directives and standards.
|
|
|
|
|
|
RECTANGULAR SECTION VERTICAL POWER DOOR PRIORCLAVE LABORATORY AUTOCLAVES
Perfect for high volume throughput as well as large bulky items, these autoclaves combine a huge internal capacity with a small floor area.
The Priorclave Hydraulic Power Door mechanism enables the door to be opened and closed at the touch of a button.
A fixed door seal is used for reliable, trouble free operation.
- 230, 285, 350, 450 & 700 litre capacities (Intermediate and larger capacities also available)
- 3 Year Guarantee on door seal
- Powerful heaters for shortened cycle times
- 21, 31.5 or 42kW (380/415V) electric or direct steam heating
- Steam Jacketed versions available (steam heated models only)
- Fully settable up to 138oC–2.4 Bar. 1-999 minutes
- TACTROL microprocessor control system with optional 5 or 10 program memory
- BioCote anti-microbial surface coating – unique to Priorclave
- Two non-tipping shelves
- 12 months parts and labour warranty (parts only outside UK)
- 10 year or 10,000 cycle pressure vessel warranty
- Thermal interlock for safety with liquids in glass containers
- Pressure interlock
- Media Warming & Delayed Start
- Fan cooling
- Timed Freesteaming
- Thermocouple port and test port
- Stainless steel baskets, waste containers and loading trolleys available
- Full range of options and accessories
- Vacuum models available (liquid ring vacuum pump)
|
|
|
|
|
|
RECTANGULAR SECTION PRIORCLAVE LABORATORY AUTOCLAVES
Perfect for high volume throughput as well as large bulky items, these autoclaves combine a huge internal capacity with a small floor area.
- 230, 285, 350, 450 & 700 litre capacities (Intermediate and larger capacities also available)
- Compact design – 235 and 350 models will fit through standard door
- Simple, hand wheel door closure (with patented Priorclave safety mechanism – Also available with vertical sliding door closure
- Powerful heaters for shortened cycle times
- 21, 31.5 or 42kW (380/415V) electric or direct steam heating
- Steam Jacketed versions available (steam heated models only)
- Fully settable up to 138°C–2.4 Bar. 1-999 minutes
- TACTROL microprocessor control system with optional 5 or 10 program memory
- BioCote anti-microbial surface coating – unique to Priorclave
- Two non-tipping shelves
- 12 months parts and labour warranty (parts only outside UK)
- 10 year or 10,000 cycle pressure vessel warranty
- Thermal interlock for safety with liquids in glass containers
- Pressure interlock
- Media Warming & Delayed Start
- Fan cooling
- Timed Freesteaming
- Thermocouple port and test port
- Stainless steel baskets, waste containers and loading trolleys available
- Full range of options and accessories
- Vacuum models available (liquid ring vacuum pump)
|
|
|
|
|
|

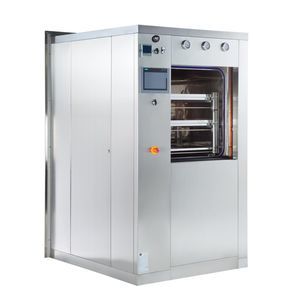

DOUBLE-DOOR, PASS-THROUGH LABORATORY AUTOCLAVES – RECTANGULAR SECTION (380/415V, 21, 31.5 or 42kW)
Where a clean room or containment suite is being installed it is often an advantage to install a through-wall autoclave to ensure containment. Priorclave manufacture Pass-through autoclaves with rectangular section chambers in 400 to 100 litre capacities. Double Door Priorclaves have interlocks to prevent both doors being open at the same time as this would breach the integrity of the site. They also have an interlock to prevent the door at the unloading end from being opened until the sterilisation cycle has been successfully completed and the load is safe to pass into the unloading end.
Pass-through Priorclaves include all the features of the Rectangular Section Range.
Priorclave are pleased to offer our uniquely comprehensive design and advisory service to help you to correctly specify and design and autoclave to suit your particular requirements.
Each site is different with the requirement for doors to be hinged to swing in different directions and with the location of the required services. Final manufacture therefore requires full details of the proposed location and operation routines. This can be achieved by a site survey by one of our representatives or by the supply of detailed drawings.
|
|
|
|
|
|
COMPACT 60 PRIORCLAVE LABORATORY AUTOCLAVE
An ideal solution for the laboratory with occasional or low volume autoclaving requirements the Compact 60 allows flexible operation for the low volume user, usually only available in larger units.
- 60 litre capacity
- Floor standing with lockable castors
- More flexible than fixed cycle sterilisers for laboratory and mixed load use
- Fully settable up to 138°C – 2.4 Bar. 1-999 minutes
- TACTROL microprocessor control system with optional 5 or 10 program memory and optional Printer
- BioCote anti-microbial surface coating – unique to Priorclave
- 12 months parts and labour warranty (parts only outside the UK)
- 10 year or 10,000 cycle pressure vessel warranty
- Thermal interlock for safety with liquids in sealed glass containers
- Pressure interlock
- Quickseal Series II single action closure
- Media Warming facility
- Delayed Start facility
- Fan assisted cooling
- Timed Freesteaming
- Thermocouple port and separate test port
- Two stainless steel mesh baskets and a load support plate
- Stainless steel waste container available
- Operation from standard 13 Amp socket (UK)
- Full range of options and accessories
|
|
|
|
|
|
TOP LOADING PRIORCLAVE LABORATORY AUTOCLAVES
A firm favourite in laboratories throughout the food, drink, dairy, health and pharmaceutical industries, these autoclaves feature a 500mm vessel diameter enabling low loading heights for increased operator comfort. Models are available in 100 and 150 litre capacities and for electrical or direct steam heating.
- Compact for where space is at a premium
- 7 or 10.5kW or direct steam heating.
- Fully settable up to 138C–2.4 Bar. 1-999 minutes
- TACTROL microprocessor control system with optional 5/10 program memory
- BioCote anti-microbial surface coating – unique to Priorclave
- 12 months parts and labour warranty (parts only outside UK)
- 10 year or 10,000 cycle pressure vessel warranty
- Thermal interlock for safety with liquids in glass containers
- Pressure interlock
- Quickseal Series II single action closure
- Media Warming and Delayed Start
- Fan cooling
- Timed Freesteaming
- Thermocouple port and test port
- Load support plate and 2/3 baskets
- Stainless steel waste container available
- Full range of options and accessories
- Vacuum models available (liquid ring vacuum pump)
|
|
|
|
|
|
BENCHTOP COMPACT 40 PRIORCLAVE LABORATORY AUTOCLAVE WITH VACUUM
Compact Priorclaves allow flexible operation for the low volume user, usually only available in larger units. These units include a vacuum system and pulsed freesteaming to assist with steam penetration in difficult loads. The vacuum system can also be used for fast vacuum cooling (Non Liquid loads only)
- 40 litre capacity (up to 11 x 1 litre bottles or 7 x 1 litre conical flasks)
- Bench mounting
- Specification includes a Diaphragm Vacuum Pump, Pulsed Freesteaming and a 5-programme memory.
- More flexible than fixed cycle sterilisers for laboratory and mixed load use
- Fully settable up to 138oC – 2.4 Bar. 1-999 minutes
- TACTROL microprocessor control system with optional 5 or 10 program memory and optional Printer
- BioCote anti-microbial surface coating – unique to Priorclave
- 12 months parts and labour warranty (parts only outside the UK)
- 10 year or 10,000 cycle pressure vessel warranty
- Thermal interlock for safety with liquids in sealed glass containers
- Pressure interlock
- Quickseal Series II single action closure
- Media Warming facility
- Delayed Start facility
- Fan assisted cooling
- Timed Freesteaming
- Thermocouple port and separate test port
- Two stainless steel shelves
- Stainless basket and stainless waste container available
- Operation from standard 13 Amp socket (UK)
- Full range of options and accessories – including vacuum assisted drying
|
|
Front Loading Autoclaves - Circular Section
Ideal for all Laboratory Applications
Available with various options and accessories, including Assisted Air Cooling, Load Sensed Process Timing, Advanced Water Cooling, Pulsar Free Steaming, Data Recording devices etc.
120 - 330 Litres - Front Loading
Fully Programmable Touch Screen Controller
PIN Restricted User Programming
Holdwarm / Delayed Start
Timed Free Steaming
Base Shelf
Full Range of Options & Accessories
Suitable for a wide range of Laboratory applications
Guaranteed precision and versatility in sterilization
Ultra Quick Swiftlock Door Mechanism
|
|
Selecting an autoclave is an important long-term investment decision. Choosing the right sterilization system will have a positive impact on performance and efficiency. The Touchclave-Lab range is provided with a host of features specifically designed to improve throughput and usability
Touchclave-Lab sterilizers are built to BS2646:1993, BS3970 and HTM2010 (option). All pressure vessels comply with the European PED 97/23/EC and are independently tested to PD5500:2000 Cat 3 along with other international standards. LTE also supplies sterilizers to meet the requirements of many other standards and guidelines, including HTM2031, EN285, cGMP and EN12347. Call our technical team or sales office to discuss your requirements.
|
|
Top Loading Autoclaves
Ideal for all Laboratory Applications
Available with various options and accessories, including Assisted Air Cooling, Load Sensed Process Timing, Advanced Water Cooling, Pulsar Free Steaming, Data Recording devices.
90 - 130 Litres - Top Loading
Fully Programmable
PIN Restricted User Programming
Timed Free Steaming
Electro Polished S/Steel Chamber
Holdwarm / Delayed Start
Full Range of Options & Accessories
Suitable for a wide range of Laboratory applications
Guaranteed precision and versatility in sterilization
Ultra Quick Swiftlock Door Mechanism
|
|
Available with various options and accessories, including Assisted Air Cooling, Load Sensed Process Timing, Data Recording devices etc.
There are two version of the Compact autoclaves:
Classic Version
Ideal for all Laboratory Applications, especially Liquid Loads, Media etc.
This is the ideal model for all standard traditional laboratory sterilization procedures. Water fill is manual; during the cycle condensate leaves the vessel via a silicone tube that is connected to a heat resistant bottle. Ideal for use with media or liquid loads.
AutoFill Version
Ideal for all Laboratory Applications - AutoFill is fitted as standard
A pulsed-heat drying system, which is adjustable in 5 minute steps, is available when running a non-fluid cycle. The integral reservoir, once filled, provides sufficient water for up to 20 cycles; moreover, the same container also acts as a collection vessel for both condensate and water which is returned from the autoclave chamber at the end of the cycle.
|
|
Top Loading Vacuum Autoclaves
Ideal for more demanding Laboratory applications.
The addition of a vacuum system enhances pre-sterilization air removal and greatly reduces cycle times. Post vacuum drying (in conjunction with the optional heated jacket or external vessel warming) greatly improves drying performance.
Available with various options and accessories, including Air Ballast, CAT III Compliance, Full Heated/Cooling Jackets, Load Sensed Process Timing, Data Recording devices etc.
110 & 130 Litres - Top Loading
Touch Screen Fully Programmable Controller
Vacuum Pulsing
Integral Steam Generator (unless direct steam)
Electro Polished S/Steel Chamber
PIN Restricted User Programming
Delayed Start
Full Range of Options & Accessories
Suitable for a wide range of demanding laboratory applications
Guaranteed precision and versatility in sterilization
Ultra Quick Swiftlock Door Mechanism
|
|
Autoclave Controls diameter 900mm
- rotary and pendular
- statics
- process vapor air
- process streaming of water
- process immersion of water
- mono, Bi and multi process
|
|
| ... products without technical information |
| |
|
High pressure reactors can be customized with sightglasses, liners & high pressure analytical probes. Ease of cleaning & elimination of foot bearings reduces the risk of cross-contamination. It has indefinite service life & improved experimental repeatability compared to non-stirred autoclaves, laboratory bombs & reaction kettles. See AE Closure Ultra High Pressure Reactors for pressures above 5,000 psi (379 bar). See Easy Open Laboratory Reactors for pressures of 3,300 psi (227 bar) or less.
|
|
|
|
